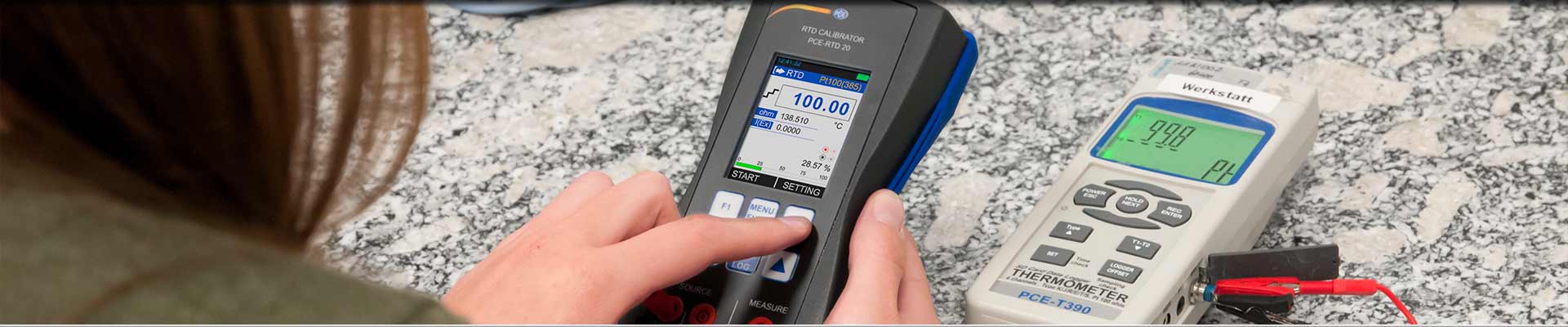

Process Calibrator

The calibrator or process calibrator is used for basic measuring, testing and regulation techniques for setting and verifying test installations and instrumentation. A PCE calibrator is made of high strength materials and is lightweight and easy to be used handheld or can be fixed installed if necessary. This calibrator is valued by technicians due to its high level of accuracy and its universal range of applications.

No electrician or electrical technician should go without a process calibrator. The process calibrator is also instrumental within the industrial sector, especially within large facilities where many parameters of electrical measurement must be analyzed. The calibrator has different magnitudes that should be attributed to normal measurement signals. These measurement signals or regulated magnitudes are denominated as the test signal, which the calibrator can provide. They are defined as 0 to 20mA, 4 to 20mA, 0 to 10V and 0.2 to 1 bar. These magnitudes signify, for example, temperature, output or settings of a test valve (0 to 100% of valve opening). This signifies that for a regulating signal of 50% (eg. 10mA) with an input range of 0 to 20mA in a test valve, the valve opening will be 50%.

Some calibrators are task specific for instance a calibrator used to for infrared thermometers in laboratories. The calibrator’s thermal block, or black body serves as the source of radiation for calibrating pyrometers. This calibrator also allows for use of the thermal block in adverse conditions. The calibrator control unit is simple to utilize and has an easily readable display that shows the temperature being verified. A specialized cooling unit on the calibrator allows for temperatures to be raised or lowered quickly.

If you have any questions, please contact us at or +44 ( 0 ) 161 464902 0.

Class 2 Sound Level Calibrator PCE-SC 43

£ 126.00

Price excl. VAT &. delivery
2 year Warranty

The calibration frequency for the class II sound level calibrator is 1000 Hz and is a sinusoidal shape. Compared to other calibrators, this class II sound level calibrator has three adjustable sound pressure levels. 94 dB, 104 dB and 114 dB are available and can be selected by pressing a button on the class II sound level calibrator.

Sound pressure level 94, 104, 114 db
For weighting filters A, B, C and D
1/2 inch microphone connection
Class II

Class 1 Sound Level Calibrator PCE-SC 09

£ 445.00

Price excl. VAT &. delivery
2 year Warranty

The Class I Sound Level Calibrator is a battery powered sound source. With the Class I sound level calibrator, direct and fast calibrations of sound level meters and other systems for noise measurement can be carried out.

Sound pressure level: 94 dB, 114 dB
Accuracy class: IEC 942, class 1
Accuracy sound level: ± 0.3 dB (20°C / 68°C, 760 mm / 30 in Hg)
Frequency: 1000 Hz for A, B, C and D frequency weighting

Process Calibrator PCE-123

£ 499.00

Price excl. VAT &. delivery
2 year Warranty

PCE-123 is a process calibrator used to test and calibrate a variety of measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use calibrator provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the calibrator useful in a wide range of applications.

DC current: 4 - 20 mA (1 kΩ load, 24 V loop supply) with 1 μA resolution
DC voltage: 0 - 100.00 mV, 0 - 1.000 V, 0 - 12.000 V
K, J, E, T type thermocouples (°C or °F)
Frequency: 1 - 62,500 Hz

Class I Sound Level Calibrator PCE-SC 09-ICA incl. ISO Calibration Cert.

£ 628.00

Price excl. VAT &. delivery
2 year Warranty

Sound pressure level: 94 dB, 114 dB
Accuracy class: IEC 942, class 1
Accuracy sound level: ± 0.3 dB (20°C / 68°C, 760 mm / 30 in Hg)
Frequency: 1000 Hz for A, B, C and D frequency weighting
incl. ISO Calibration Certificate

Process Calibrator PCE-123-ICA incl. ISO Calibration Certificate

£ 628.00

Price excl. VAT &. delivery
2 year Warranty

PCE-123 is a process calibrator used to test and calibrate a variety of measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use process calibrator provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the process calibrator useful in a wide range of applications.

DC current: 4 - 20-mA (1 kΩ load, 24 V loop supply) with 1 μA resolution
DC voltage: 0 - 100.00 mV, 0 - 1.000V, 0 - 12.000V
K, J, E, T type thermocouples (°C or °F)
Frequency: 1 - 62,500 Hz
Incl. ISO Calibration Certificate

Vibration Calibrator PCE-VC20

£ 2,343.00

Price excl. VAT &. delivery
2 year Warranty

PCE-VC20 is a vibration calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration calibrator generates mechanical vibrations with a quartz-stabilized vibration frequency of 159.15 Hz (radian frequency 1000/s).

Load-independent vibration magnitude with an RMS of:

10 m/s² vibration acceleration
10 mm/s vibration velocity
10 µm vibration displacement

Vibration Calibrator PCE-VC21

£ 3,560.00

Price excl. VAT &. delivery
2 year Warranty

PCE-VC21 is a vibration calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration calibrator generates mechanical vibrations with adjustable quartz-stabilized vibration frequencies between 15.92 and 1280 Hz and adjustable vibration amplitudes between 1 m/s² and 20 m/s².

Load-independent vibration magnitude
7 adjustable vibration frequencies- 5 adjustable vibration amplitudes
