Roll Hardness Tester

A roll hardness tester is a device to measure the roll hardness, hardness profile and hardness variation of paper rolls. Roll hardness is one of the most important parameters when deciding whether a paper roll is good or bad. A roll that is wound too softly can go out of round when handled. A roll that is wound too hard, on the other hand, can crack during transportation.[1] These variations are difficult to detect. Above all, it is typically the variation in hardness across a given roll that relates most directly to such converting issues with soft edges being perhaps the biggest contributor.

Roll Hardness Test Instrument PCE-HT-225A

£ 352.00

Price excl. VAT &. delivery
2 year Warranty

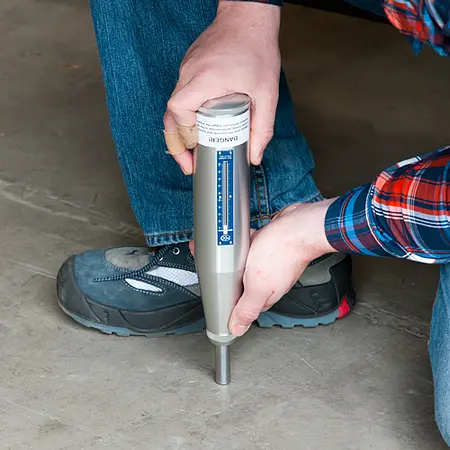

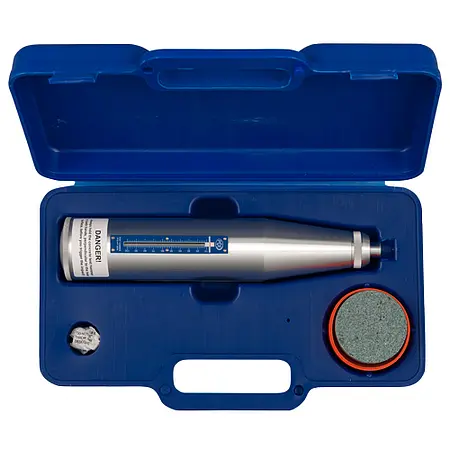

PCE-HT-225A is a heavy-duty roll hardness tester or concrete test hammer, also called a paper roll rebound hammer or Swiss hammer, used to measure surface hardness and material compression strength. Suitable for use with rolled paper, concrete, rock and building materials, this rugged, manufacturer-calibrated rebound hammer is both easy to use and built to last.

Test range: 10 … 60 MPa or 100 … 600 kg/cm² or 1450 … 8702 psi
Impact energy: 2.207 J or N-m / 0.225 kgf.m / 1.6278 ft-lb or Type N
Impact stroke: 75 ± 0.3 mm / 2.95 ± 0.012 in
Radius of spherical tip: 25 ± 1 mm / 0.99 ± 0.04 in

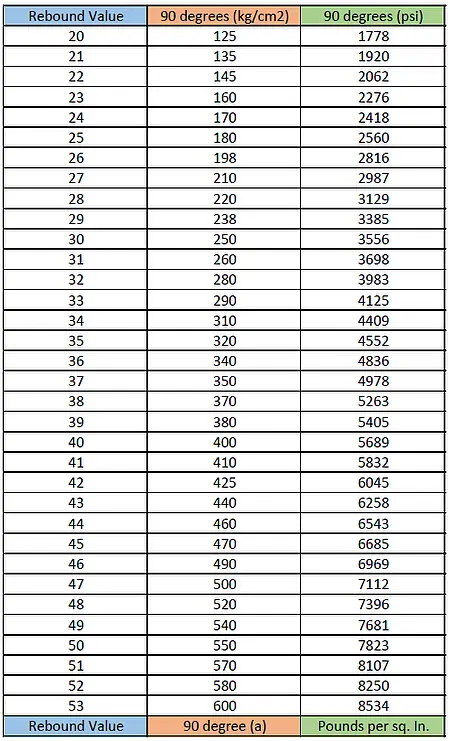

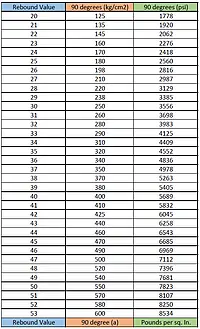

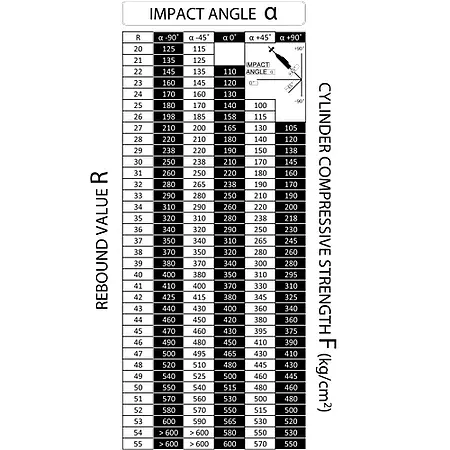

kg/cm², psi, and MPa conversion tables

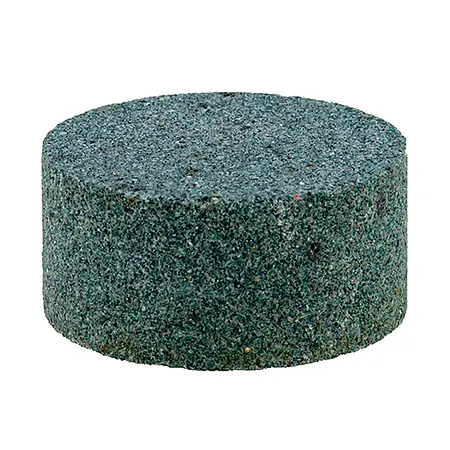

Optional test anvil to verify accuracy listed under accessories

Roll Hardness Tester PCE-HT-450

£ 1,326.00

Price excl. VAT &. delivery
2 year Warranty

The roll hardness tester is an analog measuring device to determine concrete strength. The measuring method of the roll hardness tester is based on the Schmidt principle. With this measuring method, a kinetic impact energy hits the concrete from the roll hardness tester. The resulting rebound enables the roll hardness tester to determine the strength of the concrete.

Nominal kinetic energy: 4.5 J
For high-strength concrete
Simple and quick operation
For determining concrete hardness
Schmidt principle
