Rotation Meter PCE-LES 103UV-385

Order no.: PCE-LES 103UV-385
GTIN (EAN): 4250348734365
£ 489.00
£ 586.80
price ex. (VAT / delivery)
:
4250348734365
PCE-LES 103UV-385
Delivery time: 5-7 working days

Description

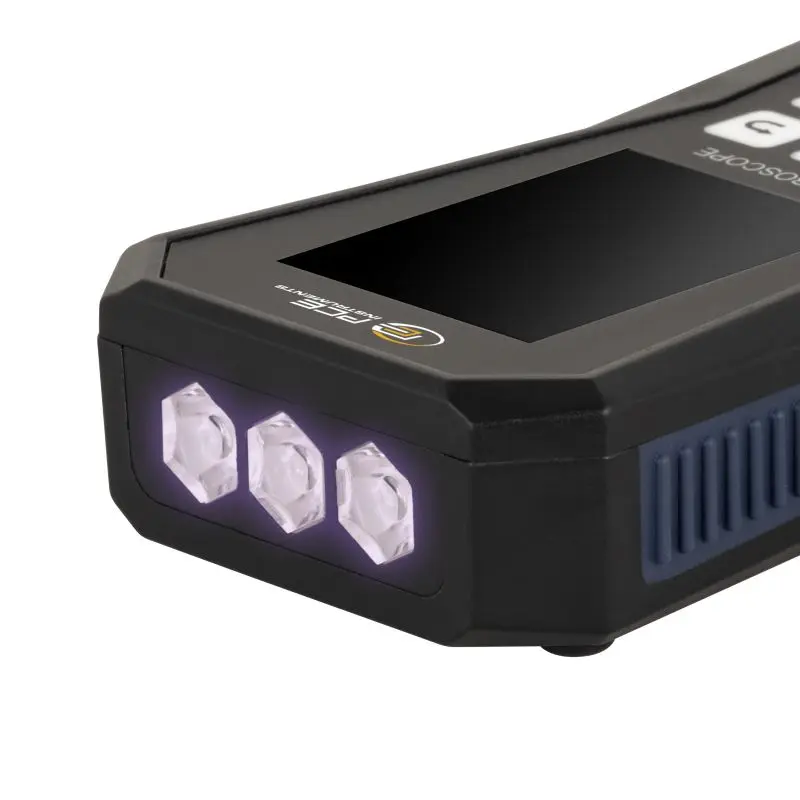

Rotation Meter with 3 UVA high-power LEDs (385 nm) / 317 μW/cm² at 30 cm / pulse width in per cent, degrees or time adjustable / phase shift / simple, clear display / mains-independent thanks to battery operation

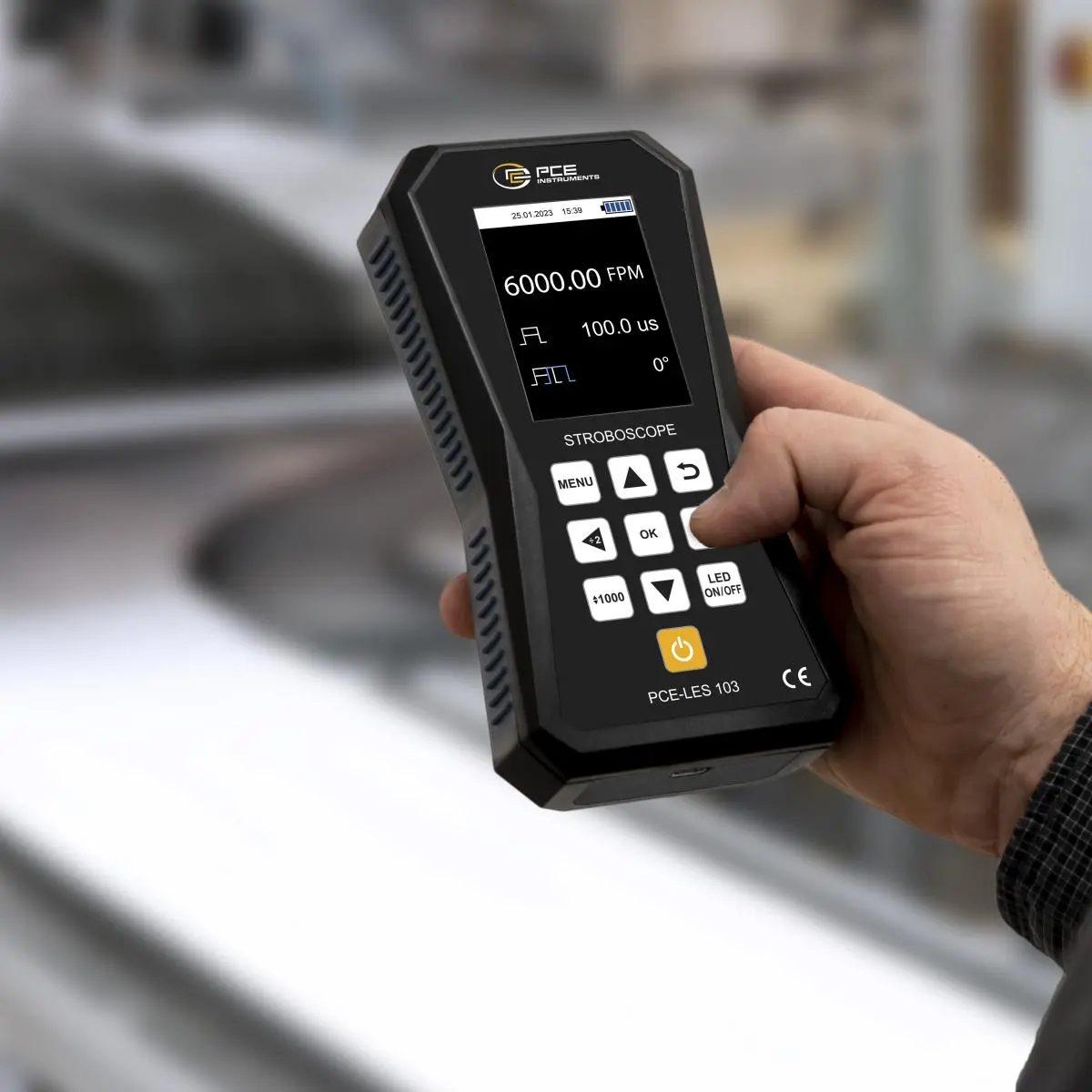

Motion analysis of rotating machines is quick and easy with our rotation meter. The rotation meter is equipped with 3 high-power UVA LEDs (385 nm), which together generate a light intensity of 317 μW/cm² at a distance of 30 cm. The rotation meter allows the flash frequency to be set in FPM and Hz. UV Stroboskop Skizze über die jeweilige Lichtstärke bei verschiedenen Abständen.At the same time, it is small, handy and independent of the power supply thanks to its rechargeable battery.

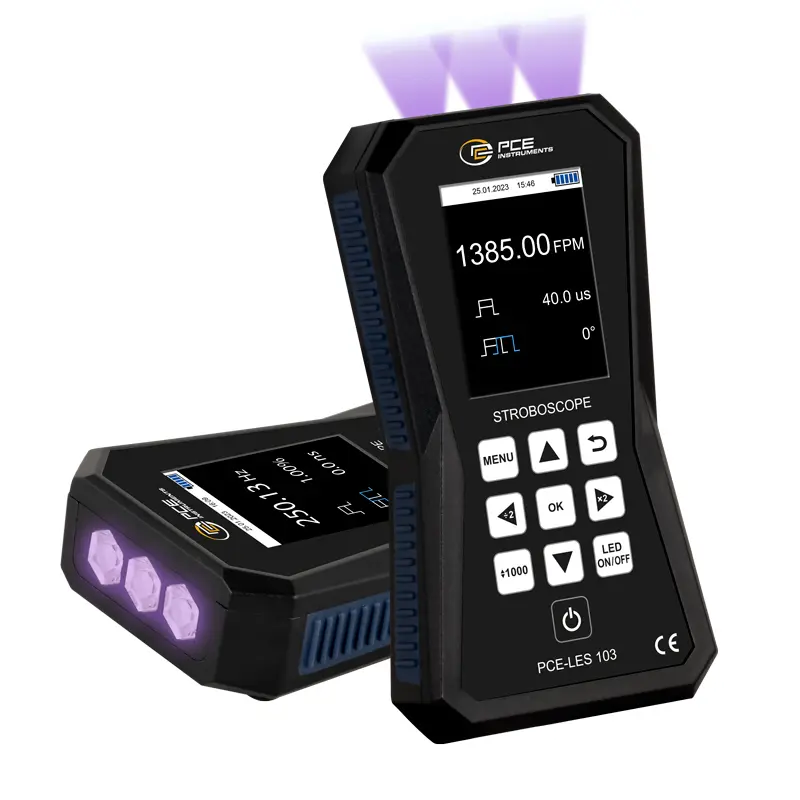

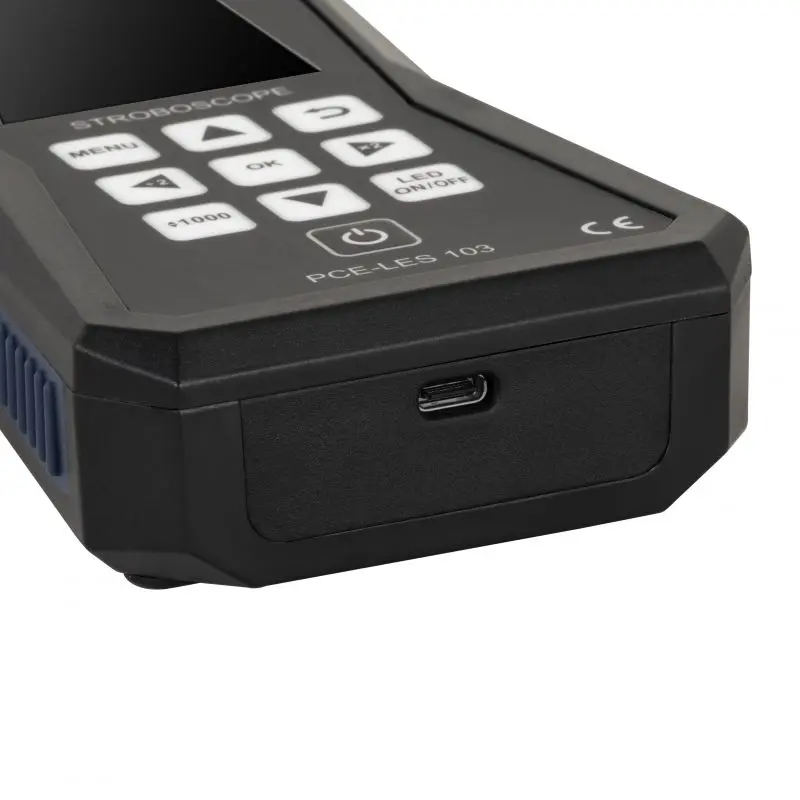

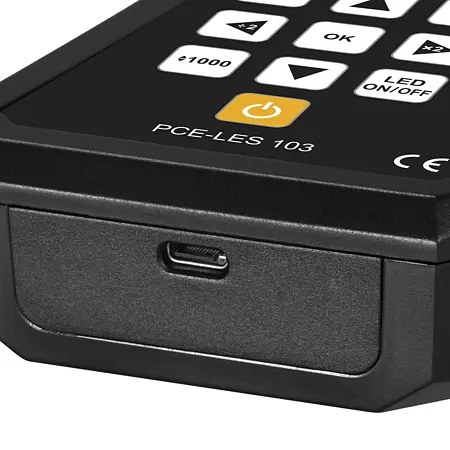

The rotation meter is operated intuitively using 10 buttons, allowing quick settings to be made. The observation point can be variably shifted using the phase shift. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. In the settings menu, you can select the display brightness and switch off the display after a period of inactivity, which extends the battery life. The rotation meter is supplied with a USB-C charging cable in a service bag.

Rotation Meters are indispensable tools for monitoring and inspecting production facilities, e.g. in the printing and textile industries. But also for general maintenance and inspection tasks in all industrial sectors. They also enable non-contact speed and vibration measurement: if the flash frequency of the rotation meter  matches the movement frequency, the measured object appears stationary.


Highlights

- 3 UVA high-power LEDs
- Wavelength: 380 ... 390 nm
- Flash frequency adjustable in FPM and Hz
- Intensity: 317 μW/cm² at 30 cm
- Digital pulse width modulation
- Phase shift: - 360 ° ... + 360 °
- Quick adjustment using x2 and ÷2 buttons
- Intuitive control buttons and clear display

Specification

Frequency
Measuring range  60 FPM ... 9999.99 FPM
Resolution  0.01 FPM
Accuracy  +/- 0.003 % of the setting or ± 1 LSD of the setting or +/-1 LSD

Frequency
Measuring range  10000 FPM ... 300000 FPM
Resolution  0.1 FPM
Accuracy  +/- 0.003 % of the setting or ± 1 LSD of the setting or +/-1 LSD

Frequency
Measuring range  1 Hz ... 5000 Hz
Resolution  0.01 Hz
Accuracy  +/- 0.003 % of the setting or ± 1 LSD of the setting or +/-1 LSD

General technical data
Display type  TFT colour display
Display size  2.8 inch
Operating time  4.5 h
Operating time additional information  at flash frequency 100 Hz, 1 %, display brightness 70 %
Automatic switch-off adjustable  2 ... 10 min.
Automatic switch-off can be deactivated  Yes
Light intensity  635 μW/cm2 @ 20 cm @ 1000 Hz, 1 %
317 μW/cm2 @ 30 cm @ 1000 Hz, 1 %
115 μW/cm2 @ 50 cm @ 1000 Hz, 1 %
Light colour  UV light (380 ... 390 nm)
Phase shift  -360 ... 360 °
Pulse width  0.01 ... 1 % of pulse duration
Resolution: 0.01 %

0.01 º ... 3.60 º from 360 º
Resolution: 0.01 º
Menu language  German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese
Protection class (device)  IP52
Power supply  5V DC, 2A
Weight  284 g
Dimensions (L x W x H)  165 x 90 x 35 mm
Operating conditions  -20 ... 60 °C , 35 ... 85 % r.H
Storage conditions  -20 ... 60 °C , 35 ... 85 % r.H

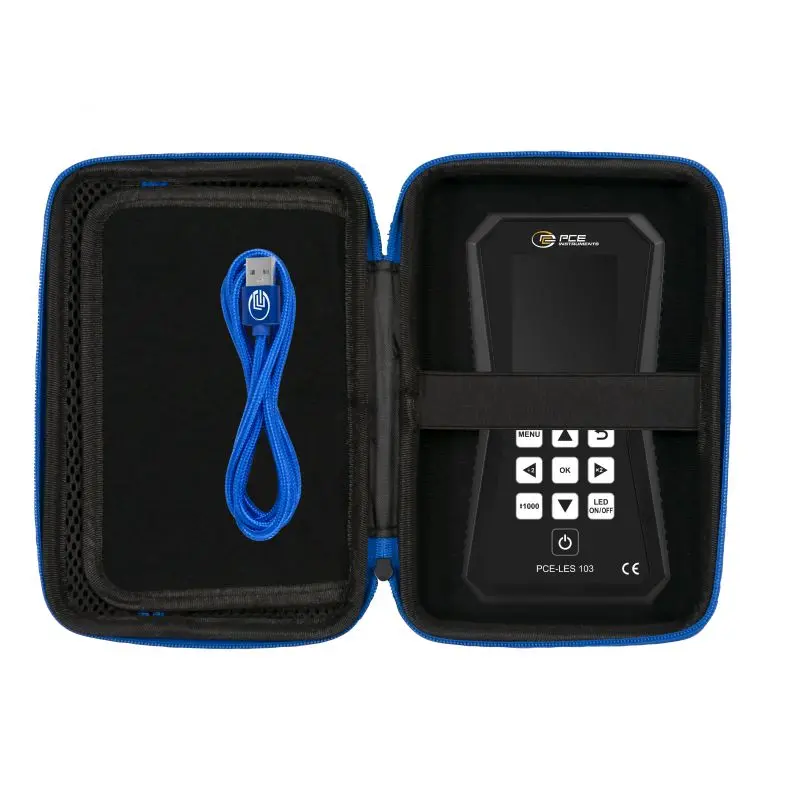

Delivery Scope

1 x rotation meter PCE-LES 103UV-385
1 x USB-C cable
1 x Quick Start Guide
1 x Service bag
