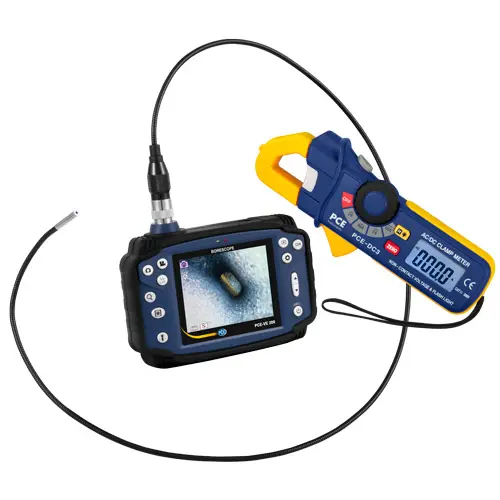

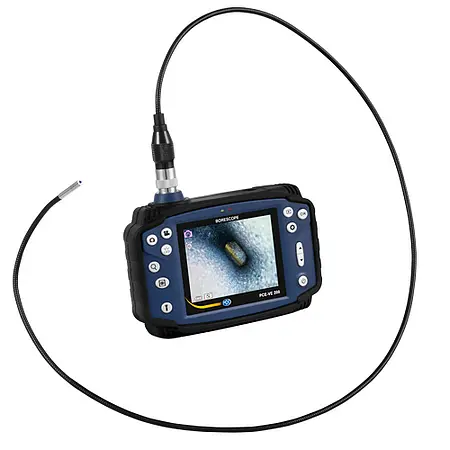

Snake Camera PCE-VE 200-KIT2

Order no.: PCE-VE 200-KIT2
GTIN (EAN):
£ 735.00
£ 882.00
price ex. (VAT / delivery)
PCE-VE 200-KIT2
Delivery time: 1-2 working days
No
4.5 mm
1 m
1600 x 1200 pixels
No
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)

Description

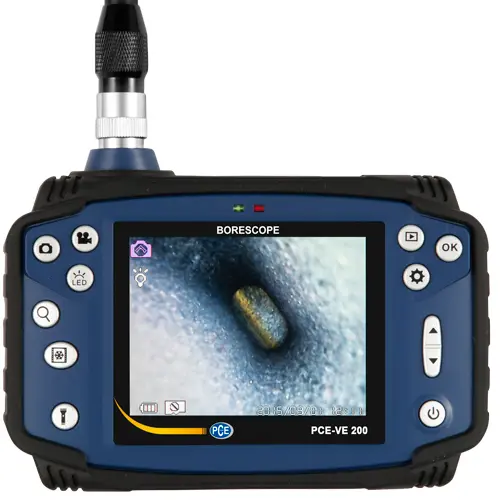

PCE-VE 200 Snake Camera
Video inspection camera for nondestructive evaluation (NDE) and machine diagnostics

PCE-VE 200 is a snake camera, for nondestructive evaluation (NDE) and machine diagnostics. The PCE-VE 200 snake camera provides excellent image quality at an affordable price. An ideal tool for diagnosing hard-to-reach places, the scope can be rotated 180 ° and offers 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.



The snake camera stores the recorded images and videos directly to a micro SD card memory. The 3.28 ft cable length and 0.18 in cable diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this snake camera useful in a variety of applications.




Clamp Meter 2/80 Amp; AC/DC (of high accuracy)

This Clamp Meter has been developed to determine indirectly, the the AC/DC currents with high accuracy. A non-contact clamp meter and a torch to illuminate the area being measured, have been integrated into this device.



The small size of this  Clamp Meter, makes it possible to use in small spaces with limited access. The large illuminated display of this Clamp Meter guarantees clear readings in dark places such as in distribution boards. The non-contact Clamp Meter will help you when exposed to potential risk and to locate with precision, break points in cables within distribution boards, etc.



Highlights

Snake Camera
- 3.5 in LCD display
- 3.28 ft cable length
- 0.18 in cable diameter
- 1/8 in camera head / CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory
- Micro USB 2.0 and TV outputs

Clamp Meter
- 4 digit LCD display with backlighting
- AC/DC current measurement up to 80 Amps
- save function
- DCA zero rest function
- current tester, non-contact
- integrated light to illuminate measured area
- automatic range selection
- automatic disconnect
- clamp diameter: 18 mm

Specification

Snake Camera


Display LCD, 3.5 in
Resolution 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video
Image rotation 180 ° and mirror functionality
Freeze functionality Yes
Zoom Up to 4 times digital image magnification
Menu languages English, Spanish, French, German, Russian, Japanese, Simplified Chinese, Traditional Chinese
Cable diameter 4.5 mm / 0.18 in cable diameter
Cable length 1 m / 3.28 ft
Cable rigidity Semi-flexible (semi-rigid spiral)
Camera head 1/8 in CMOS chip image sensor
Lighting 6 white LEDs (adjustable intensity)
Field of view / perspective 90 °
Sight depth 15 ... 100 mm/0.59 ... 3.93701 in
Storage medium Micro SD card
Interfaces Micro USB 2.0, TV output (PAL), Micro SD card slot
Power supply Li-ion battery
Battery capacity 2600 mAh

Operating conditions
Main unit and probe, in air                         -10 ... +50 ° C / +14 ... +122 ° F, rel. humidity 15 ... 90%
Probe, in water +5 ... +50 ° C / +41... +122 ° F

Fluid resistance
Main unit and probe Machine oil, light oil or 5% saline

Protection against
Main unit Blowing rain (battery compartment must be closed), not underwater
Probe Water, oil and dust, according to protection class IP67



Clamp Meter


AC current (50 / 60 Hz)
  Range / Resolution / Accuracy
2 A / 1 mA / ± 2.8 % + 10 dgt
80 A / 100 mA / ± 3.0 % + 8 dgt

DC current Range / Resolution / Accuracy
2 A / 1 mA / ± 3.0 % + 10 dgt
80 A / 100 mA / ± 3.0 % + 8 dgt
AC overload protection
(non-contact)
100 VAC up to 600 VAC 50 / 60 Hz
Measurement area illumination white LED
Conductor diameter 18 mm maximum
Display 3 2/3 digit LCD display with backlighting
Power 2 - 1.5V AAA batteries
Casing PVC
Dimensions 164 x 65 x 32 mm
Weight 175 g
Standards EN61010-1; CAT II / 600V
EN61010-2-032; CAT III / 300V










Delivery Scope

1 x PCE-VE 200 Snake Camera ***Not for medical use***
1 x USB cable
1 x USB adapter
1 x User Manual
1 x PCE-DC 3 Clamp Meter
1 x Case
2 x Batteries
1 x User's manual
