Outdoor Sound Monitor Kit PCE-4xx-EKIT

Order no.: PCE-4xx-EKIT-EU
GTIN (EAN):
£ 3,374.00
£ 4,048.80
price ex. (VAT / delivery)
PCE-4xx-EKIT-EU
Delivery time: 1-2 working days

Description

Outdoor Sound Monitor Kit PCE-4xx-EKIT / Waterproof Outdoor Set / for PCE-428, PCE-430 & PCE-432 / Waterproof external microphone / Tripod / 10 days running time

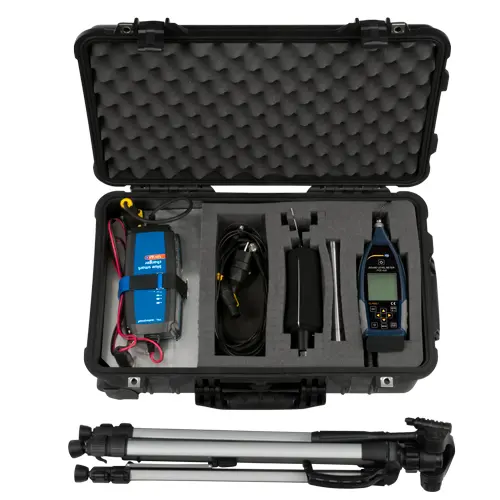

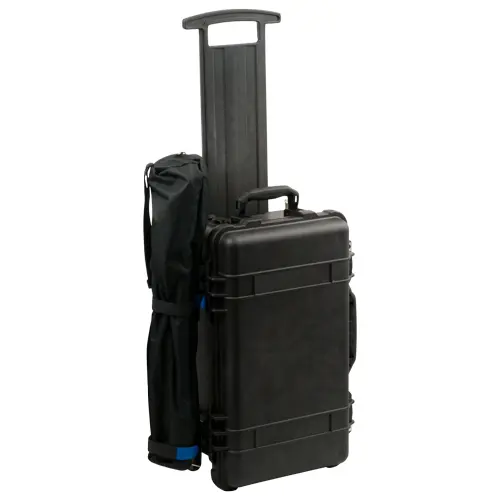

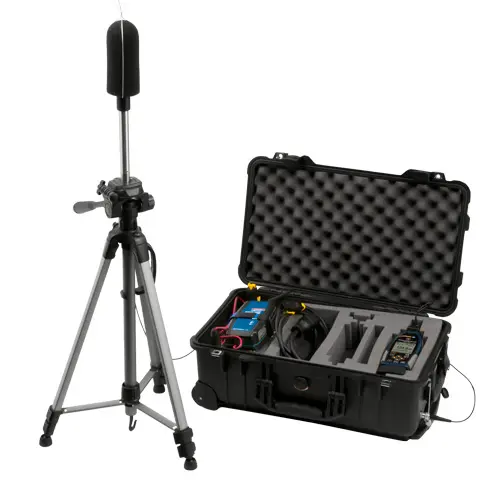

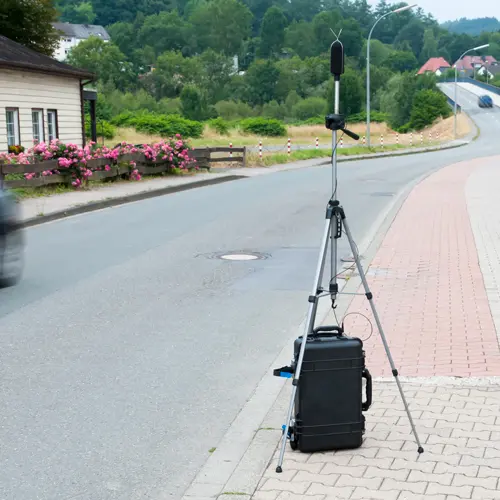

The additional kit for outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432. This kit makes it possible to measure the outdoor noise with a sound level meter over a long period of time. The environmental noise monitoring system consists of a waterproof Peli carrying case with rollers. A charger and two additional lead gel batteries are installed in this case, which allows an operation of the sound monitor for up to 10 days. During the outdoor sound measurement, the case may remain closed. Due to the external connections for the microphone and the power supply all electronic components are protected from water.

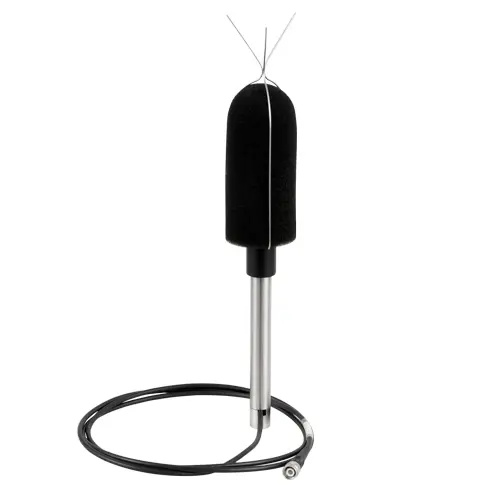

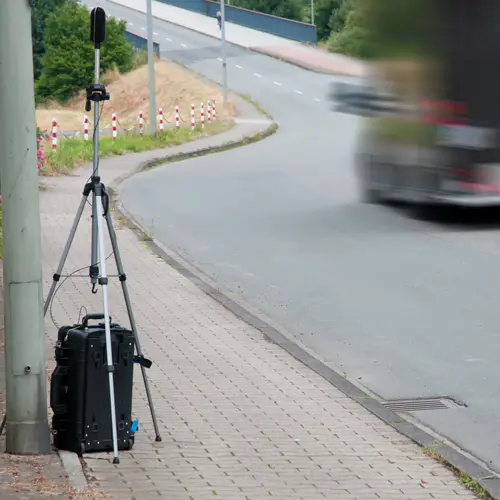

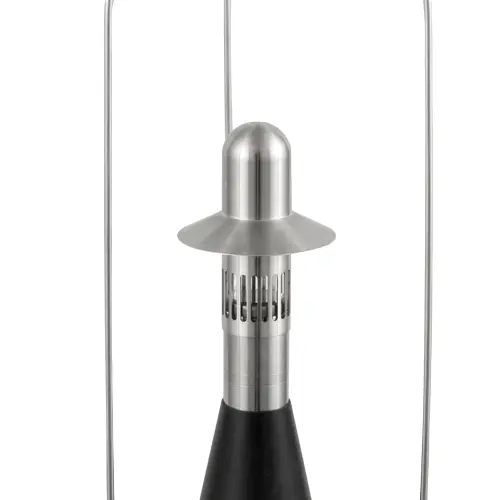

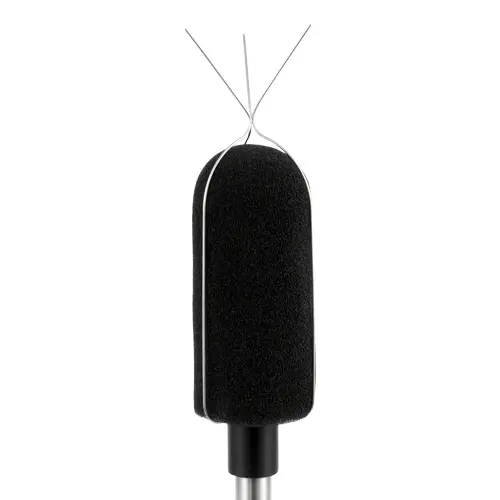

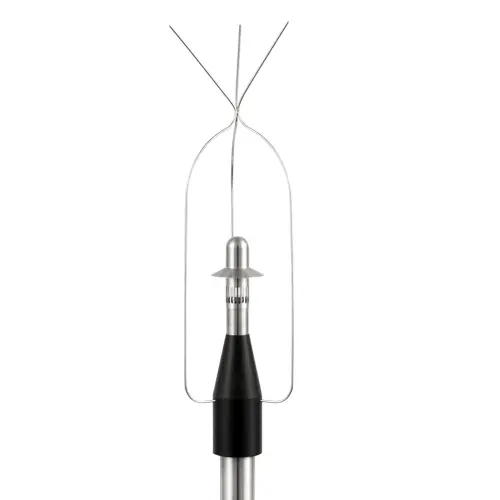

The delivery scope of the outdoor sound monitor includes rain and wind protection as well as a wire mesh for the microphone. Also, a tripod is available with which the microphone can be placed outdoors. Also, the charger in the measuring kit PCE-4xx-EKIT is waterproof. So, the charger may also remain outdoors. The outdoor noise monitor can be used, for example, for the sound measurement of street noise, aircraft and train noise, event noise, noise from construction sites, ports, factories involving heavy machinery, airport/bus stations noise, stadiums, horse/motor racing tracks etc. The weather conditions do not matter, and hail, snow, rain and similar are no problem for the system for outdoor noise monitoring. If the sound level meter PCE-432 is combined with this measuring system, it is even possible that the exact location of the sound level monitoring around the outdoor area is assigned via the GPS receiver.


Highlights

- Waterproof sound/noise level measuring kit
- Outdoor measurement of sound and noise
- Additional batteries for long running time
- Available with PCE-428, PCE-430 & PCE-432
- Microphone protection from outdoor noise
- Incl. tripod and charger

Specification

Carrying case PELI 1510 with rollers with grid foam
Protection IP65

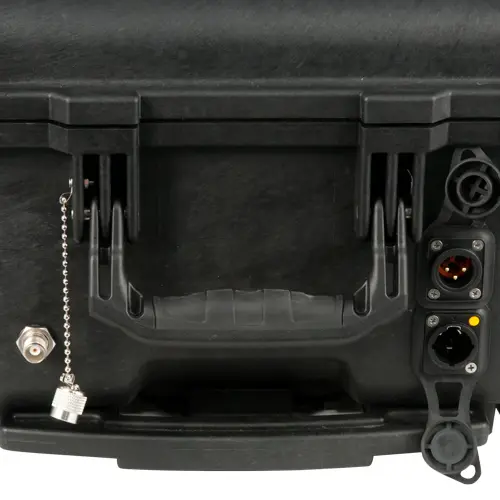

Connections on the suitcase Microphone: TNC
12 V charging voltage: XLR
110 V / 230 V charging voltage: PowerCon TRU

Charger Victron Blue Smart 12 V / 4 A IP65
Internal batteries 2 x 12 V / 12 Ah lead gel
Battery running time min. 10 days

Power supply With charger EU Version: 180 ... 265 V AC
With charger US Version: 100 ... 130 V AC
Battery operation: 2 x 12 V / 12 Ah

Cable length Microphone cable: 2 m / 6 ft 6" with TNC connector
Power supply: 2 m / 6 ft 6" with PowerCon TRU

Dimensions 56 x 35 x 23 cm / 2.2 x 1.3 x 0.9"

Weight about 14 kg / 30 lb 13 oz with batteries
about 8 kg / 17 lb 10 oz without batteries

Delivery Scope

1 x Outdoor Sound Monitor Kit PCE-4xx-EKIT
1 x Waterproof PELI transport case
1 x Wind and rain protection for microphone of the PCE-4xx series
1 x Charger for internal batteries
2 x 12 V lead gel batteries
1 x Tripod
1 x 2 m / 6ft 6" microphone cable
1 x Connection cable for power supply 110 V / 230 V (optional Schuko or US connection)

N.B. Sound level meter not included. The outdoor sound monitor kit PCE-4xx-EKIT is also available together with PCE-428, PCE-430 & PCE-432 as a set.
