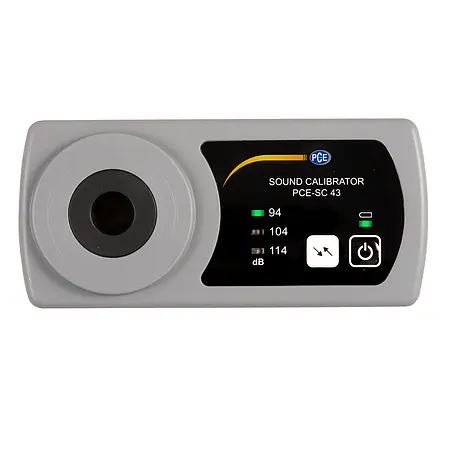

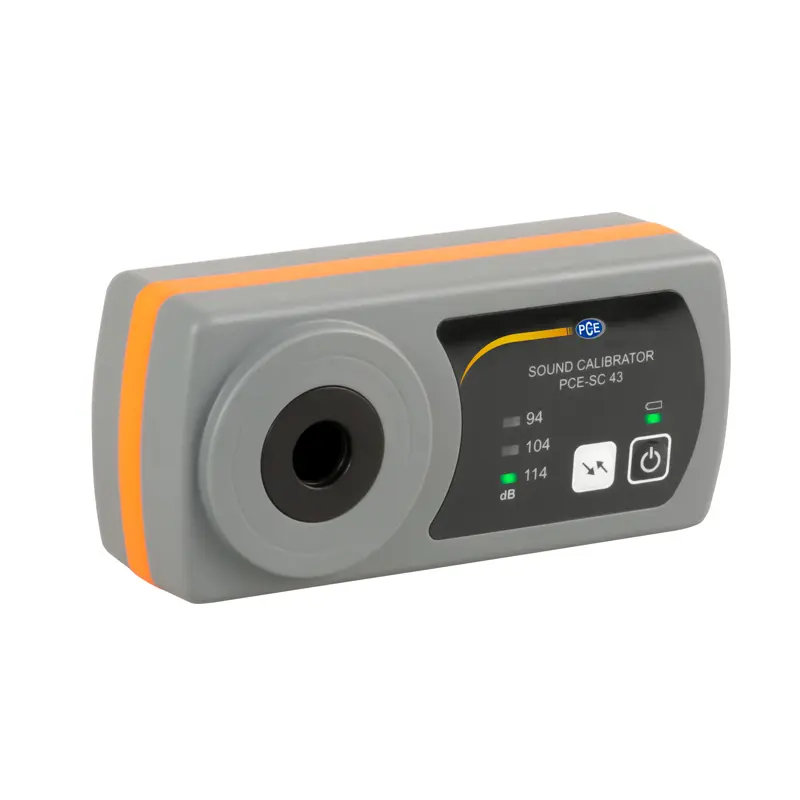

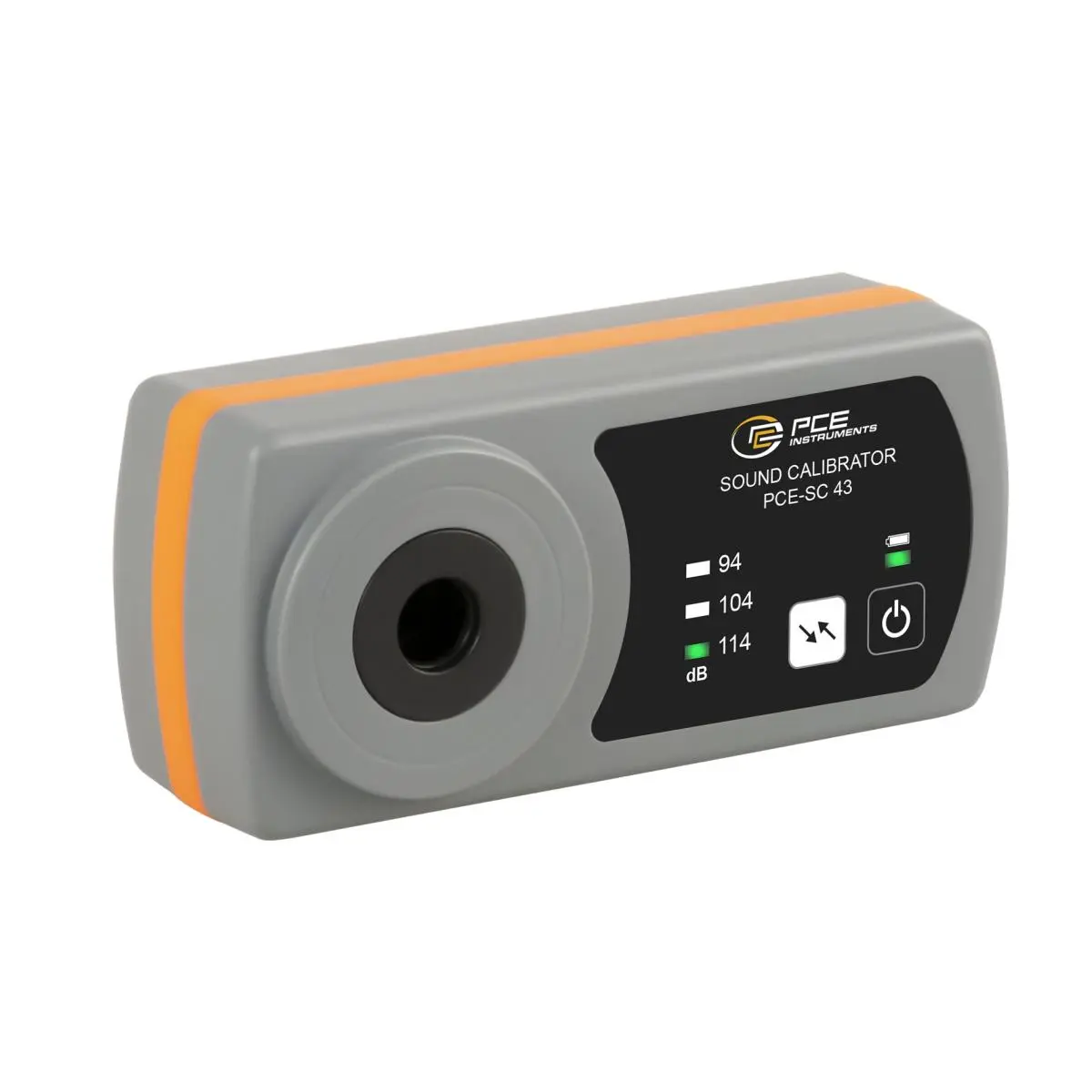

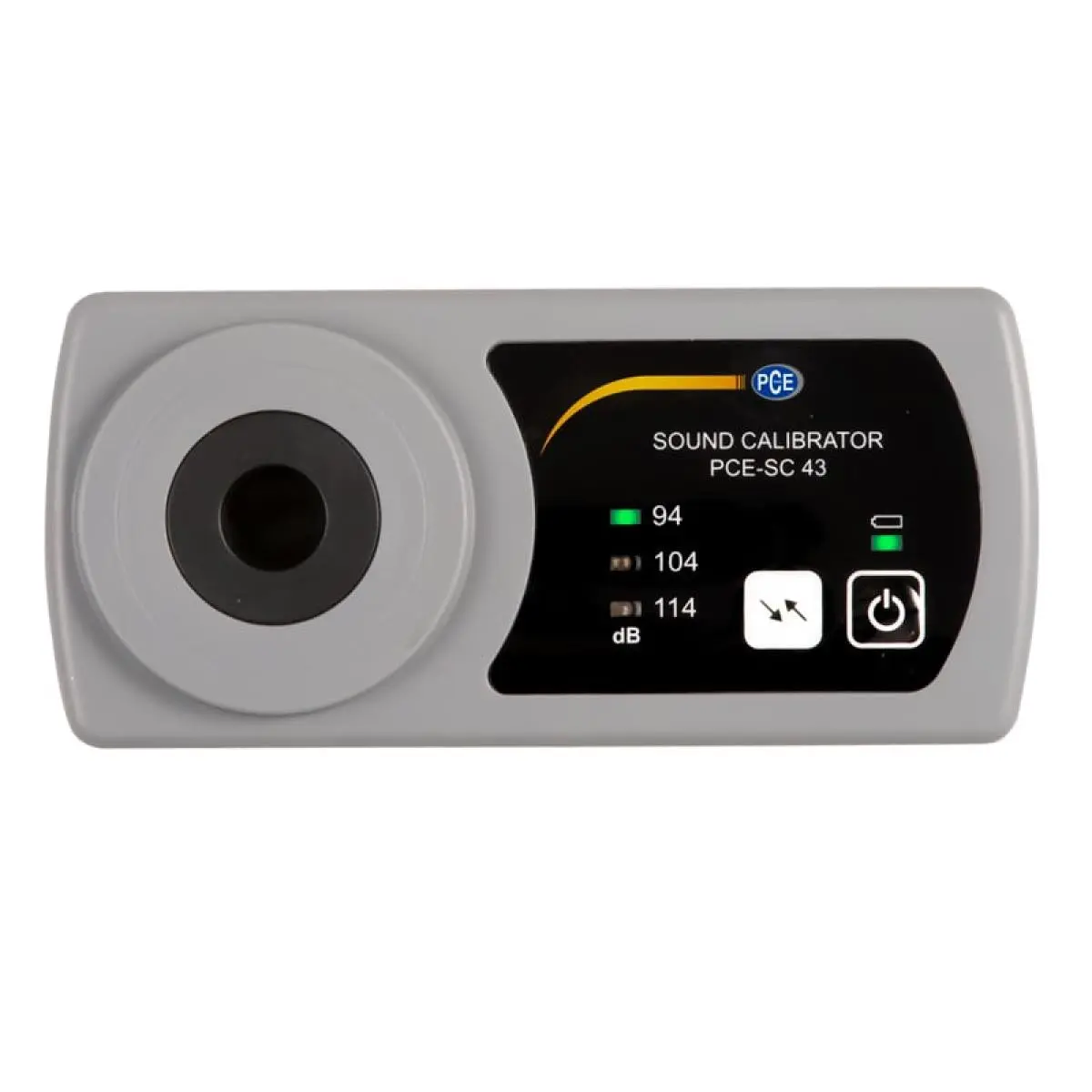

Class 2 Sound Level Meter Calibrator PCE-SC 43

Order no.: PCE-SC 43

GTIN (EAN): 4250348728388

Accessory

ISO Calibration Certificate for Sound Level Calibrator

£ 153.00

Description

Class II sound level meter calibrator with different sound pressure levels / ± 0.4 dB accuracy /
Frequency 1000 Hz for frequency weighting A, B, C and D / 1/2 inch microphone opening /
Power supply via exchangeable batteries / Sound class 2

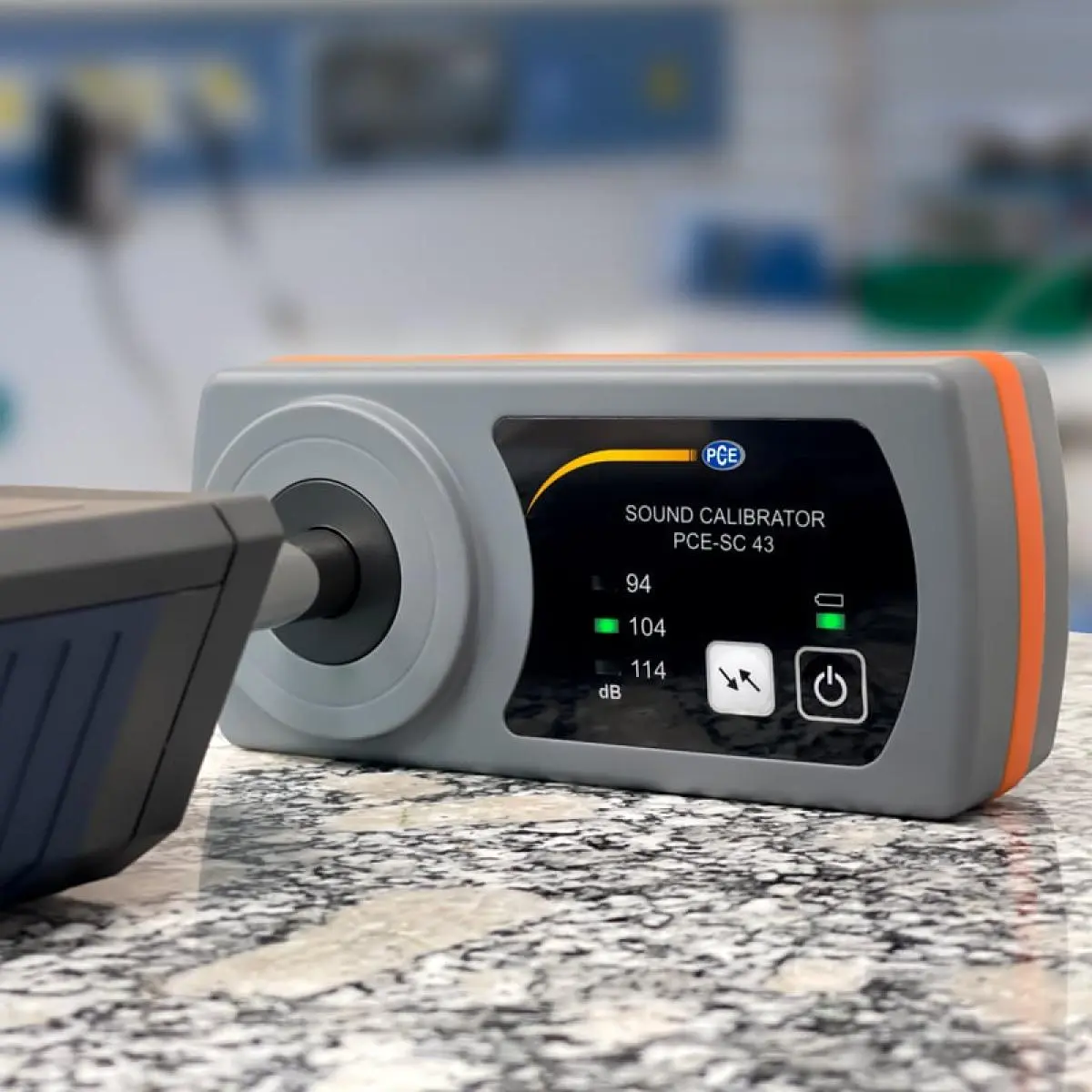

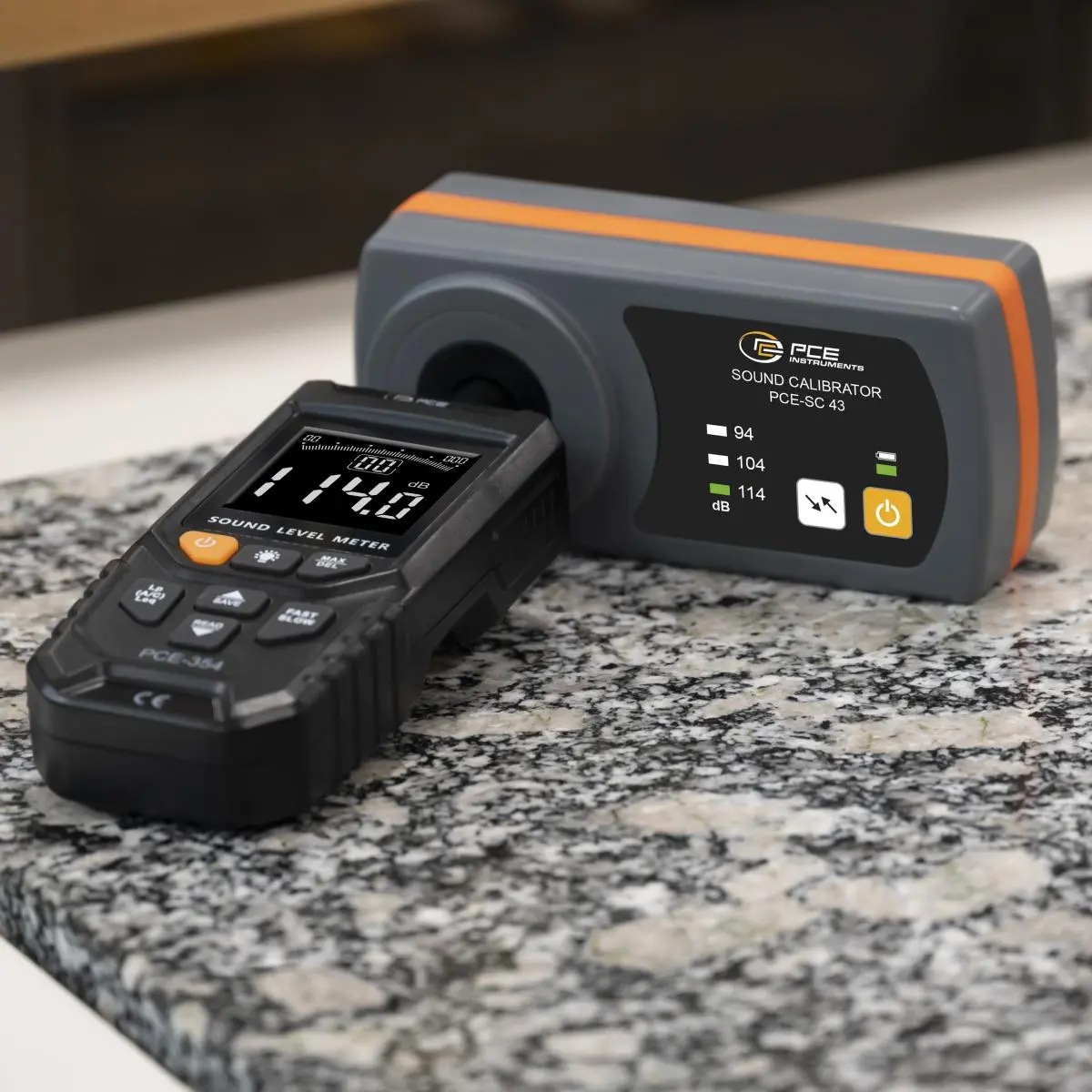

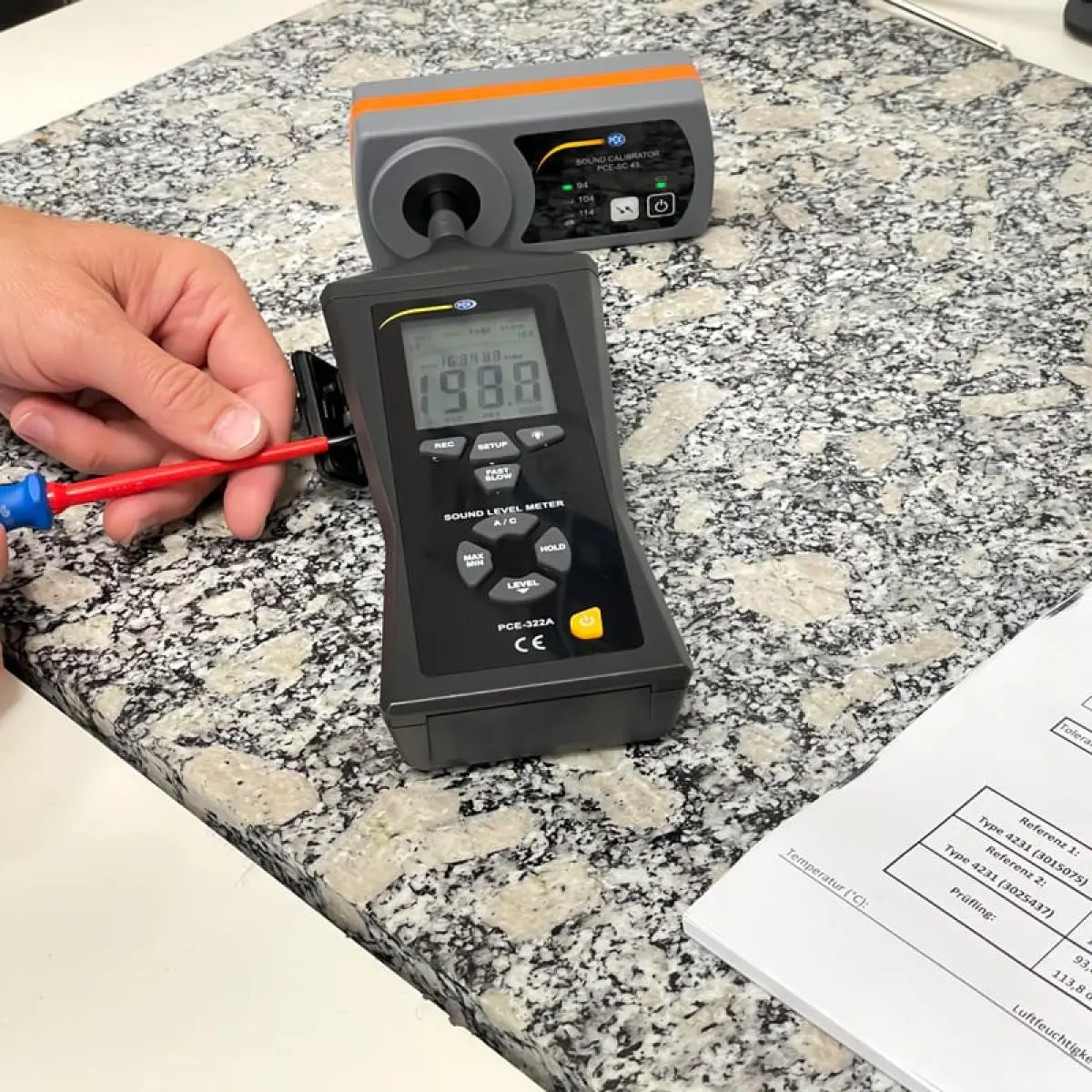

The calibration frequency for the class II sound level meter calibrator is 1000 Hz and is a sinusoidal shape. Compared to other calibrators, this class II sound calibrator has three adjustable sound pressure levels. 94 dB, 104 dB and 114 dB are available and can be selected by pressing a button on the class II sound calibrator. This means that an additional 104 dB sound pressure level is available. With an accuracy of ± 0.4 dB, the class II sound calibrator is particularly precise. This means that the Class II sound calibrator can be used to check sound measuring devices for their accuracy and, if necessary, to adjust them. The class II sound calibrator can optionally be equipped with an ISO certificate.

With a battery life of 50 hours, the class II sound level meter calibrator has a particularly long operating time. The integrated automatic switch-off automatically switches off the class II sound calibrator after 20 minutes of inactivity.

Highlights

- Sound pressure level 94, 104, 114 db
- For weighting filters A, B, C and D
- Sound class 2
- Exchangeable batteries

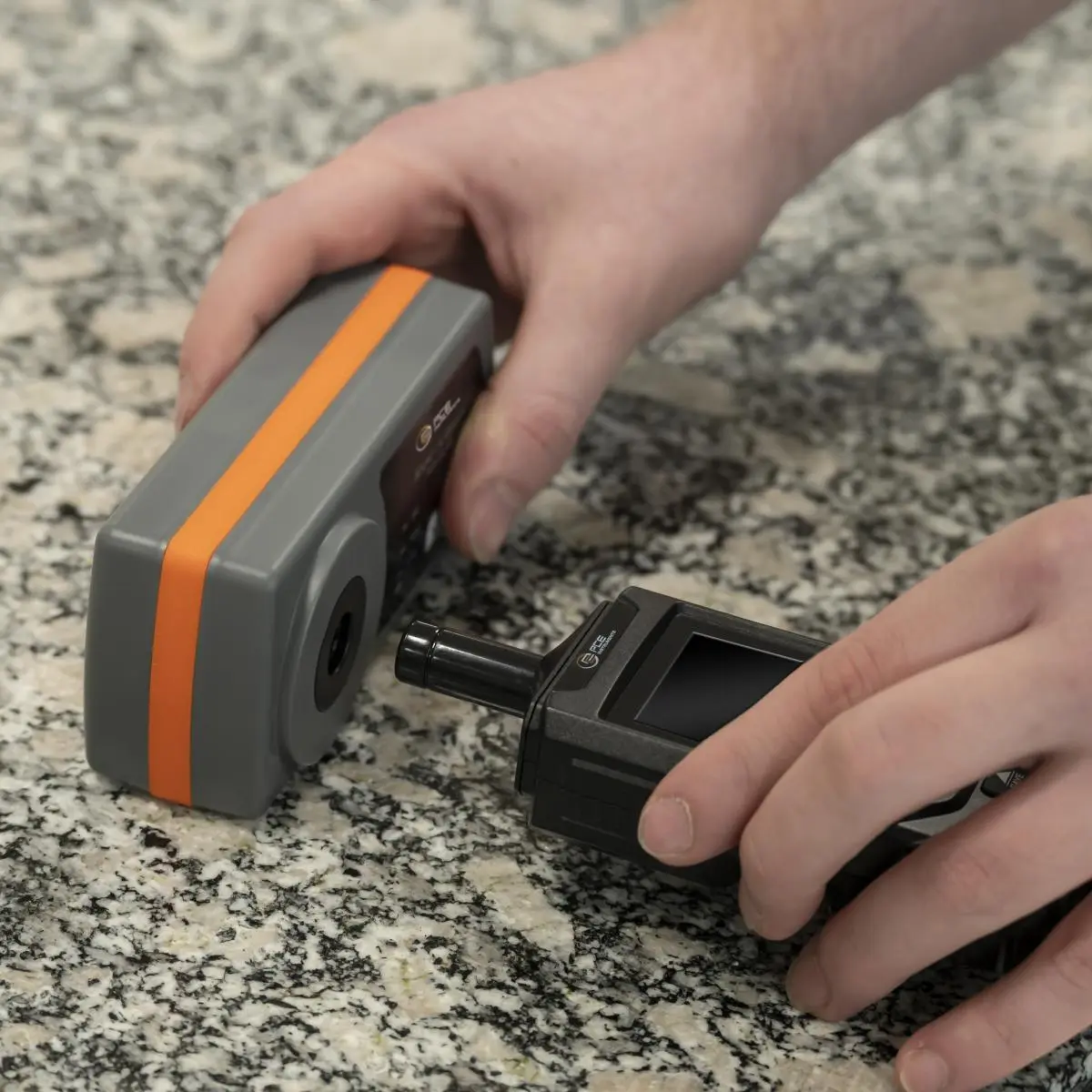

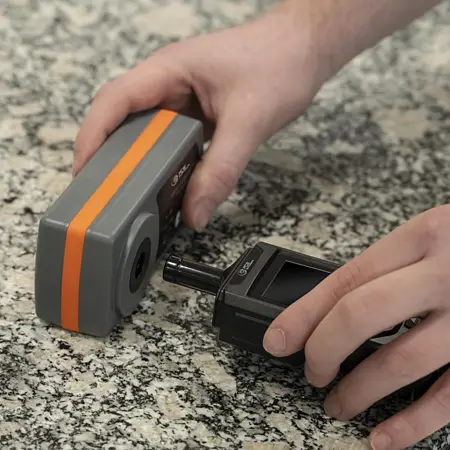

- 1/2 inch microphone connection
- 50 hours of battery life

Specification

Sound pressure level	94 dB, 104 dB, 114 dB
Accuracy	±0.4 dB
Class	2
Frequency	1000 Hz for A, B, C and D frequency weighting
Frequency accuracy	±1.7 %
Stabilization time	10 seconds
Total harmonic distortion	<3 %
Environmental conditions
Temperature influences	<0.4 dB at 0 ... 40 °C / 32 ... 104 °F
Humidity influences	25 ... 90 % RH
Atmospheric pressure	<0.1 dB at 65 ... 108 kPa
Stability at <60 seconds	±0.15 dB
Stability after one year	±0.35 dB
(normal use)
Operating conditions	0 ... 40 °C / 32 ... 104 °F, <25 ... 90 % RH,
	non-condensing
Storage conditions	-20 ... 50 °C / -4 ... 122 °F, <90 % RH,
	non-condensing
Automatic shutdown	after 20 minutes
Power supply	2 x 1.5 V AA batteries
Battery life	ca. 50 hours
Microphone size	1/2 inch
Dimensions	60 x 130 x 37.5 mm / 2.3 x 5.1 x 1.4"
Weight	400 g / 14.1 oz
