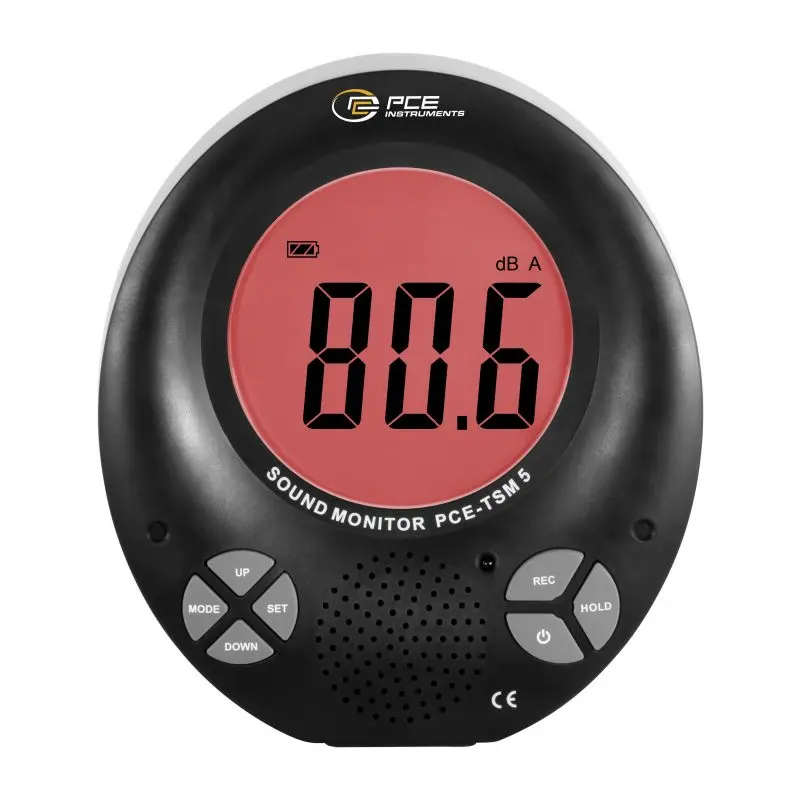

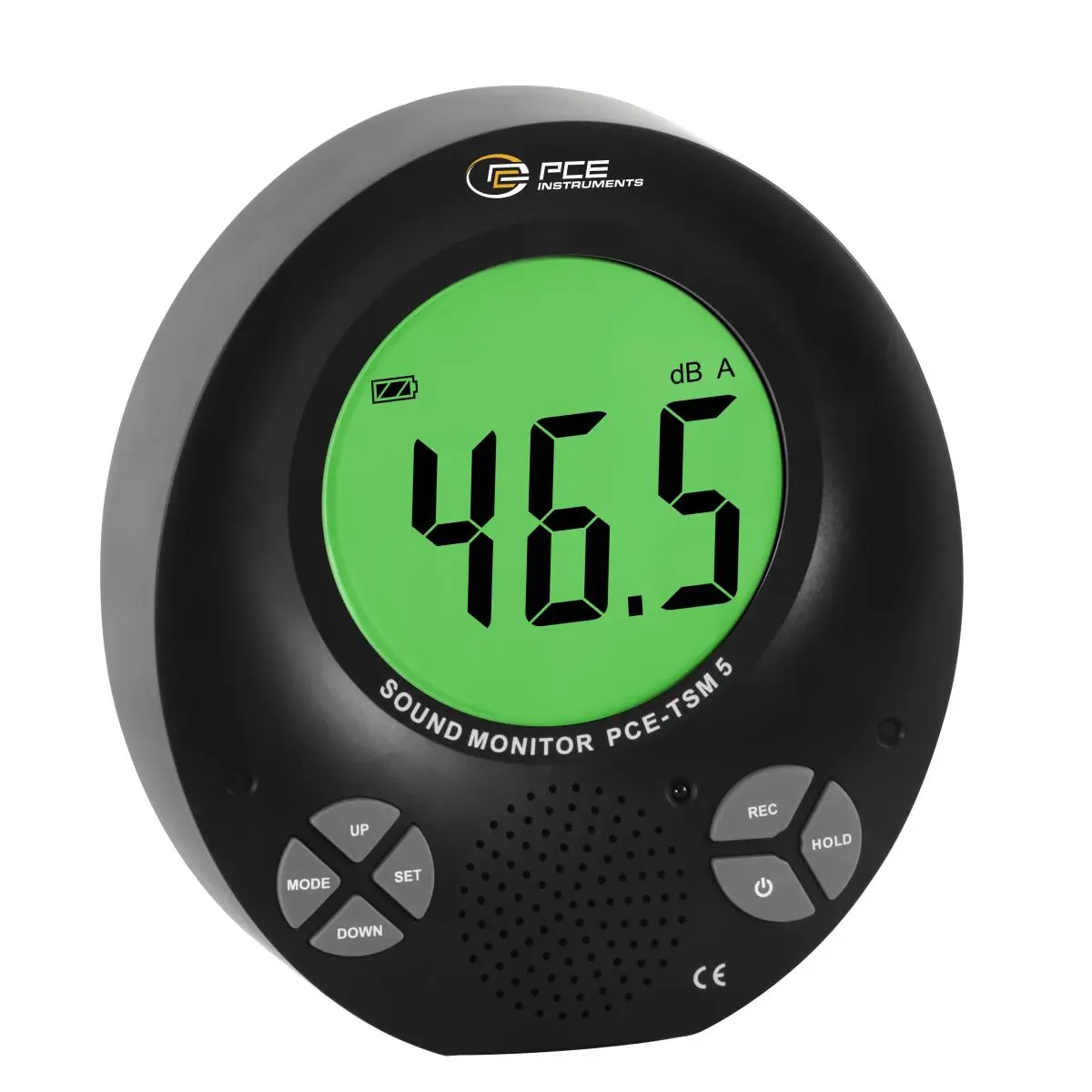

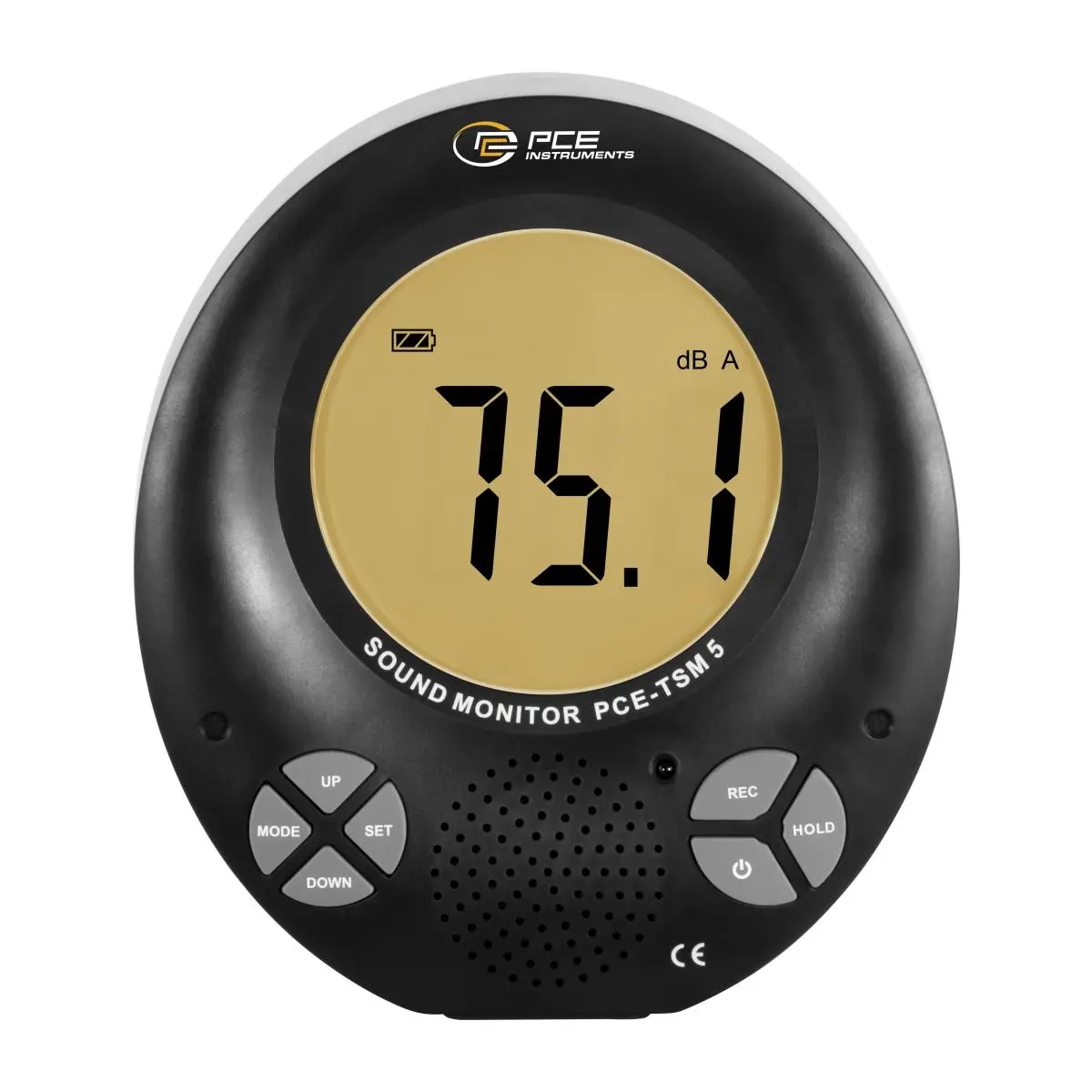

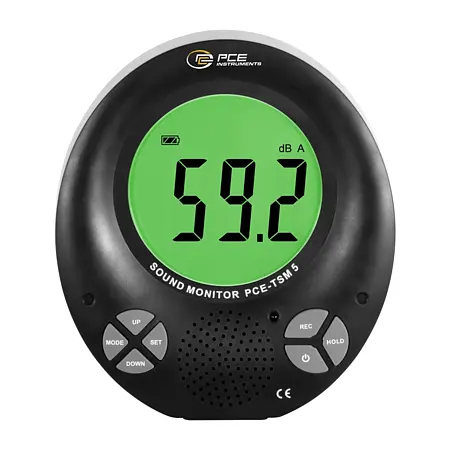

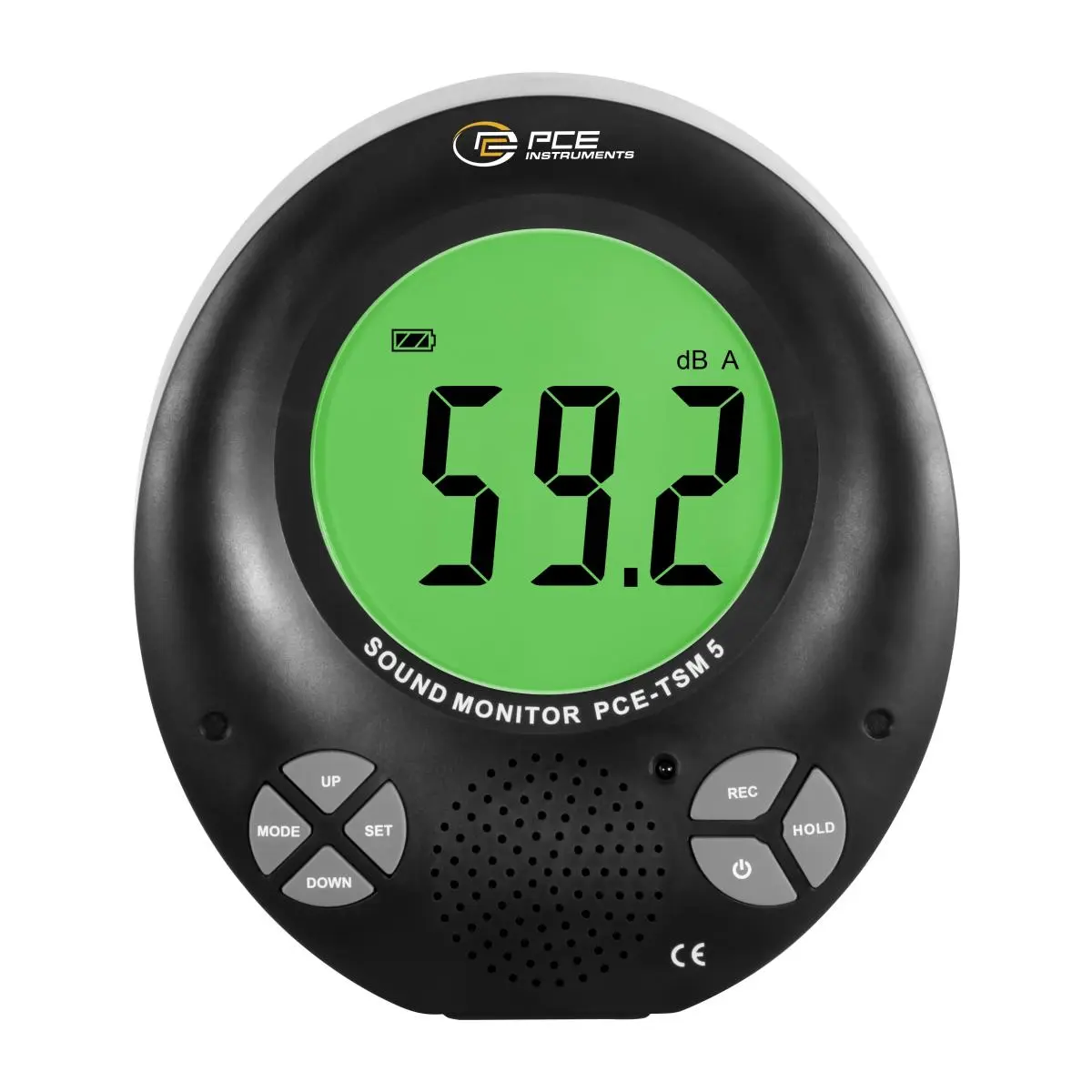

This modern occupational sound level meter / noise level meter is a versatile instrument with a range of innovative functions. An outstanding feature of the occupational sound level meter / noise level meter is the large LCD display designed as a noise traffic light. The integrated noise traffic light of the sound level meter / noise level meter provides the user with visual information on the current noise level at a glance. The green, orange and red color scheme allows the user to see immediately whether the noise level displayed by the sound level meter / noise level meter is within the acceptable range or whether action is required.
In addition to the visual displays, the sound level meter / noise level meter also offers an audible alarm that can be configured in six different languages. This multilingualism ensures broad international applicability.
Another plus point is the ability to set the limit values on the sound level meter / noise level meter individually. Users can adjust the limit values for visual and audible warnings according to their specific requirements and local conditions.
The integrated memory of the sound level meter / noise level meter has a capacity of 15 seconds and stores the audio and sound data. An audio output allows the user to record or process the measured sound level data externally. The sound level meter / noise level meter can be operated in both battery and mains mode.

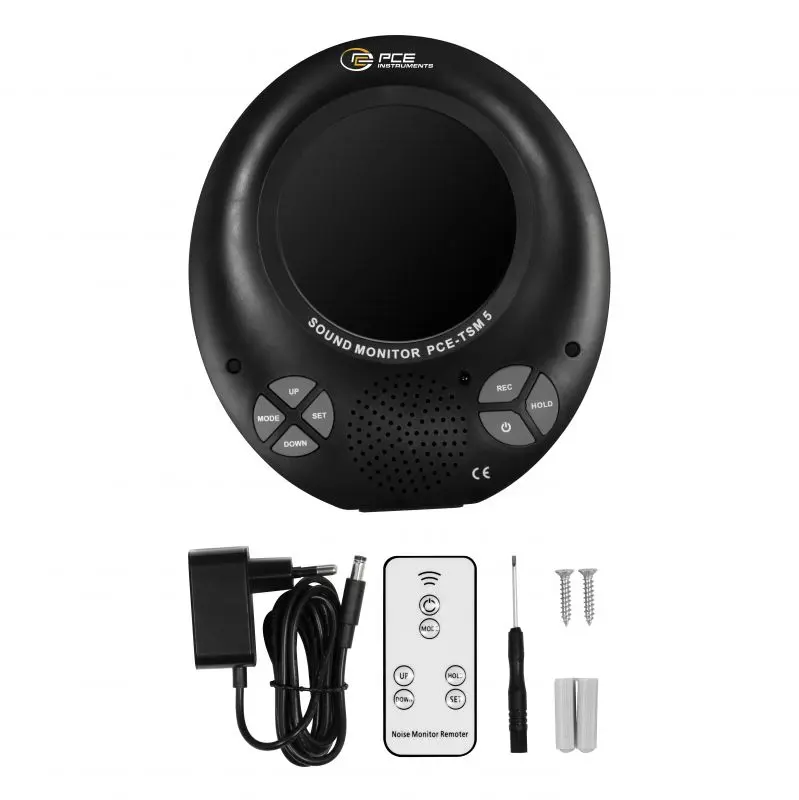

With the IR remote control, the most important functions of the sound level meter / noise level meter can also be operated remotely in working environments with limited access or difficult conditions.

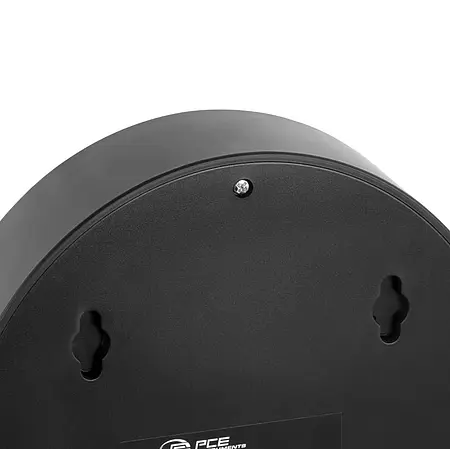

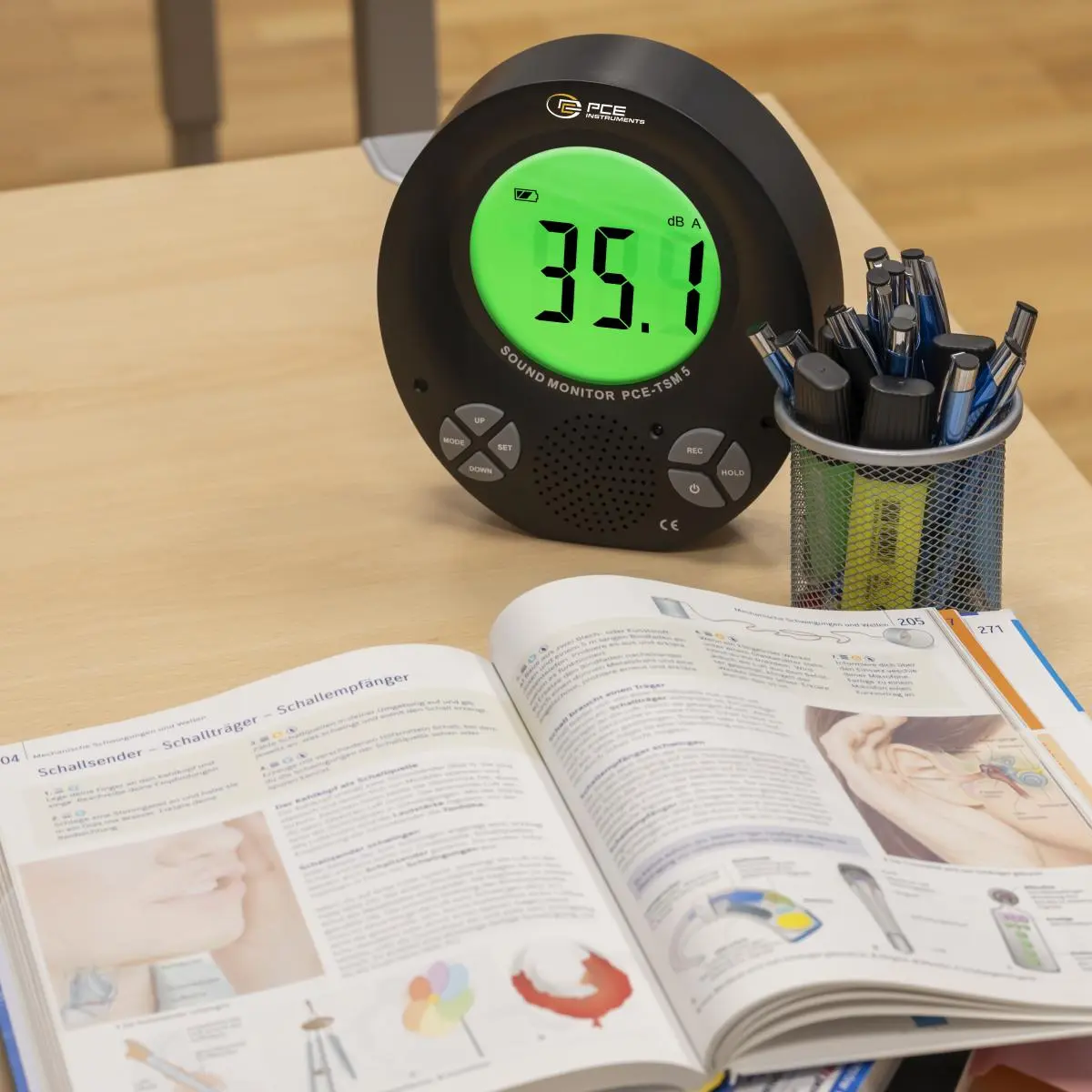

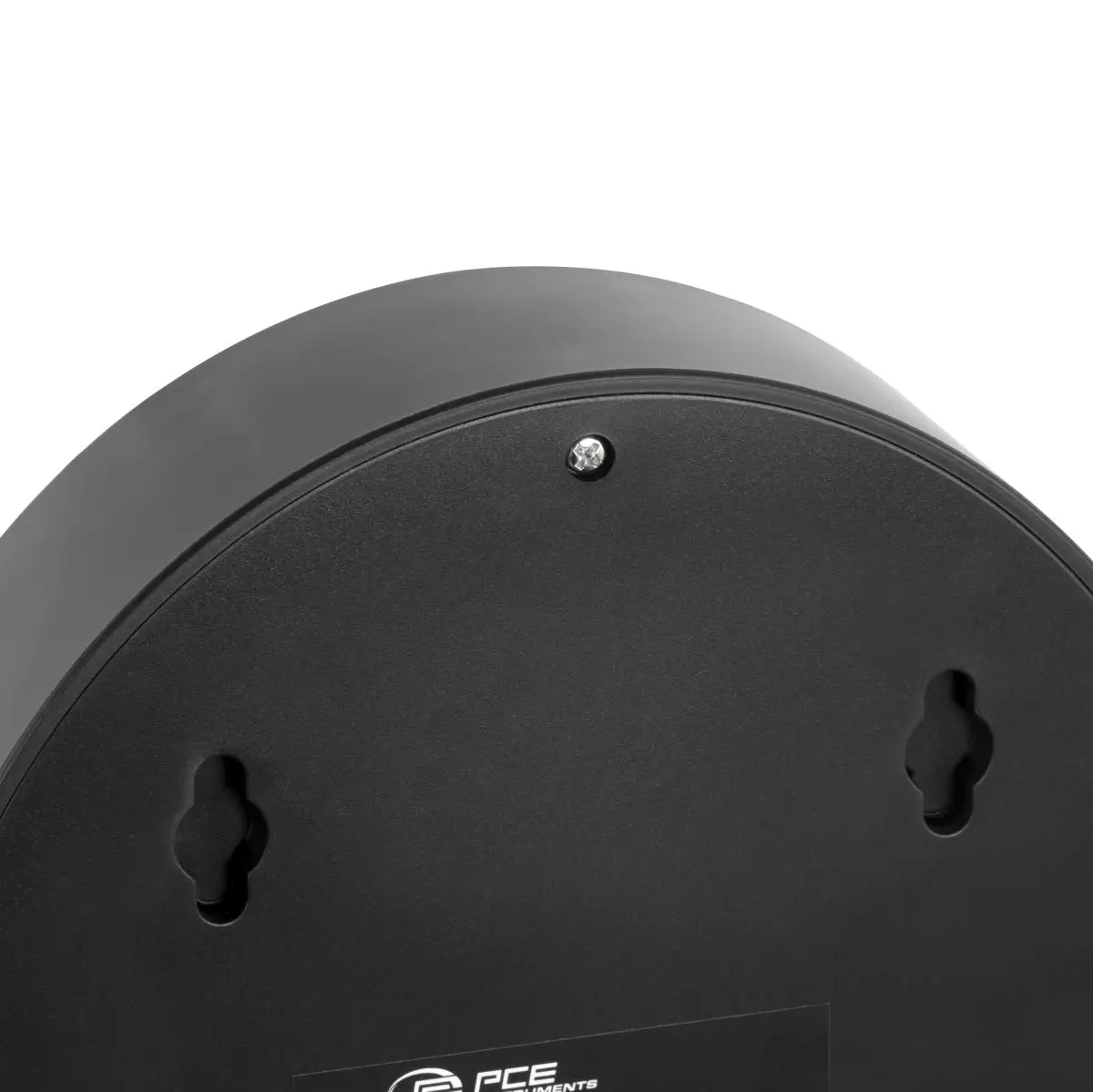

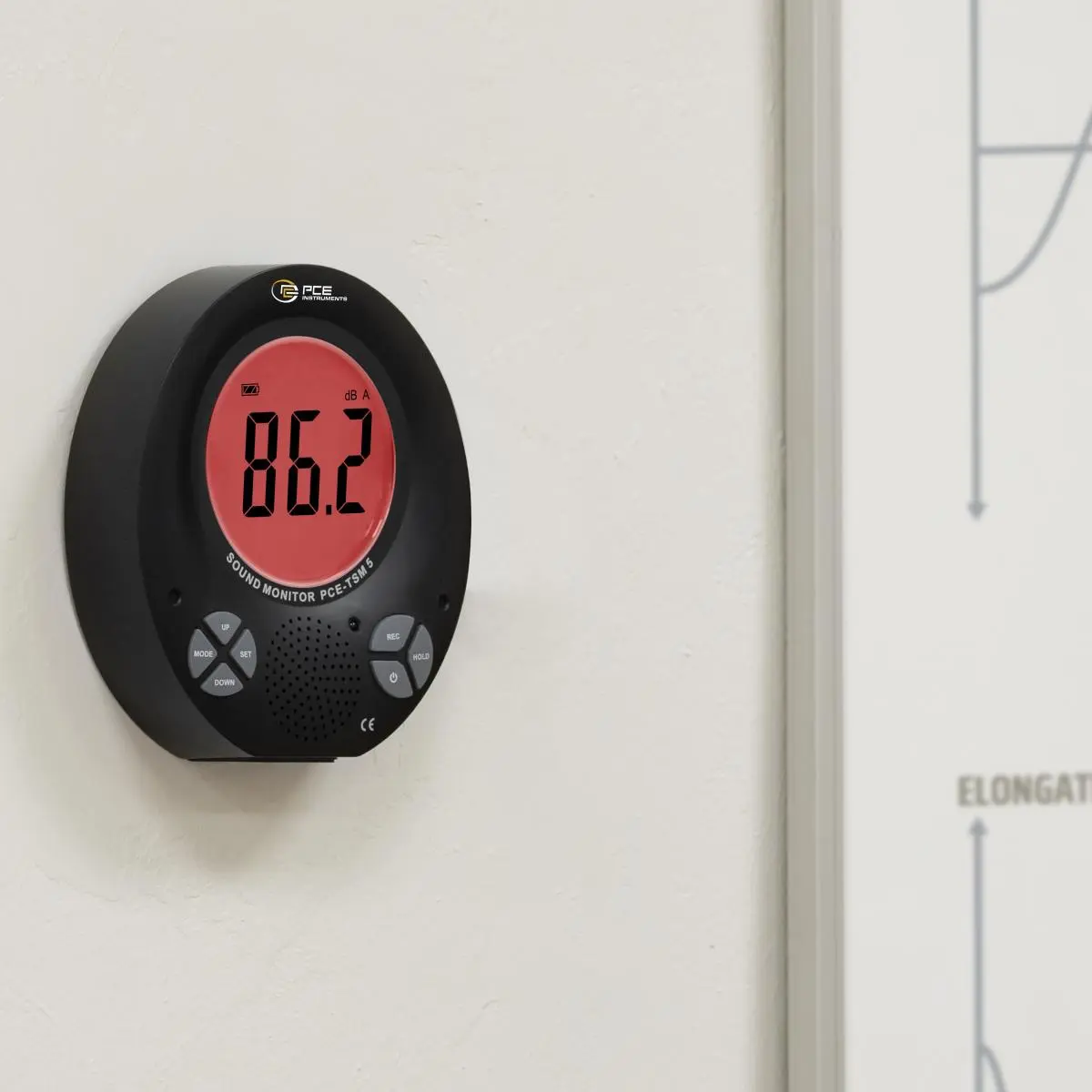

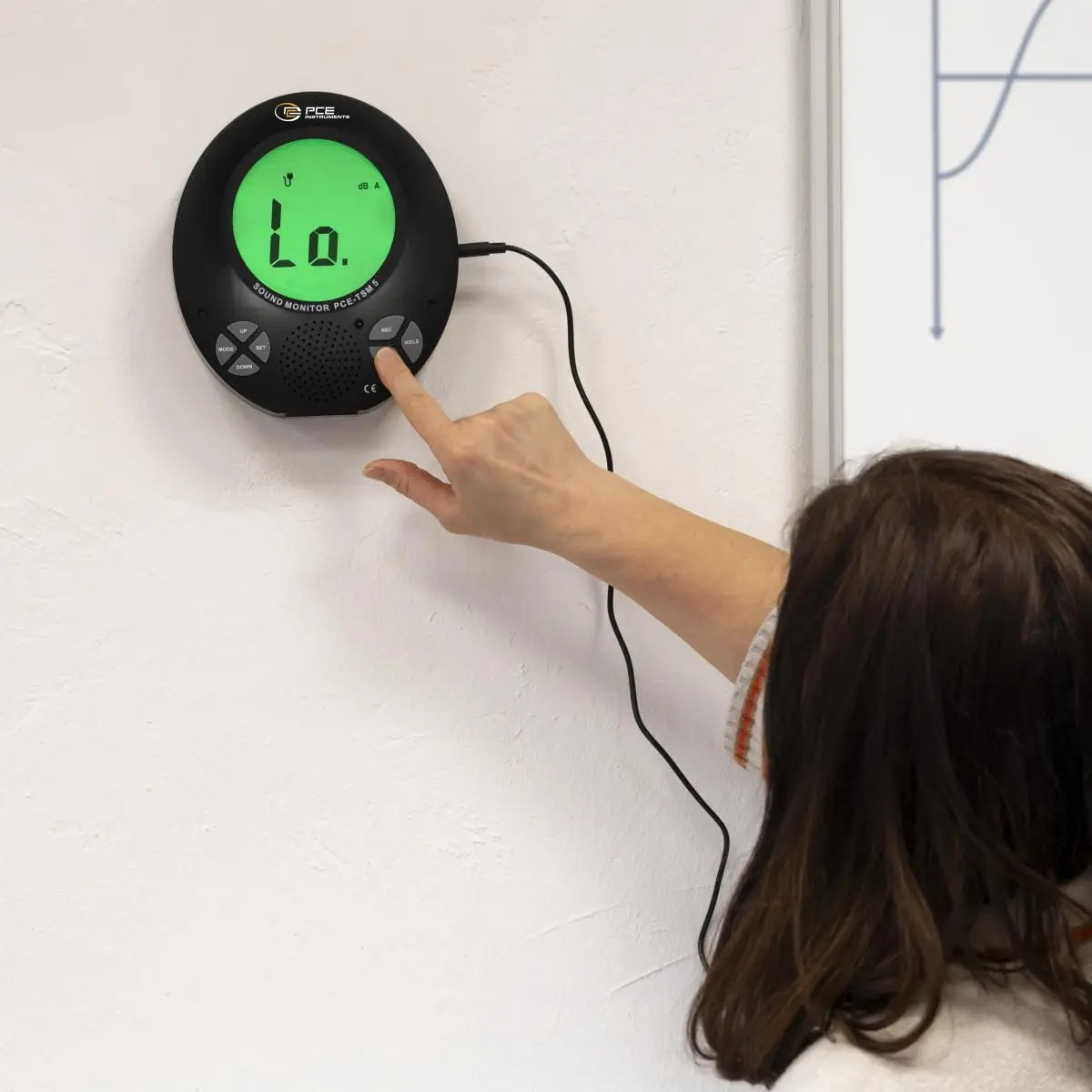

The flexible use as a stand-alone or wall-mounted device makes the sound level meter / noise level meter adaptable for a wide range of application scenarios. This versatility and innovative features make the sound level meter / noise level meter a helpful tool in areas such as schools, kindergartens, conference rooms and rooms with similar uses.
Sound level | |
Measurement range | 35 dB ... 135 dB |
Resolution | 0.1 dB |
Accuracy | ±2 dB |
General technical data | |
Measurement functions | MIN, MAX, HOLD, ALARM |
Frequency | 31.5 ... 8000 Hz |
Frequency rating | A |
Display type | LCD with illumination |
Display refresh rate | 2 x per second |
Memory capacity (additional information) | 15 seconds audio and sound level |
Microphone type | Electret condenser |

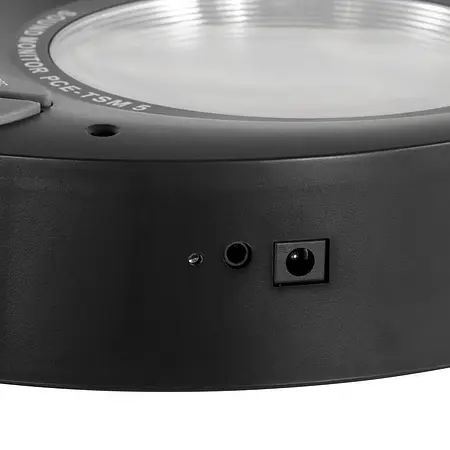

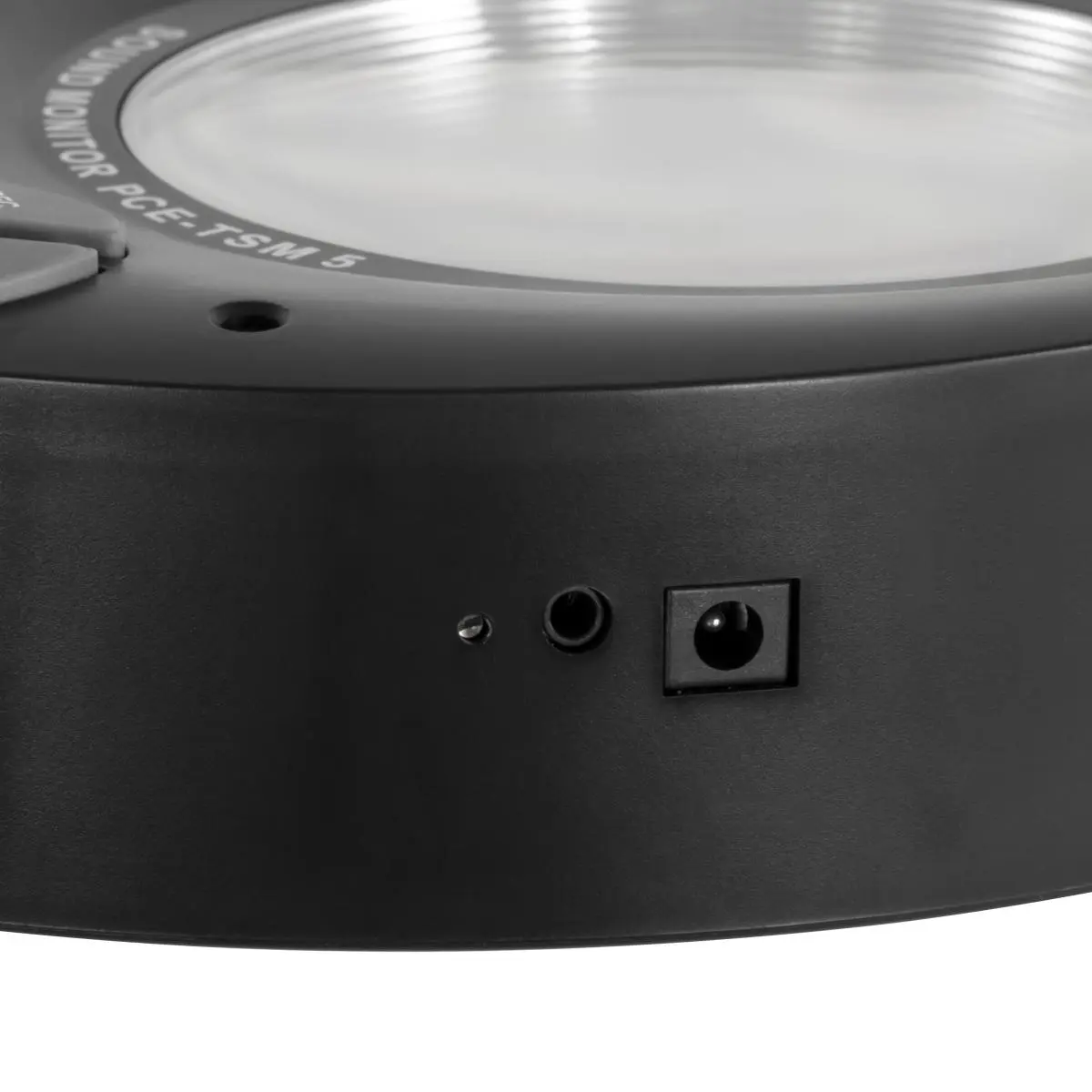

Interface | 3.5 mm jack |
Operating time | 60 h |
Alarm modes | Acoustic: Voice output in German, English, Spanish, French, Japanese, Chinese Visual: display background green, yellow, red |
Menu language | English |
Protection class (device) | IP20 |
Power supply | 9V DC, 1000mA |
Plug type | Euro plug device |
Weight | 490 g |
Height | 197 mm |
Depth | 49 mm |
Operating conditions | -20 ... 60 °C , 10 ... 90 % r.H |
Storage conditions | -20 ... 60 °C , 10 ... 75 % r.H |
