Spectrophotometer
for quality control / digital software included / Li-ion battery /
Black-and-white contrast calibratable / Measuring modes for various
parameters /
Colour analysis of black, white, red, green, yellow and blue
The
Spectrophotometer proves to be a true multitasking device. It is designed to
measure the color spectrum of various objects. Light consists of a
broad spectrum of colours which are not always purely white, black or
blue. A light-source illuminates an object, which then absorbs part of
that light and reflects another one. That reflected light can be then
detected by a sensor in order to determine the reflected wavelengths and
thus calculate its colour. Spectrophotometers are often applied in areas of
quality control in industrial sectors. Spectrophotometer of the PCE-CSM series are
applied especially in industries where the characteristics of colours
play a big role.
Whether it is dental technology, painting industries or
for the production of plastic bags, the Spectrophotometer PCE-CSM 2 is an
ideal product for quality management and thus assures highest
reliability, whenever it is important to assure a certain standard in
optic quality. The Spectrophotometer supports an ergonomic design and features

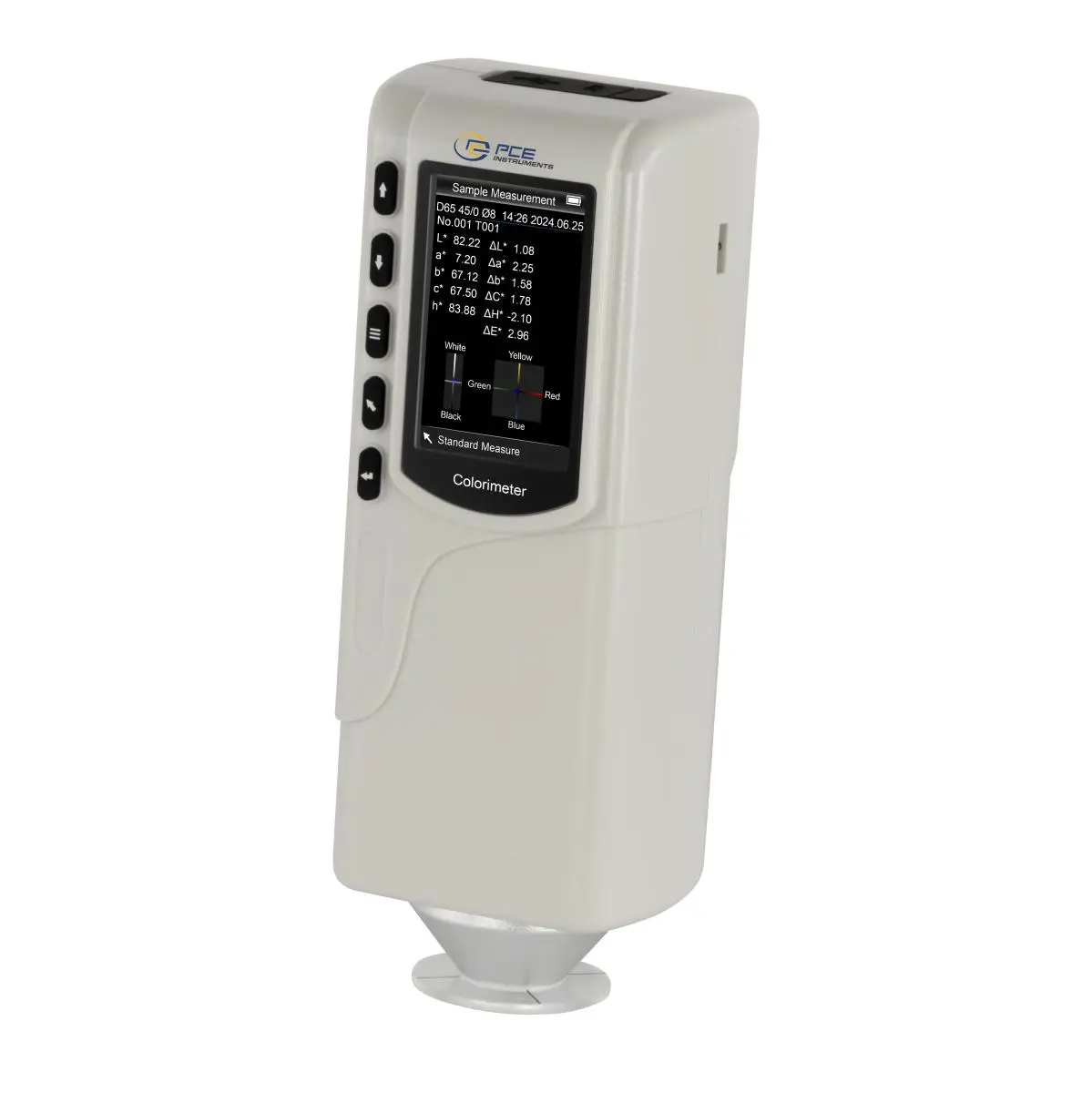

a user-friendly menu navigation. The Spectrophotometer

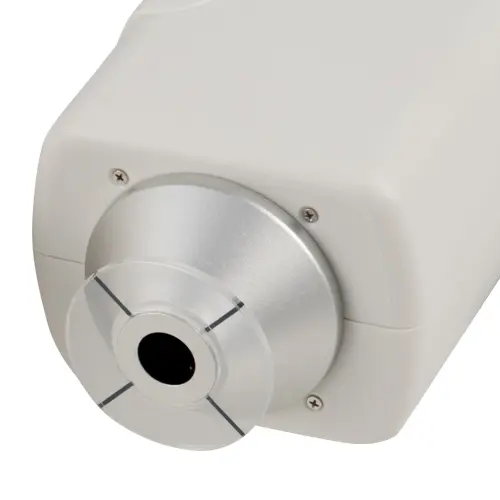

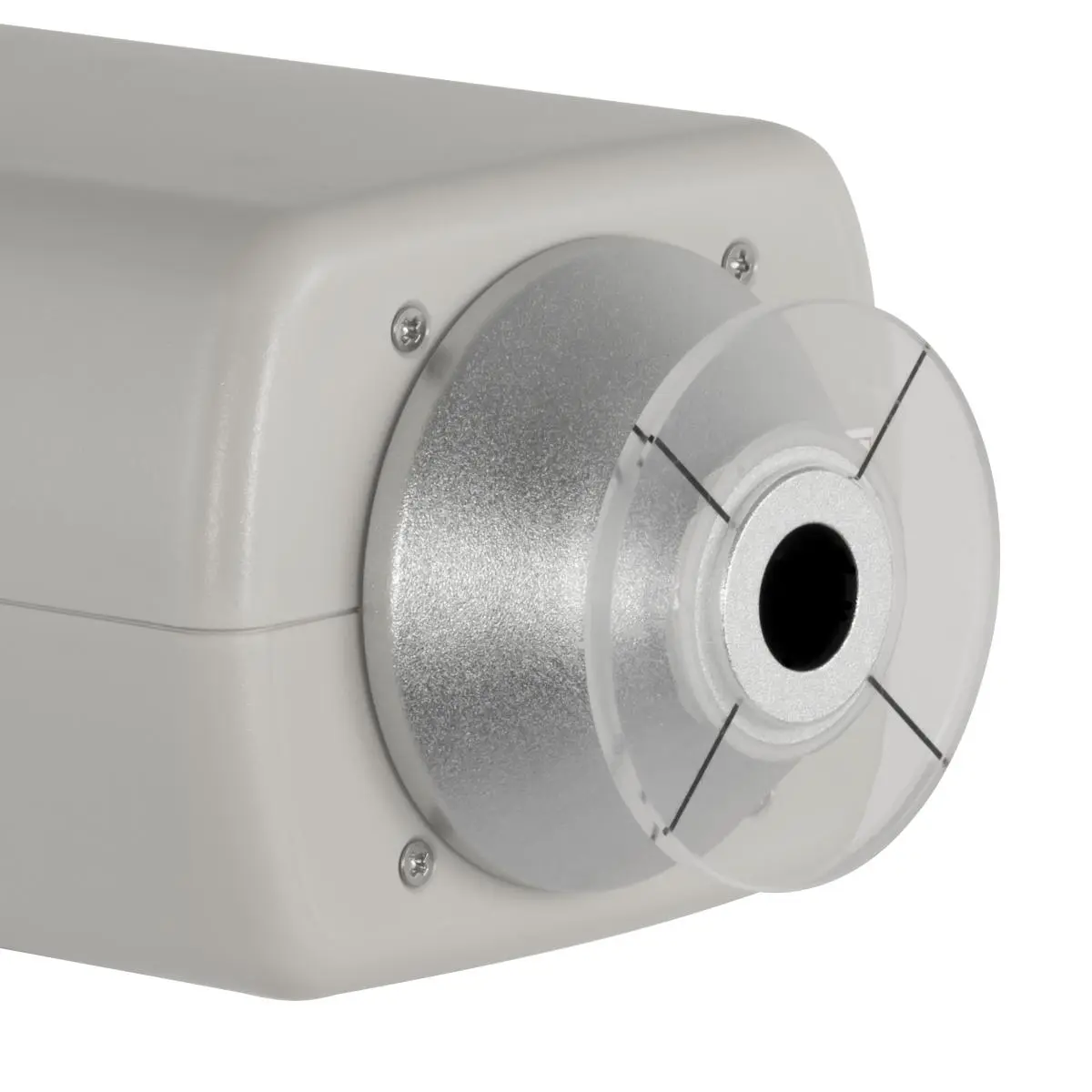

PCE-CSM 2 has a measuring aperture of 8 mm. The
supported color spaces of the Spectrophotometer PCE-CSM 2 are
CIEL*a*b*C*h, CIEL a*b*, and CIEXYZ.
Thus the Spectrophotometer is designed for
application in professional industries. Another advantage of the
Spectrophotometer of the PCE-CSM series is that it supports a vertical
justification. This means that the whole device does not need to be
placed on the object to analyse, but only the part with the sensor in
it. The industrial perspective of it is that this method allows the
measuring of damp objects, textiles and even food. The Spectrophotometer PCE-CSM 2 is therefore ideally applied for measurements of e.g. meat,
bananas or tomatoes. Due to the software "CQCS3" that is
included in the delivery, the measured data can be read out on a
computer or laptop for a digital overview.

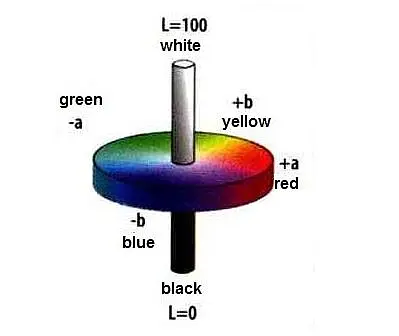

The L*a*b color space
![Spectrophotometer NR145 and NR20XE: Color Spaces](http://www.industrial-needs.com/technical-data/images/Spectrophotometer-nr145-nr20xe-lab-fm-calculation.jpg)
Here you can see the color space L*a*b. This color space covers all colors that are visible with the naked eye. L=100 stands for white and L=0 for black. "a+" and "a-" or "b+" and "b-" stands for the color contrasts red, green, yellow and blue.
The Spectrophotometer PCE-CSM 2 can be applied in various industrial fields and thus allows a precise and simple application to assure a consistent quality of the products.

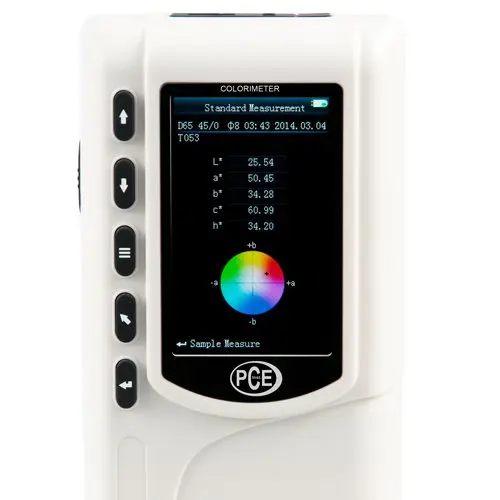

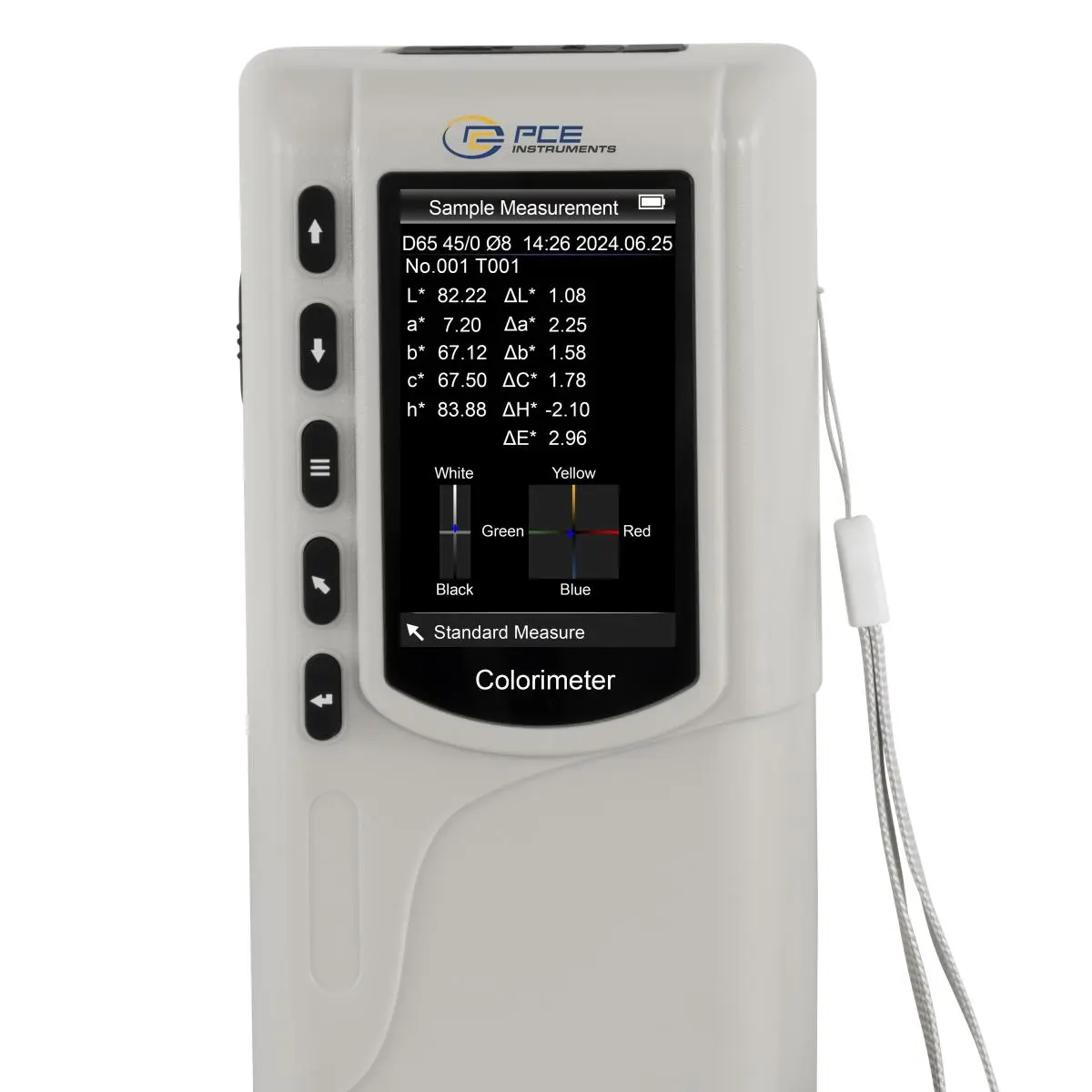

Main Functions of the Spectrophotometer PCE-CSM 2
The menu of the Spectrophotometer PCE-CSM 2 contains all characteristics and settings that can be performed at the Spectrophotometer PCE-CSM 2. Such are the basic settings like time, language, date, but also settings about the recording and the colour spaces that shall be displayed by the Spectrophotometer PCE-CSM 2 .
