Stroboscope PCE-OM 15-ICA Incl. ISO Calibration Certificate

Order no.: PCE-OM 15-ICA

GTIN (EAN):

Accessory

Replacement Xenon Light Bulb for PCE-OM 15

£ 14.00

Description

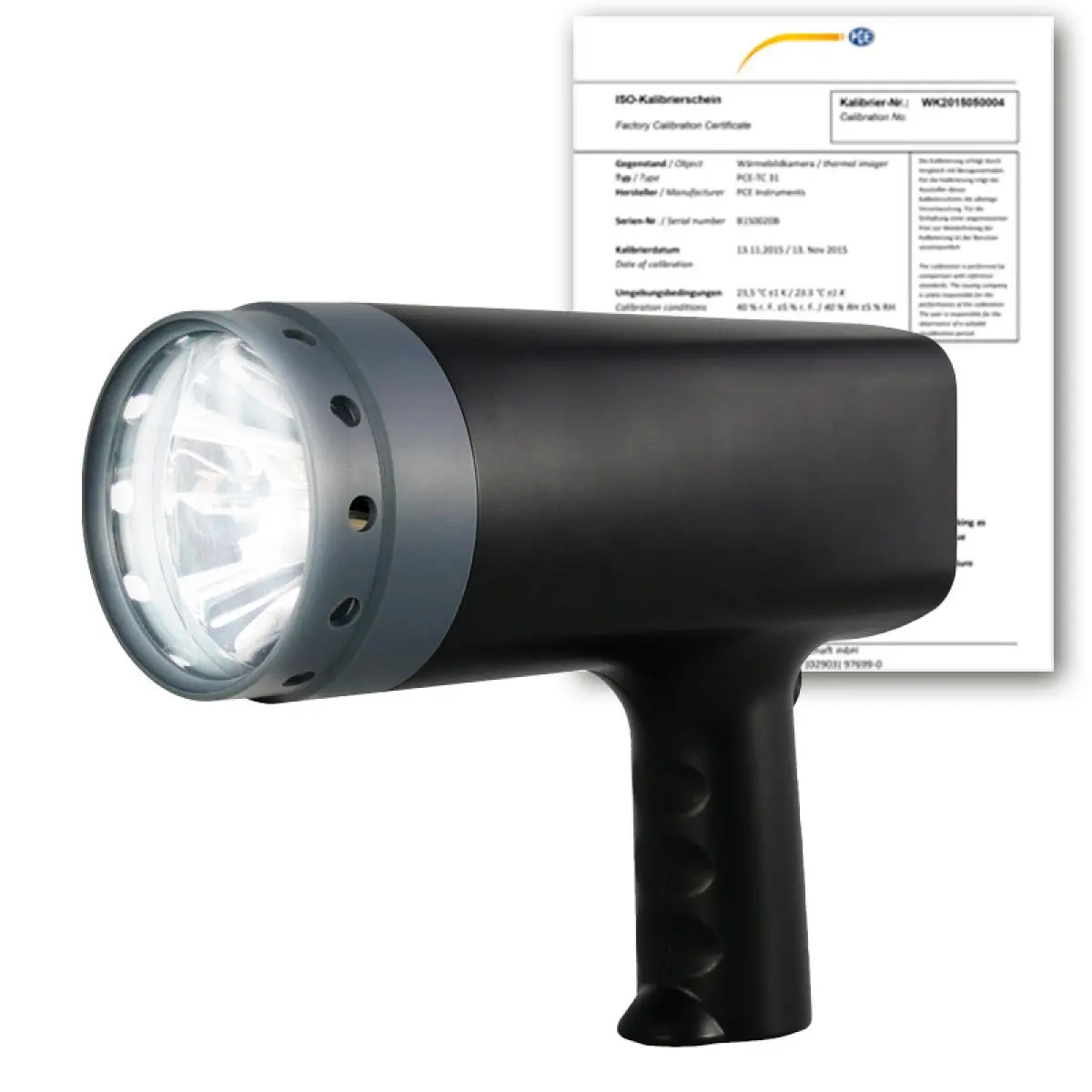

Stroboscope PCE-OM 15-ICA incl. ISO calibration certificate

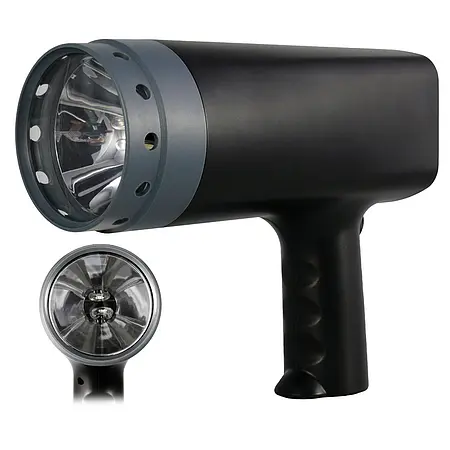

Portable digital stroboscope gun with high / Low range selection, adjustable coarse / Fine flash rates and push-button rate control for slower (x½) / Faster (x2) flashing

PCE-OM 15 is a stroboscope with trigger functionality. This easy-to-use portable digital stroboscope gun features high / low range selection and push-button rate control to scale the flash rate slower (x½) and faster (x2). In addition, two knobs allow coarse and fine adjustment of the flash rate.

When the speed of a moving object matches the flash rate of the strobe, the moving object appears to be standing still. With a slight adjustment, movement can be viewed in apparent slow motion. Slow motion makes it easier to visually inspect the process in action. However, these visual illusions can be disorienting. Take necessary safety precautions to avoid accidental contact with moving objects.

Highlights

- Measuring range: 50 ... 30000 rpm
- Bright 6500K xenon light bulb

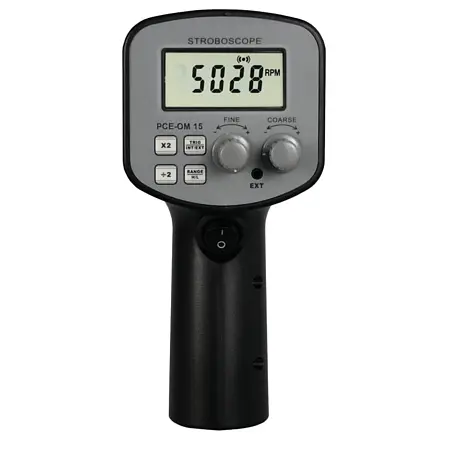

- 10 mm / 0.4 in 5-digit LCD
- Lightweight yet sturdy ABS plastic housing
- High / low range selection
- Adjustable coarse and fine flash rates
- Push-button rate control for slower (x½) and faster (x2) flashing
- Incl. ISO calibration certificate

Specification

Measuring range	50 ... 30000 rpm
Resolution	0.1 = 50.0 ... 999.9 rpm 1 = 1000 ... 30000 rpm
Accuracy	± 0.05% + 1 digit
Sampling time	0.3 second
External trigger level	3-24V
Lamp	6500K xenon light bulb
Display	10 mm / .4 in 5-digit LCD
Angle of reflection	80°
Power supply	220V AC
Operating conditions	0 ... 40°C / 32 ... 104°F, Less than 80% RH
Dimensions	Approx. 215 x 85 x 180 mm / 8.5 x 3.3 x 7.1 in
Weight	Approx. 1,000 g / 2.2 lbs

Delivery Scope

1 x PCE-OM 15 Stroboscope
1 x Replacement xenon light bulb
1 x User manual
1 x ISO Calibration Certificate
