Stroboscope RT STROBE 5000 LED

Order no.: RT STROBE 5000 LED
GTIN (EAN):
£ 1,575.00
£ 1,890.00
price ex. (VAT / delivery)
RT STROBE 5000 LED
Delivery time: 10 - 14 days

Description

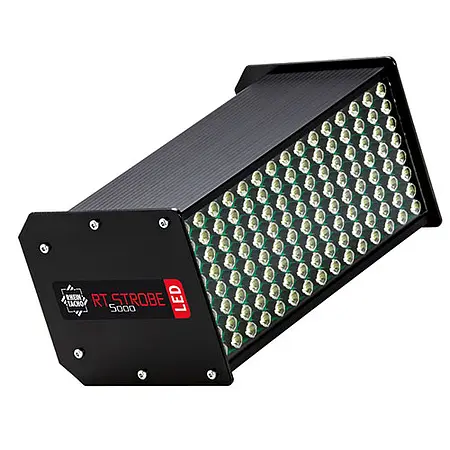

Stroboscope RT STROBE 5000 LED
stroboscope with intelligent LED technology for amplitudes up to 500 mm /
no abrasion from electronic-flash-tubes / input signal generator
The main advantage of a steady-state stroboscope RT STROBE 5000 LED with intelligent LED-technology results from the absence of a short life xenon-tube, which is usually the first defective part which has to be replaced. In comparison to that, the LEDs of this stroboscope are nearly indestructible with no detectable wear. 120 LEDs achieve a significantly higher flash frequency than xenon-tubes and produce a subjectively pleasant light with noiseless flashes.

The activation of the rotation speed control counter occurs directly by the observed system or via the supplied control unit RT Strobe ECO control. This small control unit can simply be plugged into one of the jacks on the rear panel of the stroboscope. Due to the standard existing connections, both, a machine signal, and a signal of the control unit can be transmitted simultaneously. Switching between the two inputs can be achieved by using the rocker switch on the rear side of the stroboscope

Highlights

- low-wear LED light trigger
- illumination level 300 x 500 mm
- high intensity of light 7500 LUX
- adjustable light frequency
- web width> 500 mm
- rotary device parallel operation

Specification


General parameter
Frequency range0…120,000 FPM (flashes per minute)
Voltage supply15...28V DC/ 60W
External triggerinput3...30 V / max. 5 mA
(potential freeOptokoppler)
DIN 41524 5pin Standardstecker
Uout = Uin, max. 200 mA
Trigger input switchable
Triggeroutput for parallel circuit
Flash Parameter
Flash period< 10 μs.
Luminous intensity standard, 30 – 100%
Light intensitysingle flash ca. 20 Mega-Lux / 30 cm / 12"
Meanca. 7,500 Lux / 30 cm / 12” (@ 6.000 FPM)
Flash energy2.000mJ (@ ≤ 1.000 FPM)
Light colour6000...6.500K
Case
Material Aluminium
Diameter224 x 130 x 112 mm / 8.8 x 5.1 x 4.4˝
Weight2,100 g
Ambient conditions
Ambient temperature0...40 °C (32...104 °F)
Storage temperature-25...70 °C (-13...158 °F)
HumidityMax. 95 %, non-condensing

Delivery Scope

1 x Stroboscope RT STROBE 5000 LED
1 x mains adapter
1 x manual
1 x plug for triggerinput and supply
