Stroboscope RT STROBE 7000 LED

Order no.: RT STROBE 7000 LED
GTIN (EAN):
£ 2,874.00
£ 3,448.80
price ex. (VAT / delivery)
RT STROBE 7000 LED
Delivery time: 1-2 working days

Description

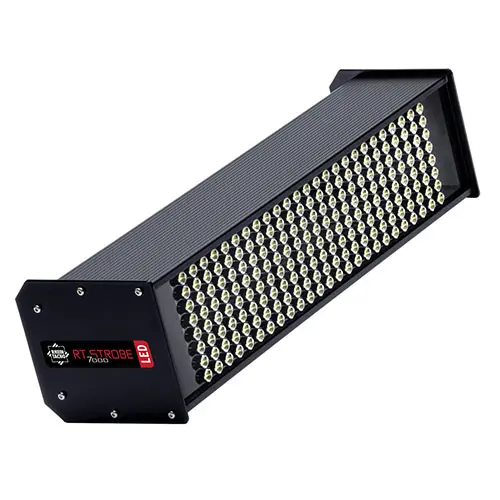

Stroboscope RT STROBE 7000 LED
static stroboscope with intelligent LED technology for amplitudes up to 500 mm /
no abrasion from electronic-flash-tubes / input signal generator
The main advantage of a steady-state stroboscope RT STROBE 7000 LED with intelligent LED-technology results from the absence of a short life xenon-tube. Mostly this STROBE 7000 LED is the first defective part which has to be exchanged. In comparison to that, the LEDs of this stroboscope are nearly indestructible with no detectable wear. LEDs achieve a significantly higher flash frequency than xenon-tubes and produce a subjectively pleasant light with noiseless flashes.

The activation of the rotation speed control counter occurs directly by the observed system or via the supplied control unit RT Strobe ECO control. This small control unit can simply be plugged into one of the jacks on the rear panel of the stroboscope. Due to the standard existing connections, both, a machine signal, and a signal of the control unit can be transmitted simultaneously. Switching between the two inputs can be achieved by using the rocker switch on the rear side of the stroboscope.

Highlights

- low-wear LED lightning trigger
- illumination level 300 x 500 mm
- high intensity of light
- adjustable light frequency
- web width> 500 mm
- rotary device parallel operation

Specification


General parameter
Frequency range0…120,000 FPM (flashes per minute)
Voltage supply24 VDC (+/- 10%) / 40 W
DIN 41524 5pin Standardstecker
Universelles Netzteil verfügbar
External triggerinput3...30 V / max. 5 mA
(potential freeOptokoppler)
DIN 41524 5pin Standardstecker
Uout = Uin, max. 200 mA
Triggerinput switchable
Triggeroutput for parallel circuit
Flash Parameter
Flash period1–1000 μSec. (adjustable)
Luminous intensity standard, 30 – 100%
Light intensity single flashca. 20 Mega-Lux / 30 cm / 12"
Light intensity max.9.000 Lux @ 30 cm / 12˝
Illumination area300 x >500 mm / 12 x >20˝
Light colourca. 5,000…8,300 K
Case
Material Aluminium
Diameter440 x 130 x 112 mm / 17.3 x 5,1 x 4.4˝.
Weight2.100 g
Ambient conditions
Ambient temperature0...40 °C (32...104 °F)
Storage temperature-25...70 °C (-13...158 °F)
HumidityMax. 95 %, non-condensing

Delivery Scope

1 x Stroboscope RT STROBE 7000 LED
1 x mains adapter
1 x manual
1 x plug for triggerinput and supply
