Surface Testing - Color Meter PCE-XXM 30-ICA incl. ISO Calibration Certificate

Order no.: PCE-XXM 30-ICA
GTIN (EAN):
£ 708.00
£ 849.60
ISO Calibration
price ex. (VAT / delivery)
PCE-XXM 30-ICA
Delivery time: 10 - 14 days
Colour

Description

Surface testing - color meter with Bluetooth interface / Pass-fail function
Approx. 10,000 measurements per battery charge / Wavelength range 400 ... 700 nm /
Measured value memory / Color ranges CIE-LAB, CIE-LCh, HunterLab, CIE-Luv, XYZ, RGB

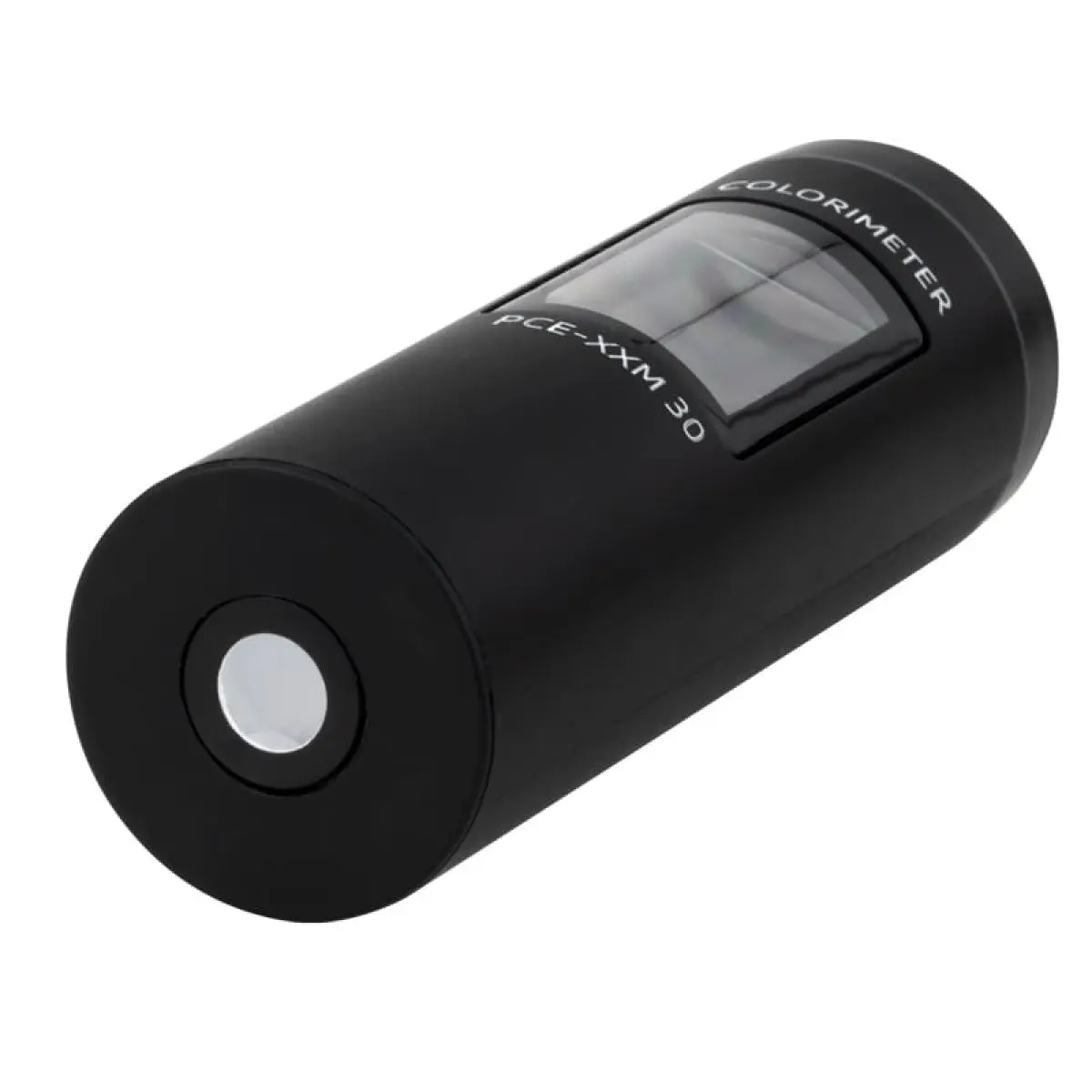

The surface testing - color meter is designed to carry out fast and precise color measurements of surfaces. The color ranges CIE-LAB, CIE-LCh, HunterLab, CIE-Luv, XYZ, RGB of the color can be determined with the surface testing - color meter. An LED with a wavelength of 400 ... 700 nm is built into the surface testing - color meter as a light source. The measuring opening of the surface testing - color meter is Ø8 mm. Despite its compact design, the surface testing - color meter has a repeatability of ΔE* from ≤0.1.

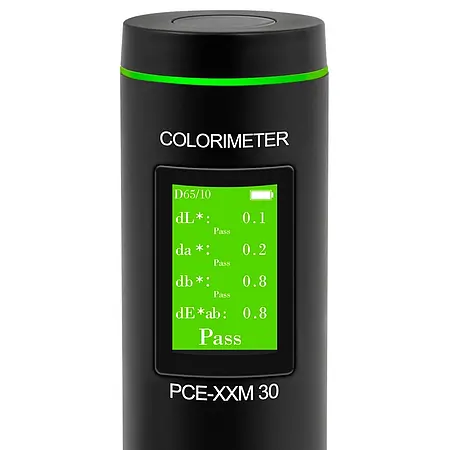

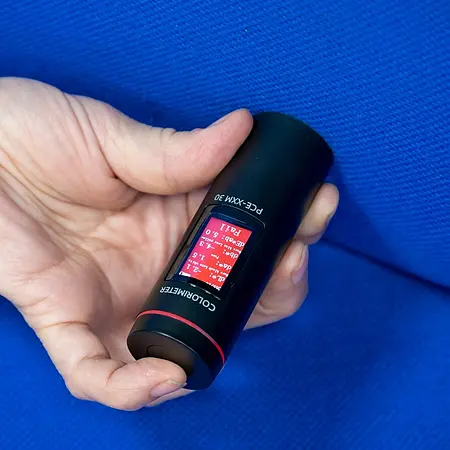

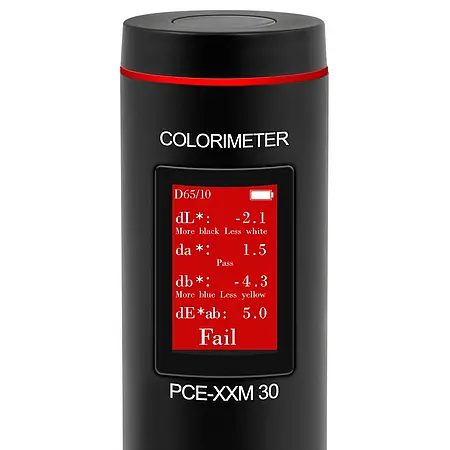

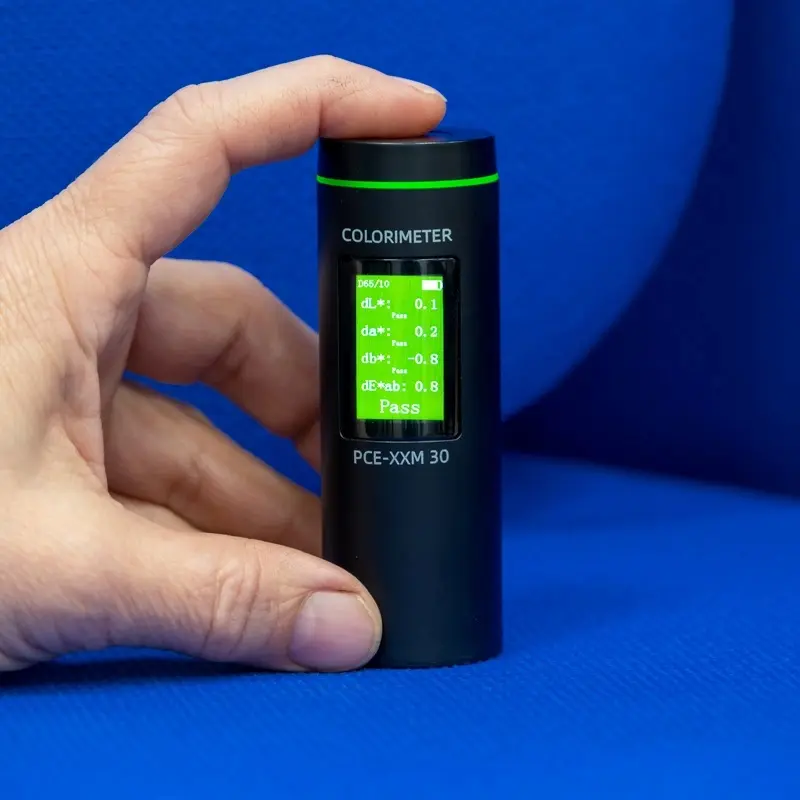

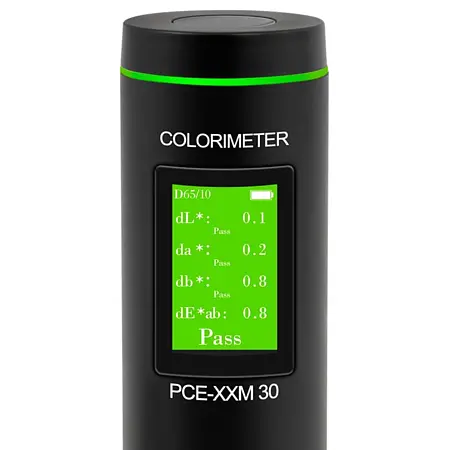

In addition to normal color measurement, the surface testing - color meter can also determine color differences. For this purpose, a reference measurement is first carried out with the surface testing - color meter on any reference. Then measurements can be carried out on test objects with the surface testing - color meter. The surface testing - color meter in turn shows the difference between the reference and the test item. A permissible tolerance can also be stored in the surface testing - color meter. If the tolerance is adhered to, this is indicated by a green display on the surface testing - color meter. If the measured color is outside the tolerance, this is indicated by the surface testing - color meter with a red display.

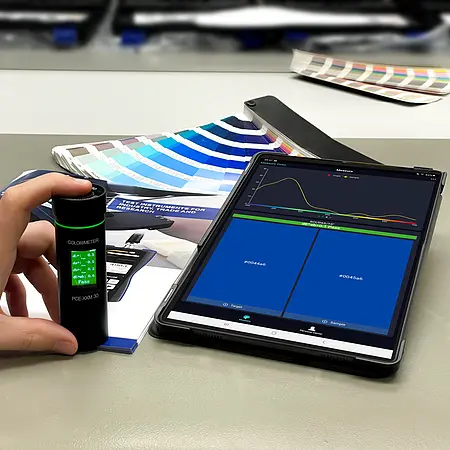

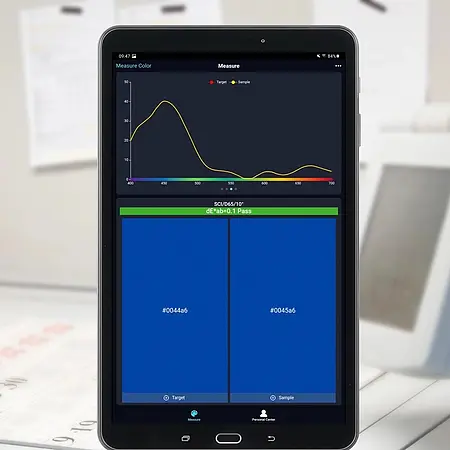

A connection to an Android capable device can be established with the Bluetooth interface. The free app for the surface testing - color meter can be downloaded from the Play Store. Measurement parameters can be changed from the app to the surface testing - color meter. In addition, the measurement can be carried out via the app. The measurement result is then displayed directly in the app. Thus, for example, measurement comparisons can be carried out via the app to the surface testing - color meter. If measured values ​​are saved on the surface testing - color meter, they can be read out via the app.

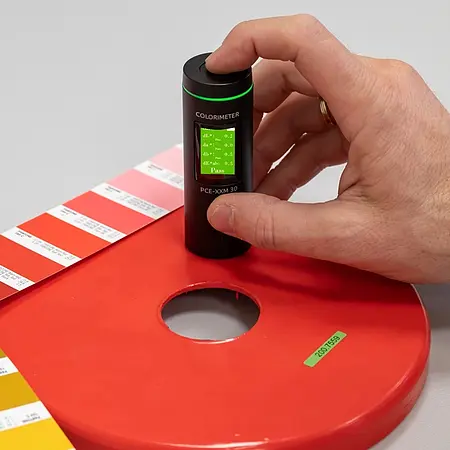

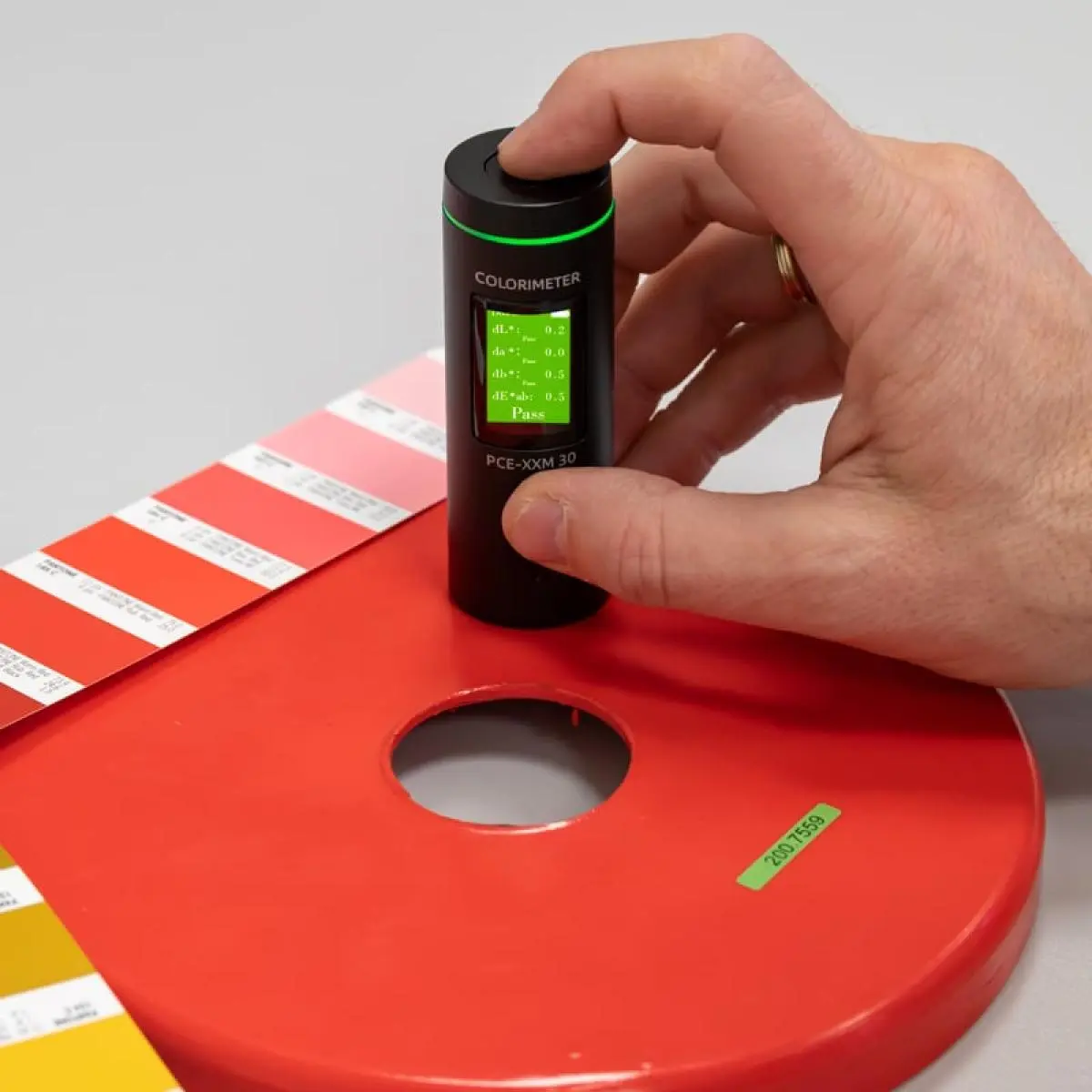

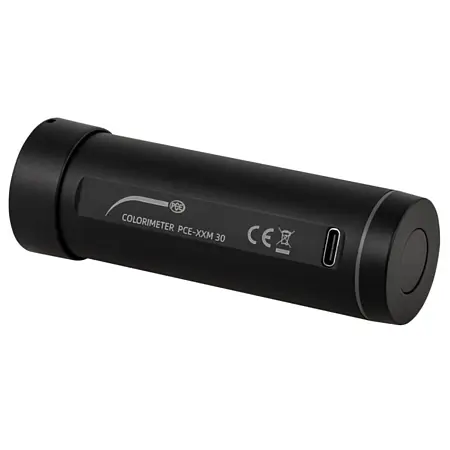

The surface testing - color meter is therefore used, for example, in quality control in a print shop to check the print result or in the automotive industry to check the paint that has been sprayed on. The battery life of the surface testing - color meter is approx. 10,000 measurements. If the battery is discharged, it can be recharged in the surface testing - color meter via the USB-C interface.

Highlights

- USB-C interface for charging
- Battery life for approx. 10,000 measurements
- Pass / Fail function
- Measuring opening of Ø8 mm / 0.31"
- Bluetooth interface with free app
- Various adjustable light sources
- incl. ISO Calibration Certificate



***Requires free app for Android only in Playstore (PCE-XXM 30) to use all features


Specification

Measurement geometry and angle   D/8-SCI
Calibration black and white
Color ranges CIE-LAB, CIE-LCh, HunterLab,
  CIE-Luv, XYZ, Yxy RGB
Formulas for color inequality        ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00
WI ASTM E313-00, ASTM E313-73,
  CIE/ISO, AATCC, Hunter, Taube Berger Stensby
YI ASTM D1925, ASTM E313-00,ASTM E313-73
Blackness My, dM
Color shade ASTM E313-00
Color density CMYK (A, T, E, M), Metamerism Index Milm, Munsell,
  opacity, dye strength, color strength
Type of light source LED (full and visible wavelength range)
Light source A, B, C D50, D55, D65, D75, F1 …
  F12, CWF, U30, DLF, NBF, TL83, TL 84, U35
Measuring angle 2°, 10°
Repeatability ΔE* from ≤0.1
Difference between two different
color meters (IIA) ΔE* 00 <0.4
Accuracy refers to the average measurement of
12 BCRA Series II references

Measurement opening Ø8 mm / 0.31"
Wavelength interval 10 mm / 0.39"
Wavelength 400 … 700 nm
Memory 10 measured values, redundant
Measurement time <1 s
Display LC display, 135 x 240 p, 1.14"
Interfaces Bluetooth, USB-C
Power supply 5 V DC, 1 A
Battery life ca. 10,000 measurements
Ambient conditions 5 … 45 °C / 41 … 113 °F, <90 RH, non-condensing
Dimensions Ø35 x 130 mm / Ø1.37 x 5.11"
Weight 87 g / 3 oz

Delivery Scope

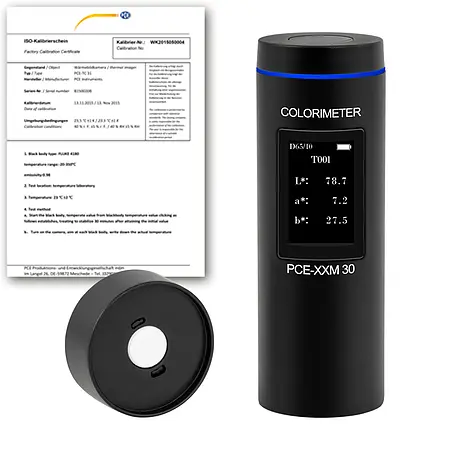

1 x Surface testing - color meter PCE-XXM 30-ICA

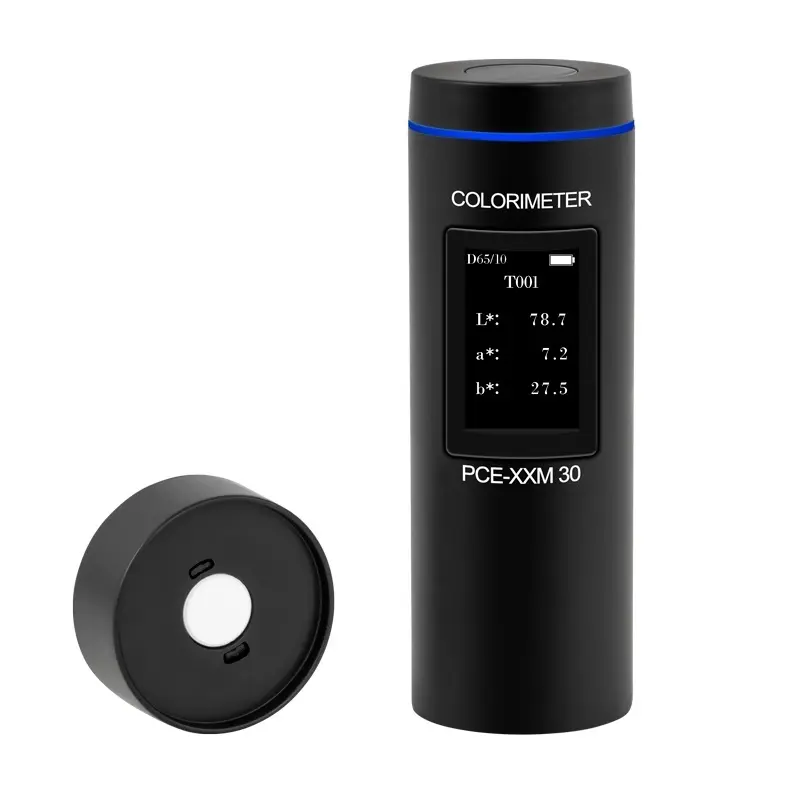

1 x White reference

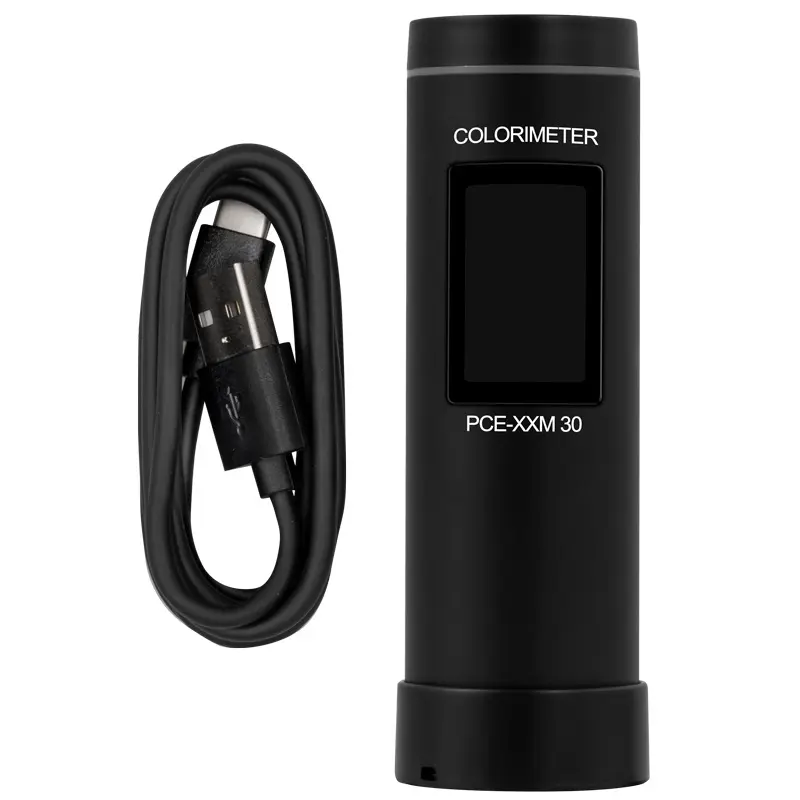

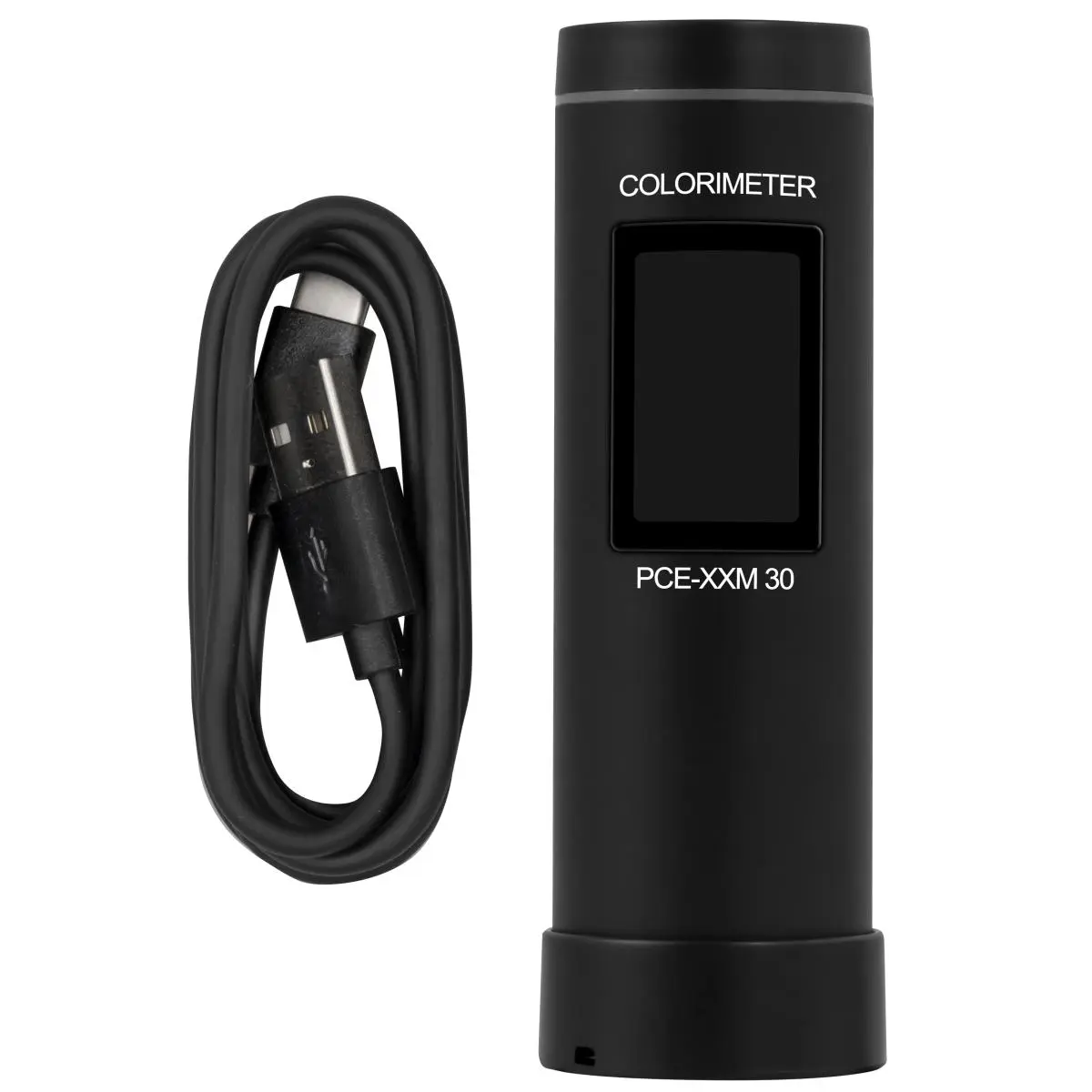

1 x USB-C cable
1 x Instruction manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
