- Test stand for mounting PCE-RT 1200, PCE-RT 2000 and PCE-RT 2200
- In combination with PCE-RT2000-RP110 and PCE-RT2000-RP131
Parameter | Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry(JIS), |
Rz(JIS), RP(ASME), Rpm(ASME), Rv(ASME), | |
R3z, R3zmax, Rz1max, Rmr(c), Rdc, Rmr | |
Measuring range | Ra, Rq, Rc: 0.005 ... 16 µm |
Rsm: 5 ... 1000 µm | |
Rsk: -1 ... 1 | |
Rz, Rt, Rp, Rv, Rmax, Ry(JIS), Rz(JIS),RP(ASME), | |
Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max, | |
Rdc: 0.02 ... 200 µm Rmr(c), Rmr: 0 ... 100 % | |

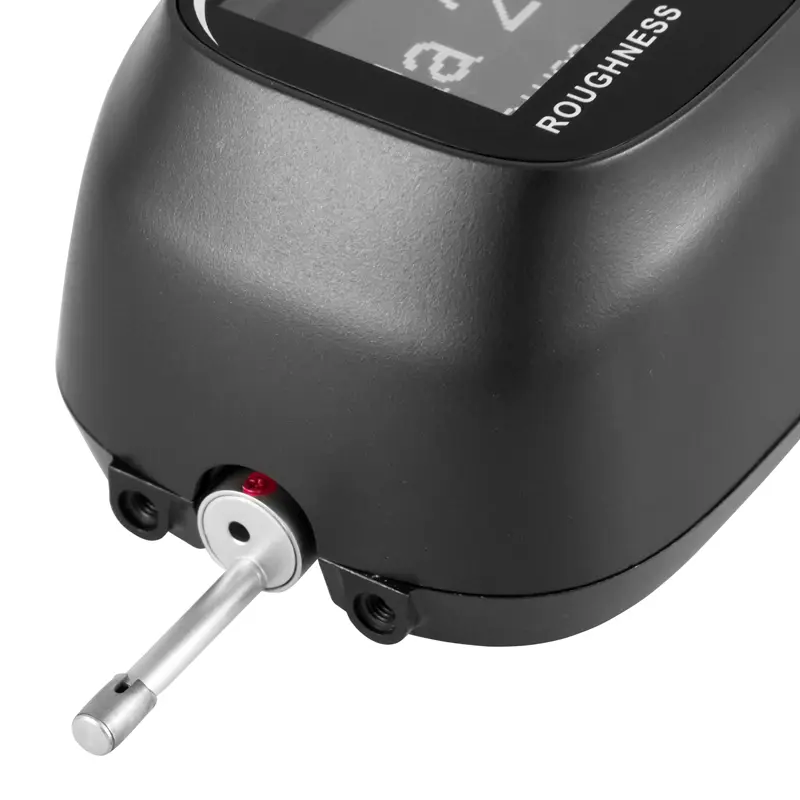

Probe tip radius | 5 µm |
Probe tip material | diamond, 90° angled |
Max.recommended force | 4 mN (0.4 gf) |
with static measurement | |
Measuring principle | inductive |
Radius of the longitudinal guide rail | 45 mm |
Standards | ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287) |
Maximum travel distance | 15 mm |
Cut off wavelength | 0.25 mm / 0.8 mm / 2.5 mm |
Scanning speed | 0.135 mm/s at cutoff wavelength: 0.25 mm |
0.5 mm/s at cutoff wavelength: 0.8 mm | |
1 mm/s at cut-off wavelength: 2.5 mm | |
Return speed: 1 mm/s | |
Memory | 20 measurement runs with all parameters |
Measurement accuracy | <±10 % |
Repeatability | <6 % |

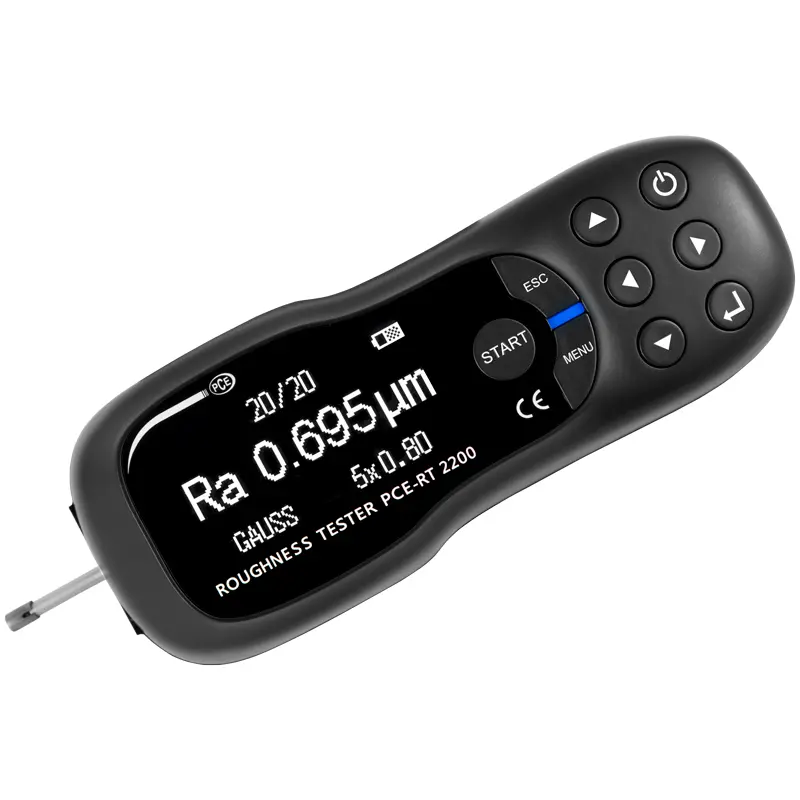

Display | OLED |
Units | μm / μinch (switchable) |

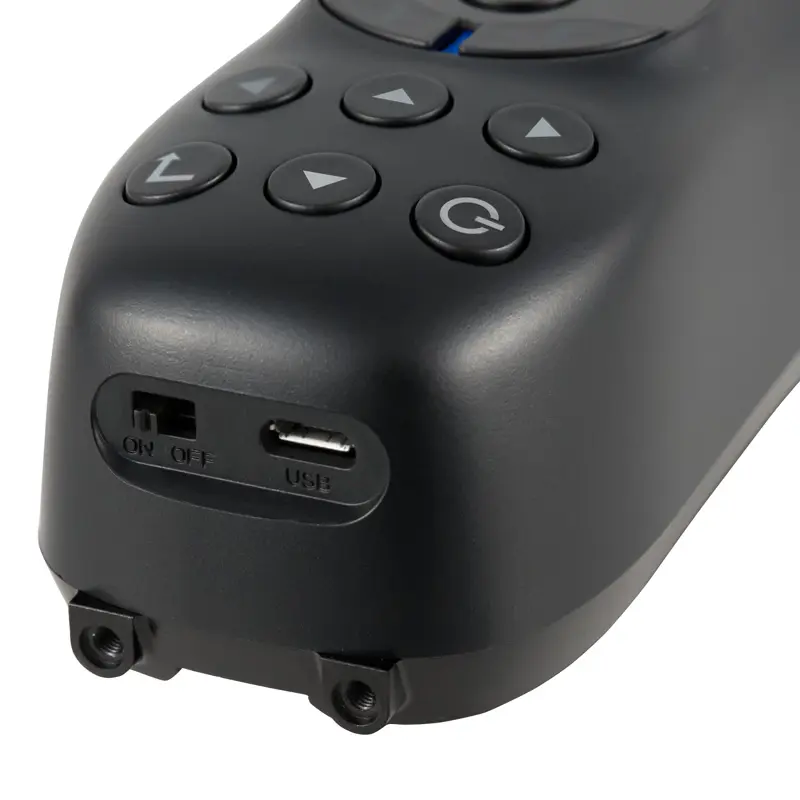

Interface | Micro USB |
Power supply | rechargeable Li-ion battery |

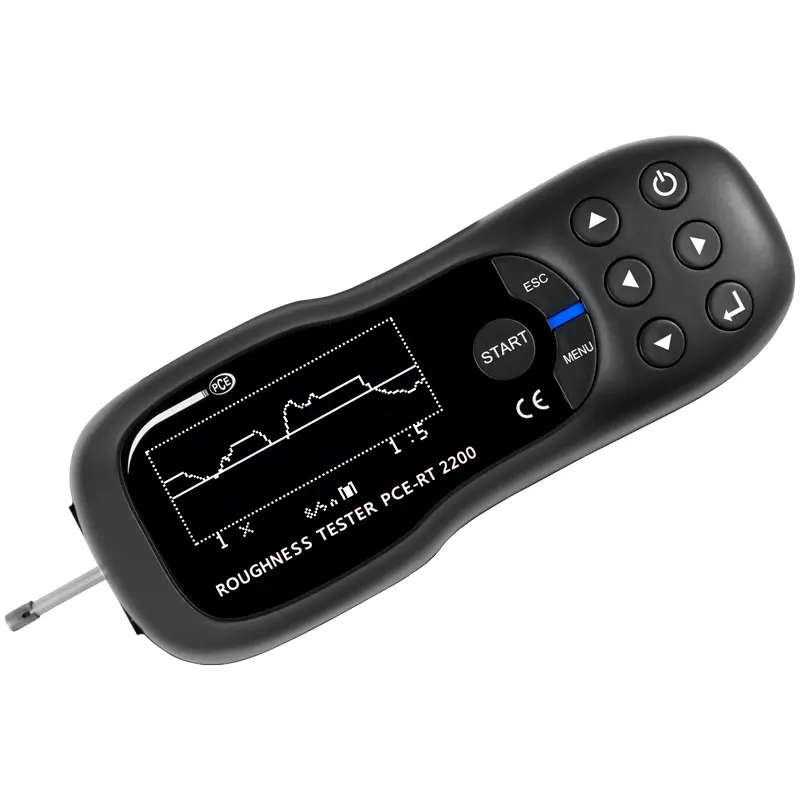

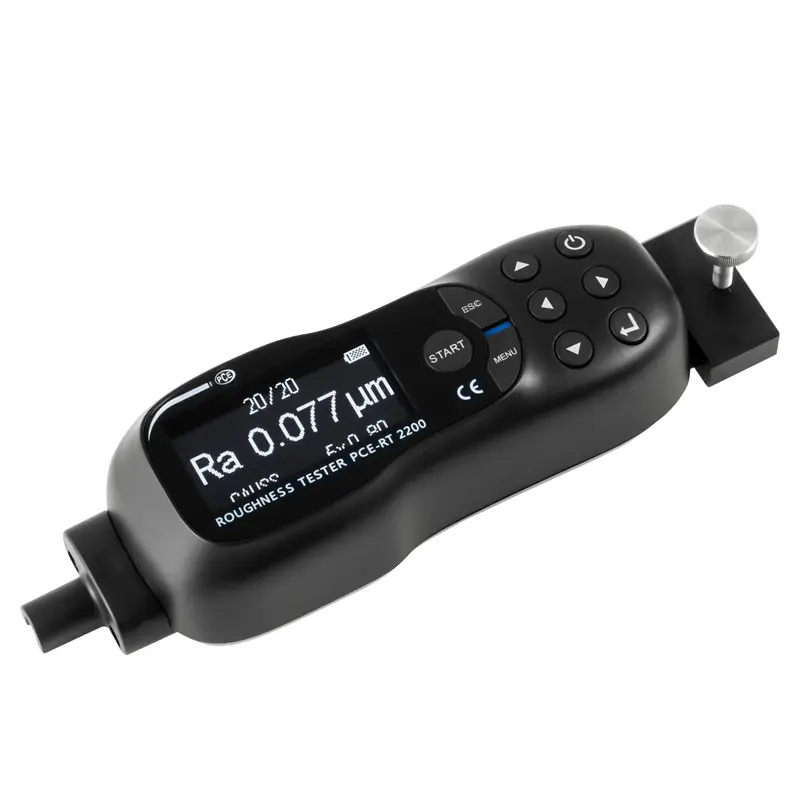

1 x Surface Testing - Roughness Tester PCE-RT 2200-ICA
1 x Micro probe
1 x Protective cap for probe
1 x Positioning device
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter

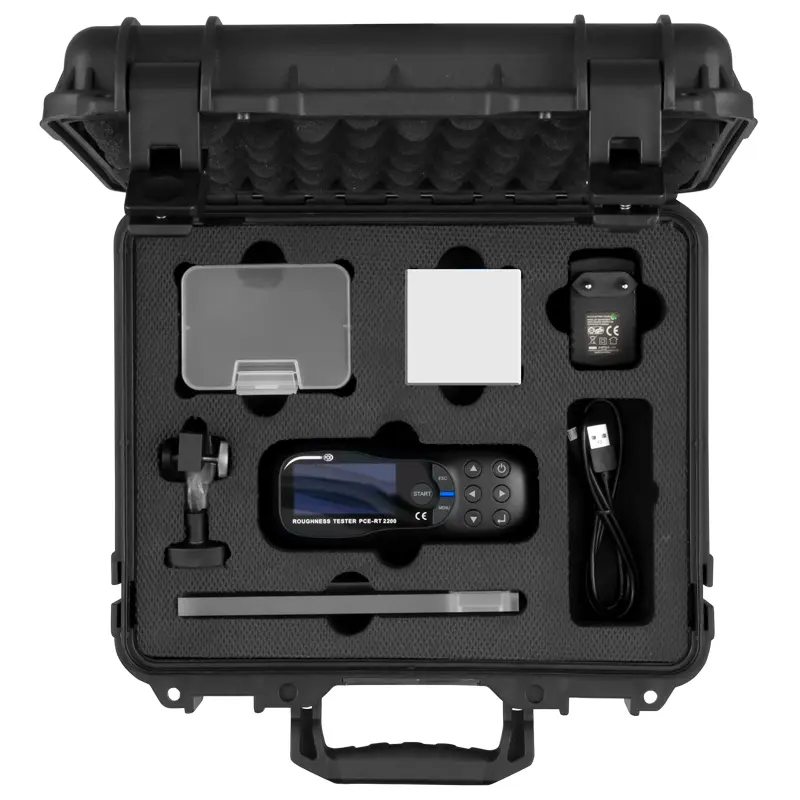

1 x Carrying case
1 x Instruction manual

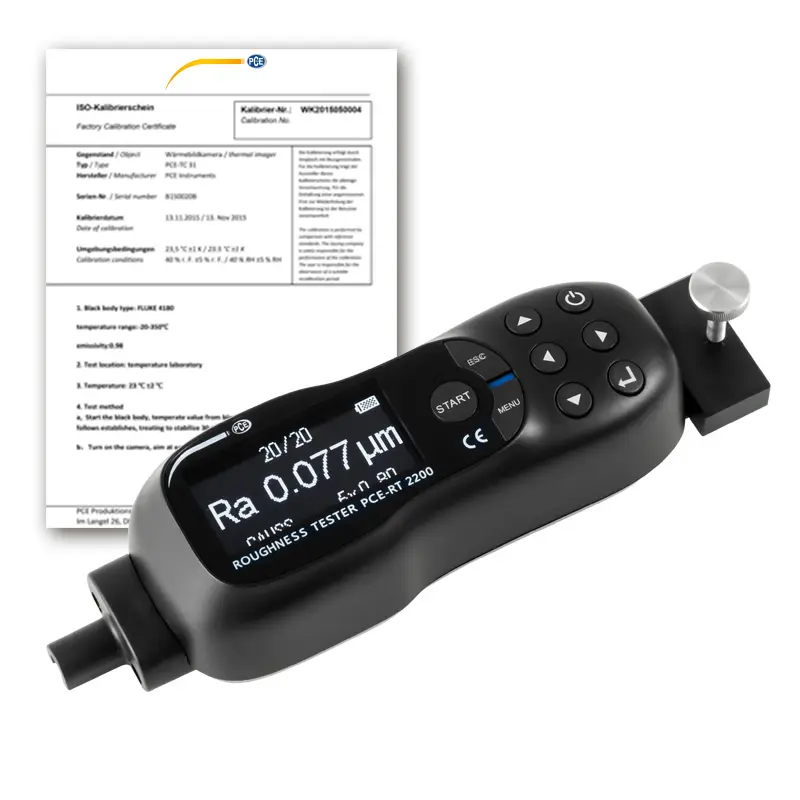

1 x ISO calibration certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Spare standard sensor for Roughness-Tester PCE-RT 1200 / PCE-RT 2000.
Price excl. VAT &. delivery
2 year Warranty
Probe for the PCE-RT 1200 and PCE-RT 2000 for measuring the roughness of grooves.
N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.
Price excl. VAT &. delivery
2 year Warranty
Curved surface sensor suitable for PCE-RT 1200 und PCE-RT 2000. The sensor is used to measure surfaces with radii.
N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.
