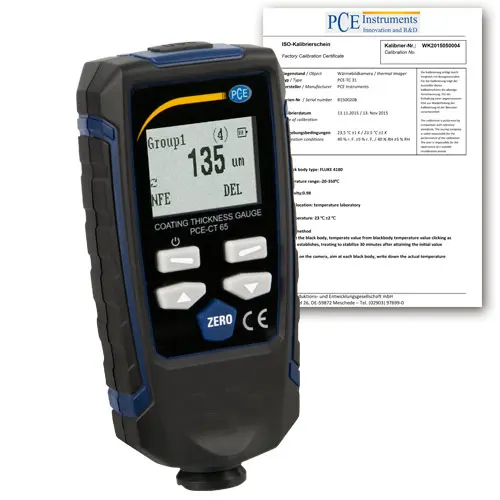

Surface Testing Thickness Gauge PCE-CT 65-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 65-ICA

GTIN (EAN): 4250348728104

Accessory

Re-Calibration for Coating Thickness Meter

£ 154.00

Description

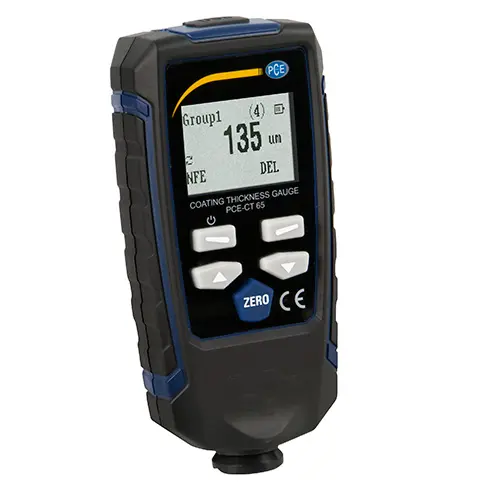

PCE-CT 65 Surface Testing - Coating Thickness Gauge
Non-destructive coating and dry film thickness (DFT) measuring device for use on ferrous and non-ferrous metal substrates

PCE-CT 65 is a surface testing - coating thickness gauge that uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum. This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications.

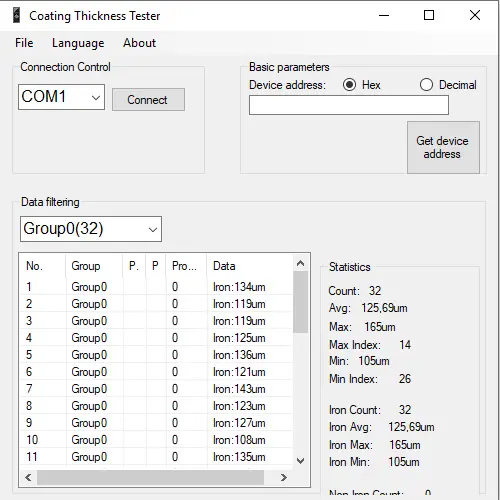

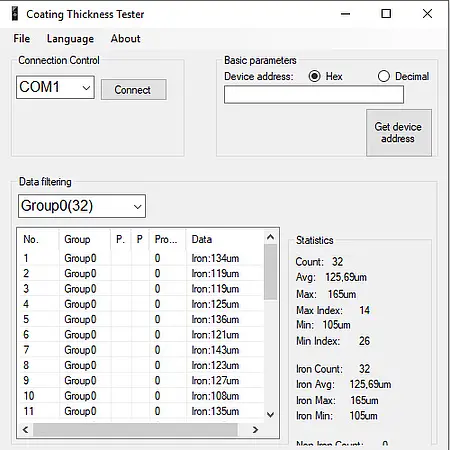

The easy-to-use downloadable PC-compatible software included with this thickness gauge allows for detailed analysis of measurement results via computer. Measurement values are shown in a table and different working modes can be selected for data filtering. Statistics include the maximum, minimum and average value per working group. Statistics can be divided by ferrous and non-ferrous material. The software also counts how many readings have been stored in each material group. For more details, please refer to the user manual.

Highlights

- Includes calibration shims and blocks for DIY accuracy testing, a carrying case for easy transport, and a 2-year warranty against manufacturer defects
- Optional ISO calibration certificate available for purchase separately - see accessories tab for details
- Features two measuring modes (ferrous and non-ferrous) with integrated sensors for comfortable, one-handed operation
- Saves up to 1500 measurements to memory
- Comes with a USB cable and downloadable PC software (see downloads tab) for detailed analysis of measurement results via computer
- Incl. ISO Calibration Certificate

Specification

Ferrous metals

Principle	Magnetic induction
Measuring range	0 ... 1350 µm / 0 ... 53.1 mils
Accuracy	0 ... 1000 µm: (±2.5 % ±2 µm) 1000 µm ... 1350 µm: ±3.5 % 0 ... 39.3 mils: (±2 % ±0.08 mils) 39.3 mils ... 53.1 mils: ±3.5 %
Resolution	0 ... 100 µm: 0.1 µm 100 µm ... 1000 µm: 1 µm in 1000 mm ... 1350 µm: 0.01 mm 0 ... 10 mils: 0.01 mils 10 mils ... 53.1 mils: 0 ... 1 mils
Smallest surface	Ø 7 mm / Ø 0.3 in
Min. curvature radius	1.5 mm / 0.05 in
Min. substrate thickness	0.5 mm / 0.02 in
Non-ferrous metals
Principle	Eddy current
Measuring range	0 ... 1350 µm / 0 ... 53.1 mils
Accuracy	0 ... 1000 µm: ±(2.5 % ±2 µm) 1000 µm ... 1350 µm: ±3.5 % 0 ... 39.3 mils: ±(2 % ±0.08 mils) 39.3 mils ... 53.1 mils: ±3.5 %
Resolution	0 ... 100 µm: 0.1 .mu.m 100 µm ... 1000 µm: 1 µm in 1000 mm ... 1350 µm: 0.01 mm 0 ... 10 mils: 0.01 mils 10 mils ... 53.1 mils: 0 ... 1 mils
Smallest surface	Ø 5 mm / Ø 0.2 in
Min. curvature radius	3 mm / 0.1 in
Min. substrate thickness	0.3 mm / 0.01 in
Units	µm, mils
Functions	Alarm function, display lighting, automatic shutdown, calibration, memory function
Memory option	30 storage groups with a capacity of 50 measurements each = 1500 measurements total
Interface	USB
Environmental conditions	0 ... 40°C / 32° F ... 104°F, 20% ... 90% rh
Power supply	2 x 1.5V AAA batteries

Delivery Scope

1 x PCE-CT 65 Surface testing - coating thickness gauge
2 x 1.5V AAA batteries
5 x Calibration shims
2 x Calibration blocks (aluminum and iron)
1 x USB cable
1 x User manual
1 x Carrying case
1 x ISO calibration certificate

Note: The PC software is available for download via the downloads tab of our website.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
