Surface Testing - Ultrasonic Thickness Gauge PCE-UFD 50

Order no.: PCE-UFD 50
GTIN (EAN): 4250348733535
£ 2,390.00
£ 2,868.00
price ex. (VAT / delivery)
:
4250348733535
PCE-UFD 50
Delivery time: 5-7 working days

Description

Surface Testing - Ultrasonic Thickness Gauge  for non-destructive material testing / Video recording of screen content / Integrated DAC and AVG functions / A-scan display

The surface testing - ultrasonic thickness gauge  is used for non-destructive material testing. When testing with the surface testing - ultrasonic thickness gauge , ultrasonic waves are sent through the test object using a probe. The ultrasound is reflected and scattered at interfaces of different materials with unequal density and wave impedance. After determining the transit time of the ultrasound through the test object, weld seams can be tested, wall thicknesses measured and component defects localised with the ultrasonic testing device.

With adjustable frequencies between 0.5 ... 20 MHz and sound velocities between 1000 ... 15000 m/s, measurements can be carried out in steel in the range between 0 ... 10000 mm. DAC and AVG evaluation methods, display and probe delay, attenuation and amplification functions, export and report generation functions as well as numerous other setting options make non-destructive material testing with the surface testing - ultrasonic thickness gauge  considerably easier. The tester has a video recording of the screen. The software can then be used to call up the data and create a report. The setting parameters can be changed using the rotary knob. The 5.7-inch colour display provides a clear presentation of the test results.

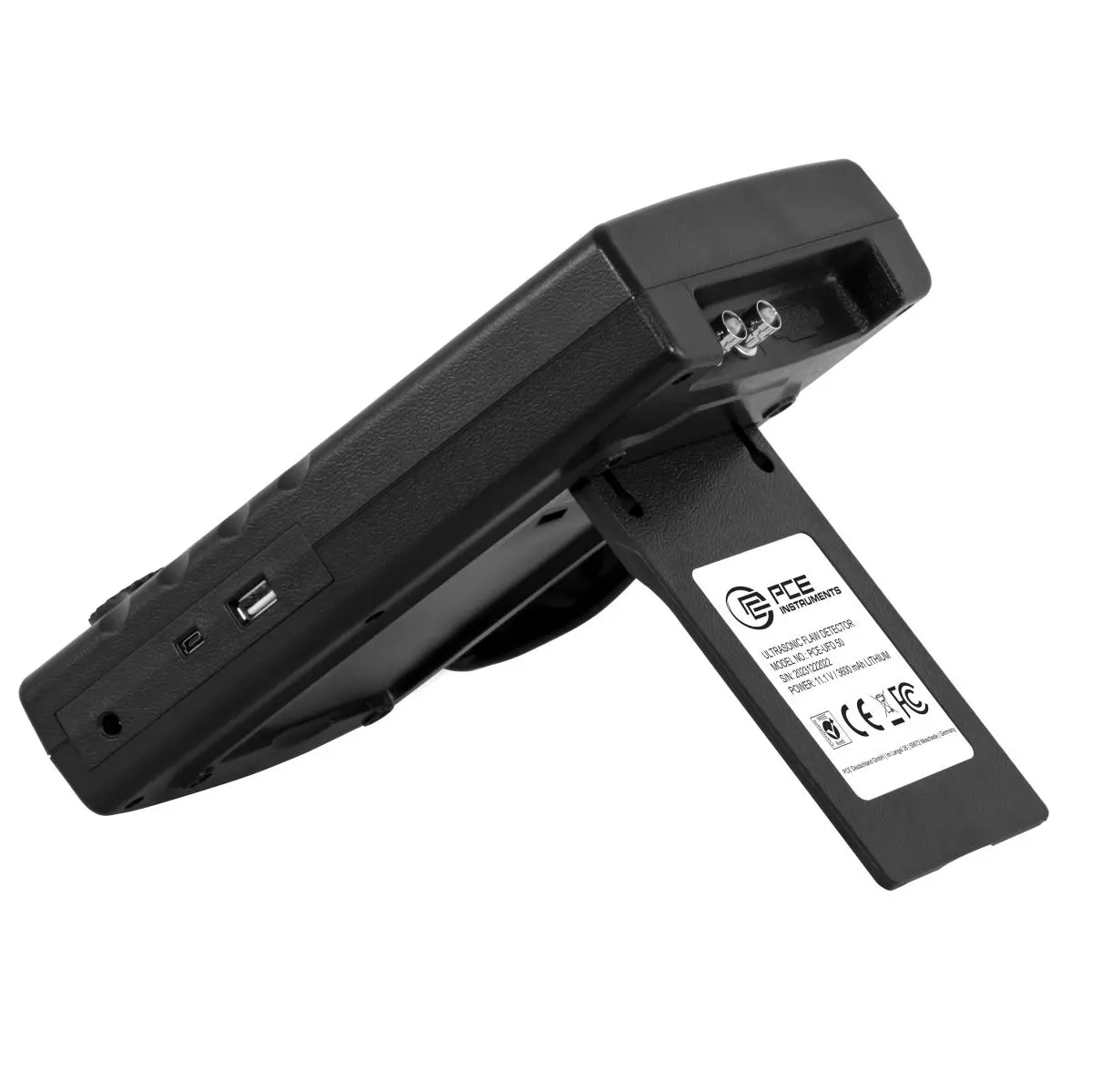

The ultrasonic tester is a powerful measuring device that has been designed for appropriate tests. Robust and ergonomic design enables use under industrial conditions. Weighing just 1.1 kg, the surface testing - ultrasonic thickness gauge  can not only be used as a desktop device but is also suitable for mobile use.


Highlights

- Single or dual probe measurement
- AVG and DAC evaluation methods
- Sound velocity 1000 ... 15000 m/s
- Low weight
- TFT colour display
- USB interface and software
- Memory for up to 100 data records

Specification

Material thickness
Measuring range  0 ... 10000 mm
Resolution  1 mm

Pulse shift
Measuring range  -20 ... +999.9 µs
Resolution  0.1 µs

Pulse shift
Measuring range  1000 ... 3400 µs
Resolution  1 µs

General technical data

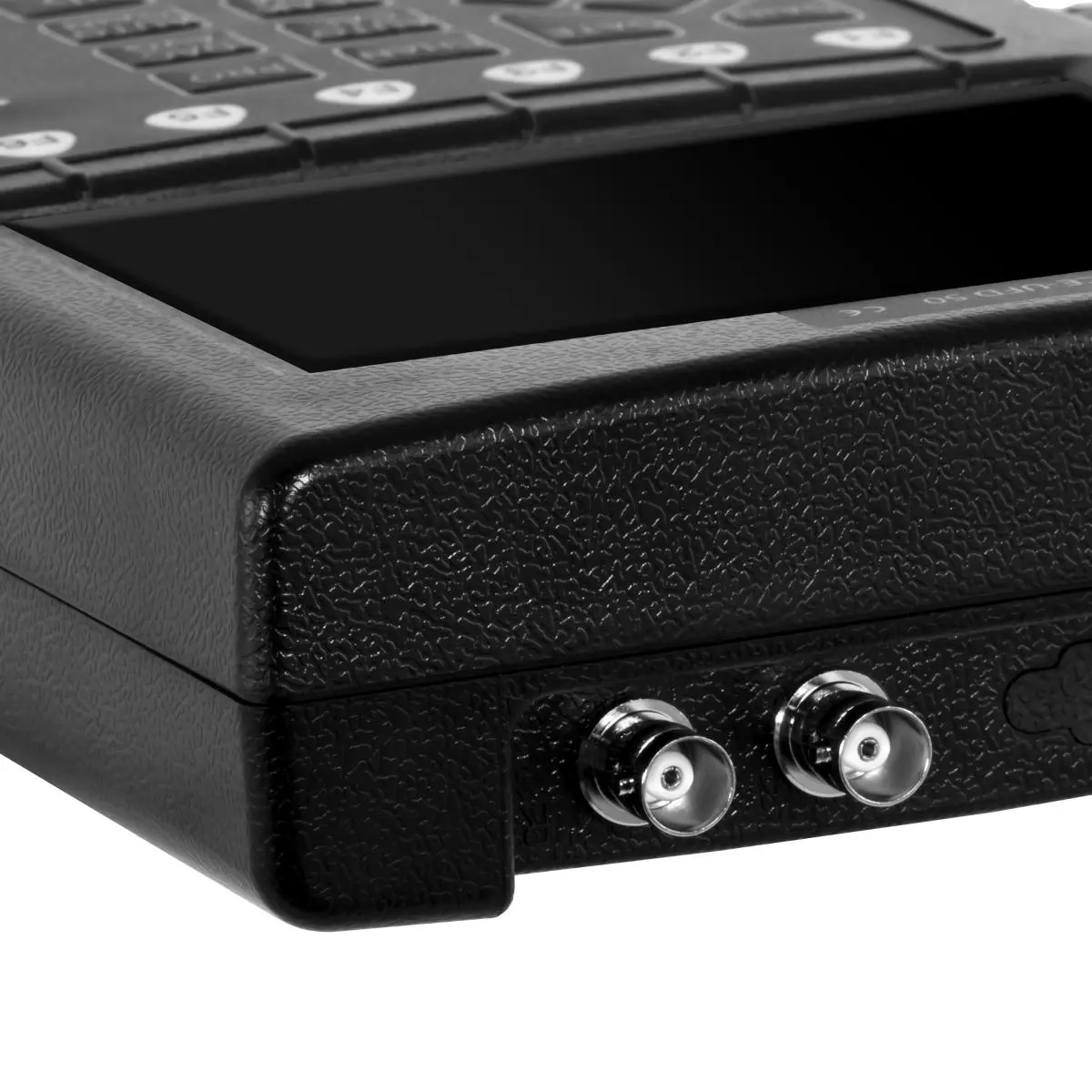

Measurement functions  Pulse echo, transmit-receive
Units  mm
Frequency  0.5 ... 20 MHz
Display type  TFT colour display
Display size  5.7 inches
Storage medium  Internal memory
Storage capacity  100 parameters

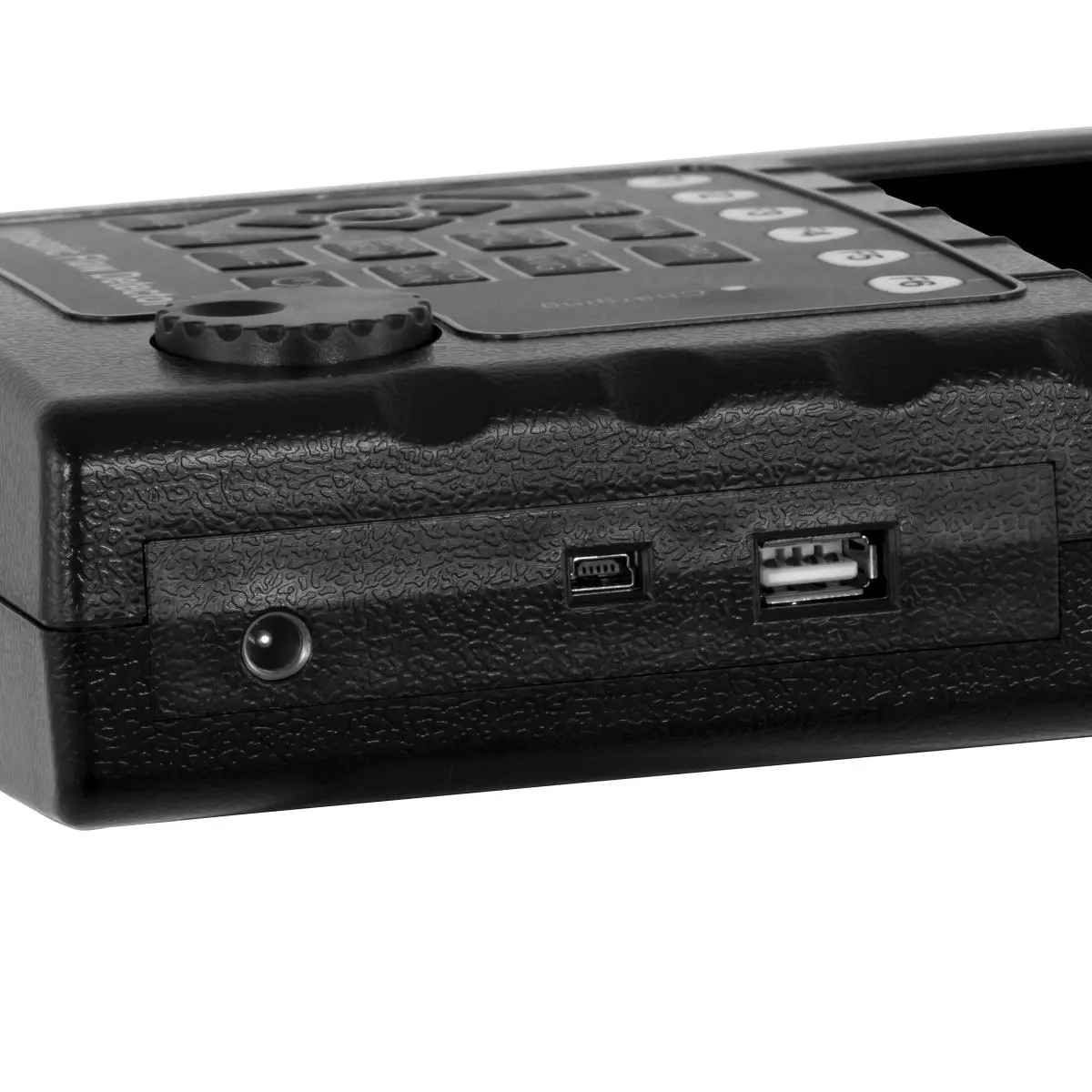

Interface  Mini-USB, USB-A
Sensor  Ultrasonic
Gain range  130 dB
Speed of sound adjustable  1000 ... 15000 m/s
Menu language  English (US), Chinese
Protection class (device)  IP30
Power supply  12.6 V / 2 A
Plug type  Safety plug
Weight  1130 g
Operating conditions  -10 ... 50 °C , 20 ... 90 % r.H.
Storage conditions  -10 ... 50 °C , 20 ... 90 % r.F
Capacity  3600 mAh
Dimensions ( L x W x H )  240 x 160 x 50 mm

Delivery Scope

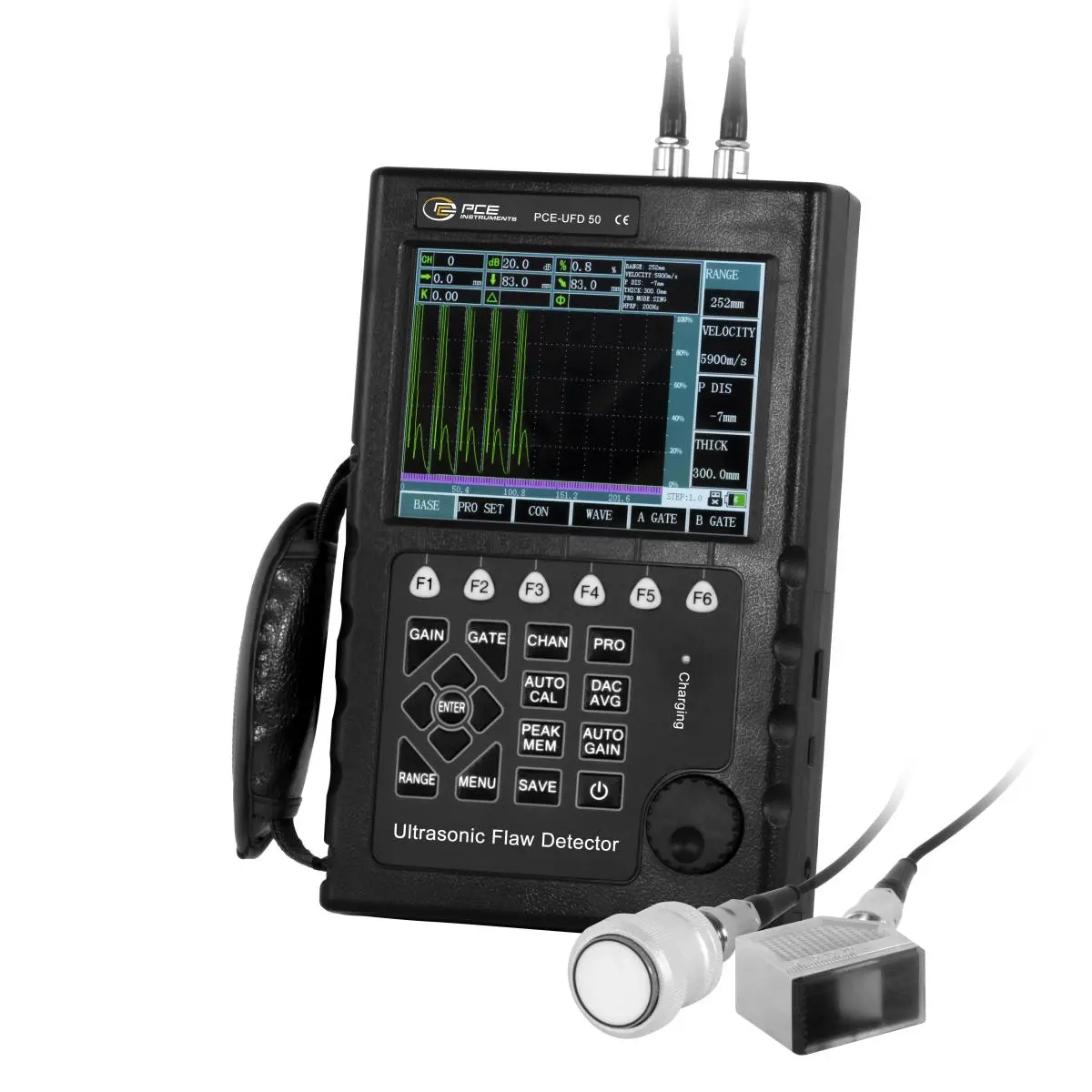

1 x surface testing - ultrasonic thickness gauge PCE-UFD 50

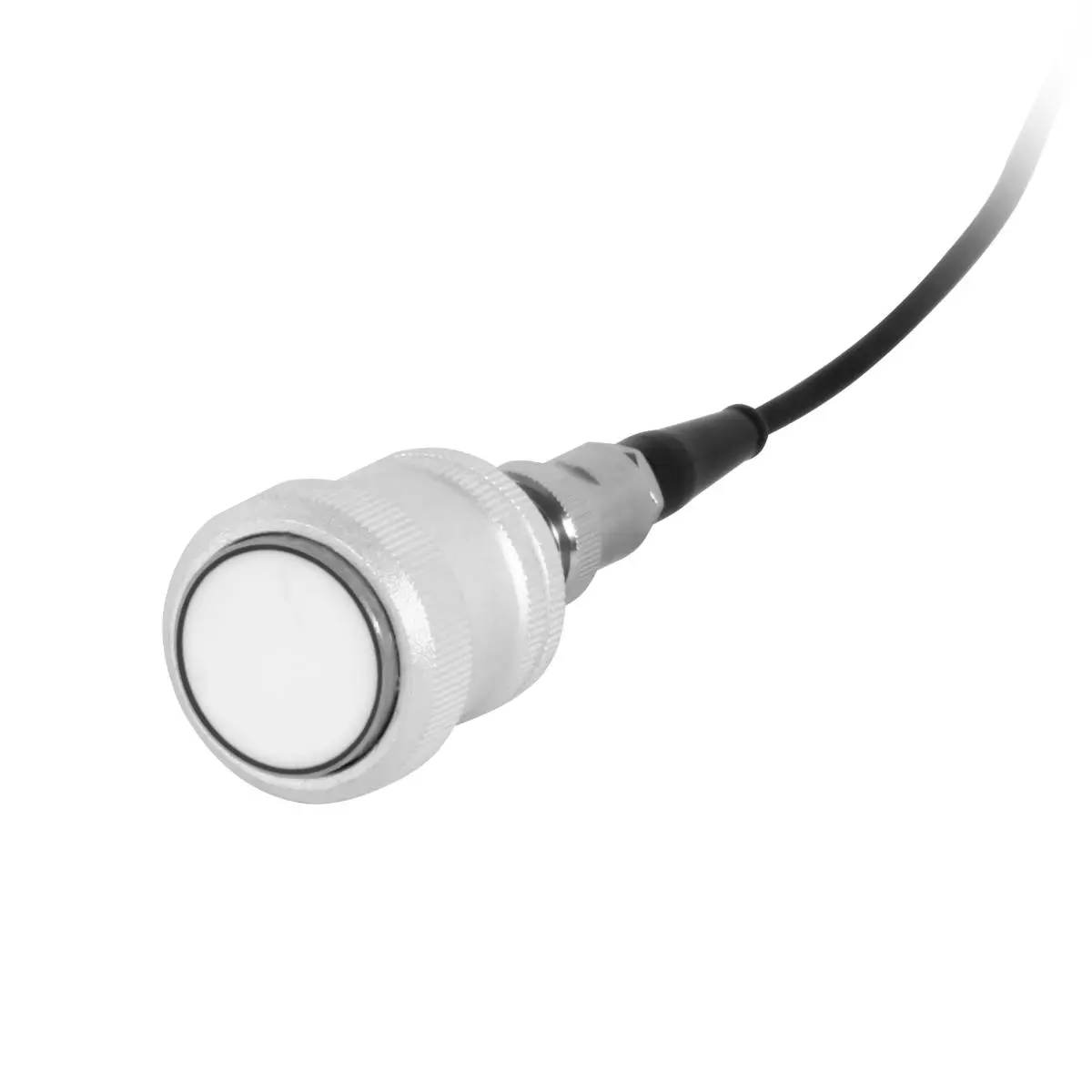

1 x vertical probe

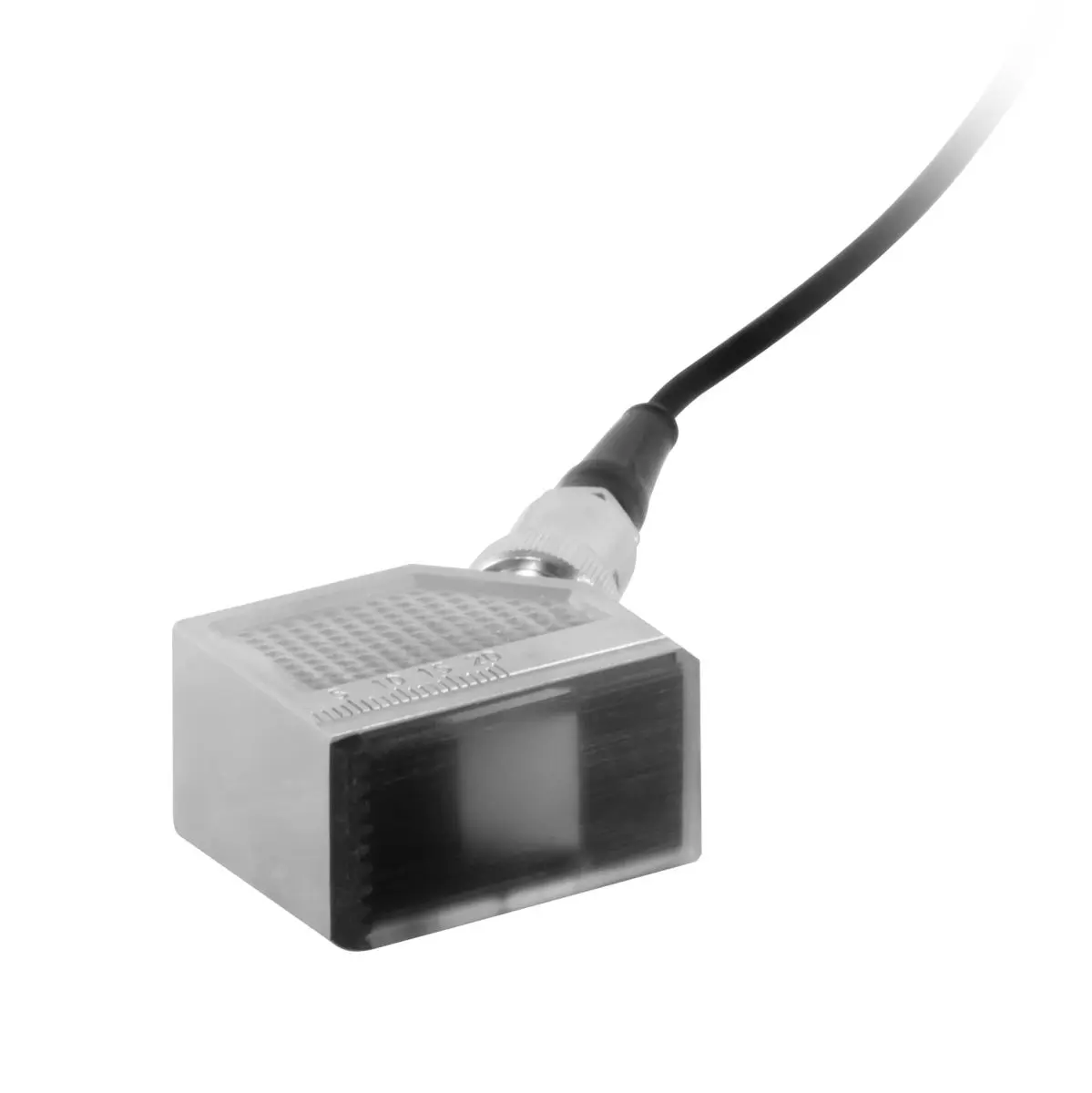

1 x angle probe
2 x probe cable approx. 1 m
1 x power supply unit 12.6 V / 2 A
1 x power cable

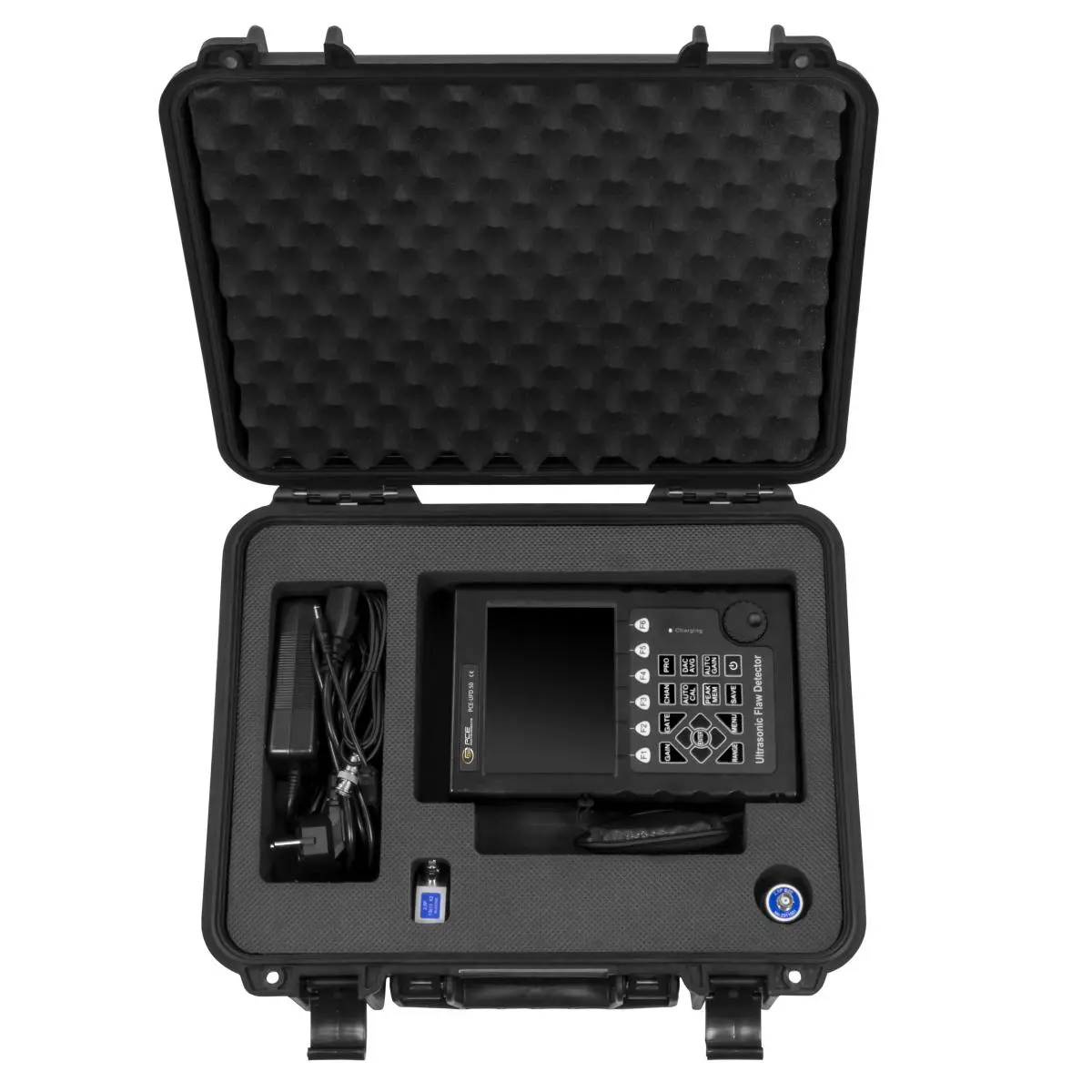

1 x transport case
1 x operating instructions
