Surface Thickness Tester PCE-CT 27FN-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 27FN-ICA

GTIN (EAN): 4250348728036

Accessory

Coating Thickness Gauge Spare Probe SE-CT 27FN

£ 89.00

Re-Calibration for Coating Thickness Meter

£ 154.00

Description

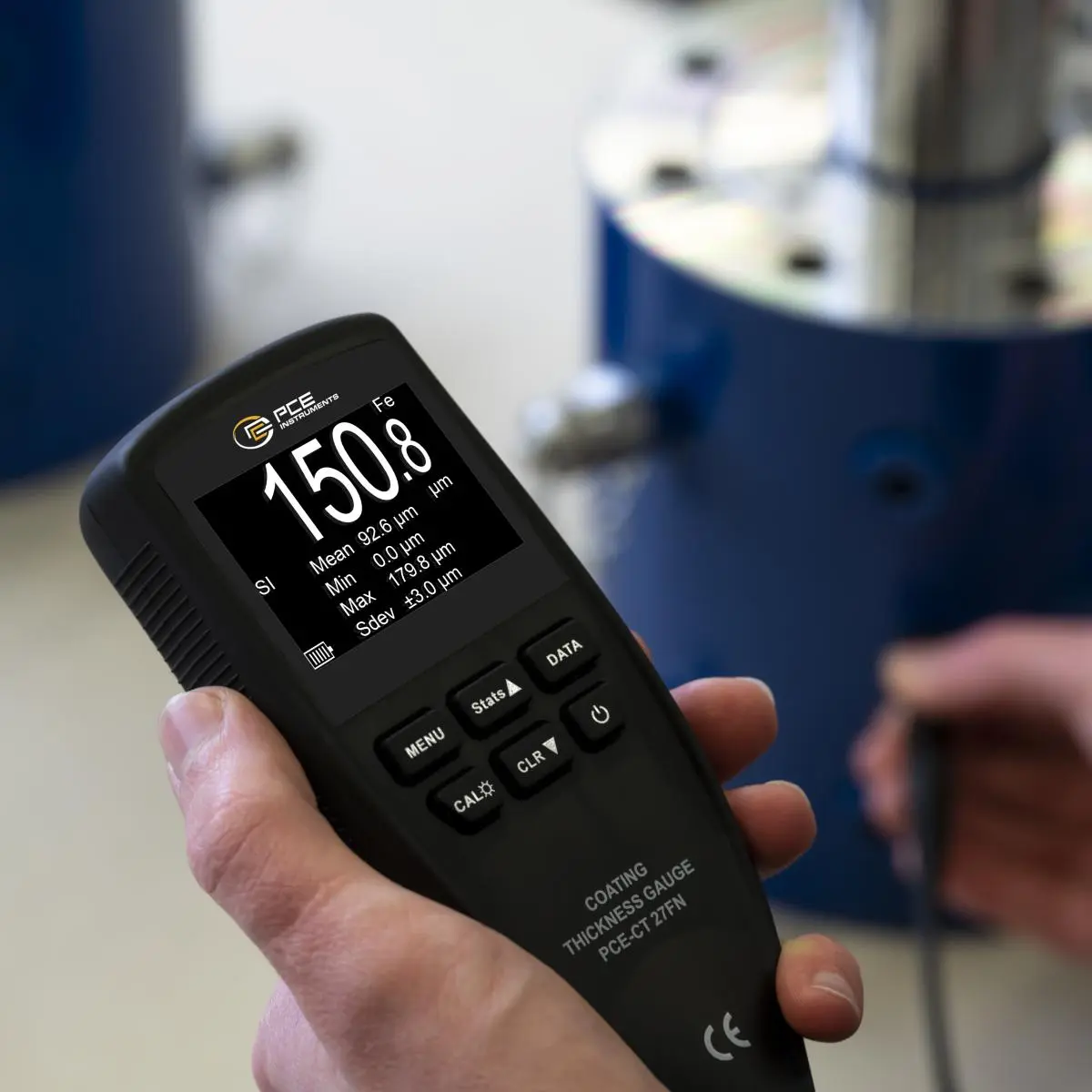

PCE-CT 27FN Surface Testing - Coating Thickness Gauge

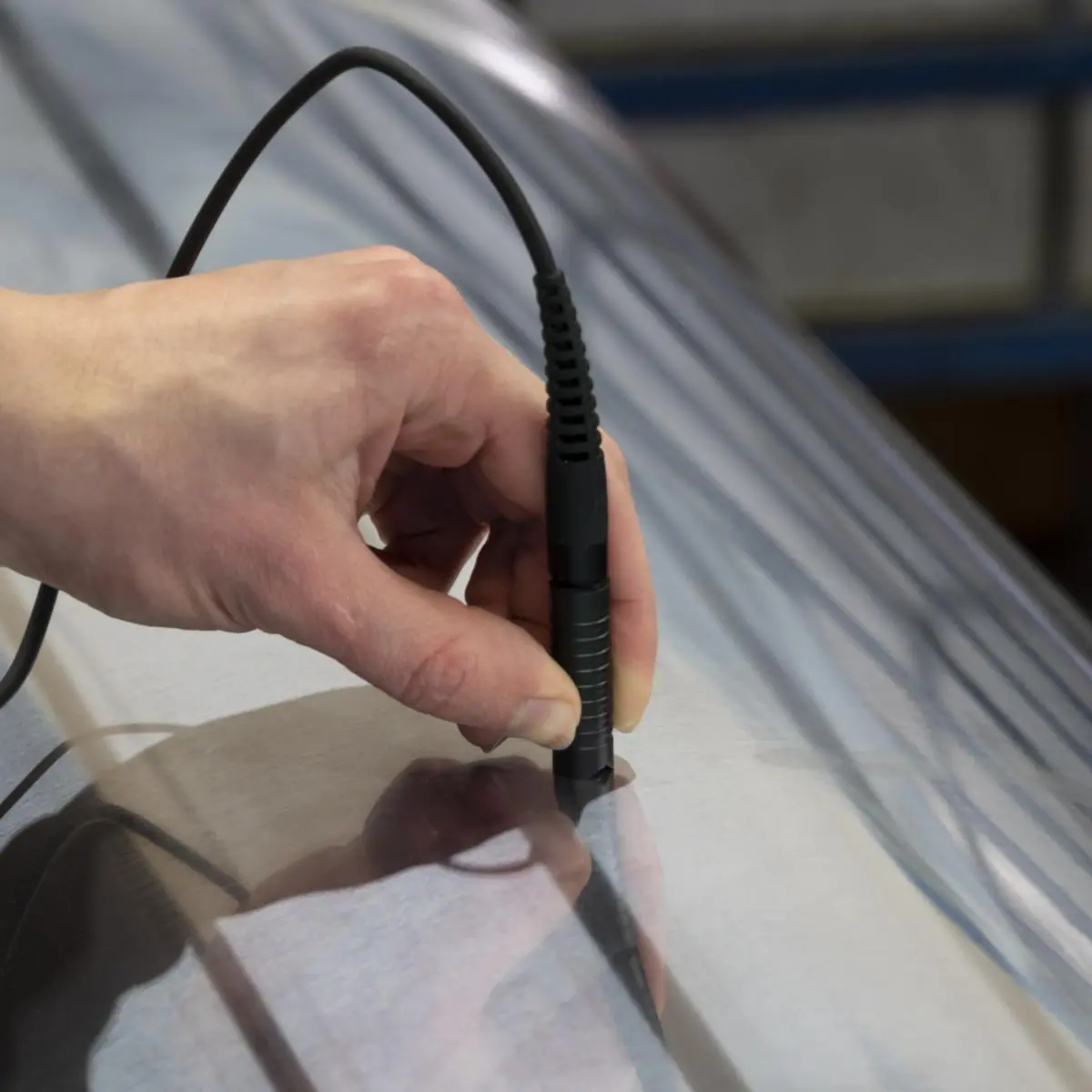

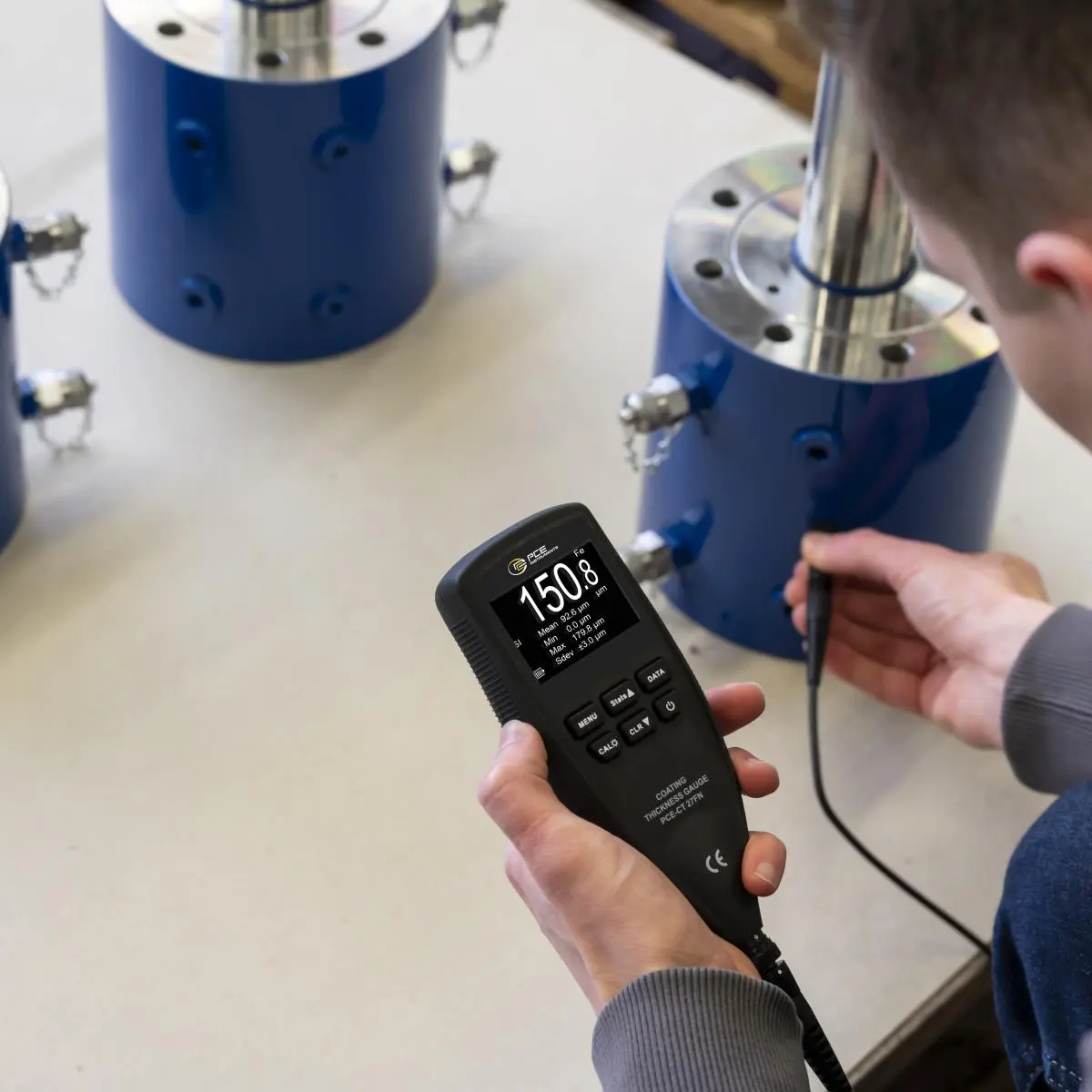

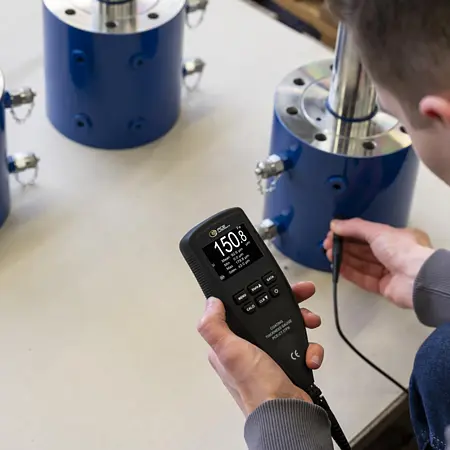

PCE-CT 27FN is a Surface Testing - Coating Thickness Gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Coating Thickness Gauge is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.

Highlights

- features an external sensor with v-groove for reliable measurement on small cylindrical parts
- Includes a set of calibration standards for ferrous and non-ferrous metals
- supplied with a set of plastic shims or foils

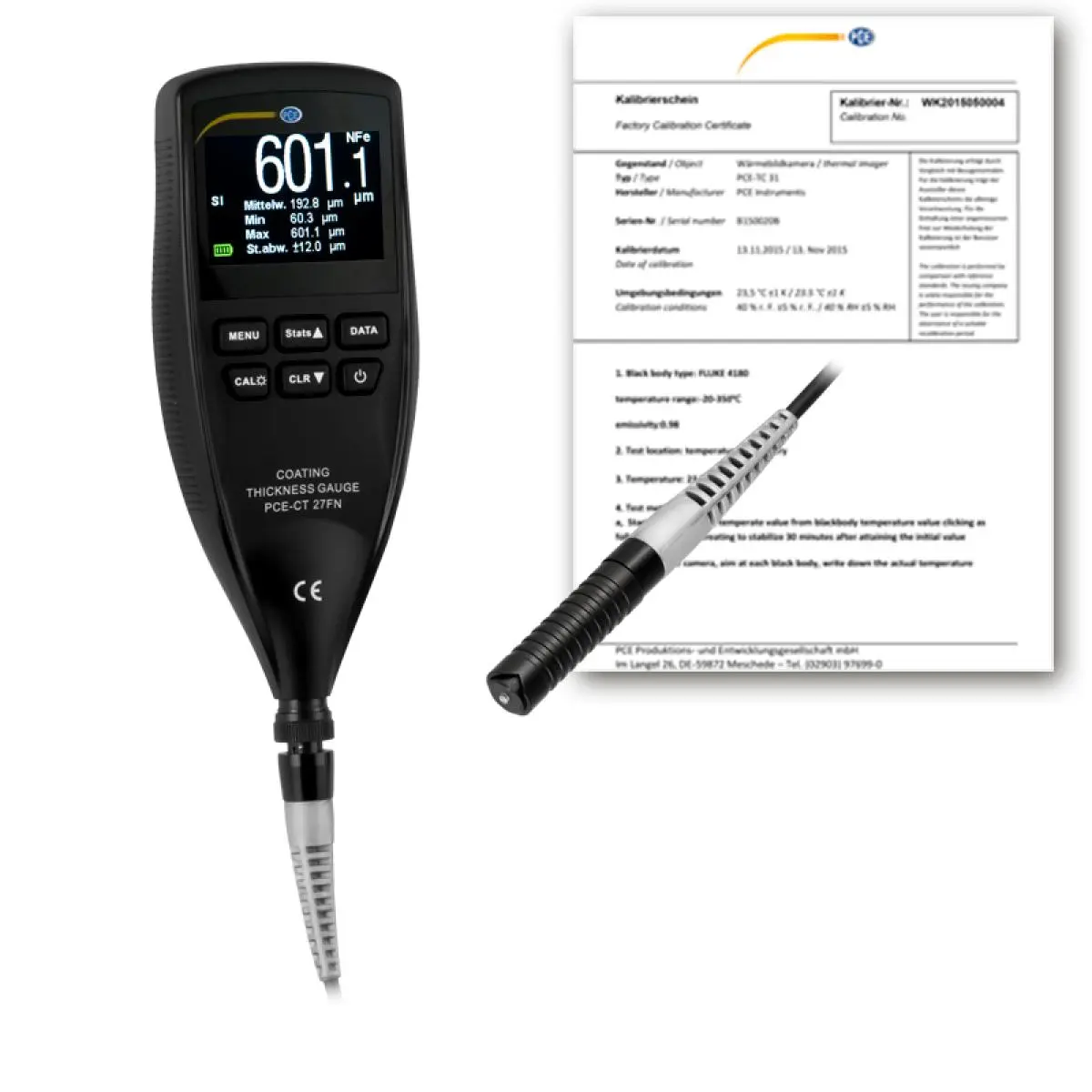

- incl. ISO Calibration Certificate

Specification

Technical specifications
Measuring range	0 ... 1250 µm / 0 ... 50 mils
Accuracy	±(2 % + 2 µm) / ±(2 % + 0.1 mils)
Resolution	0.1 µm / 0.1 mil
Operating temperatures	-10° C... +50° C / +14° F ... +122° F
Power	2 x 1.5 V batteries
Dimensions	166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in
Weight	0.180 kg / 0.40 lb

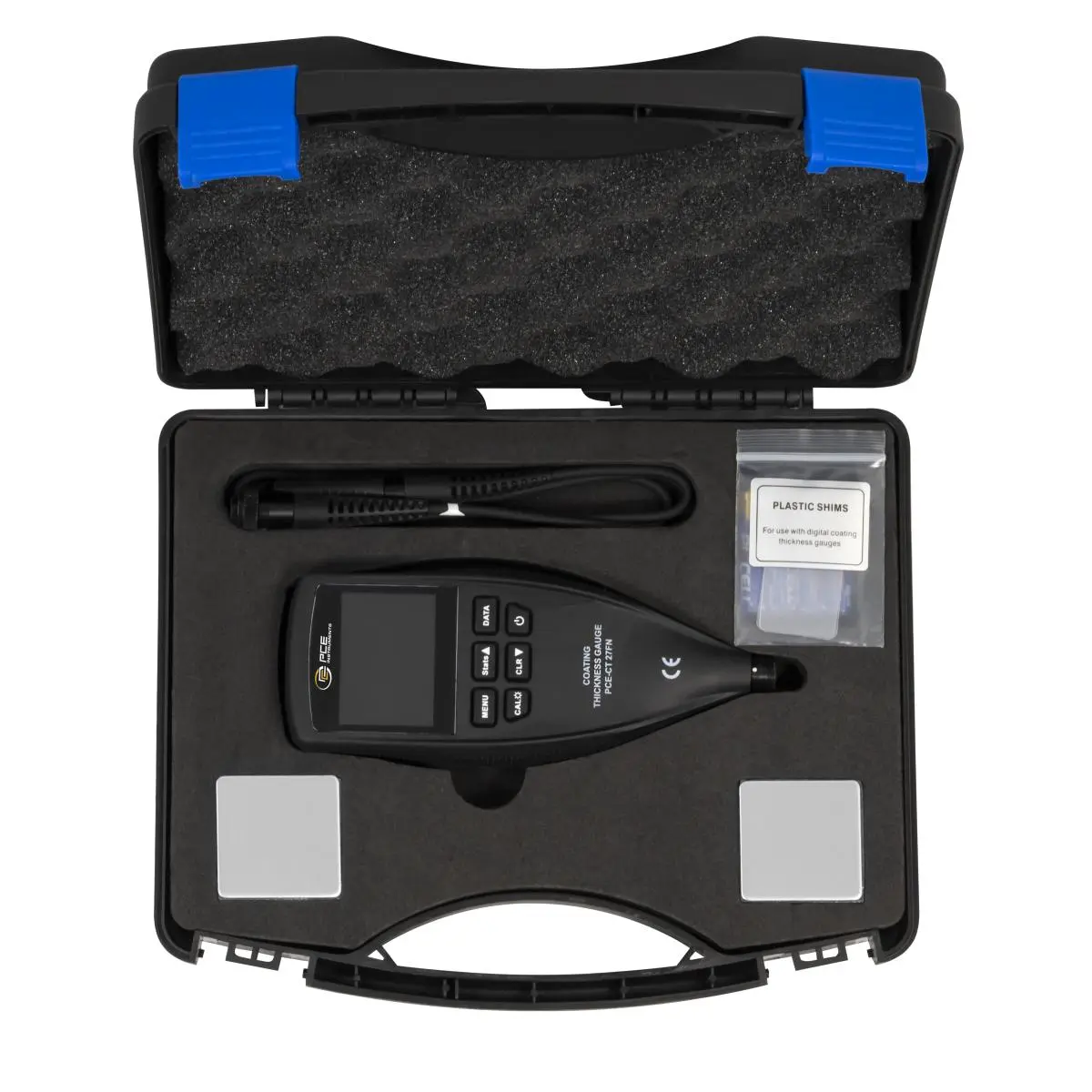

Delivery Scope

Delivery contents
1 x PCE-CT 27FN Surface Testing - Coating Thickness Gauge
1 x set of calibration standards
1 x probe with 1 m / 3.28 ft long cable
1 x set of plastic shims
1 x carrying case
2 x 1.5 V batteries
1 x user manual
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
