Thickness Test Instrument PCE-CT 27FN

Order no.: PCE-CT 27FN

GTIN (EAN): 4250348714770

Accessory

Coating Thickness Gauge Spare Probe SE-CT 27FN

£ 89.00

ISO Calibration Certificate for Coating Thickness Meter

£ 154.00

Description

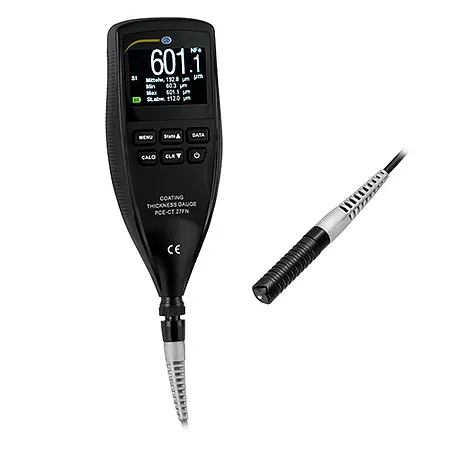

PCE-CT 27FN Thickness Test Instrument

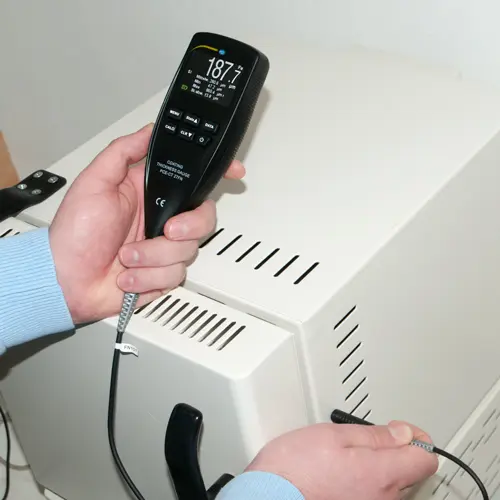

PCE-CT 27FN is a Thickness Test Instrument that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Thickness Test Instrument is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.

Highlights

Features an external sensor with v-groove for reliable measurement on small cylindrical parts
Includes a set of calibration standards for ferrous and non-ferrous metals
Comes with a set of plastic shims or foils

Specification

Technical specifications
Measuring range	0 ... 1250 µm / 0 ... 50 mils
Accuracy	±(2 % + 2 µm) / ±(2 % + 0.1 mils)
Resolution	0.1 µm / 0.1 mil
Operating temperatures	-10° C... +50° C / +14° F ... +122° F
Power	2 x 1.5 V batteries
Dimensions	166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in
Weight	0.180 kg / 0.40 lb

Delivery Scope

Delivery contents
1 x PCE-CT 27FN Thickness Test Instrument
1 x set of calibration standards
1 x probe with 1 m / 3.28 ft long cable
1 x set of plastic shims
1 x carrying case
2 x 1.5 V batteries
1 x user manual

Downloads

Manual

Datasheet

Video

Video Thickness Test Instrument PCE-CT 27FN
