Force Test Stand PCE-FTS50

Order no.: PCE-FTS50

GTIN (EAN): 4250348716101

Accessory

Clamp Jaw PCE-SJJ11 for Teststand

£ 161.00

Clamp Jaw PCE-SJJ05 for Teststand PCE-FTS50 and PCE-SH 500

£ 161.00

PCE-SJJ03 Clamping Device for Test Stand

£ 68.00

PCE-SJJ02 Adapter Ring for Tensile Tests

£ 80.00

PCE-SJJ024 Clamping Device for Test Stand

£ 234.00

PCE-SJJ015 Clamping Device for Test Stand

£ 173.00

Clamp Jaw PCE-SJJ013 for Test stand

£ 161.00

Adapter Plate for Force Test Stand ADP-UNI

£ 62.00

Description

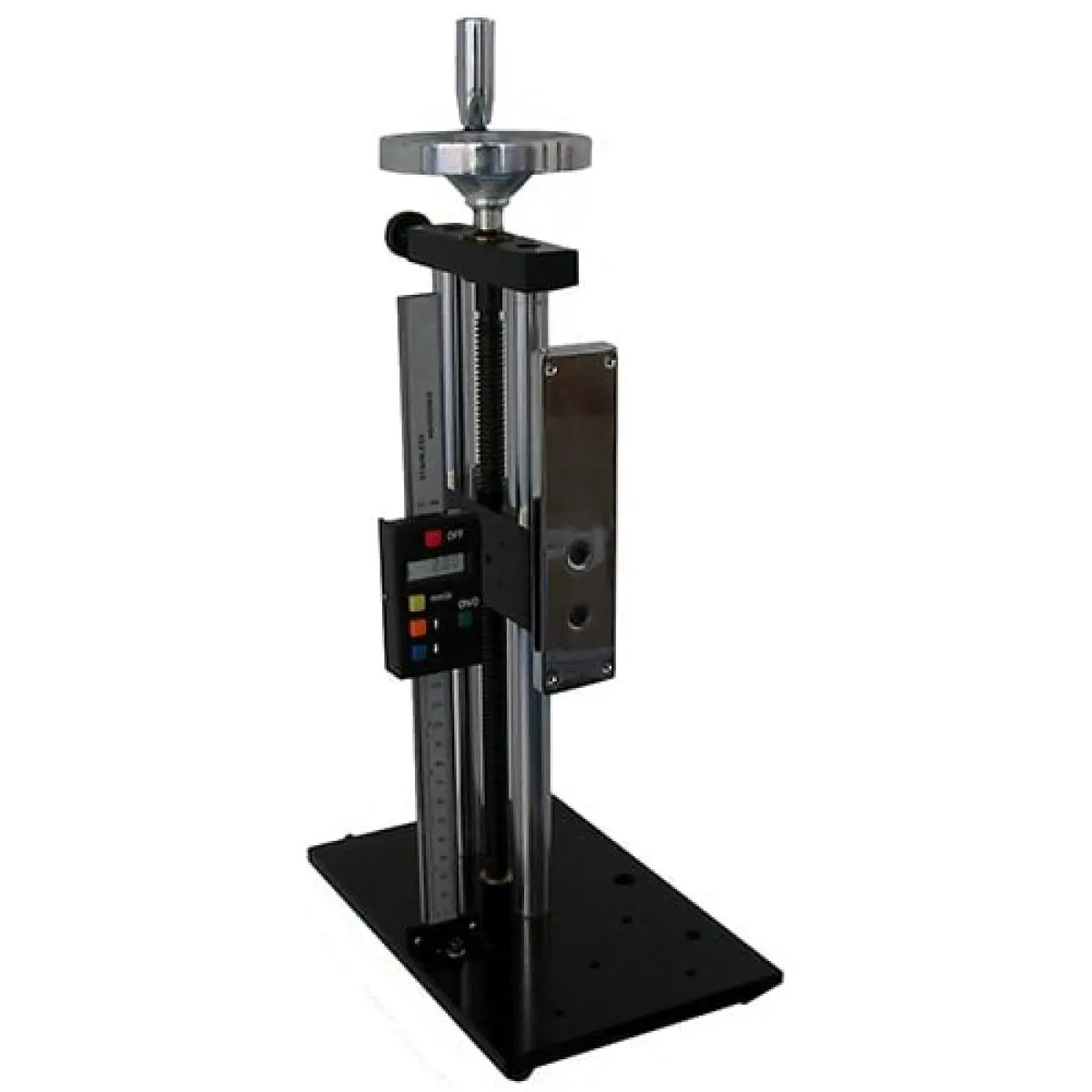

PCE-FTS50 Force Test Stand
Measurement of digital length / high reproducibility / accurate results

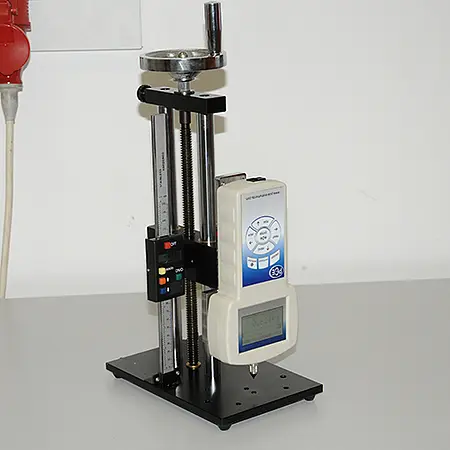

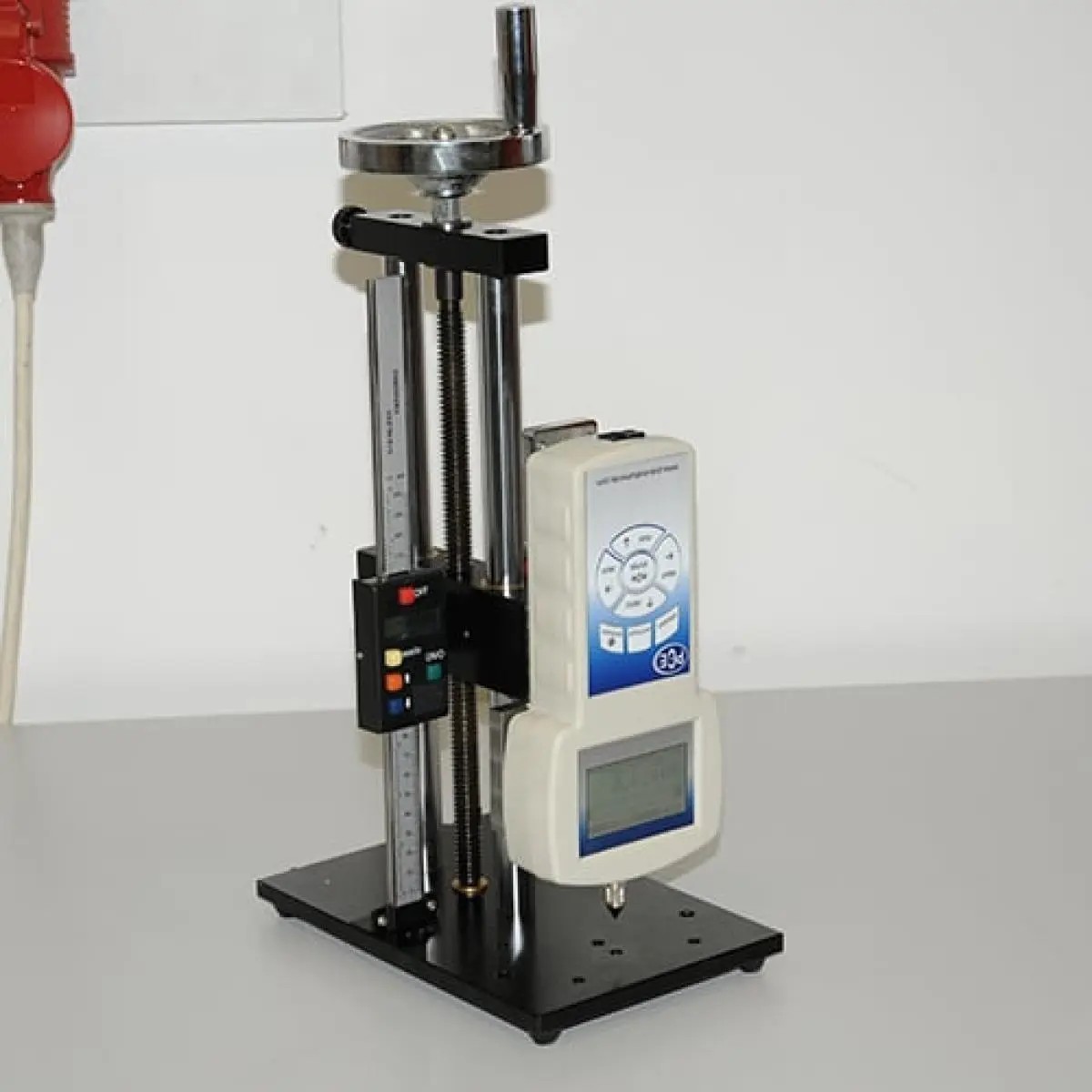

The PCE-FTS50 Force Test Stand that works with the PCE-FM 50, PCE-FM 200, PCE-DFG N 200, PCE-DFG N 500 and PCE-PTR 200. This Force Test Stand offers control and stability when measuring traction and compression with a force gauge or force meter. In addition, using the Force Test Stand guarantees a precise correspondence between the test matrix and the test position. This allows for results to be accurately reproduced.

*** The mounting plate ADP-UNI must be ordered at the same time!

Highlights

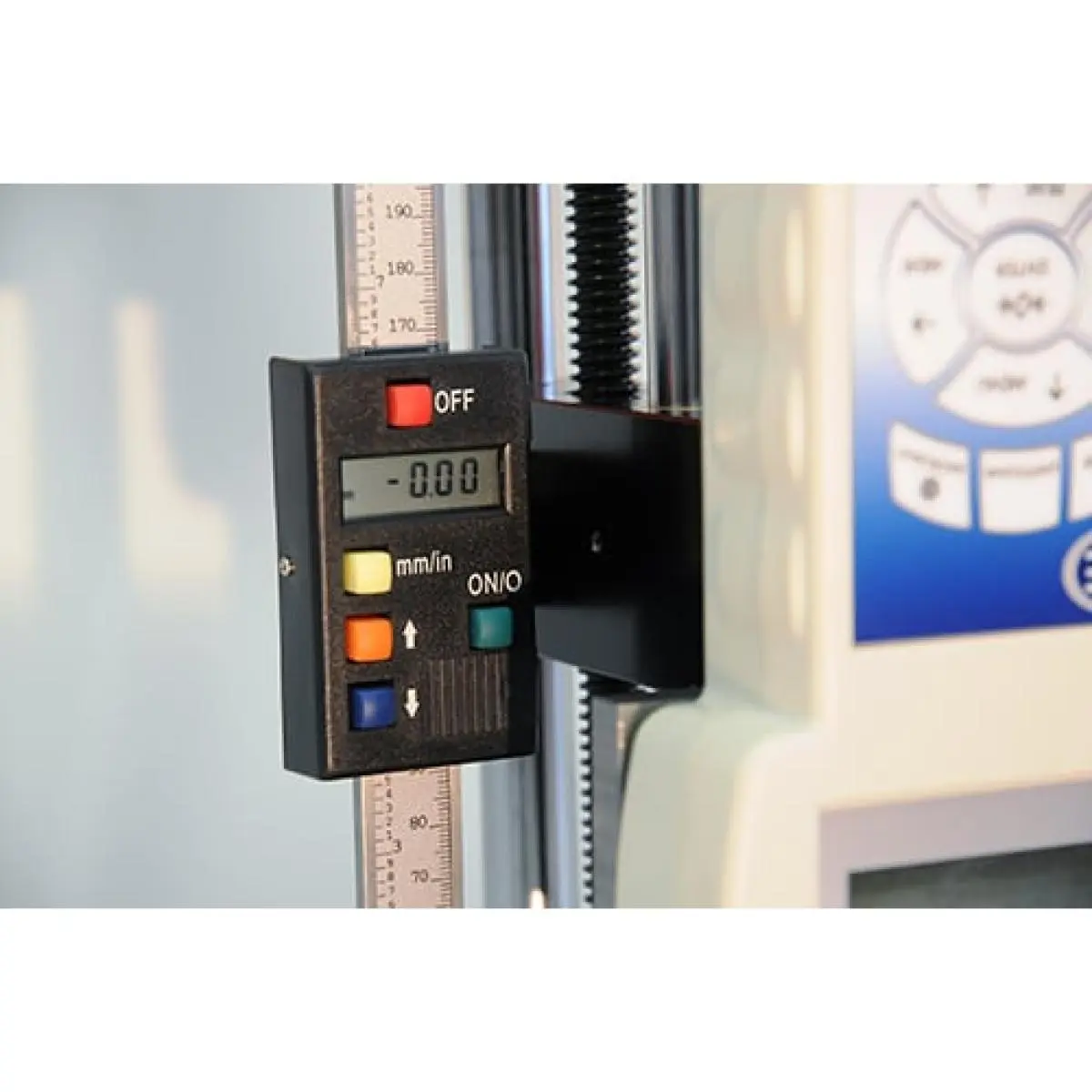

- with digital measuring distance display

- maximum operating length of 236.36 mm / 9.30"

- max. force range 500 N

- delivered without force gauge

Specification

Test Stand PCE-FTS50

- with digital measuring distance display

- maximum operating length of 236.36 mm / 9.30"

- total length of 500 mm / 19.68" (without handwheel)

- handwheel diameter of 100 mm / 3.93"

- base plate on stand 234 x 152 mm / 9.21 x 5.98"

- weight of approx. 9.15 kg / 20 lb 2.7 oz

- max. force range 500 N

- delivered without force gauge

The following devices can be adapted to this test stand (with corresponding plate ADP-UNI):

- PCE-FM50/ 200

- PCE-PTR 200
- PCE-DFG N 200 or 500

Delivery Scope

1 x PCE-FTS50 Force Test Stand
