Thermal Imaging Camera PCE-TC 33N-ICA incl. ISO Calibration Certificate

Order no.: PCE-TC 33N-ICA
GTIN (EAN): 4250348731852
£ 926.00
£ 1,111.20
ISO Calibration
price ex. (VAT / delivery)
:
4250348731852
PCE-TC 33N-ICA
Delivery time: 10 - 14 days

Accessory

Calibration Certificate for PCE-TC Series
Calibration Certificate for PCE-TC Series
£ 441.00

Description

Thermal imaging camera PCE-TC 33N
Infrared thermometer with a measuring range up to 300°C (572°C) / 220 x 160 pixels / 3 GB Flash memory for more than 20,000 images / Thermal sensitivity 70 mK / Image format JPG / PC connection to transfer stored photos

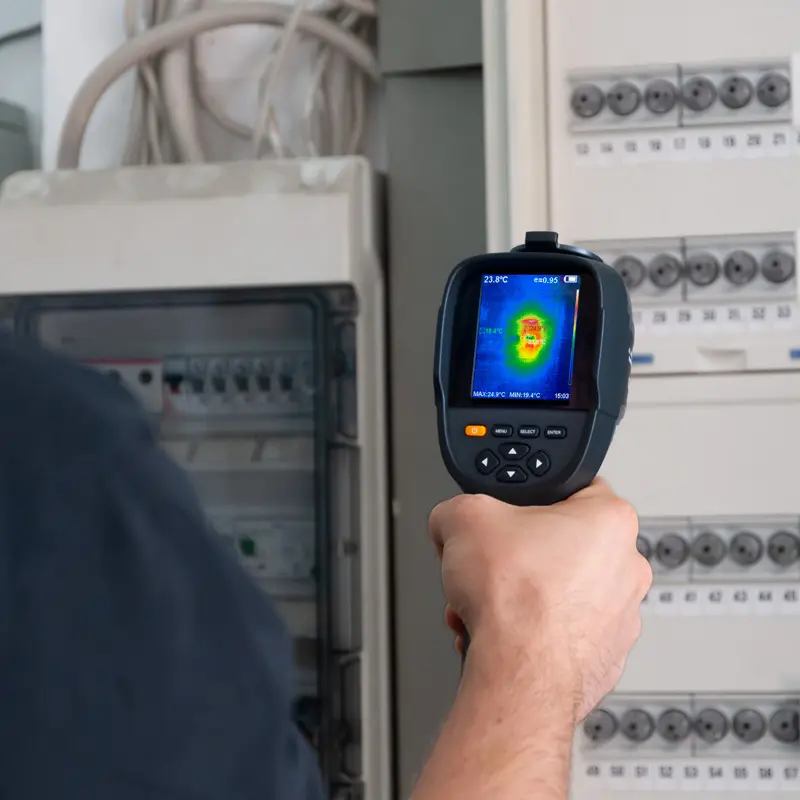

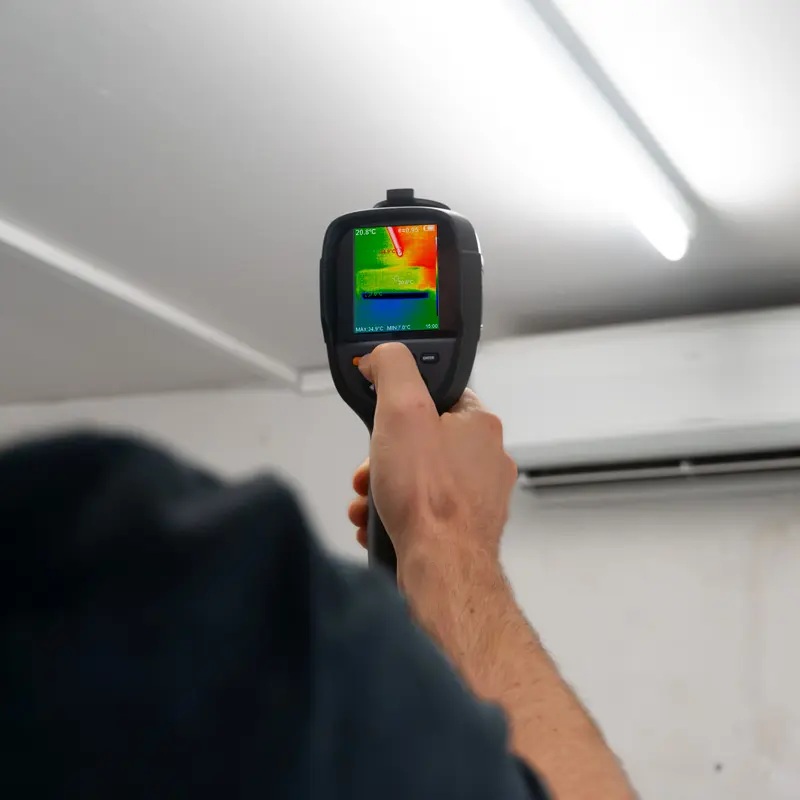

The infrared thermometer PCE-TC 33N is the ideal tool for repair work and prevention measures. This thermal imager is a must-have for electricians, fire fighters, locksmiths, or general service personnel for trouble shooting and fault prevention on electrical equipment, electromechanical equipment, production process machinery, heating, ventilation, and air conditioning systems, especially when working in harsh environments.

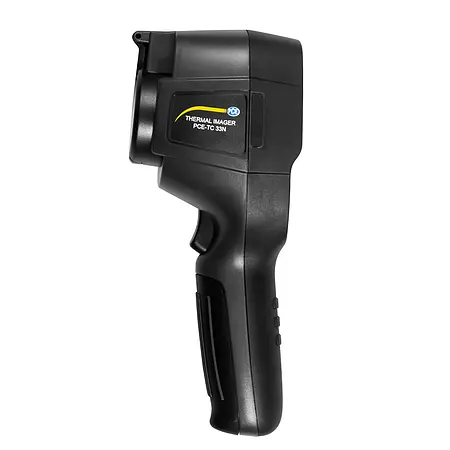

In preventative maintenance, the high-resolution PCE-TC 33N thermal imager is ideal for maintaining or repairing machinery or other equipment. At the heart of the PCE-TC 33N high-resolution thermography camera is an uncooled microbolometer (uncooled focal plane array) with a resolution of 220 x 160 pixels. The thermography camera was designed in ergonomic design for one-hand operation. Due to the very low weight of just 424 g, it is ideal for analyzing machinery and equipment, for building thermography and many other applications. The PCE-TC 33N thermographic camera offers a measurement accuracy of ± 2°C / 3.6°F or ± 2% in a temperature range of -20°C ... 300°C / -4 ... 572°F, with a sensitivity of less than 0.

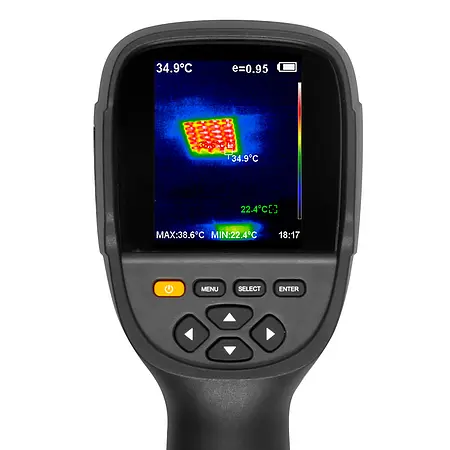

On the color display of this thermal imager there is the possibility to automatically find and display the warmest and coldest measuring point in the measurement image. With the powerful features, irregularities are immediately detected and appropriate action can be taken on the spot. The stored thermal image recordings can be transmitted to a PC or laptop using the corresponding connection cable. The internal 3 GB memory of the thermographic camera can accommodate more than 20,000 thermal images.

Highlights

- IR resolution: 220 x 160 pixels
- Measuring range: -20 ... 300°C / -4 ... 572°F
- Thermal sensitivity: 70 mK
- Memory: 3 GB memory for more than 20,000 pictures
- 5 different color palettes
- Hot and cold point location
- Picture in Picture function

Specification

Infrared sensor

Resolution

220 x 160 pixels

Wavelength

8 ... 14 μm

Thermal sensitivity

70 mk

Refresh rate

9 Hz

Field of view (FOV)

35° x 26°

Focusing

Firm focus

Smallest distance

0.15 m / 5.9 in

Temperature range

-20 ... 300°C / -4 ... 572°F

Accuracy

± 2°C / 3.6°F, ± 2%

Calibration of the measurement

Auto

Number of spots

1

Number of measuring ranges

1

Emissivity

Range: 0.01 ... 1.00

Color palettes

Rainbow, iron oxide red, cold color, black & white, white & black

Other specifications



Picture in picture function

Adjustable 25%, 50%, 75%, 100%

Camera resolution

300,000 pixels

Screen

3.2" TFT

Screen resolution

320 x 240 pixels

Image memory

Built-in SD card with 3 Gb for more than 20,000 images

Image format

JPG

Power supply battery

Built-in 18650 battery, about 2800-mAh

Power supply power supply

Primary: 100 ... 240V AC 50/60 Hz
Secondary: 5V / 2 ADC

Interface

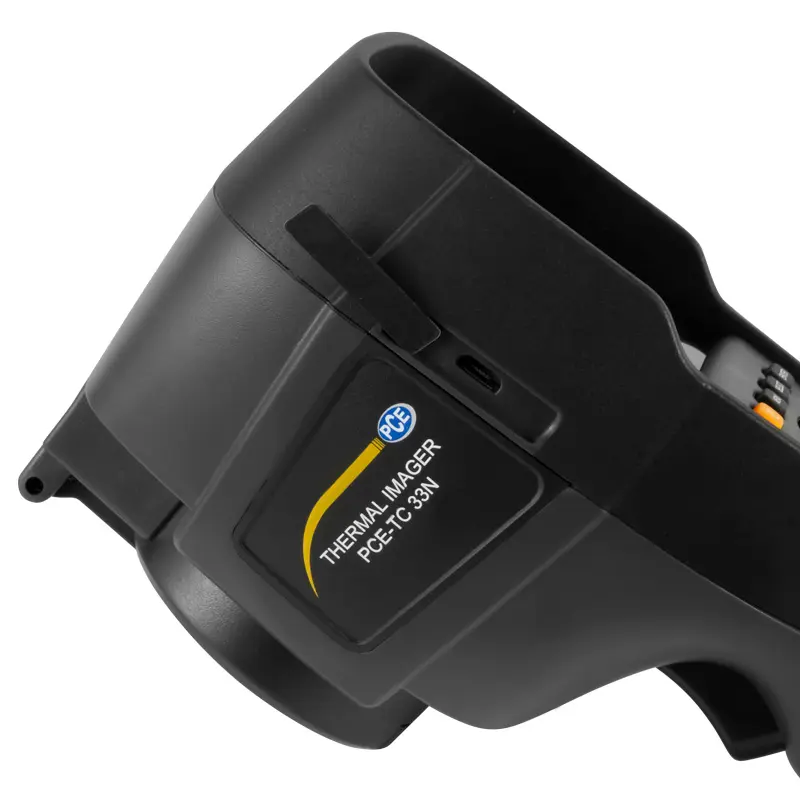

Micro USB for charging and memory readout on a PC

Operating time

Between 2 ... 3 hours

Menu languages

English, Chinese, Italian, German

Automatic shutdown

After 5, 20 minutes or disabled

Ambient temperature

0 ... 45°C / 32 ... 113°F

Storage conditions

-20 ... 60°C / -4 ... 140°F

Humidity

≤ 85% RH (non-condensing)

Dimensions

90 x 103 x 223 mm / 3.5 x 4.1 x 8.8 in

Weight

424 g / < 1 lb

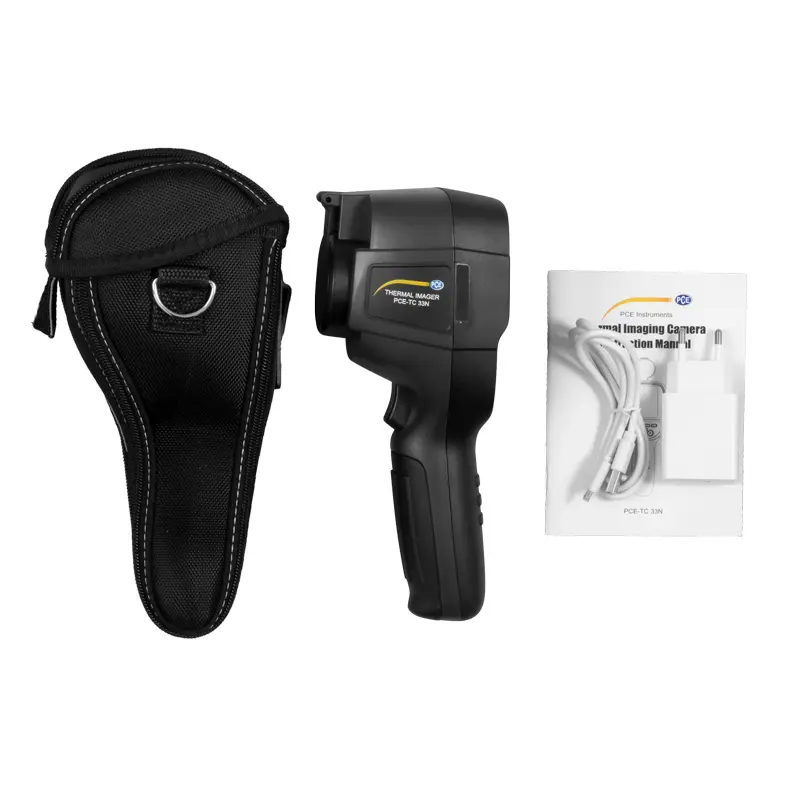

Delivery Scope

1 x Thermal imaging camera PCE-TC 33N-ICA
1 x Micro USB cable
1 x USB charging adapter
1 x Carrying bag
1 x User manual

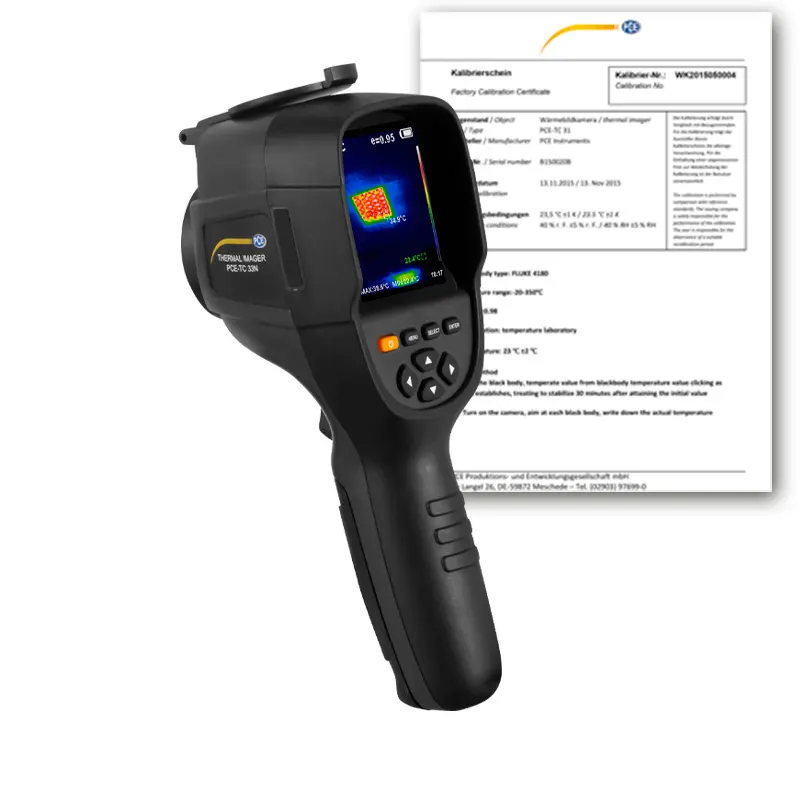

1 x ISO Calibration Certificate



N.B. Not available to UK or other countries outside EU. If inside EU, please purchase from one of our EU websites (Germany, France, Netherlands, Italy, Spain, etc). See "Country" in top-right of webpage.
