Our Thermal Imaging Camera offers reliable temperature measurement within a range from -20 °C to 550 °C (-4 °F to 1022 °F). The infrared images are displayed with a resolution of 384 x 288 pixels on the 3.5-inch colour display. The compact and user-friendly design of the Thermal Imaging Camera features an ergonomic handle and an intuitive key control system directly below the screen for easy operation.

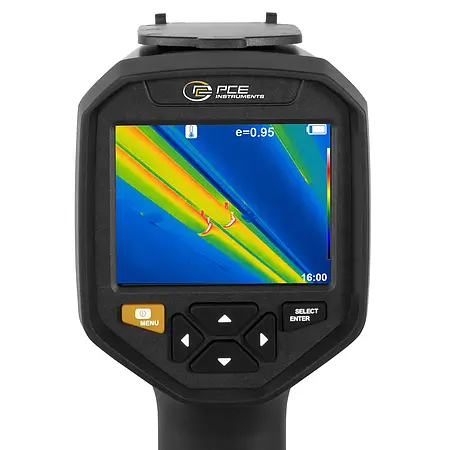

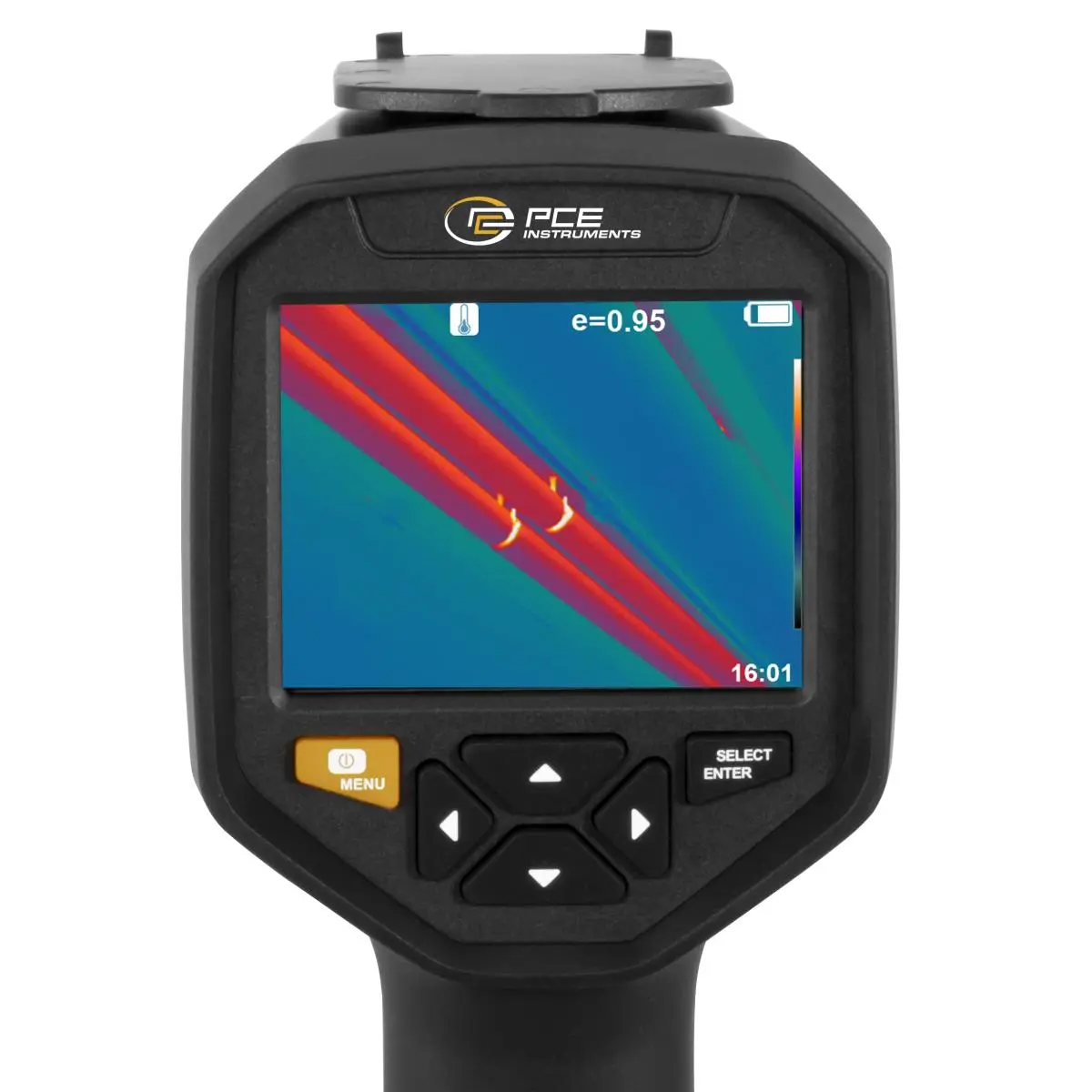

The camera offers multiple colour palettes, including rainbow and iron oxide red, as well as various viewing options to accurately capture thermal data. With a thermal sensitivity of 0.06 °C and an adjustable emissivity of 0.01 to 1.0, even subtle temperature differences can be detected. It saves more than 40000 images in the internal 6 GB memory in JPG format. With a frame rate of 25 Hz, a wavelength range of 8 ... 14 μm and selectable automatic power-off times, this Thermal Imaging Camera is a versatile tool for professional and private users.
The unique feature of this Thermal Imaging Camera is the possibility of a remote connection via a WiFi network, e.g. to a smartphone from which the Thermal Imaging Camera can be set remotely or the recorded thermal images can be saved directly to the end device. Once a smartphone is connected to the Thermal Imaging Camera via WiFi, the corresponding colour palette, emissivity or even the display of the maximum and minimum value can be set remotely. Thanks to the Thermal Imaging Camera, not only heat losses but also leaks in water and heating systems or non-functioning mechanical components of various systems (motors, bearings, belts, heat pumps, etc.) can be easily detected.
Temperature | |
Measurement range up to | -20 ... +550 °C |
Resolution | 0,1 °C |
Accuracy | <0 °C: ±3 % | >0 °C: ±2 ℃ or ±2 % |
Temperature | |
Measurement range up to | -4 ... +1022 °F |
Resolution | 0,1 °F |
Accuracy | <32 °F: ±3 % | >32 °F: ±2 °F oder ±2 % |
General technical data | |
Units | °C, °F |
Display type | TFT colour display |
Display size | 3,5 Inch |
Display resolution | 640 x 480 pixels |
Measuring rate | 25 Hz |
Storage medium | Internal memory |
Storage capacity | 6 GB |
Memory capacity (additional information) | for approx. 40000 images |

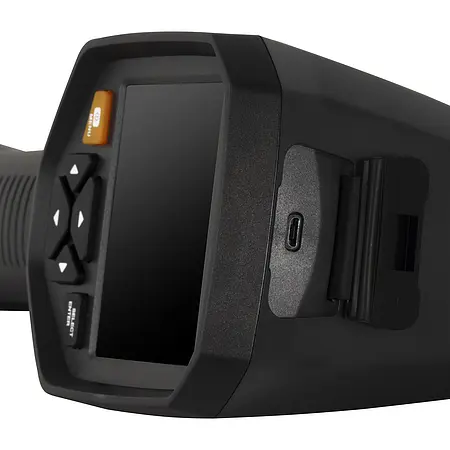

Interface | Micro-USB, WiFi |
Resolution | Infrared image: 384 x 288 pixels |
Operating time | 4 h |
Automatic power-off from...to | 5 ... 20 min. |
Automatic power-off can be deactivated | Yes |
Emissivity from/to | 0.01 ... 1 |
Wavelength range | 8 ... 14 µm |
Field of vision (FOV) | 28.4° x 21.4°/ 13 mm |

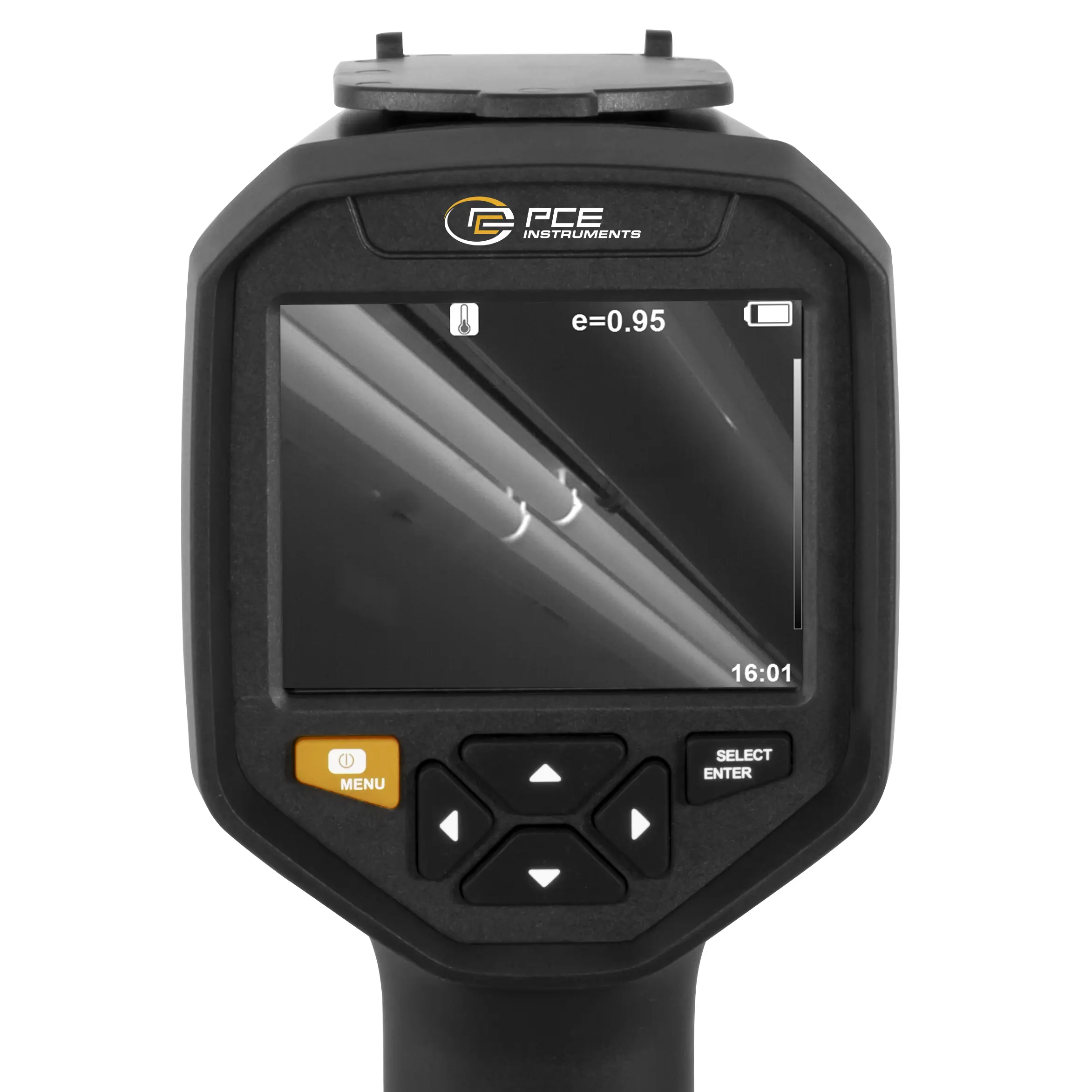

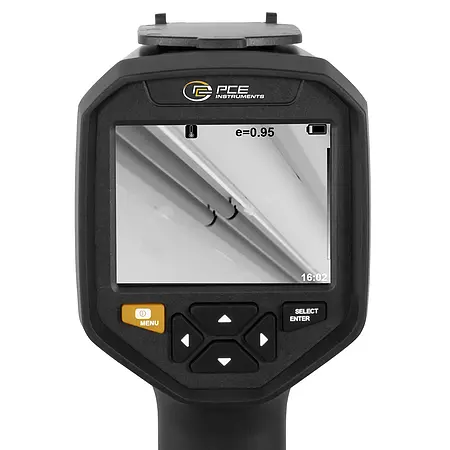

Colour palette | Rainbow, Iron, Cold colours, white-black (+inverted) |
Image / video format | JPG |
Thermal sensitivity | 0,06 °C |
Menu language | German, English, Italian, Chinese |
Protection class (device) | IP20 |
Power supply | 100 ... 240 V AC | 50/60 Hz |
Connector type | Euro plug |
Weight | 634 g |
Operating conditions | 0 ... 45 °C , 0 ... 85 % RH |
Storage conditions | -20 ... 60 °C , 0 ... 85 % RH |
Capacity | 5000 mAh |
Dimensions ( L x W x H ) | 245 x 97 x 110 mm |
