£ 207.00
Measuring range | 1.20 ... 300.0 mm / 0.04 ... 11.81" |
Resolution | 0.01 mm at ≤99.99 mm |
0.1 mm at ≥100.0 mm | |
Accuracy | ±0.5 % of measured value + 0.05 mm |
Storage space | 1500 measured values |
Sensor | PCE-TG 2.5M |
Probe frequency | 2.5 MHz |
Temperature range | -10 ... 60 °C / 14 ... 140 °F |
Diameter | Ø12mm |
Further specifications | |
Adjustable speed of sound |
1000 ... 9999 m/s |
Smallest pipe diameter | Ø20 x 3 mm (steel) |
Material library | 15 memory locations |
Calibration reference | 4 mm |
Display | 2.4 inch TFT LCD color display |
with brightness adjustment | |
Power supply | 3 x 1.5 V AA batteries |
Automatic switch-off | switched off, 2, 5, 10, 30 minutes |
Ambient conditions | 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing |
Dimensions | 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5" |
Weight | 320 g / 11.2 oz |

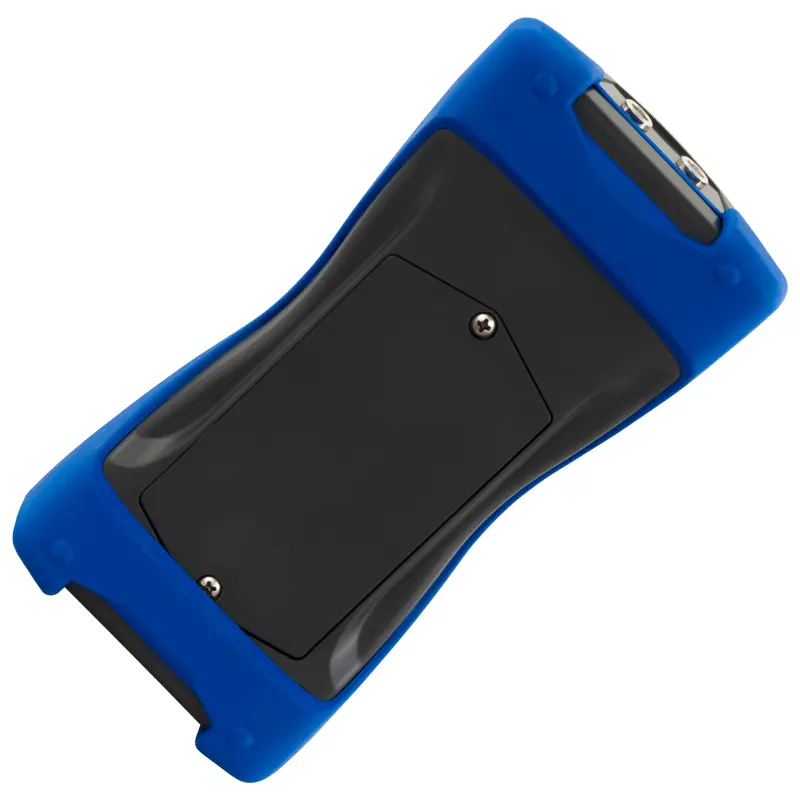

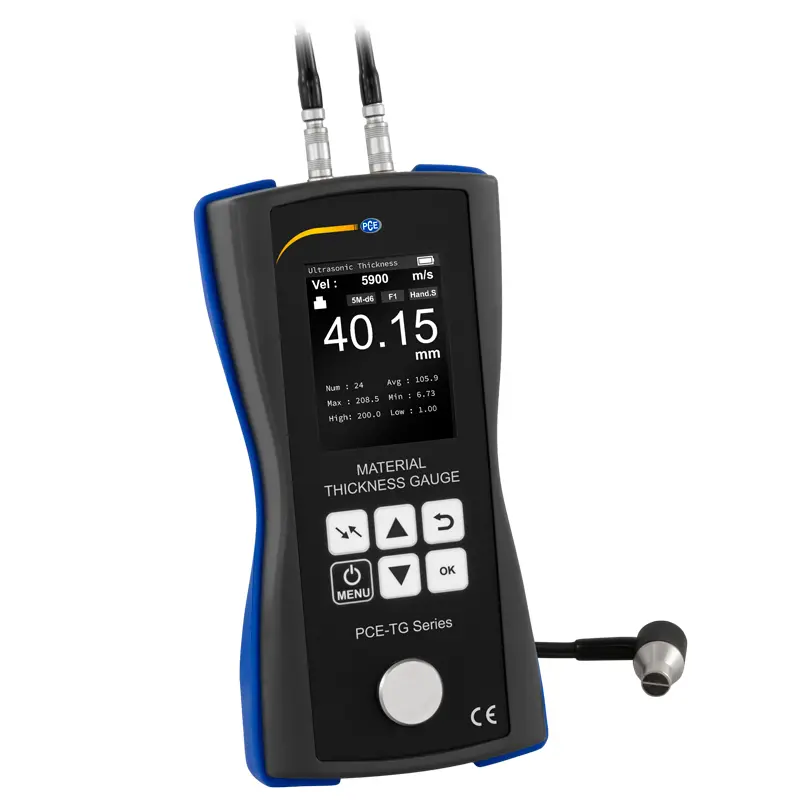

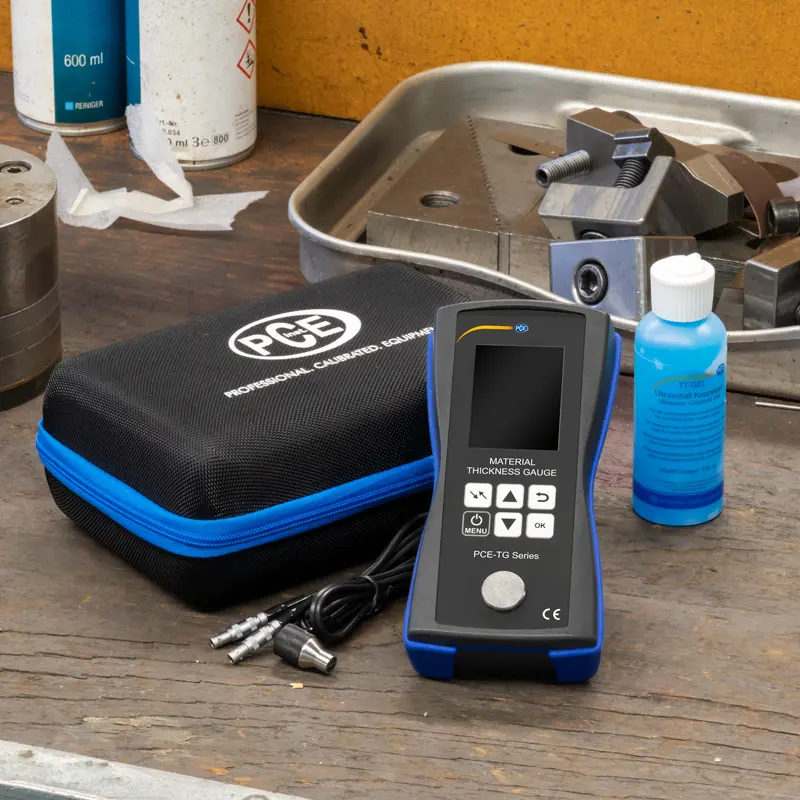

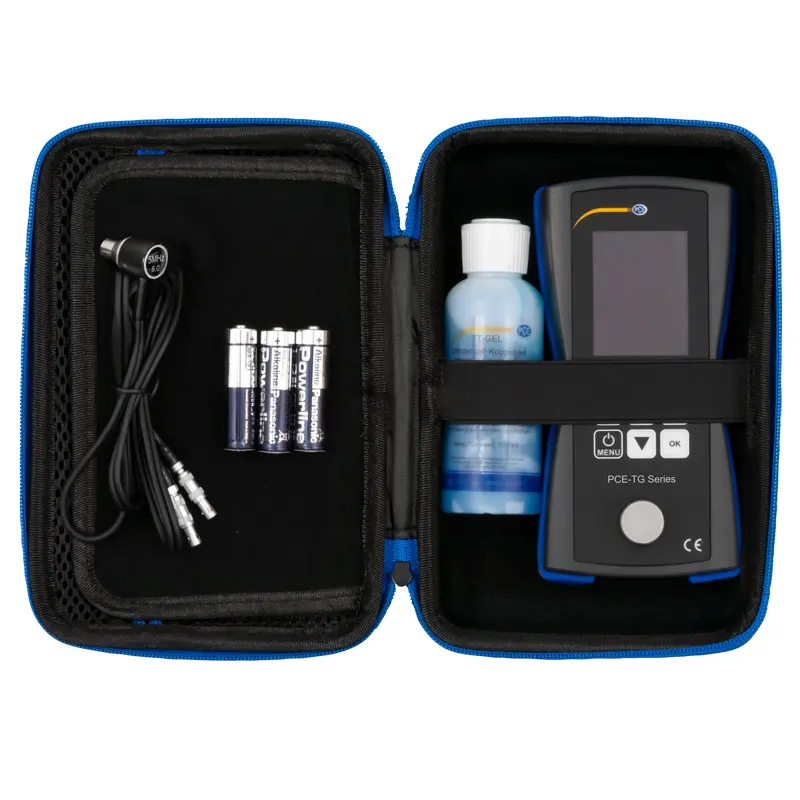

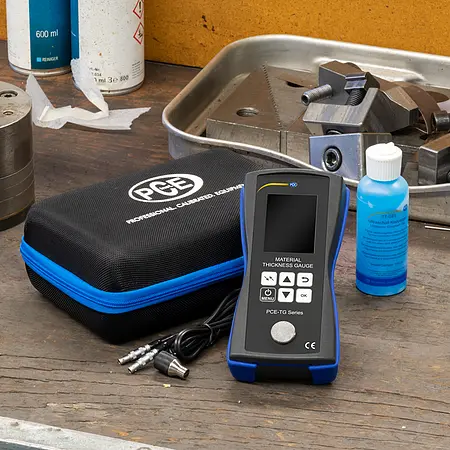

1 x Ultrasonic Thickness Tester PCE-TG 150 F2.5

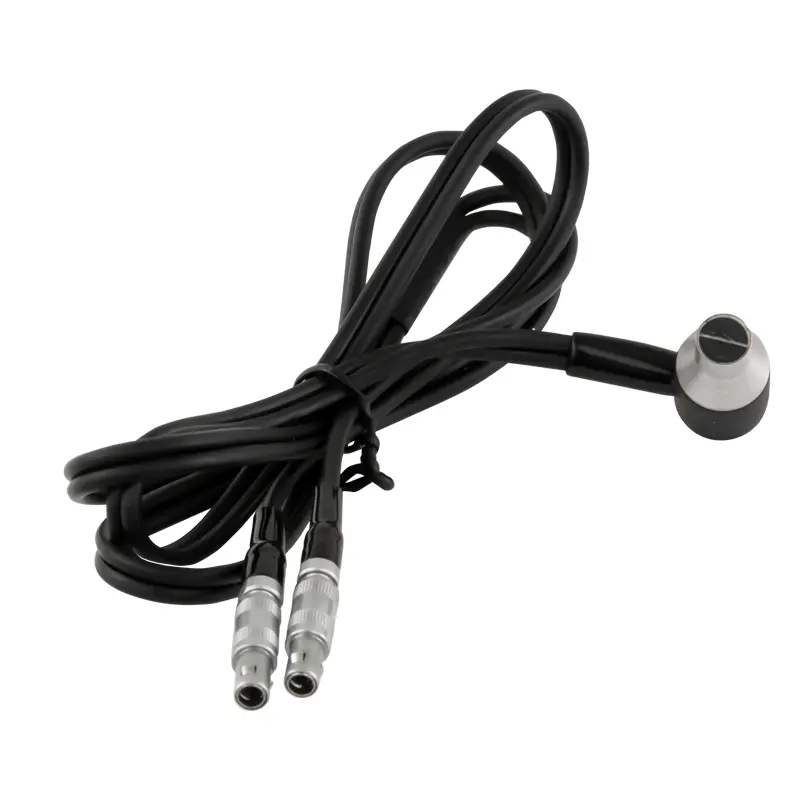

1 x Sensor PCE-TG 2.5M

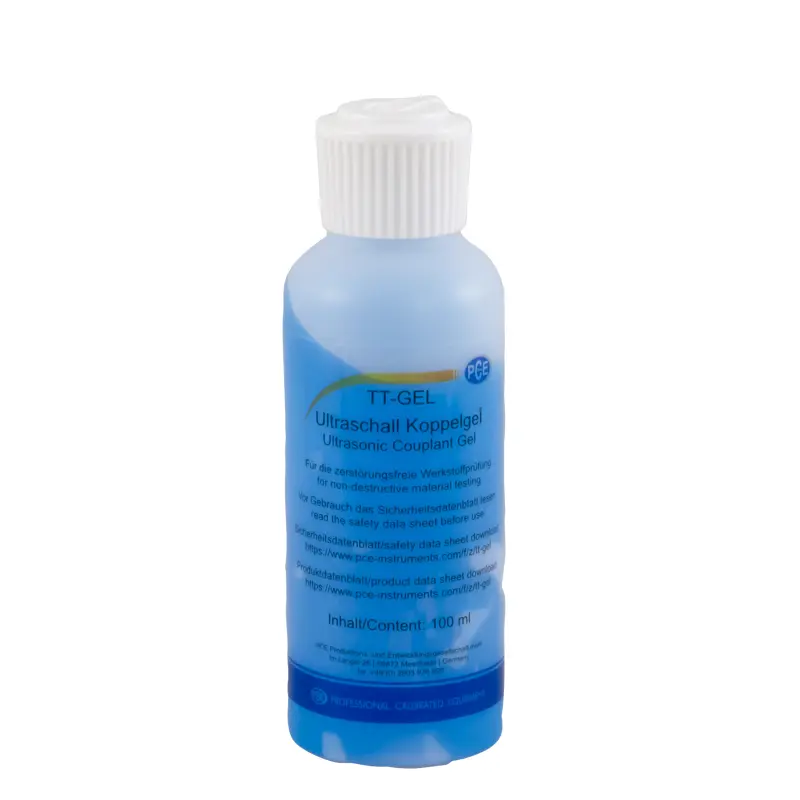

1 x Coupling gel (TT-GEL)
1 x Transport bag
3 x 1.5 V AA batteries
1 x Quick start guide

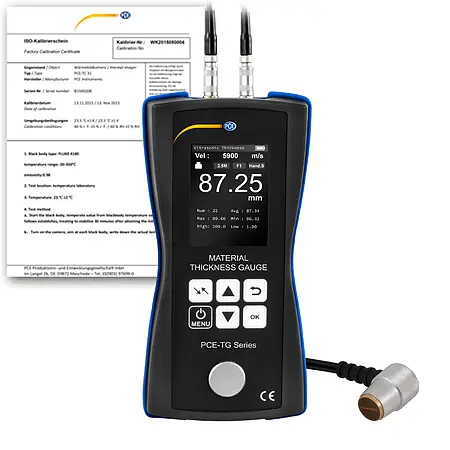

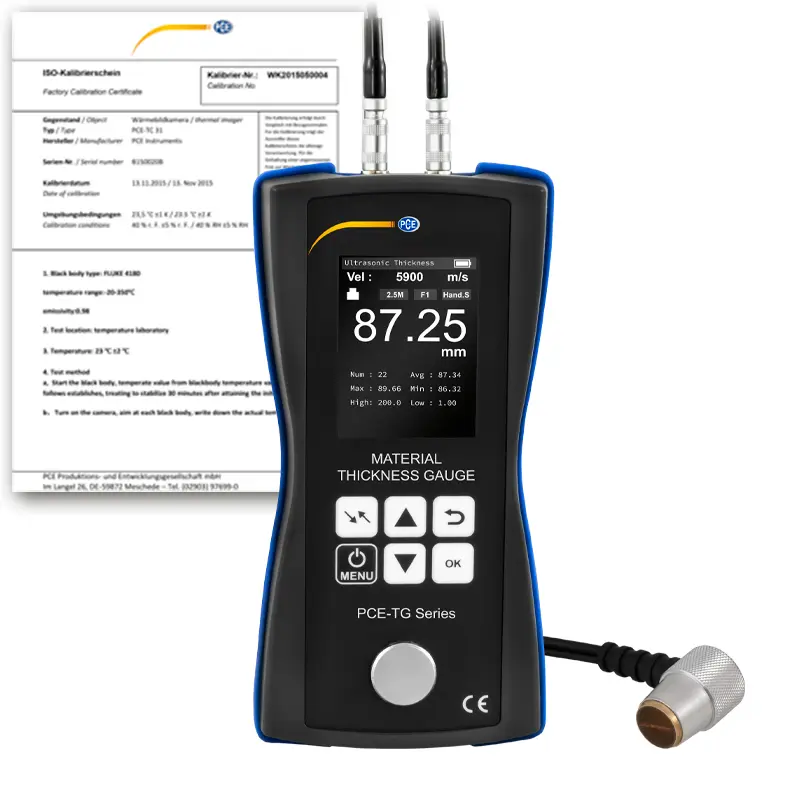

1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
