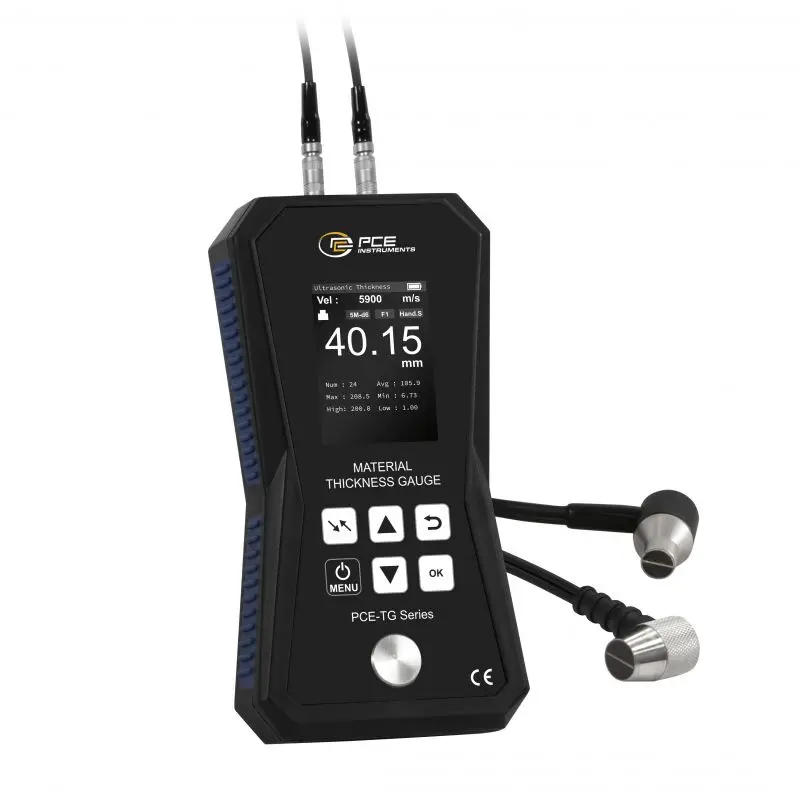

Ultrasonic Thickness Tester PCE-TG 150A

Order no.: PCE-TG 150A
GTIN (EAN): 4250348735553

£ 472.00
£ 566.40
price ex. (VAT / delivery)
:
4250348735553
PCE-TG 150A
Delivery time: 1-2 working days

Description

Ultrasonic Thickness Tester with data memory / adjustable sonic velocity / calibration reference mounted on the housing / material thickness measurement up to 300 mm / limit value alarm / optionally with ISO calibration certificate

The ultrasonic thickness tester can measure material thicknesses up to 300 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sonic velocity in the ultrasonic thickness tester. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sonic velocities are already stored in the device library. This means that the ultrasonic thickness tester can be used universally.

Individual maximum and minimum values can be stored with the ultrasonic thickness tester's limit value function. If the measured value of the test specimen is outside the limits, the ultrasonic thickness tester signals this visually. If required, the ultrasonic thickness tester can also provide acoustic signalling in addition to the visual display. The ultrasonic thickness tester is therefore used, for example, in quality assurance and incoming goods inspection.

The ultrasonic thickness tester has a data memory on which the measured values can be recorded. After a measurement process, the stored measured values can be analysed directly on the ultrasonic thickness tester. The stored data is displayed graphically by the ultrasonic thickness tester. In addition, each individual measuring point can be approached and read in the graphic of the ultrasonic thickness tester. To simplify the analysis of the measured values, the average, the largest and smallest measured values are displayed on the ultrasonic thickness tester. The ultrasonic thickness tester can optionally be equipped with an ISO calibration certificate.


Highlights

- Measured value memory for 1500 values
- Calibration reference on housing
- Automatic switch-off
- Material thickness measurement up to 300 mm
- Battery status display
- Optional with ISO calibration certificate

Specification

Material thickness
Measuring range  1 mm ... 99.99 mm
Resolution  0.01 mm
Accuracy  ±0.5 % v. Mw. + 0.05 mm

Material thickness
Measuring range  100 mm ... 300 mm
Resolution  0.1 mm
Accuracy  ±0.5 % v. Mw. + 0.05 mm

Sensor

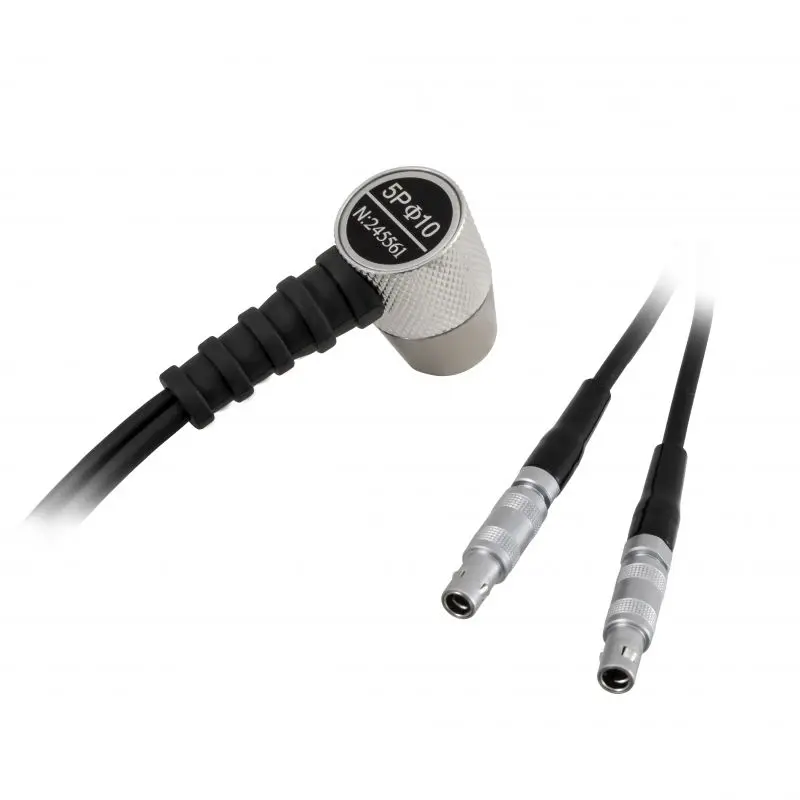

Designation  PCE-TG 5M10d
Frequency  5 MHz
Temperature range  -10 ... 60 °C
Measurable materials  Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials
Minimum diameter of pipes  30 mm
Additional description  Standard probe for flat materials
Dimensions  Ø 10mm x 23.4 mm
Weight  39.5 g

Sensor

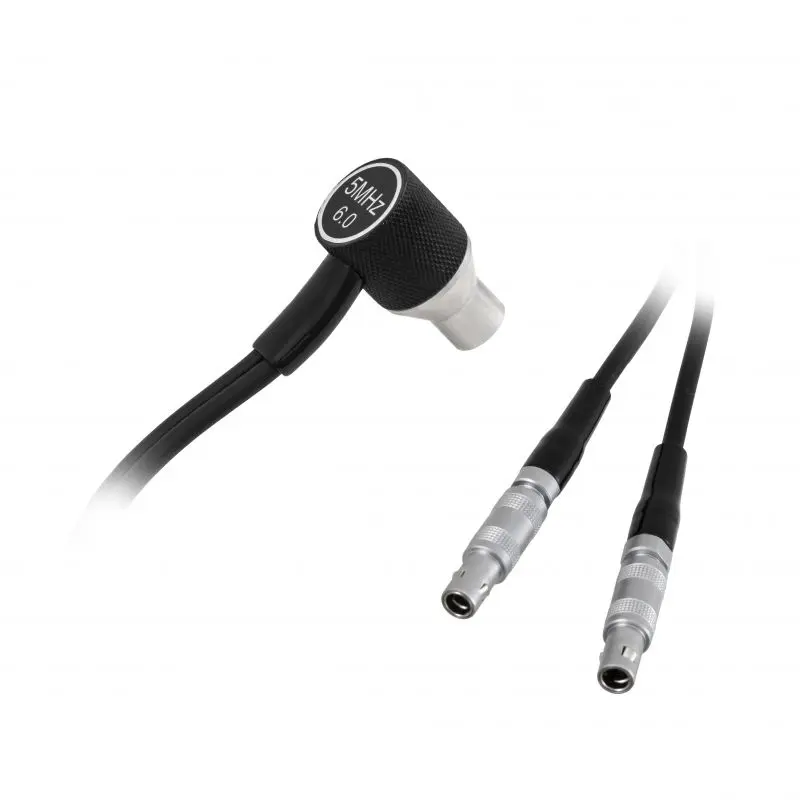

Designation  PCE-TG 5M6d
Measuring range  1 mm ... 50 mm
Frequency  5 MHz
Temperature range  -10 ... 60 °C
Measurable materials  Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials
Minimum diameter of pipes  20 mm
Additional description  Standard probe for flat materials
Dimensions  Ø 6mm x 25.3 mm
Weight  35 g

General technical data
Units  mm
Display type  TFT colour display
Display size  2.4 inch
Storage medium  Internal memory
Memory capacity  1500 values
Automatic switch-off from...to  2 ... 30 min.
Automatic switch-off can be deactivated  Yes
Sonic speed adjustable  1000 ... 9999 m/s
Menu language  English (US), Chinese
Protection class (device)  IP52
Weight  230 g
Dimensions (L x W x H)  168 x 87 x 35 mm
Operating conditions  0 ... 40 °C , 0 ... 90 % r.H
Storage conditions  0 ... 40 °C , 0 ... 90 % r.H
Accumulator/battery  3x 1.5 V AA battery , alkaline-manganese
Capacity  3000 mAh

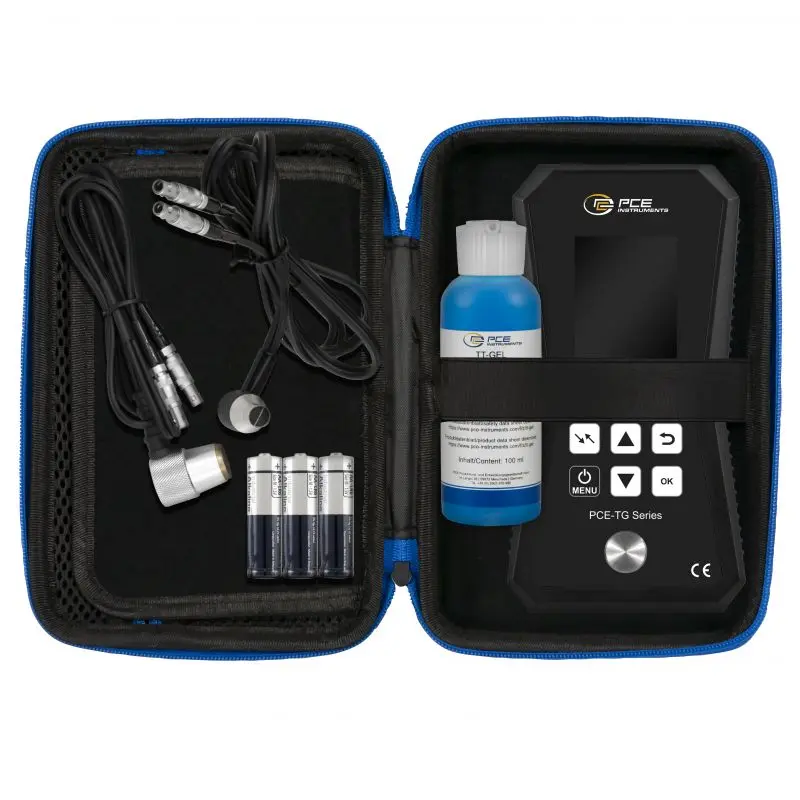

Delivery Scope

1 x ultrasonic thickness tester PCE-TG 150A
1 x coupling gel (TT-GEL)
3 x 1.5 V AA batteries
1 x sensor PCE-TG 5M10d
1 x sensor PCE-TG 5M6d
1 x carrying bag
1 x quickstart guide
