Vibration Meter PCE-VT 3750

Order no.: PCE-VT 3750
GTIN (EAN): 4250348732965
£ 888.00
£ 1,065.60
price ex. (VAT / delivery)
:
4250348732965
PCE-VT 3750
Delivery time: Available soon!
Machine vibration

Accessory

ISO Calibration Certificate CAL-V-I for Vibration Meter
ISO Calibration Certificate CAL-V-I for Vibration Meter
£ 192.00

Description

Handy entry-level device for vibration monitoring of machines and systems / HOLD function / Peak value measurement / Handheld device for mobile vibration measurement / Automatic ISO 10816-3 evaluation / incl. headset

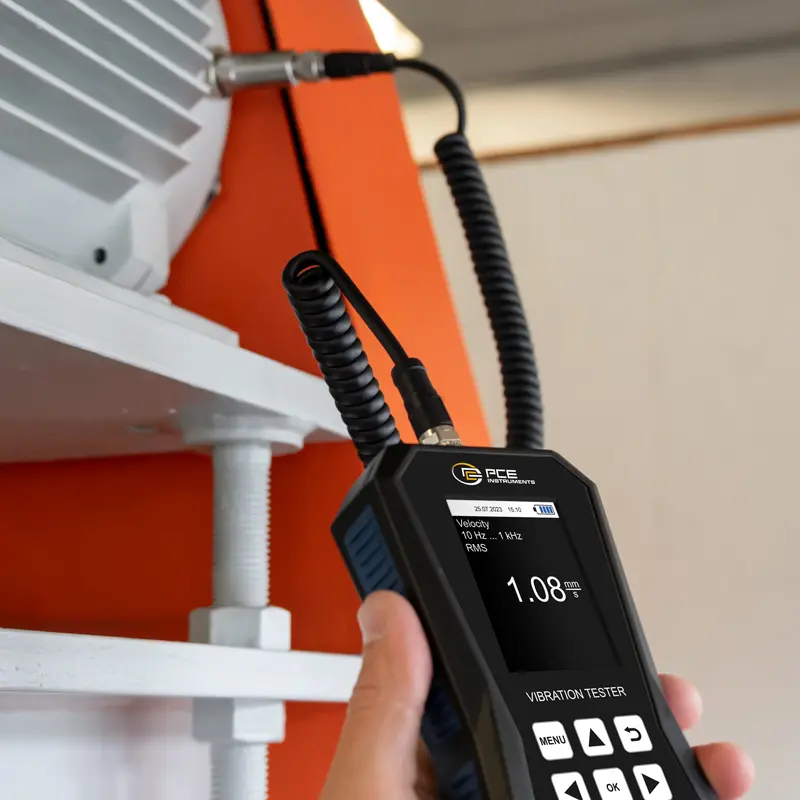

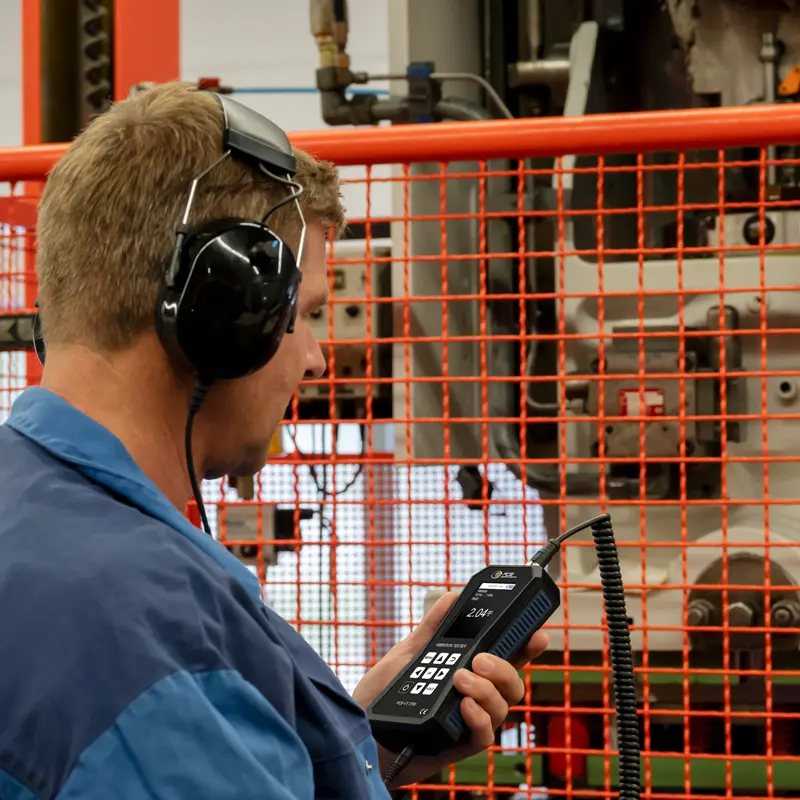

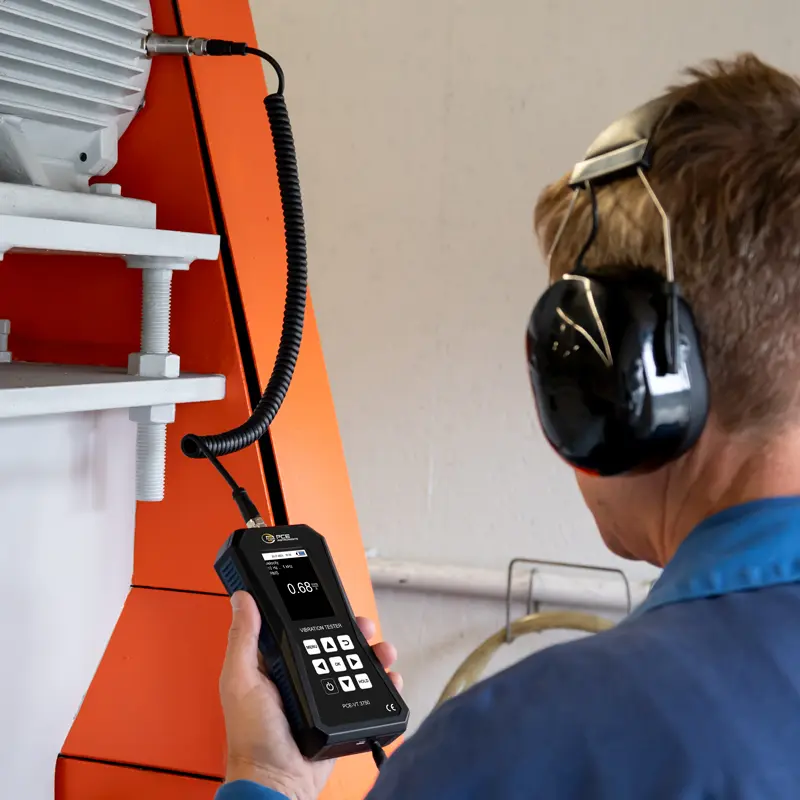

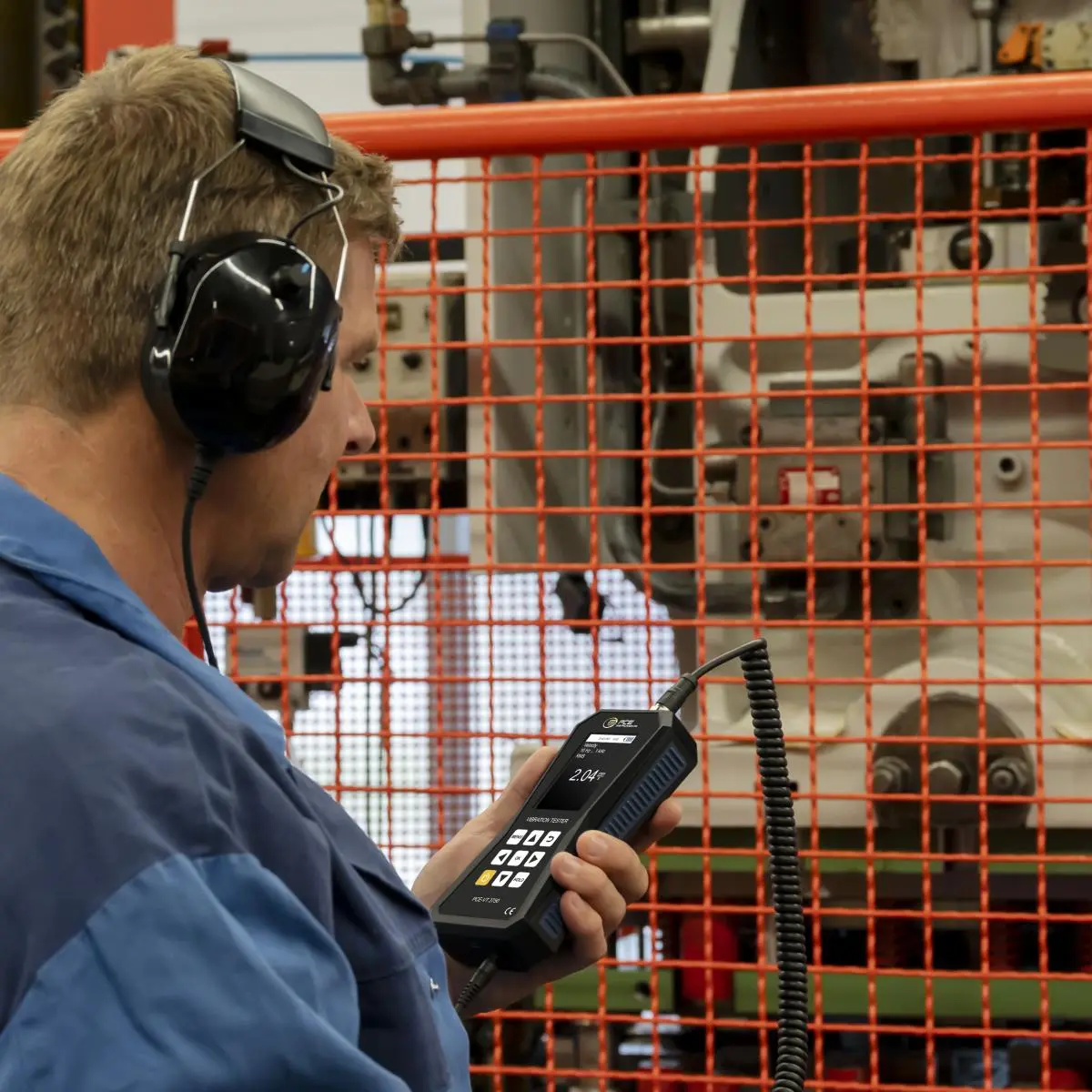

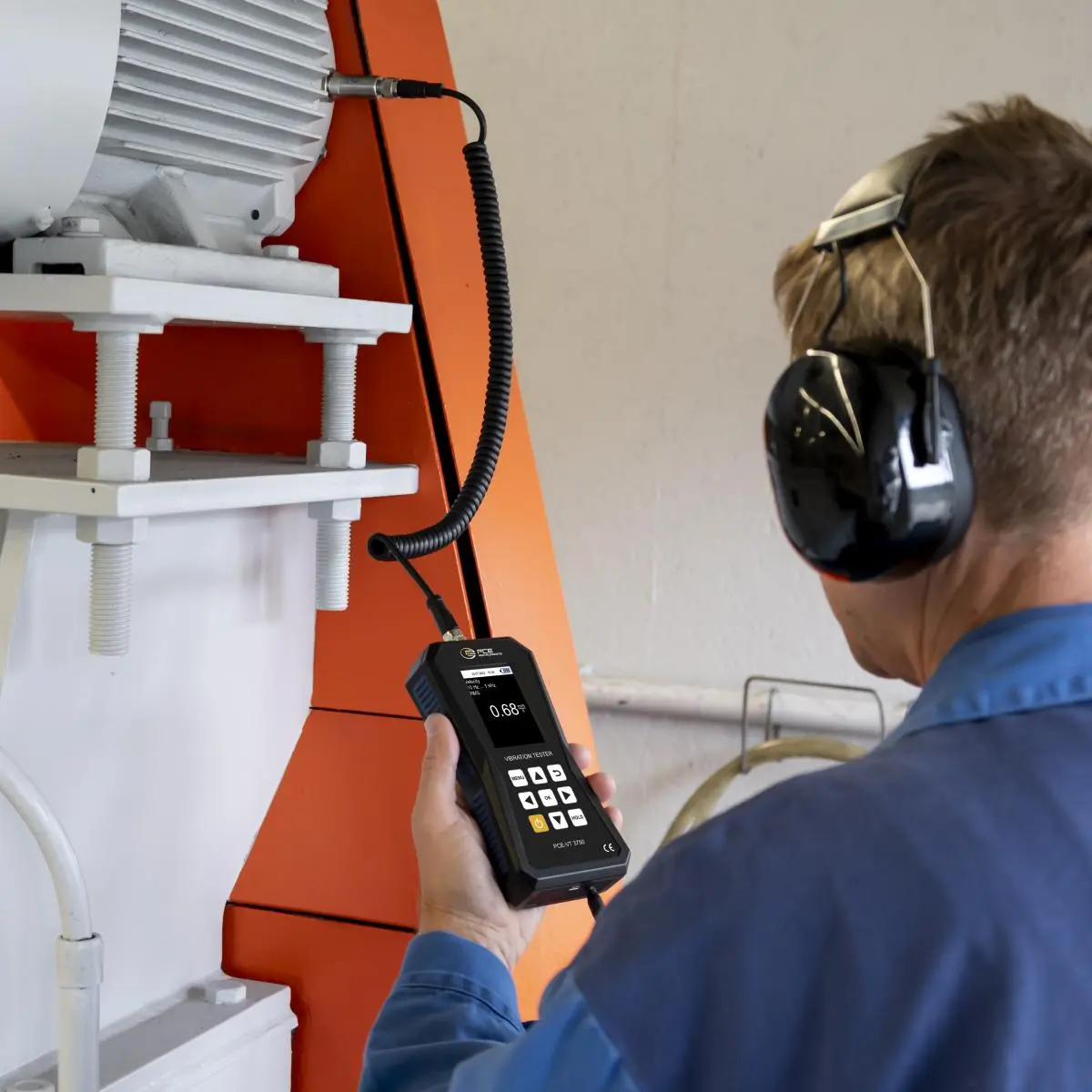

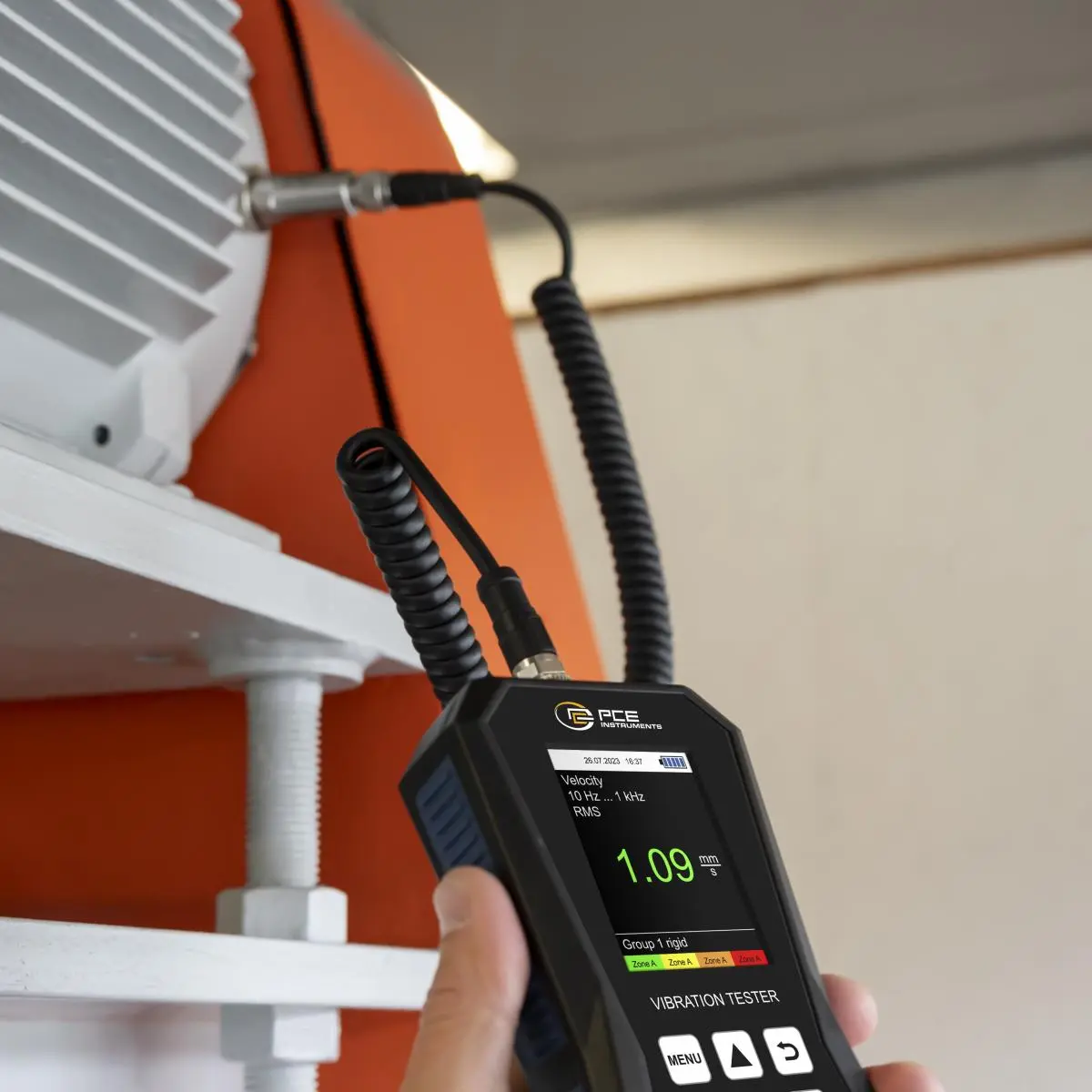

The vibration meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.

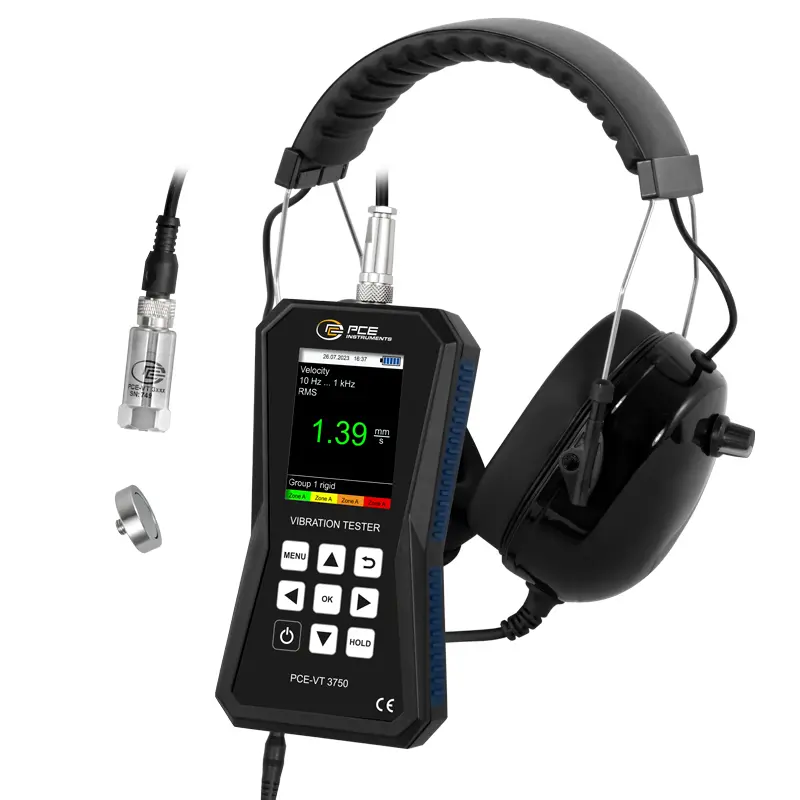

The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The ISO factory certificate completes the scope of delivery. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.

Highlights

- Automatic ISO 10816-3 evaluation
- Easy to handle
- For mobile vibration measurement
-The measurement unit can be switched between the metric system and imperial units.
- Colored graphic display
- Peak-hold function
- incl. headset

Specification

Measuring rangeAcceleration
 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²
Resolution0.1 m/s² / 3.94 in/s²
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 10 kHz
 1 kHz ... 10 kHz

Measuring rangeVelocity
 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s
Resolution0.1 mm/s / 0.0039 in/s
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 1 kHz


Measuring range
Rotational Speed

600 ... 50000 RPM


FFT acceleration
10 Hz ... 8 kHz
FFT velocity
10 Hz… 1 kHz
Accuracy @ 160 Hz
± 2%
Number of FFT lines
2048
Route measurement
100 routes each with 100 machines each with

100 measuring points with 1000 measured values each

Measuring rangeDisplacement
 0.000 ... 3.9 mm / 0.000 - 0.154 in
Resolution1 µm / 39.4 µin
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 200 Hz

Measurement parametersRMS, Peak, Peak-Peak
 Crest factor
Manual memory99 folders with 50 measured values ​​each
Data loggerVarious start/stop triggers
 Measurement interval between 1 s … 12 h
 50 memory locations with 43200 measured values ​​each
Unitscan be switched to metric / imperial
Display2.8" LC display
Menu languagesEnglish, German, French
 Spanish, Italian, Dutch
 Portuguese, Turkish, Polish
 Russian, Chinese, Japanese
Power supplyinternal: LiPo battery (3.7 V, 2500 mAh)
 external: USB 5 VDC, 500 mA
Headphone connection 3.5 mm jack plug
Operating timeca. 15 … 20 h (depending on display brightness)
Operating and storage conditions
temperature: -20 ... +65 °C / -4 ... 149 °F
 humidity: 10% RH ... 95% RH,
 non-condensing
Protection classIP52
Dimensions165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"
Weight239 g / 8.4 oz

Technical Data Vibration Sensor
Resonance frequency24 kHz
Transverse sensitivity≤ 5%
Destruction limit5000 g (peak)
Operating and storage temperature  -55 °C … +150 °C / -67 °F ... 302 °F
Housing materialstainless steel
Mounting thread¼ - 28“
DimensionsØ 17 x 46 mm / 0.67 x 1.8"
Weight (without cable)52 g / 1.8 oz

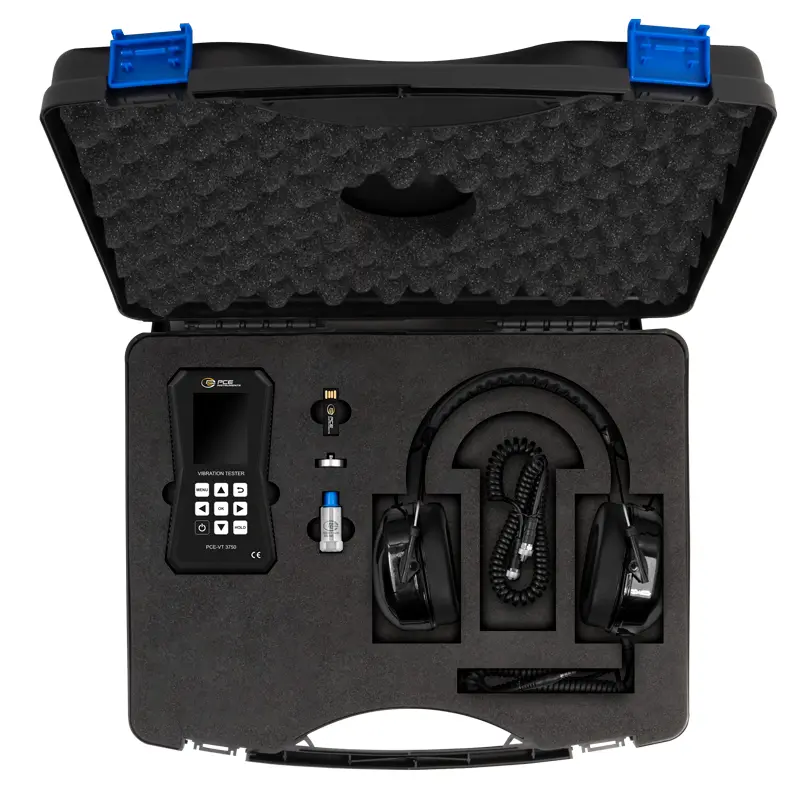

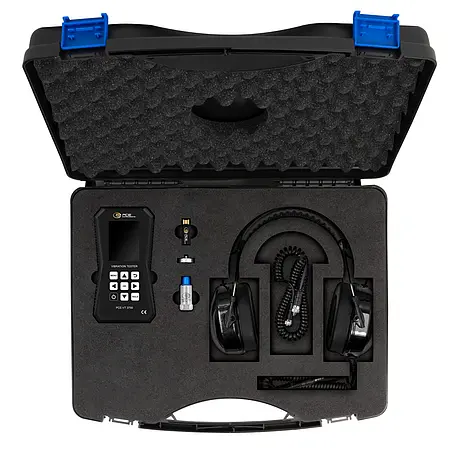

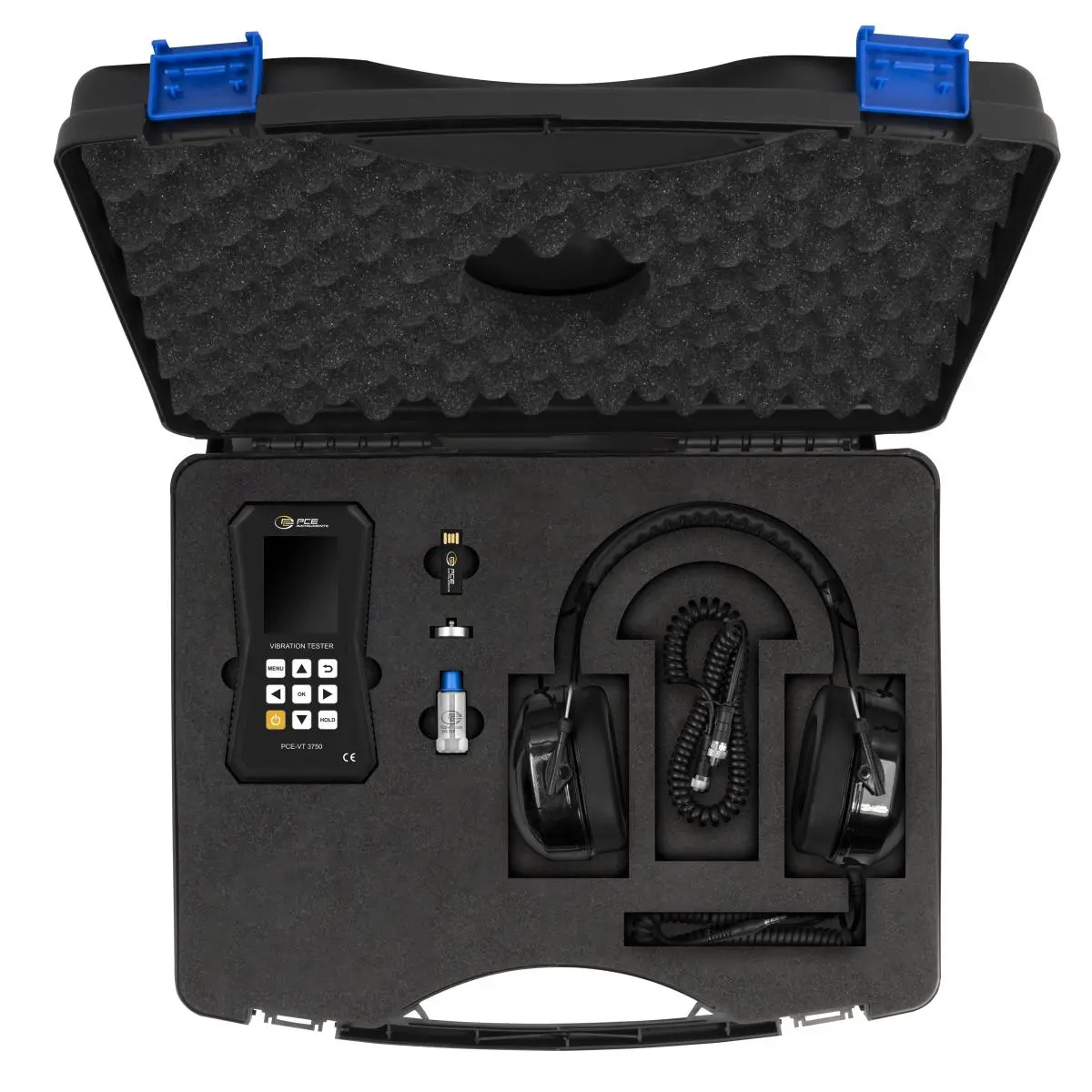

Delivery Scope

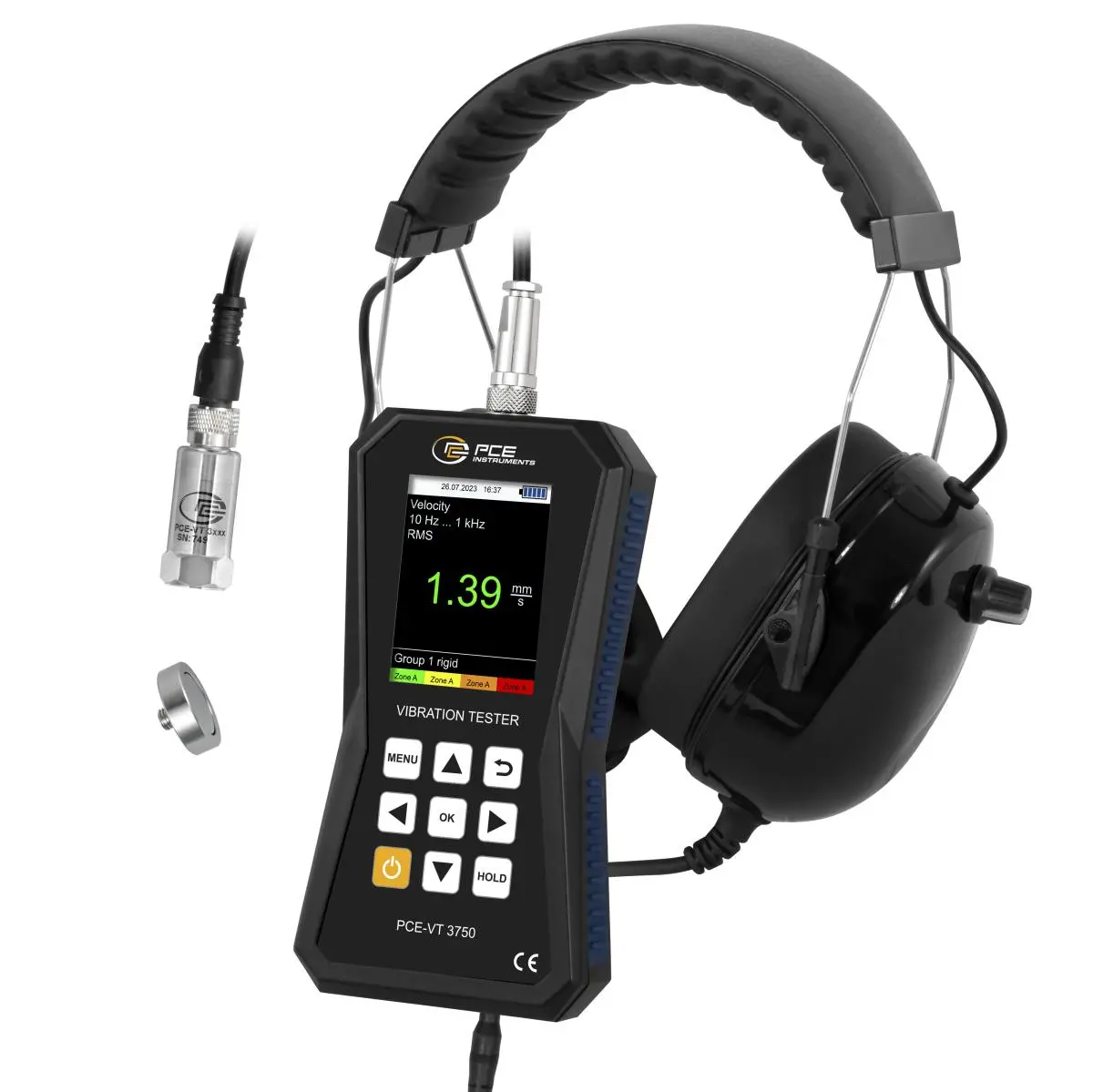

1 x Vibration Meter PCE-VT 3750
1 x Sensor with spiral cable PCE-VT 3xxx SENSOR

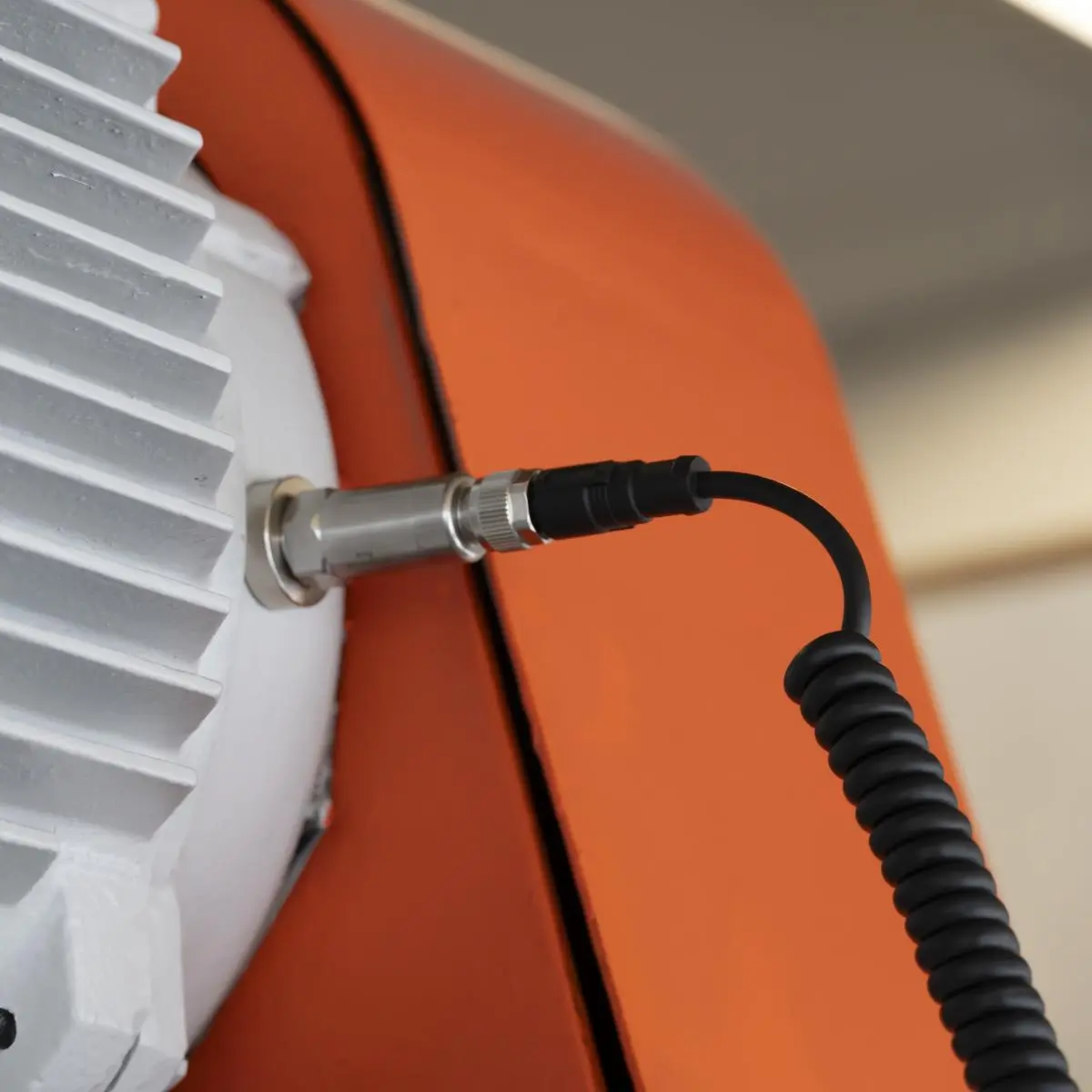

1 x Magnet adapter PCE-VT VMH
3 x 1.5 V AA batteries
1 x Quickstart guide
1 x Case

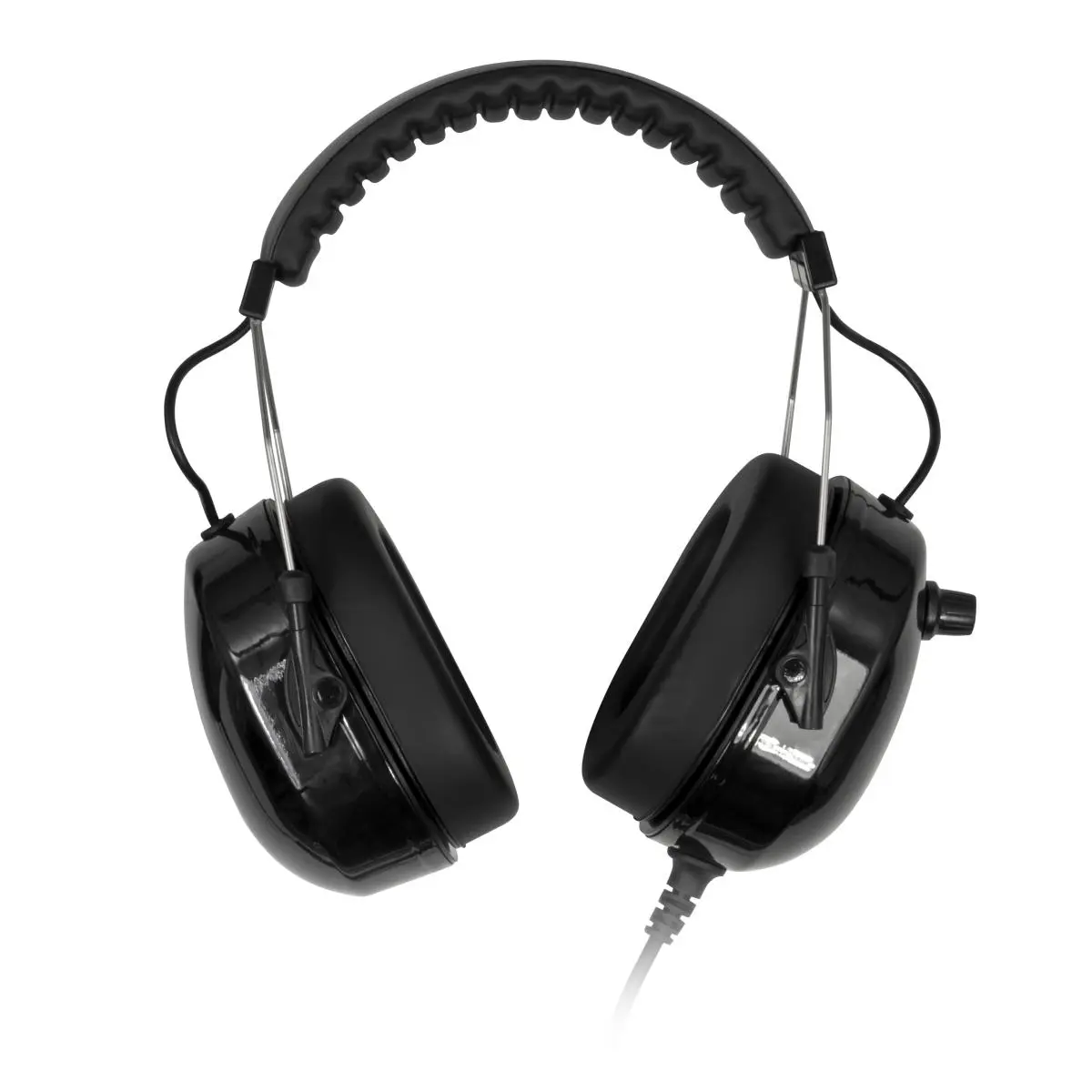

1 x headset
