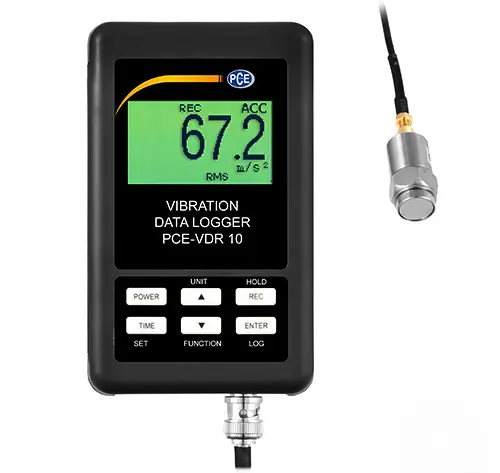

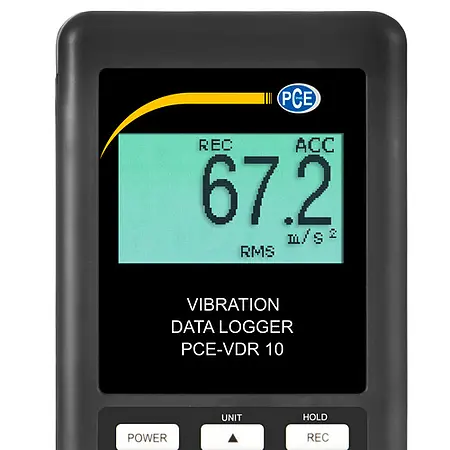

Vibration Recorder PCE-VDR 10

Order no.: PCE-VDR 10
GTIN (EAN): 4250348715982
£ 683.00
£ 819.60
price ex. (VAT / delivery)
:
4250348715982
PCE-VDR 10
Delivery time: 1-2 working days
Machine vibration

Accessory

Power Supply 9 V / 1 A (European)
Power Supply 9 V / 1 A (European)
£ 22.00
Vibration Sensor Replacement Magnet PCE-VT 204MG
Vibration Sensor Replacement Magnet PCE-VT 204MG
£ 42.00
Carrying Case with hard foam insert
Carrying Case with hard foam insert
£ 23.00
USB Data Cable Incl. Software SOFT-LUT-USB
USB Data Cable Incl. Software SOFT-LUT-USB
£ 76.00
Power supply North America
Power Supply 9 V / 0.8 A (US / North American)
£ 14.00
ISO Calibration Certificate CAL-V-I for Vibration Meter
ISO Calibration Certificate CAL-V-I for Vibration Meter
£ 192.00

Description

PCE-VDR 10 is a single-axis vibration recorder or monitor with real-time measurement and data logging capabilities. This vibration recorder records acceleration (m/s, g, ft/s) as well as speed (mm/s, cm/s, in/s) measurements and saves the measured data to an included SD card memory.

Note: To set up the SD card for the first time, the PCE-VDR 10 must be connected to AC power (AC power supply NET-LUT or NET-LUT-US sold separately - see accessories tab).

Highlights

- Measures acceleration (m/s, g, ft/s) and speed (mm/s, cm/s, in/s)
- Adjustable automatic data logging
- SD card memory
- RS-232 and USB interface
- Data can be downloaded to a computer and analyzed using Microsoft Excel
- Backlit LCD screen
- Portable

Specification

Frequency range 10 ... 1000 Hz
Acceleration measuring range
(at 50 m/s, 160 Hz)		 0.5 ... 199.9 m/s, 0.05 ... 20.39 g, 2 ... 656 ft/s
Resolution 0.1, 0.01, 1
Accuracy ± (5% of reading + 2 digits)

Speed measuring range
(at 50 mm/s, 160 Hz)		 0.5 ... 199.9 mm/s, 0.05 ... 19.99 cm/s, 0.02 ... 7.87 in/s
Resolution 0.1, 0.01, 1
Accuracy ± (5% of reading + 2 digits)

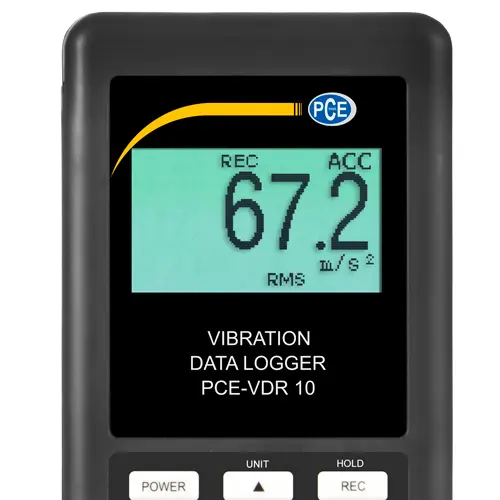

Display LCD
Display update time                 update time: 1 second
Memory SD card (included)
Automatic data logging interval 5 ... 3600 seconds (adjustable)

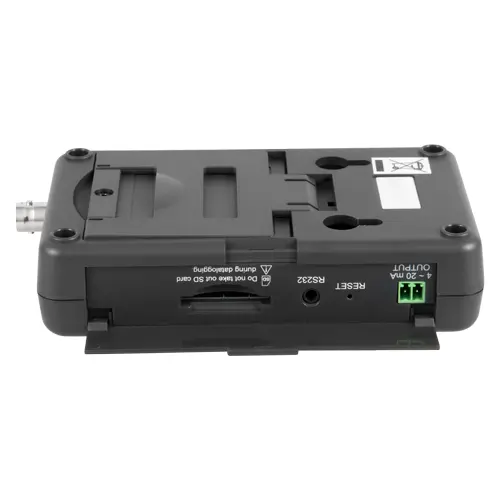

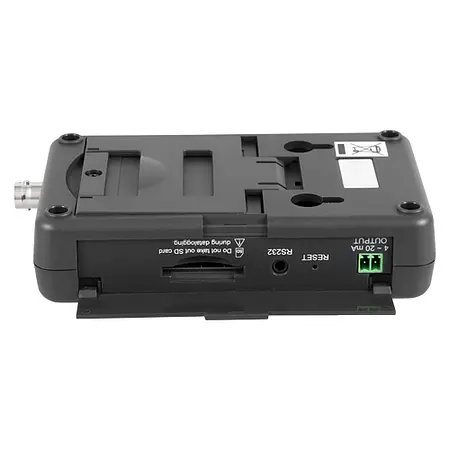

Analog output 4 ... 20 mA

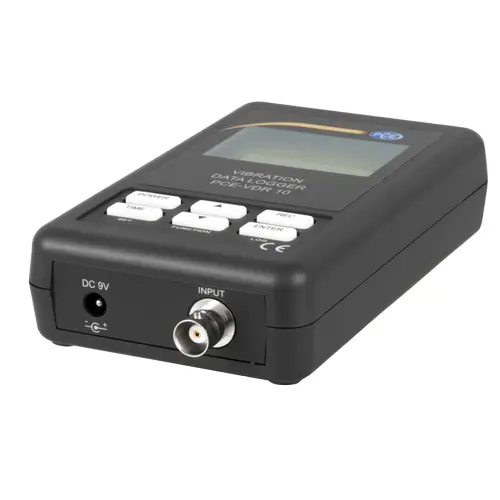

Power supply 6 x 1.5 V AAA batteries or 9 V DC electric power (adapter sold separately)
Interface RS-232 and USB
Dimensions 132 x 80 x 32 mm (5.20 x 3.15 x 1.26")

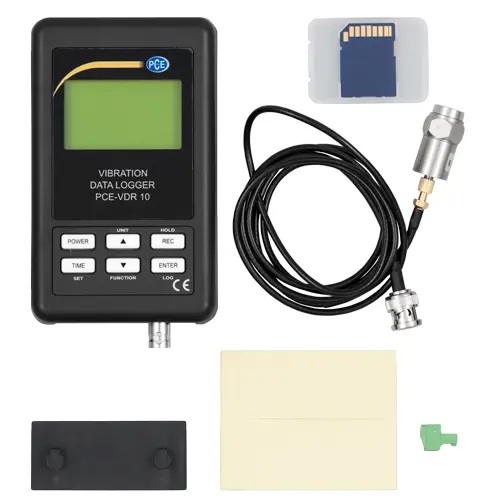

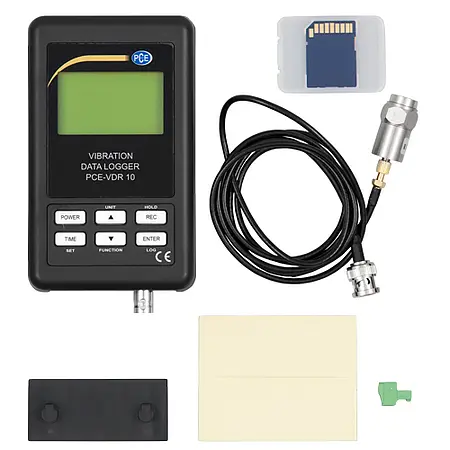

Delivery Scope

1 x Vibration Recorder PCE-VDR 10

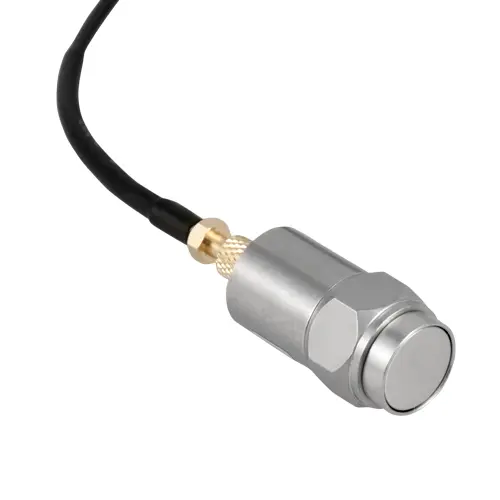

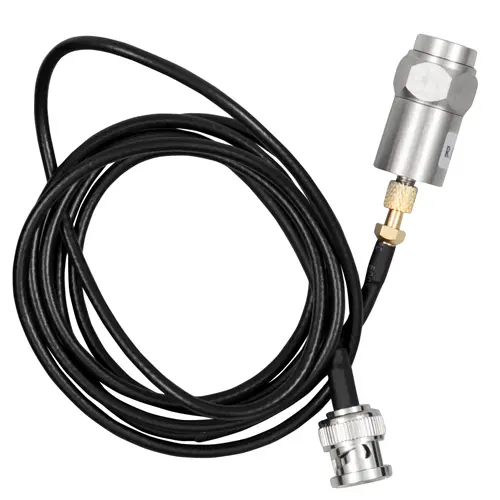

1 x vibration sensor
1 x wall bracket
6 x 1.5 V AAA batteries
1 x SD memory card
1 x screw for 4 ... 20 mA output
1 x user manual
