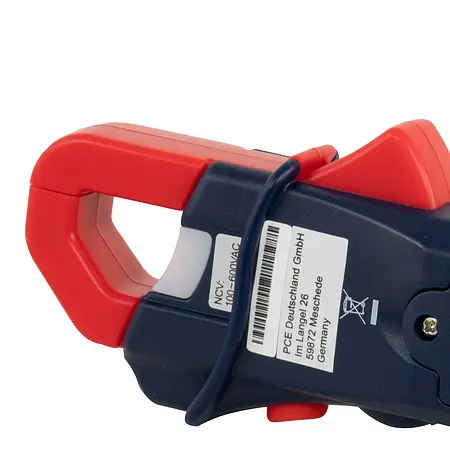

Voltmeter PCE-DC1

Order no.: PCE-DC1
GTIN (EAN): 4250348703095
£ 68.00
£ 81.60
No-Shopping
price ex. (VAT / delivery)
:
4250348703095
PCE-DC1
Delivery time: 1-2 working days

Description

Mini Voltmeter for measuring AC current, AC voltage, DC current and frequency
(3 in 1) / maximum aperture of clamps is 18mm
The Mini Voltmeter has been designed to detect, indirectly, AC/DC current and frequency. The Mini Voltmeter has a flashlight with one white LED integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact. The reduced dimensions of this device allow for measurements to be taken in places with limited access. The backlit display ensures that it is easy to read, even in places with limited light available, such as electrical cabinets or in cabling ducts. Testing voltage without contact helps when detecting dangerous power lines, and it makes it easier to detect the location of cuts in power lines.

Highlights

- LCD with 3 2/3 positions, backlit, clamp for continuous current
- Measures AC/DC current, AC voltage and frequency
- Memory function, zero reset for the DCA, test voltage without contact
- Integrated flashlight
- Automatic range selection
- Auto shut-off
- Aperture of the clamp: 18mm

Specification

Technical Specifications
AC current (50/60 Hz) Sector / resolution / accuracy
200 A / 0.1 A or 100 mA / ±3.0% + 8 digit
DC current Sector / resolution / accuracy
200 A / 0.1 A or 100 mA / ±2.8% + 8 digits
AC test voltage (without contact)100 VAC to 600 VAC 50 / 60 Hz
Frequency Sector / resolution / accuracy
40 to 50 Hz / 0.01 Hz / ±1.2% + 5 digits
51 to 510 Hz / 0.1 Hz / ±1.2% + 3 digits
0.51 to 1 kHz / 0.001 kHz / ±1.2% + 3 digits
Flashlight white LED
Diameter of the conductormax. 18mm
Display with white LEDs, backlit LCD with 3 2/3 positions
Power2 AA batteries
EnclosurePVC
Dimensions155 x 66 x 31mm
Weight155g

Delivery Scope

Delivery contents

1 x PCE-DC1 Mini Voltmeter
1 x bag
2 x batteries
1 x user's manual
