Voltmeter PCE-DM 7

Order no.: PCE-DM 7
GTIN (EAN): 4250348736130
£ 45.00
£ 54.00
price ex. (VAT / delivery)
:
4250348736130
PCE-DM 7
Delivery time: 1-2 working days

Description

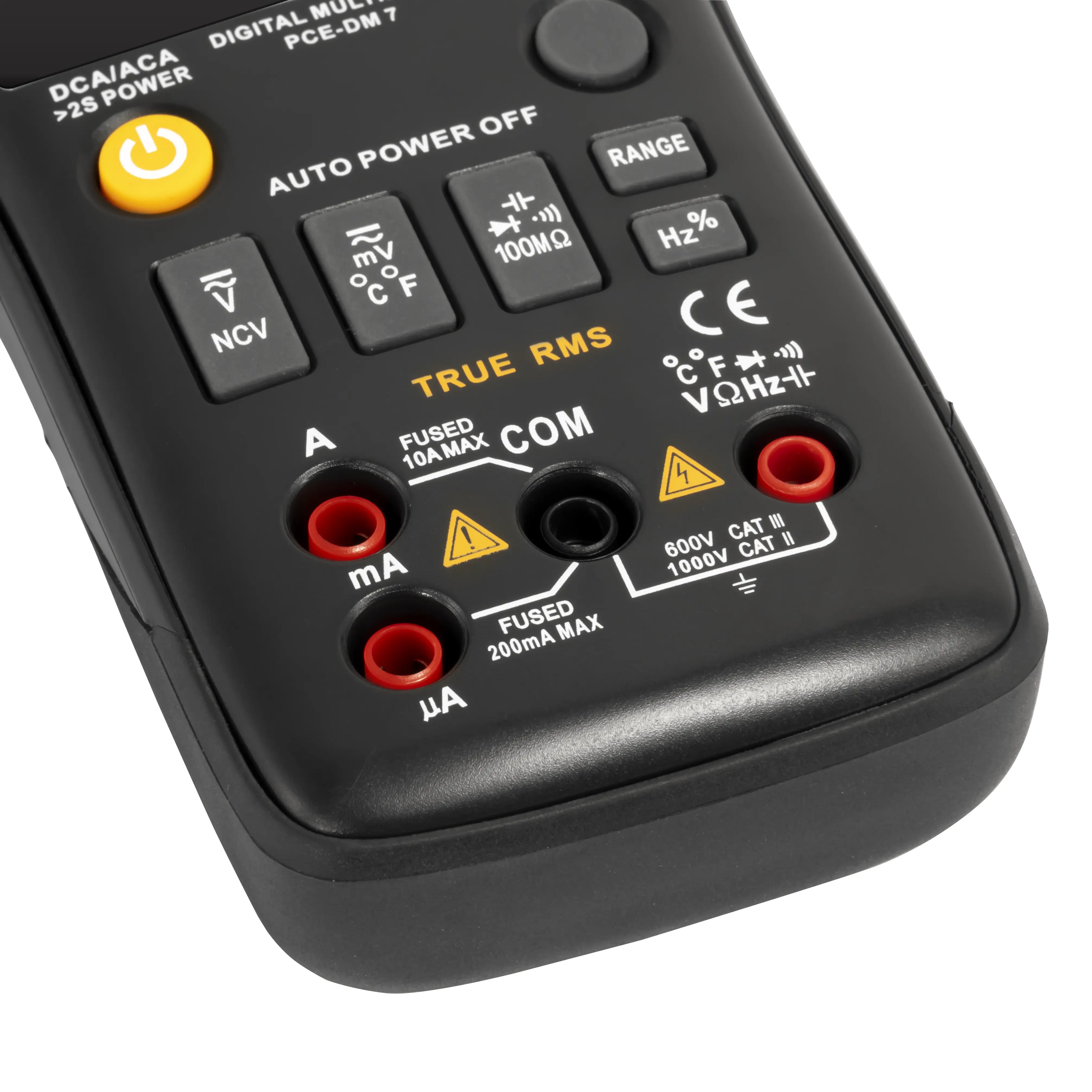

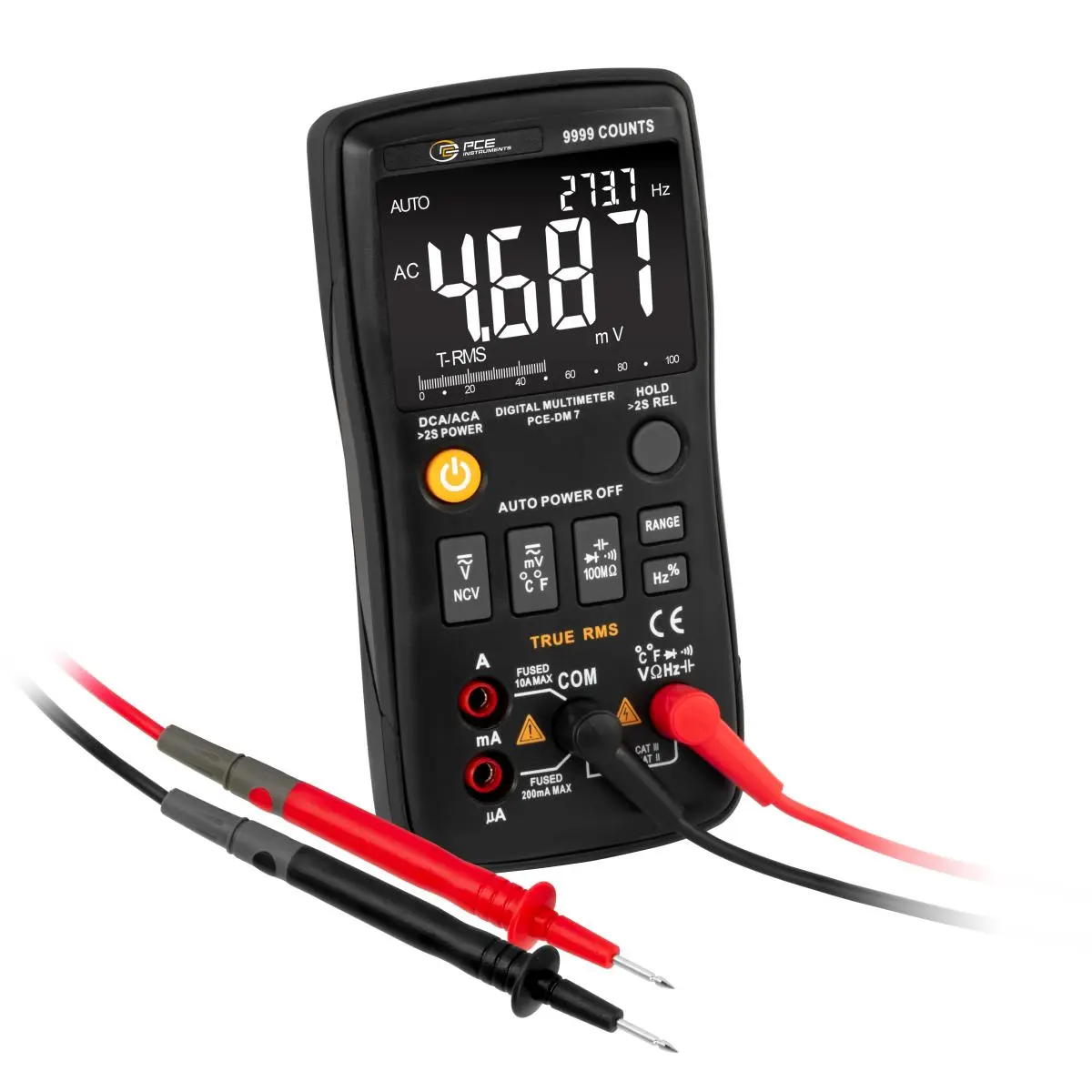

Voltmeter / true RMS measurement / temperature measurement / automatic and manual measurement range selection / simple operation / bar graph display

The Voltmeter provides precise measurements for a variety of parameters, including AC and DC voltage, direct and alternating current, frequency, resistance, capacitance and temperature. Our Voltmeter has a hold function for saving measurement results as well as non-contact voltage detection (NCV).

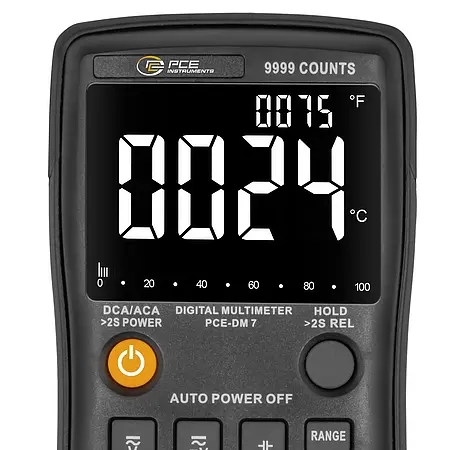

The device enables both automatic and manual measurement range selection and is equipped with an easy-to-read 2.8-inch LCD with backlight. With a sampling rate of three measurements per second, it delivers quick results and switches off automatically after five minutes of inactivity to extend the battery life. In addition, the Voltmeter offers a dual display: a bar graph for quick visual assessments and a numerical display for precise readings.

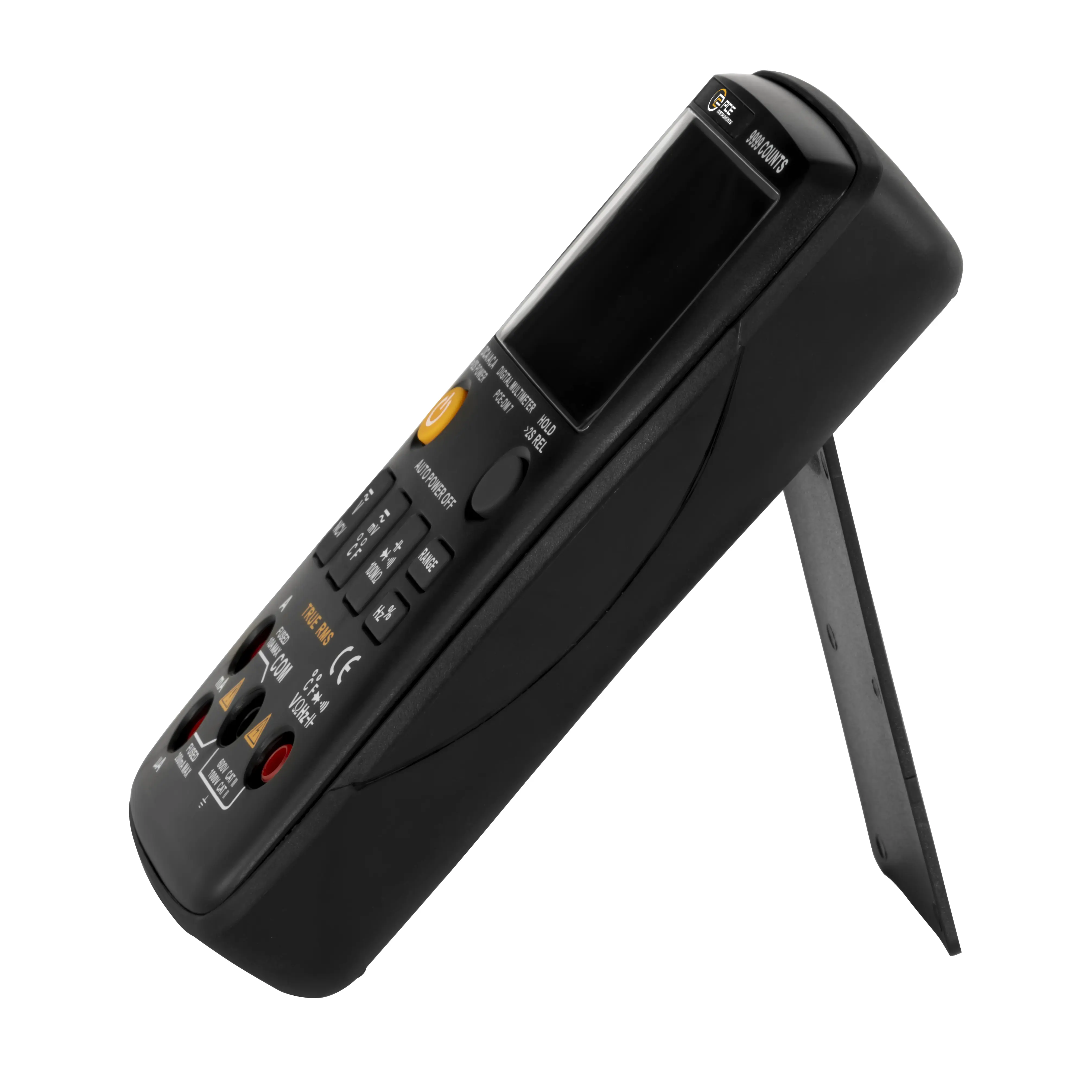

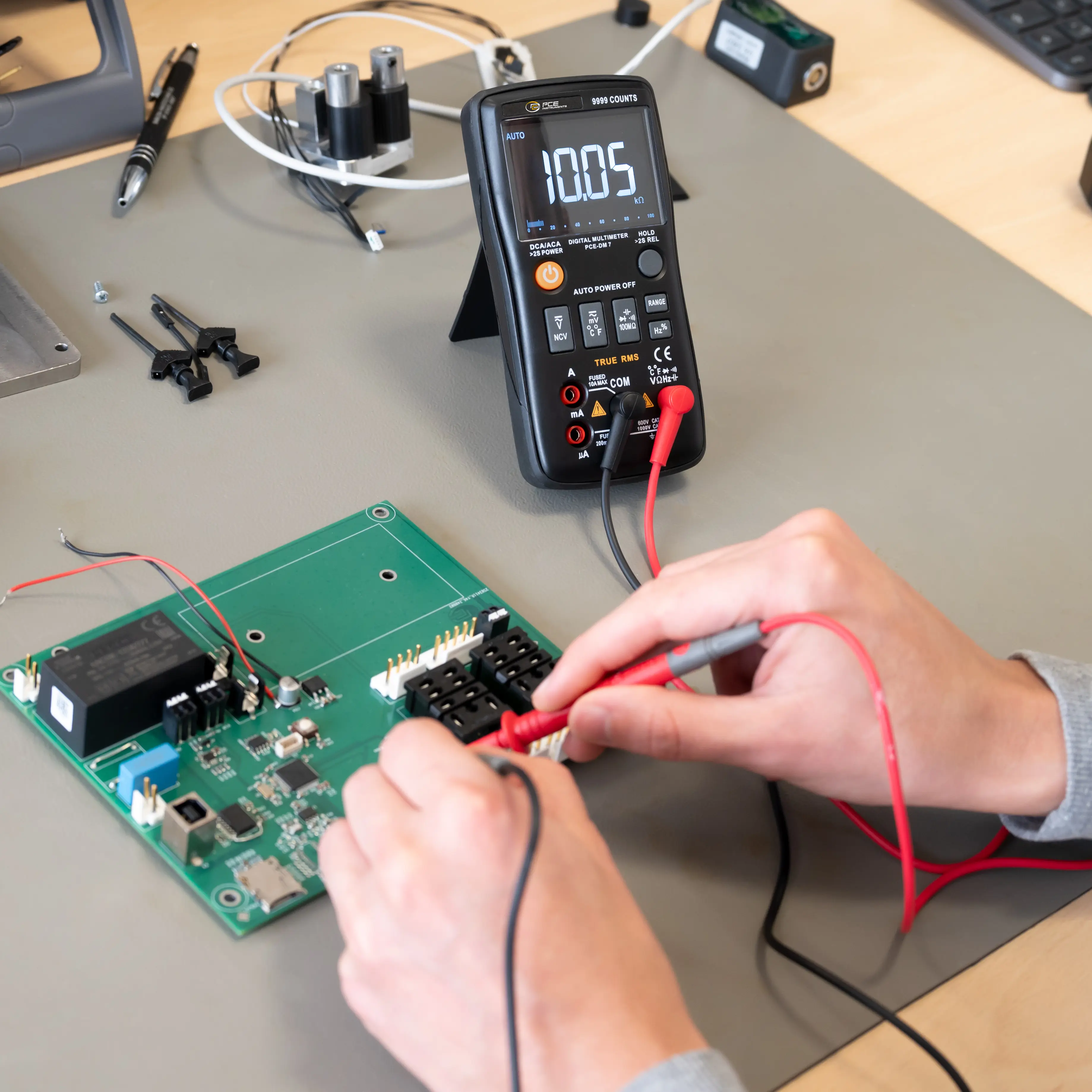

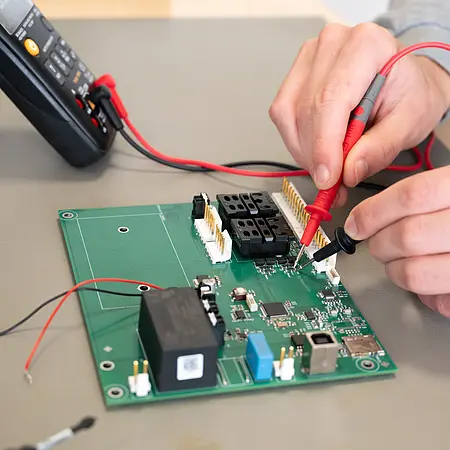

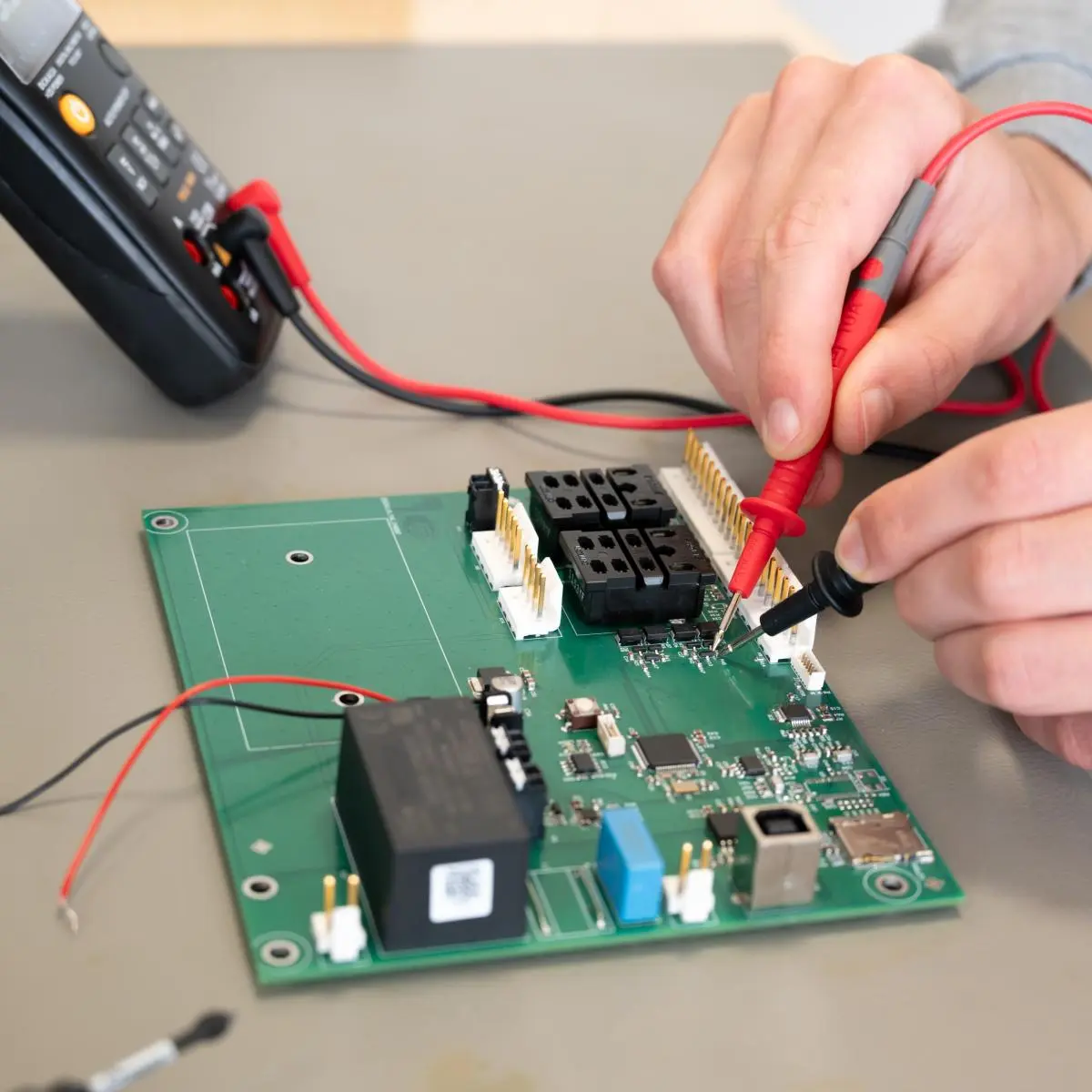

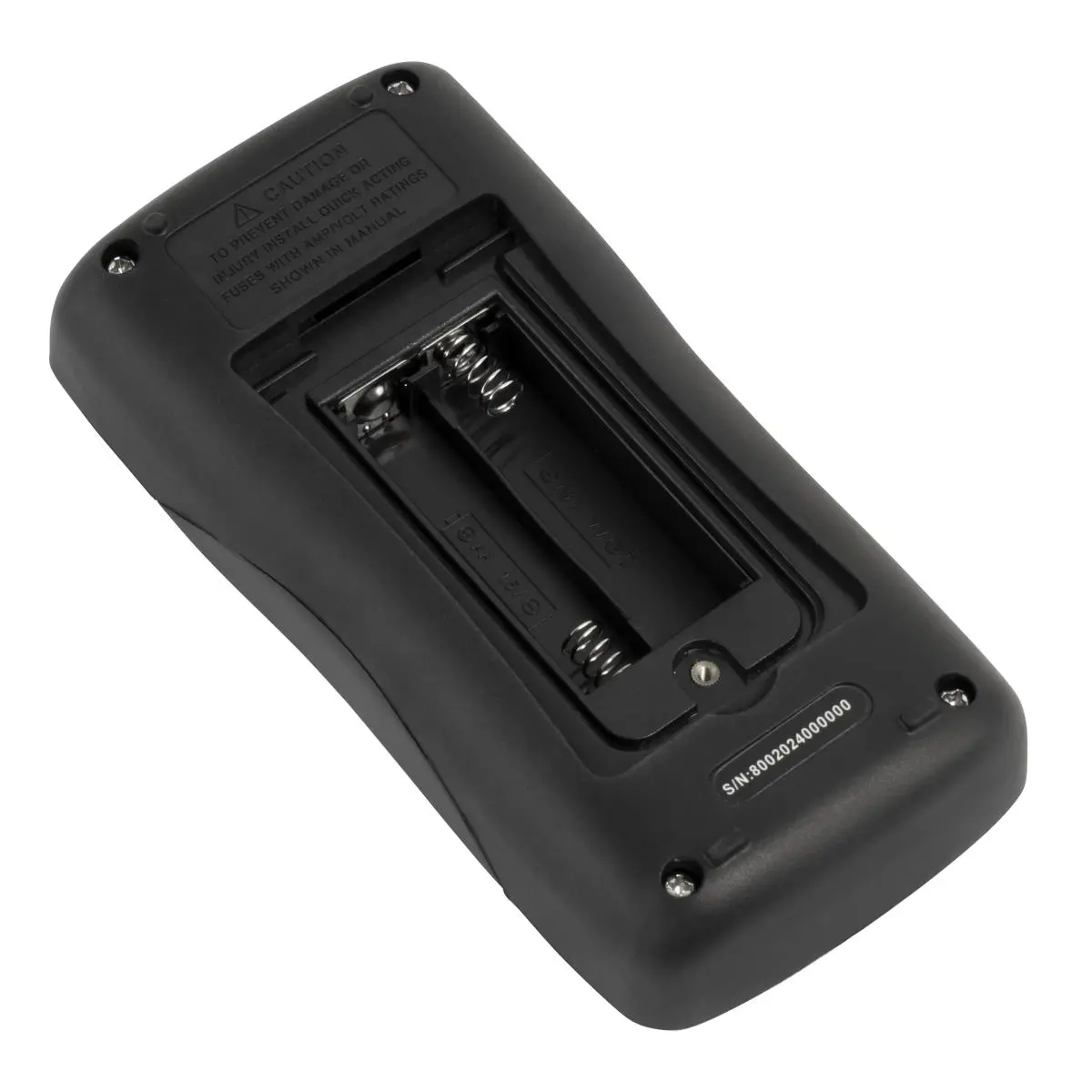

The Voltmeter is powered by two 1.5 V batteries and is designed for easy one-handed operation. The compact dimensions of 140 x 70 x 35 mm make the Voltmeter a practical tool for everyday use by electricians and hardware developers as well as in other technical applications.


Highlights

- non-contact voltage detection
- temperature measurement
- automatic power off
- automatic and manual measurement range selection
- hold function
- 2.8-inch LC display with backlight
- small and compact design

Specification

Direct voltage DC
Measurement range up to  0 ... 9,999 mV
Resolution  0,001 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  10 ... 99,99 mV
Resolution  0,01 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  100 ... 999,9 mV
Resolution  0,1 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  1 ... 9,999 V
Resolution  0,001 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  10 ... 99,99 V
Resolution  0,01 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  100 ... 999,9 V
Resolution  0,1 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct current DC
Measurement range up to  0 ... 9999 µA
Resolution  1 µA
Accuracy  ±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to  10 ... 99,99 mA
Resolution  0,01 mA
Accuracy  ±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to  100 ... 999,9 mA
Resolution  0,1 mA
Accuracy  ±(1 % of Rd +3 digits)

Direct current DC
Measurement range up to  1 ... 9,999 A
Resolution  0,001 A
Accuracy  ±(1 % of Rd +3 digits)

Capacity
Measurement range up to  0 ... 9,999 nF
Resolution  0,001 nF
Accuracy  ±(5.0 % of Rd +20 digits)

Capacity
Measurement range up to  10 ... 99,99 nF
Resolution  0,01 nF
Accuracy  ±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to  100 ... 999,9 nF
Resolution  0,1 nF
Accuracy  ±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to  1 ... 9,999 µF
Resolution  0,001 µF
Accuracy  ±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to  10 ... 99,99 µF
Resolution  0,01 µF
Accuracy  ±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to  100 ... 999,9 µF
Resolution  0,1 µF
Accuracy  ±(2.0 % of Rd +5 digits)

Capacity
Measurement range up to  1 ... 9,999 mF
Resolution  0,001 mF
Accuracy  ±(5.0 % of Rd +5 digits)

AC voltage
Measurement range up to  0 ... 9,999 mV
Resolution  0,001 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  10 ... 99,99 mV
Resolution  0,01 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  100 ... 999,9 mV
Resolution  0,1 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  1 ... 9,999 V
Resolution  0,001 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  10 ... 99,99 V
Resolution  0,01 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  100 ... 750 V
Resolution  0,1 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  0 ... 9999 µA
Resolution  1 µA
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  10 ... 99,99 mA
Resolution  0,01 mA
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  100 ... 999,9 mA
Resolution  0,1 mA
Accuracy  ±(1.2 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  1 ... 9,999 A
Resolution  0,001 A
Accuracy  ±(1.2 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Resistance
Measurement range up to  0 ... 99,99 Ω
Resolution  0,01 Ω
Accuracy  ±(1 % of Rd +3 digits)

Resistance
Measurement range up to  100 ... 999,9 Ω
Resolution  0,1 Ω
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  1 ... 9,999 kΩ
Resolution  0,001 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  10 ... 99,99 kΩ
Resolution  0,01 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  100 ... 999,9 kΩ
Resolution  0,1 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  1 ... 9,999 M Ω
Resolution  0,001 M Ω
Accuracy  ±(1.5 % of Rd +3 digits)

Resistance
Measurement range up to  10 ... 99,99 M Ω
Resolution  0,01 M Ω
Accuracy  ±(3.0 % of Rd +5 digits)

Duty cycle
Measurement range up to  1 ... 99 %
Resolution  0,1 %
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  0 ... 99,99 Hz
Resolution  0,01 Hz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  100 ... 999,9 Hz
Resolution  0,1 Hz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  1 ... 9,999 kHz
Resolution  0,001 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  10 ... 99,99 kHz
Resolution  0,01 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  100 ... 999,9 kHz
Resolution  0,1 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  1 ... 5 MHz
Resolution  0,001 MHz
Accuracy  ±(0.1 % of Rd +2 digits)

Temperature
Measurement range up to  -20 ... +1000 °C
Resolution  1 °C
Accuracy  ±(2.5 % of Rd +5 digits)

Temperature
Measurement range up to  -4 ... +1832 °F
Resolution  1 °F
Accuracy  ±(2.5 % of Rd +5 digits)

General technical data
Measuring functions  HOLD
Display type  LCD with backlight
Display size  2,8 Inch
Measuring rate  3 x per second
Automatic power-off  5 min
Safety standard  CAT II 1000 V, CAT III 600 V
Measurement range selection  Automatic, Manual
Menu language  English, English (GB)
Protection class (device)  IP20
Weight  175 g
Operating conditions  0 ... 40 °C , 0 ... 75 % RH
Storage conditions  -20 ... 60 °C , 0 ... 80 % RH
(Rechargeable) battery  2 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Dimensions ( L x W x H )  140 x 70 x 35 mm

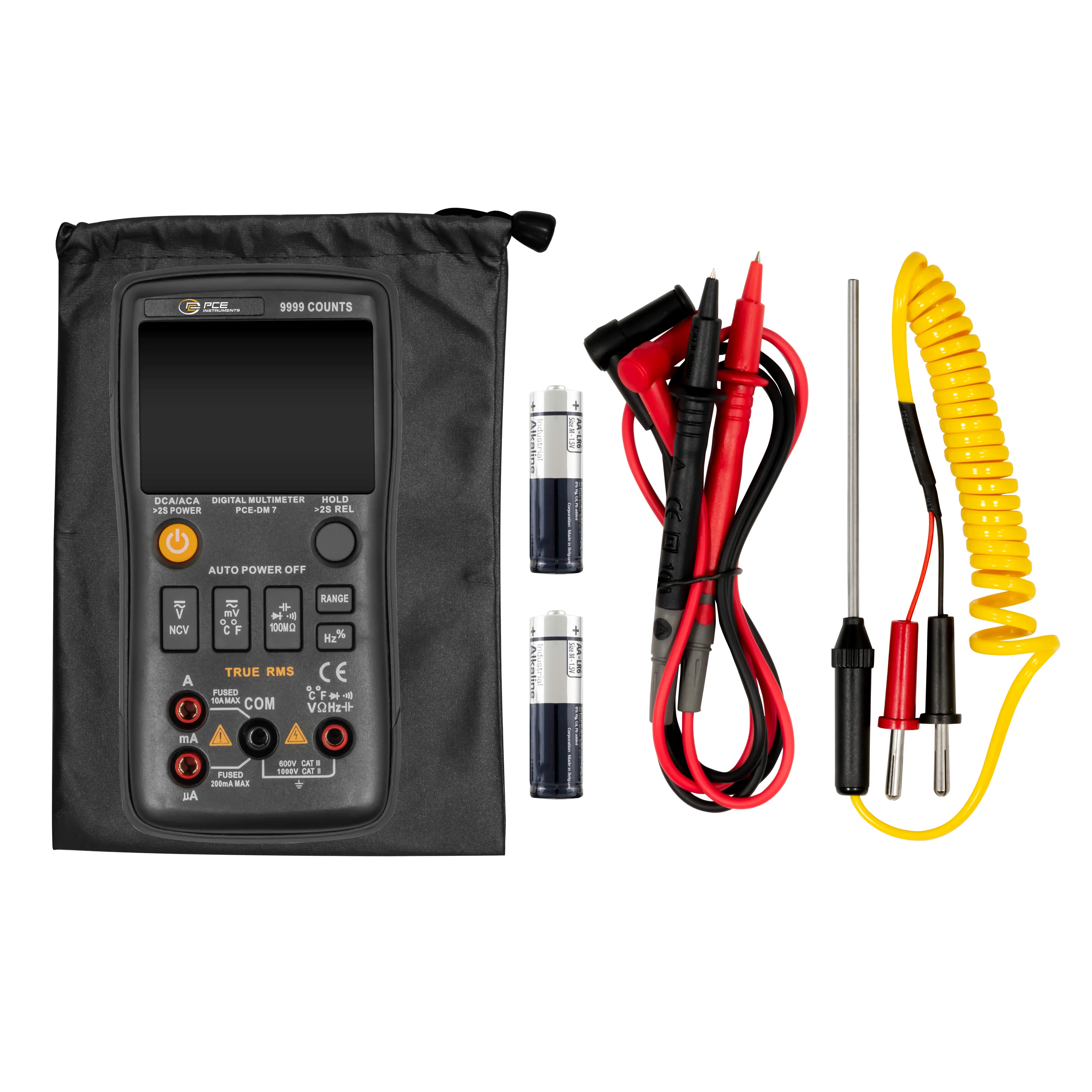

Delivery Scope

1 x Voltmeter PCE-DM 7

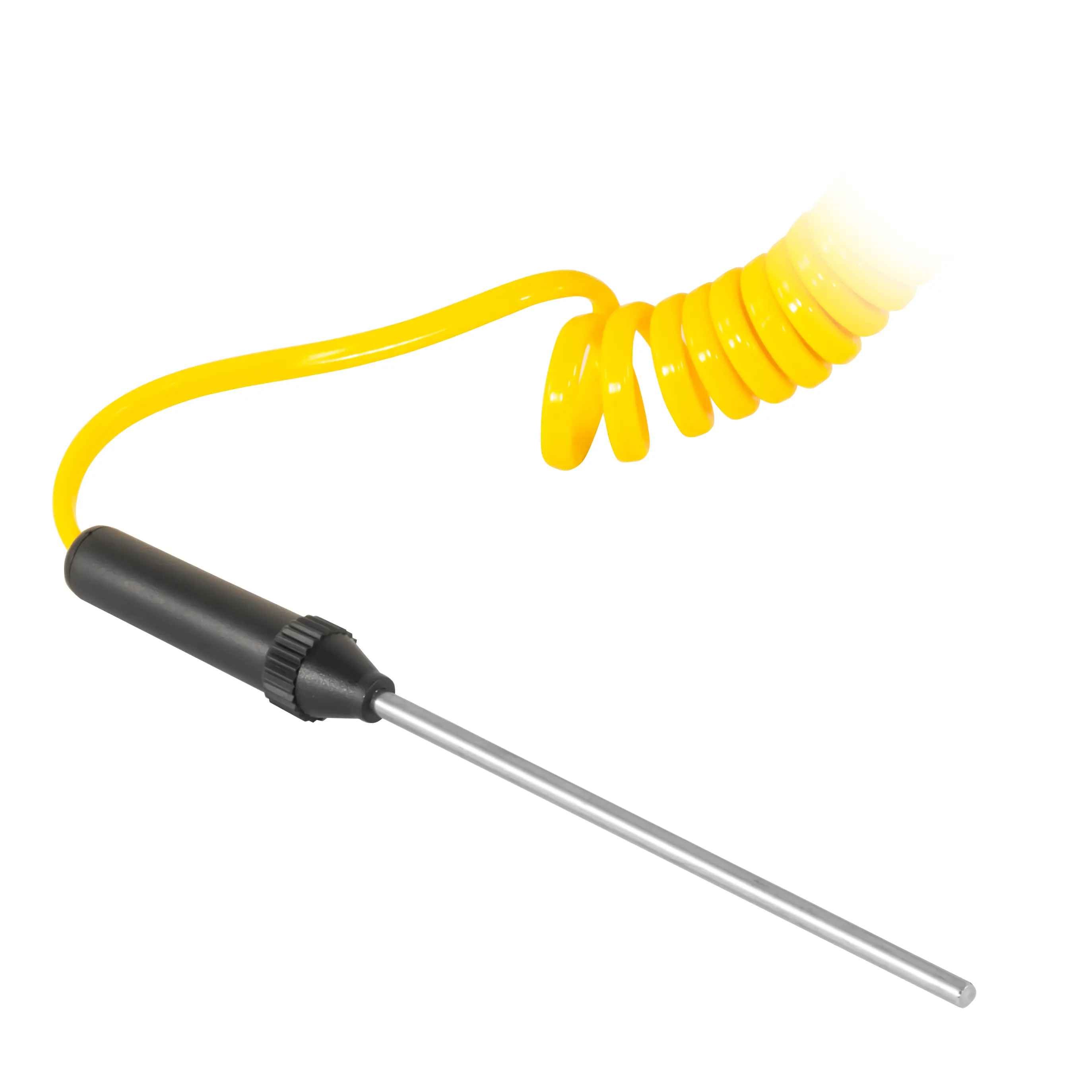

1 x temperature sensor

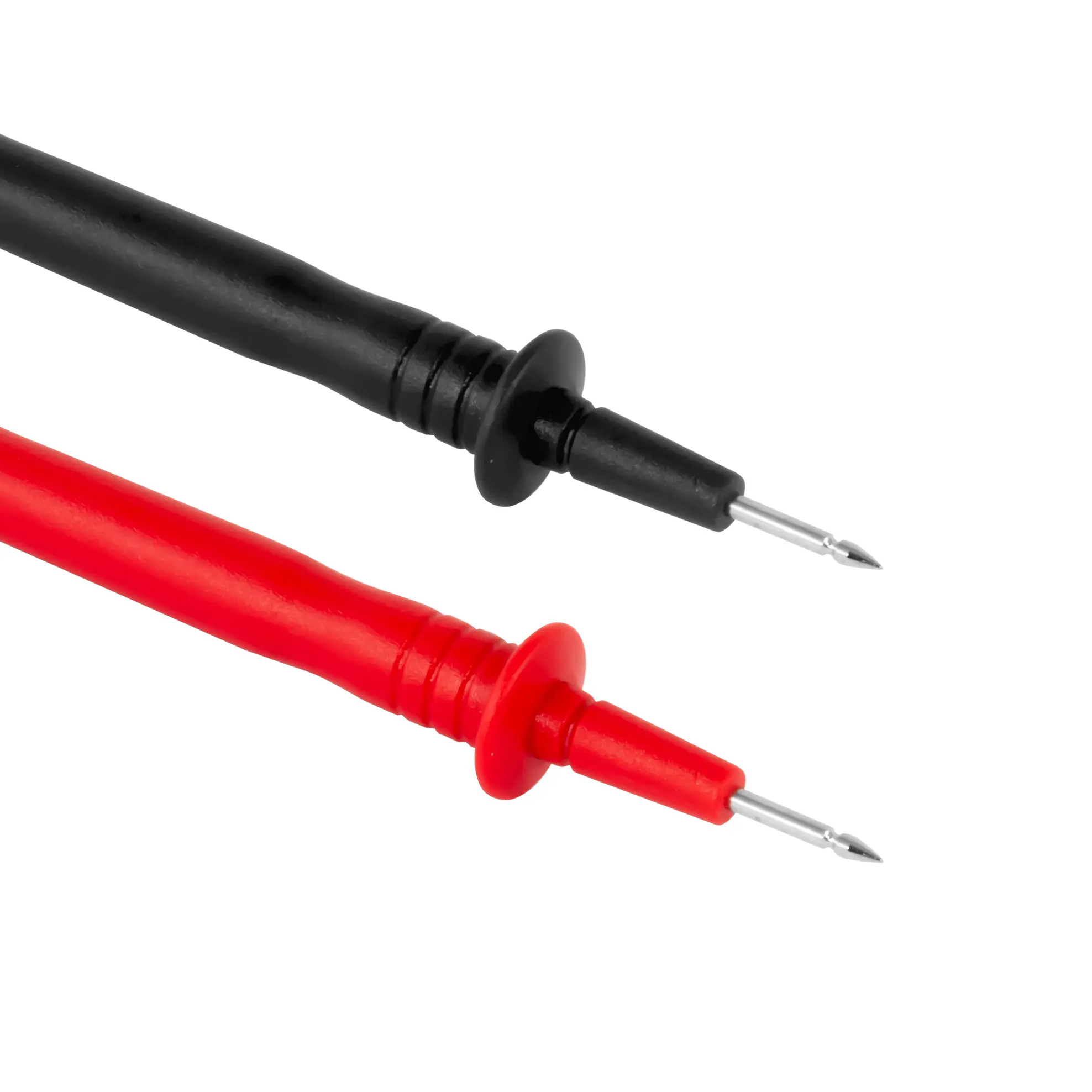

1 x test leads
2 x 1.5 V AA battery
1 x user manual
1 x storage bag
