Voltmeter PCE-LT 15

Order no.: PCE-LT 15
GTIN (EAN): 4250348719034
£ 62.00
£ 74.40
price ex. (VAT / delivery)
:
4250348719034
PCE-LT 15
Delivery time: 1-2 working days

Description

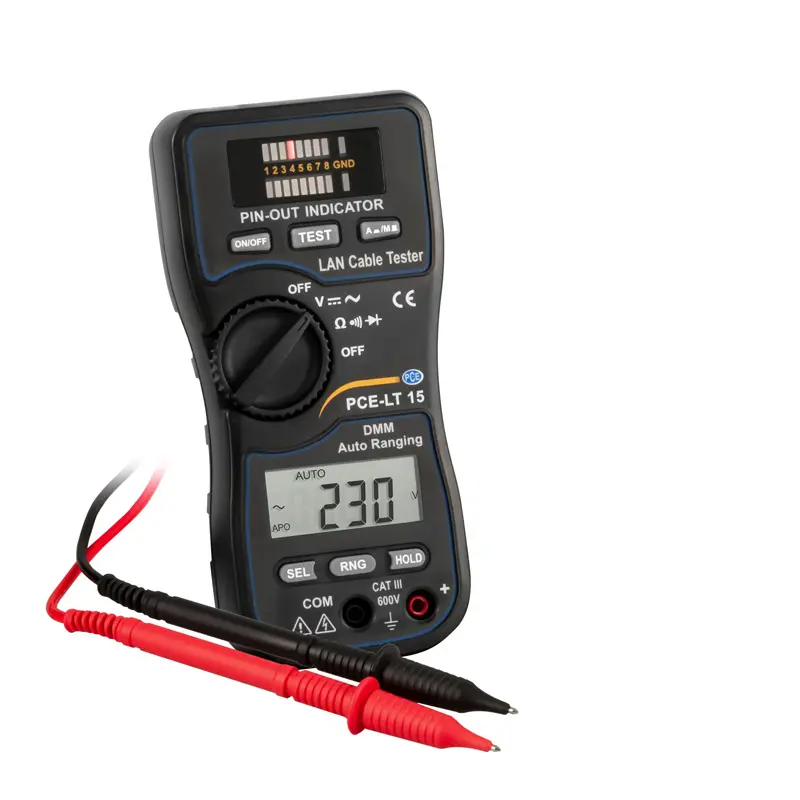

Voltmeter PCE-LT 15
LAN tester for fast network cable inspection / Combination device consisting of LAN tester and multimeter with voltage and resistance measurement

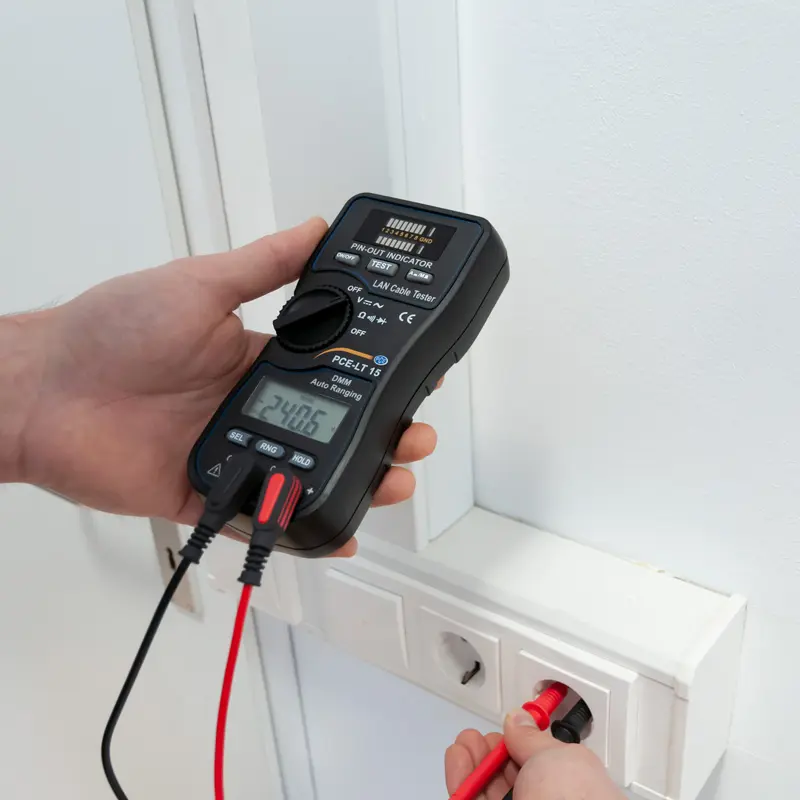

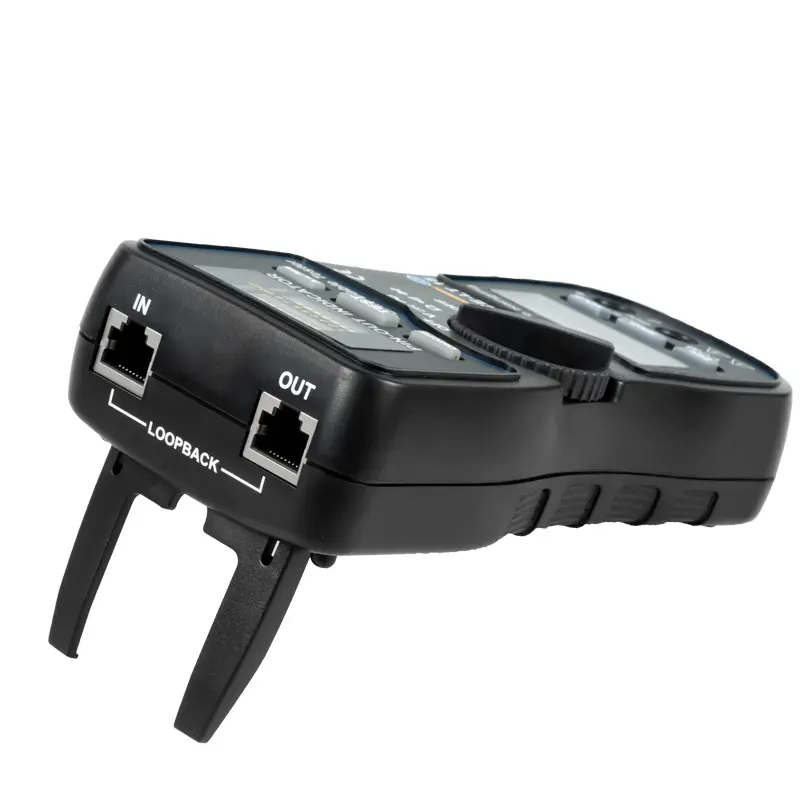

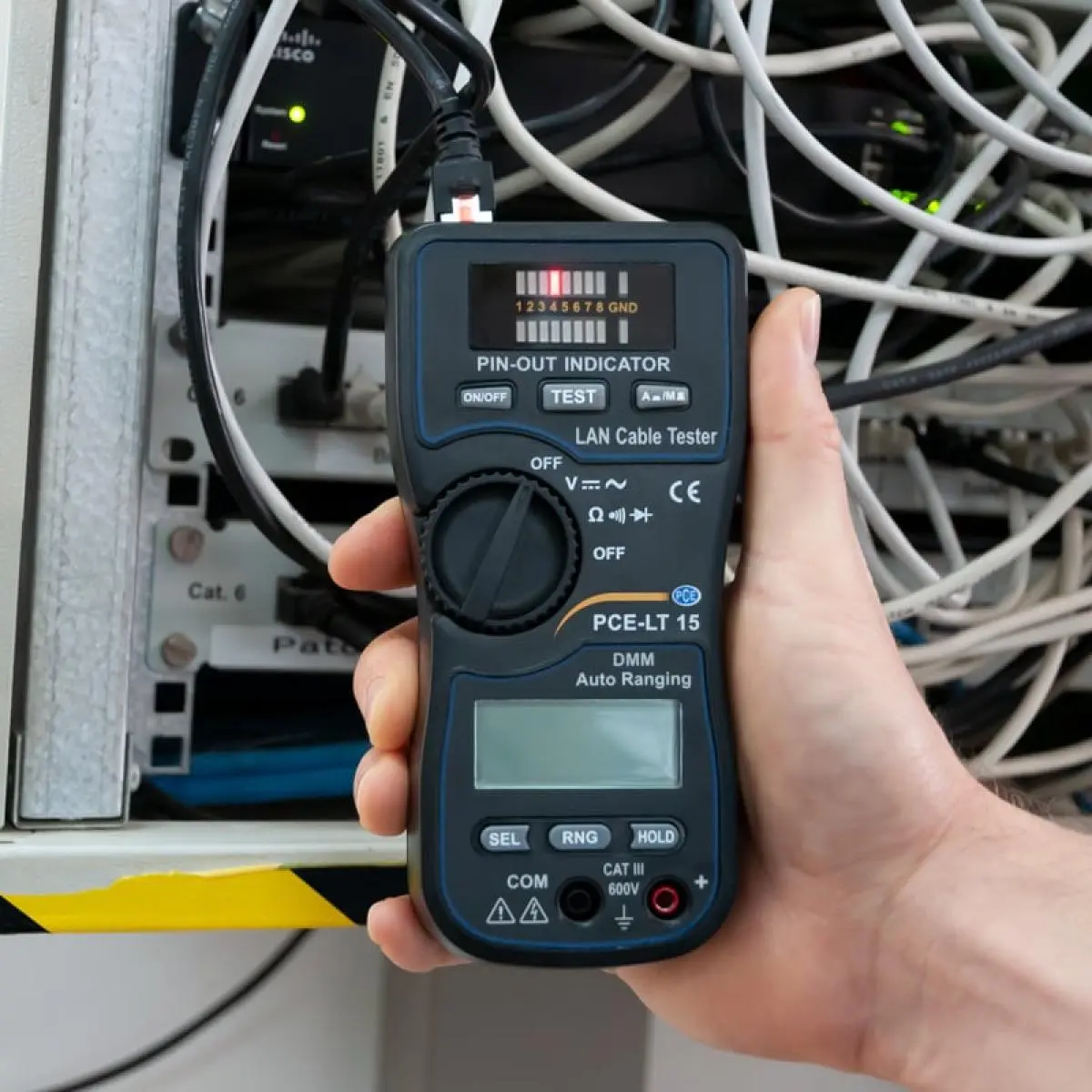

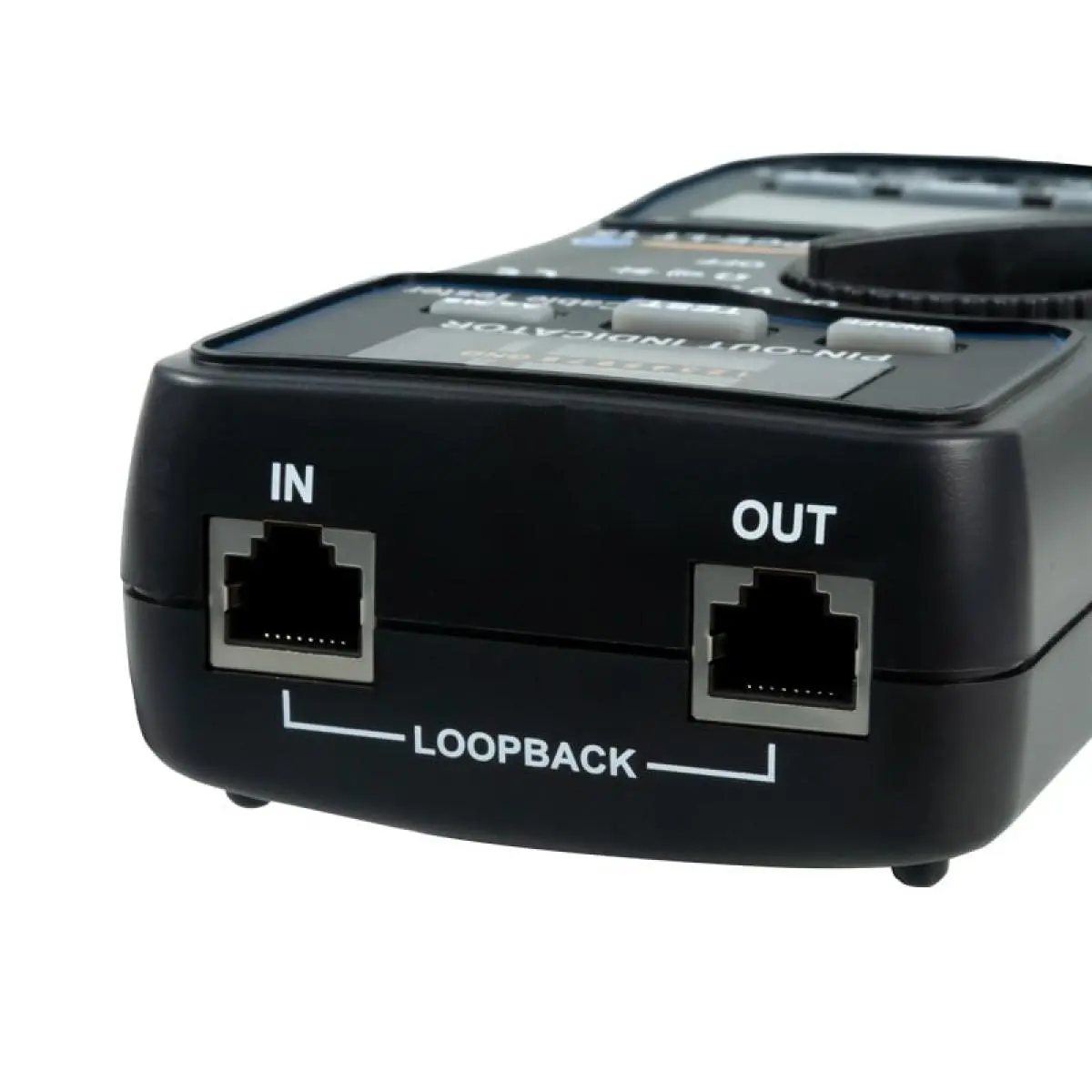

The LAN tester PCE-LT 15 is a combination device which detects configuration errors in the network and at the same time can be used as a multimeter. Thus, the periphery of a network can be quickly checked with the LAN tester. With the LAN tester PCE-LT 15 it is possible to check 8-pin data cables with RJ-45 connectors for continuity, open connections, and short circuits. In addition to the LAN test function, the LAN Tester can also measure DC and AC voltages.

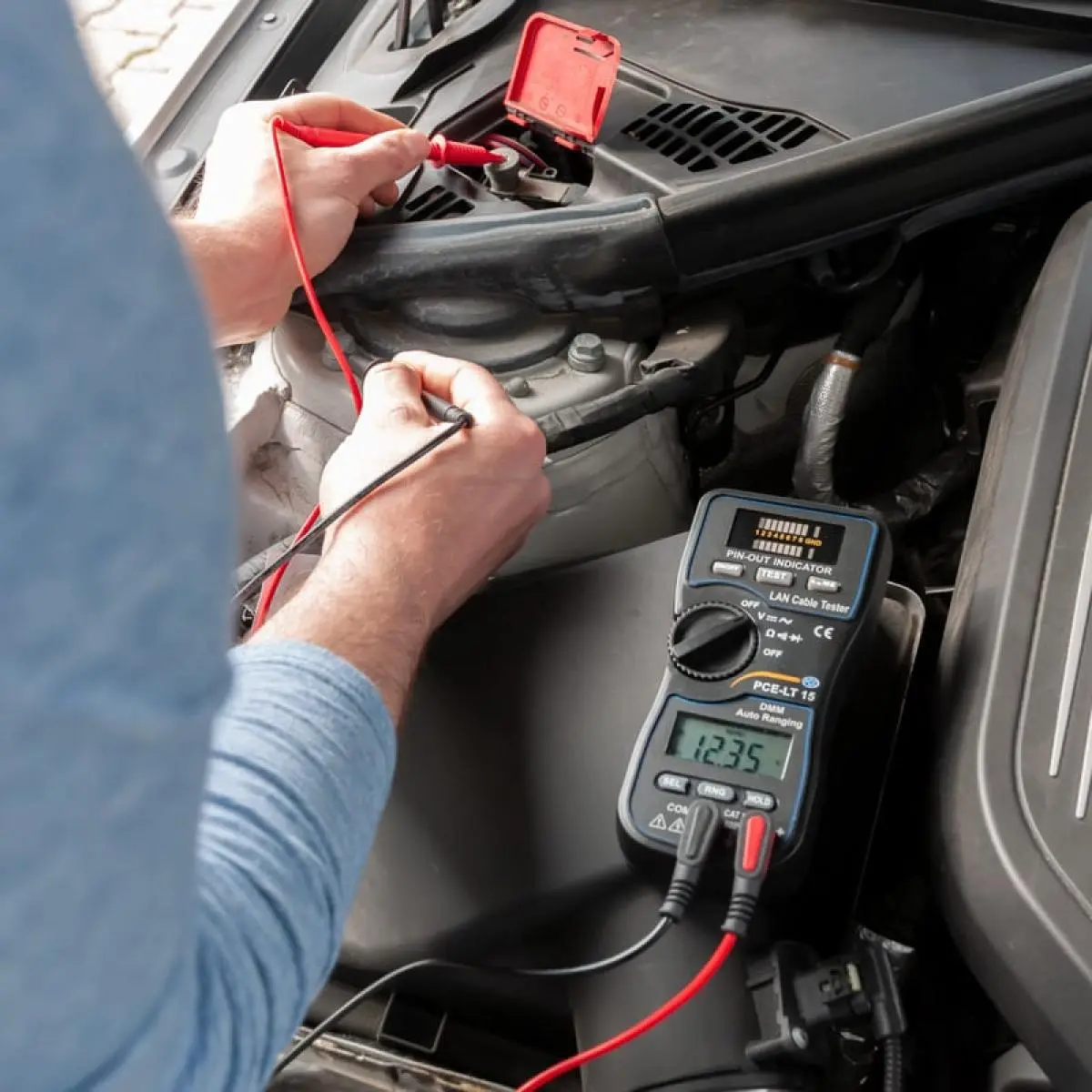

With the LAN tester, which also serves as a multimeter, it is possible to perform a continuity test with buzzer and a diode test. The LAN tester is also a device that identifies the most common network installation errors. The two-row LEDs successively indicate the pin assignment of the cable to be tested. In the event of a short circuit, more than two LEDs light up simultaneously.

Highlights

- Combination device of LAN tester and multimeter
- LCD
- Checks Lankabel and patch fields
- Continuity test and diode test possible
- Overload indicator
- Short circuit display

Specification

Measuring function AC Resolution
Measuring range 400 mV 0.1 mV
  4V 1 mV
  40V 10 mV
  400V 100 mV
  750V 1V
Accuracy ± (1% from + 5 Dgt)

Measuring function          DC Resolution
Measuring range 400 mV 0.1 mV
  4 V 1 mV
  40V 10 mV
  400V 100 mV
  1000V 1V
Accuracy ± (0.5% of v / m + 3Dgt)

Measuring function Resistance Resolution
Measuring range 400 Ω 0.1 Ω
  4 kΩ 1 Ω
  40 kΩ 10 Ω
  400 kΩ 100 Ω
  4 MΩ 1 kΩ
Accuracy ± (1.2% from + 3 Dgt)
  Resistance Resolution
  40 MΩ 10 kΩ
Accuracy ± (2% from + 4 Dgt)

Continuity test 400 Ω
Alarm Measured value <25Ω
Display LED bargraph for LAN testers

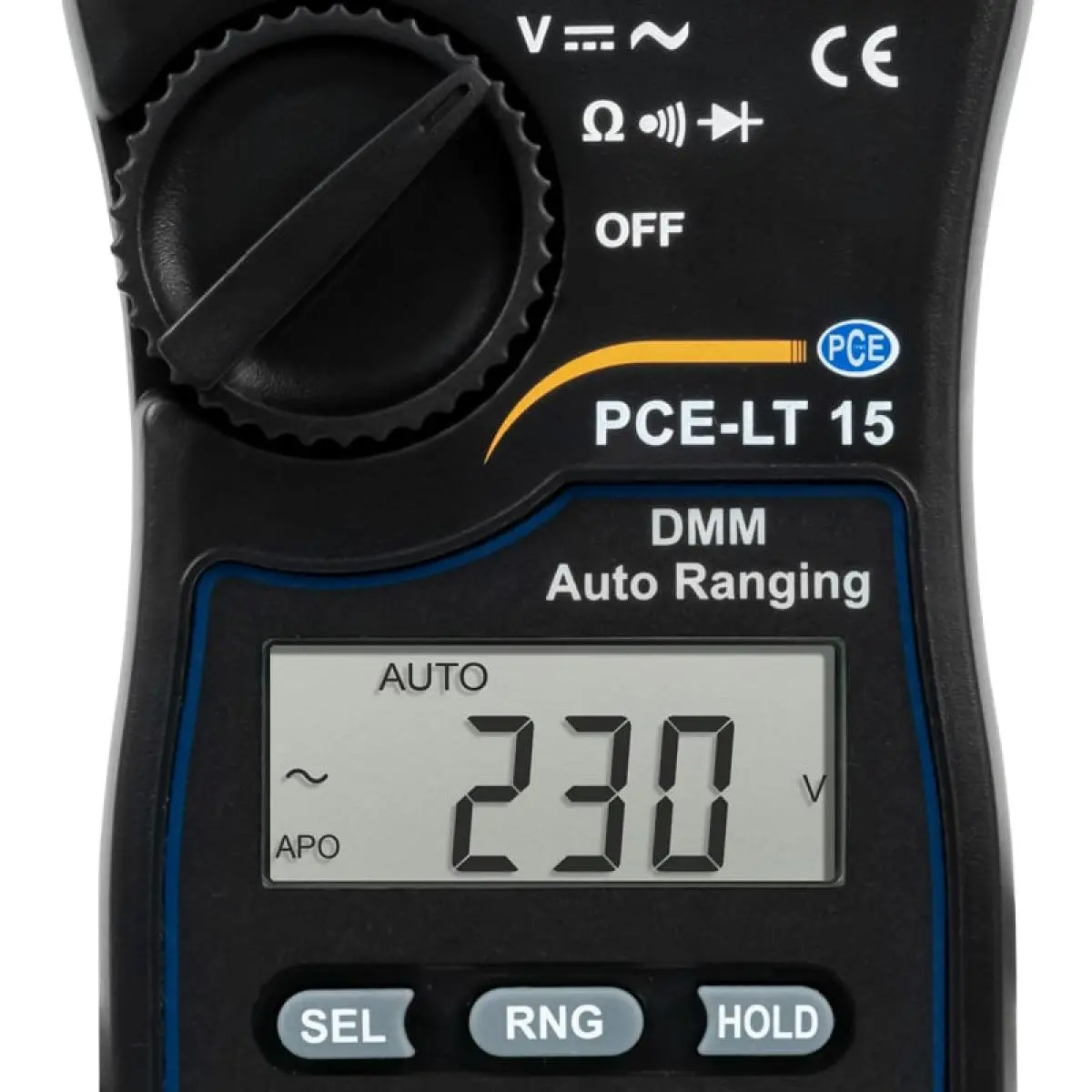

  LC display for multimeter functions
Power supply    LAN tester: 1 x 9V 6F22 battery
  Multimeter: 2 x 1.5V AAA battery
Dimensions Handset: 165 x 82 x 42 mm / 6.5 x 3.2 x 1.7 in

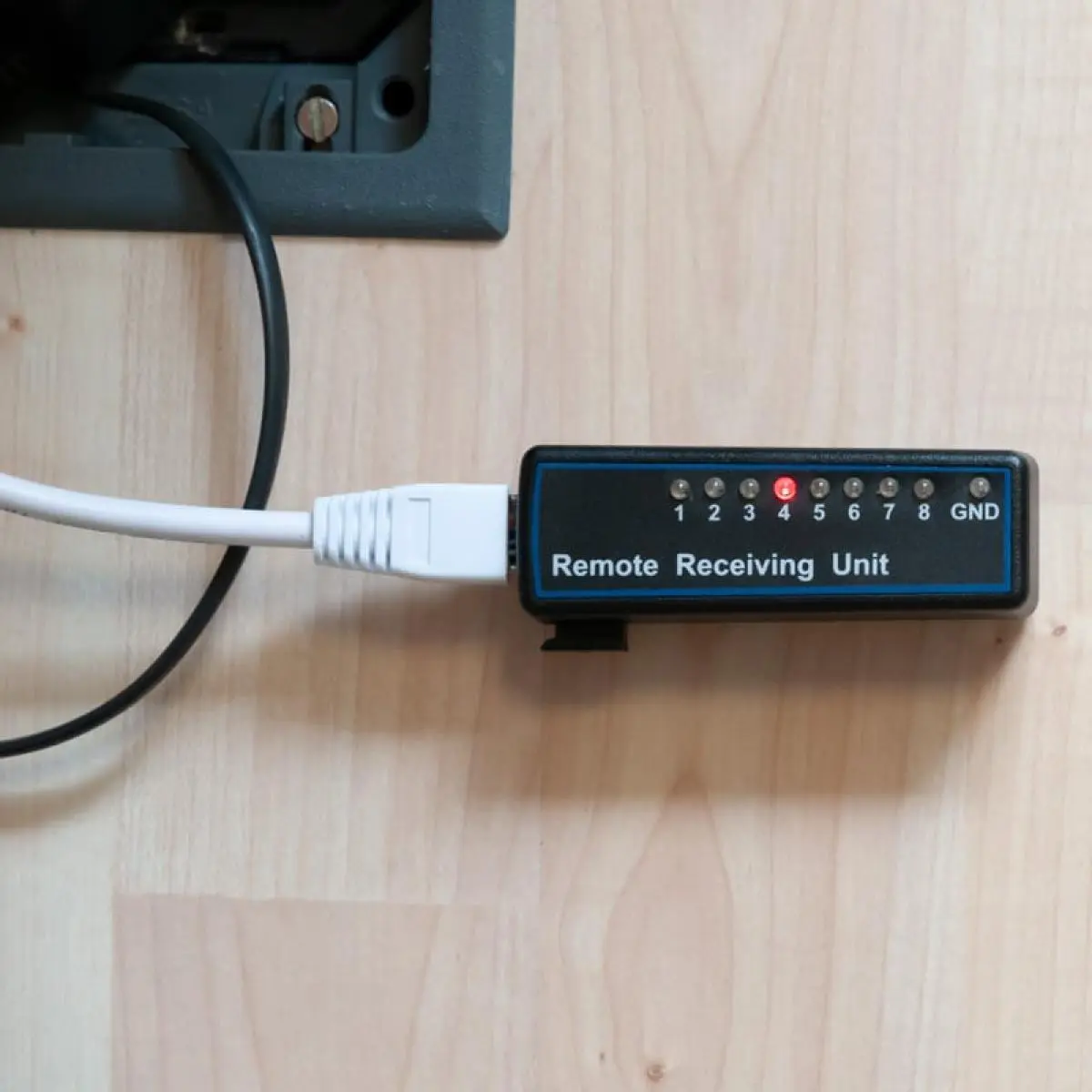

  Remote unit: 75 x 30 x 25 mm / 3 x 1.2 x 1 in
Weight Handset: 240 g / < 1 lb
  Remote unit: 30 g / < 1 lb
Electric security CAT III 600V

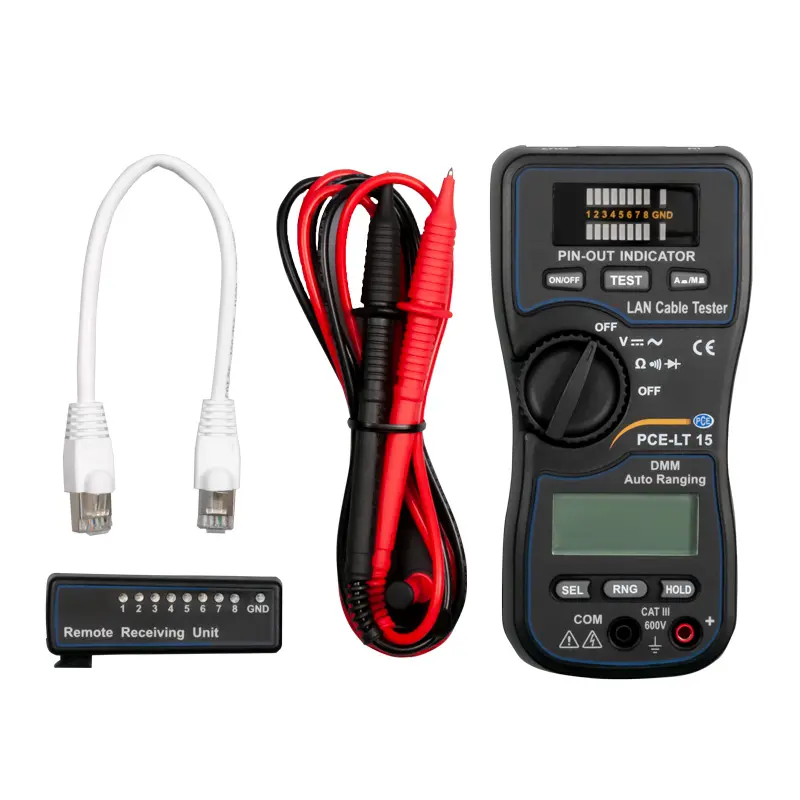

Delivery Scope

1 x Voltmeter PCE-LT 15
1 x Remote unit
1 x RJ45 connection cable
1 x Test lead set
2 x 1.5V AAA batteries
1 x 9V block battery
1 x User manual
