Water Analysis Meter PCE-228LIQ

Order no.: PCE-228LIQ
GTIN (EAN): 4250348718112
£ 360.00
£ 432.00
price ex. (VAT / delivery)
:
4250348718112
PCE-228LIQ
Delivery time: 1-2 working days
pH, Redox/ORP, Temperature
Yes (SD card)
Yes (RS-232)

Accessory

pH Electrode PCE-PH-LIQ
pH Electrode PCE-PH-LIQ
£ 134.00
REDOX-Electrode ORP-14
REDOX-Electrode ORP-14
£ 71.00
Carrying Case with hard foam insert
Carrying Case with hard foam insert
£ 23.00
Power Supply 9 V / 1 A (European)
Power Supply 9 V / 1 A (European)
£ 22.00
Adaptor RS-232 to USB
Adaptor RS232 to USB
£ 29.00
Temperature sensor TP-07
Temperature sensor TP-07
£ 30.00
Software and RS-232 Cable
Software and RS-232 Cable
£ 44.00
pH Electrode PCE-PH-HTE
pH Electrode PCE-PH-HTE
£ 82.00
Cleaning solution pepsin / hydrochloric acid PCE-GCS-500
Cleaning solution pepsin / hydrochloric acid PCE-GCS-500
£ 19.00
ISO certificate CAL-PCE-PH for pH meters
ISO certificate CAL-PCE-PH for pH meters
£ 64.00

Description

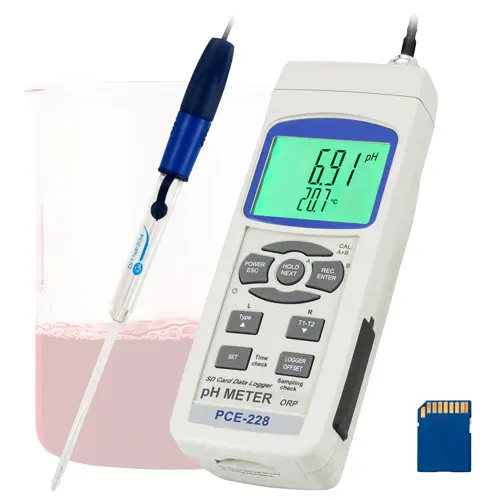

PCE-228LIQ water analysis meter
For pH value, redox and temperature / Large, easy-to-read display / SD card memory (1 ... 16 GB), stored data is saved as an Excel file / RS-232 interface and optional software for direct transfer to the PC

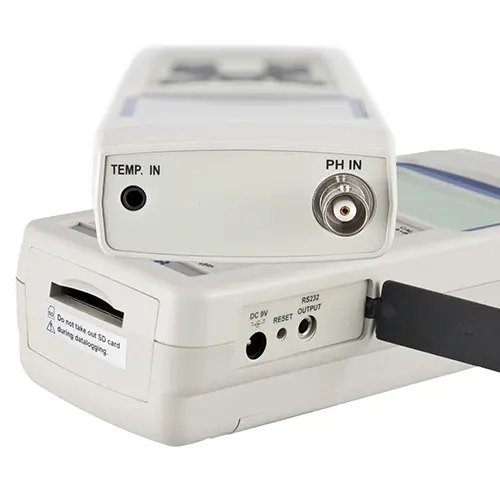

The water analysis meter PCE-228 is a very easy-to-use pH / mV / °C / °F handheld instrument. The pH value and the temperature can be stored directly on the SD card (Excel file) or transferred directly from the water analysis meter to a PC via the RS-232 interface. For this we optionally offer a software and the suitable RS-232 interface cable as an accessory. Temperature compensation is either manual or automatic via the supplied temperature sensor.

All this allows a fast and reliable pH measurement. The water analysis meter has a three-point calibration, which is performed automatically. It can be determined with the combination meter, the pH, the temperature or the REDOX potential (ORP). For the latter measurement parameters, however, a REDOX electrode must also be ordered. Here we recommend the ORP electrode ORP-14. The water analysis meter is battery operated (6 x 1.5V batteries are included).

Highlights

- Optimum price / performance ratio
- SD card memory (1 ... 16 GB)
- The stored data are saved directly as an Excel file on the SD card (no software needed for evaluation)
- RS-232 interface for online Data Transfer
- Measures pH, ORP & pH. Temperature
- High accuracy
- Large LCD display
- Robust housing
- Incl. PH electrode PE-03 and stainless steel temperature probe
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and on-site pH measurement
- Additional REDOX electrode
- Adjustable measuring rate
- Easy to operate

Specification

Measuring range pH

0.00 ... 14.00 pH
Resolution 0.01 pH
Accuracy ± (0.02 pH + 2d)

Measuring range redox -1999 ... 0 ... 1999 mV
(only possible with optional REDOX electrode)
Resolution 1 mV
Accuracy ± (0.5% + 2d)

Measuring range temperature 0 ... 65°C / 32 ... 149°F (only temp. Sensor)
Resolution 0.1°C / 0.18°F
Accuracy (@ 20°C) ± 0.5°C / 0.9°F

Calibration Automatic three-point calibration
Temperature Compensation Automatically from 0 ... 65°C / 32 ... 149°F or manually between 0 ... 100°C / 32 ... 212°F with the temperature sensor removed
Electrode pH electrode for eg beer, blood and milk products / BNC plug
Temperature range 0 ... 60°C / 32 ... 140°F
Measuring rate Adjustable from 1 second to 8 hours 59 minutes 59 seconds
Display LC display 52 x 38 mm / 2 x 1.5 in
Data storage Flexible via SD card memory 1 ... 16 GB
Interface RS-232
Software Optional
Power supply 6 x 1.5V AA batteries / 9V power adapter (optional)
Environmental conditions 0 ... 50°C / 32 ... 122°F max. 85% rh
Dimensions 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight 490 g / 1.1 lbs



Delivery Scope

1 x PCE-228LIQ water analysis meter
1 x PCE-PH-LIQ pH electrode PCE-PH-LIQ for eg beer, blood and milk products
1 x SD memory card (2 GB)
1 x Temperature sensor
6 x Battery
1 x Operation manual
