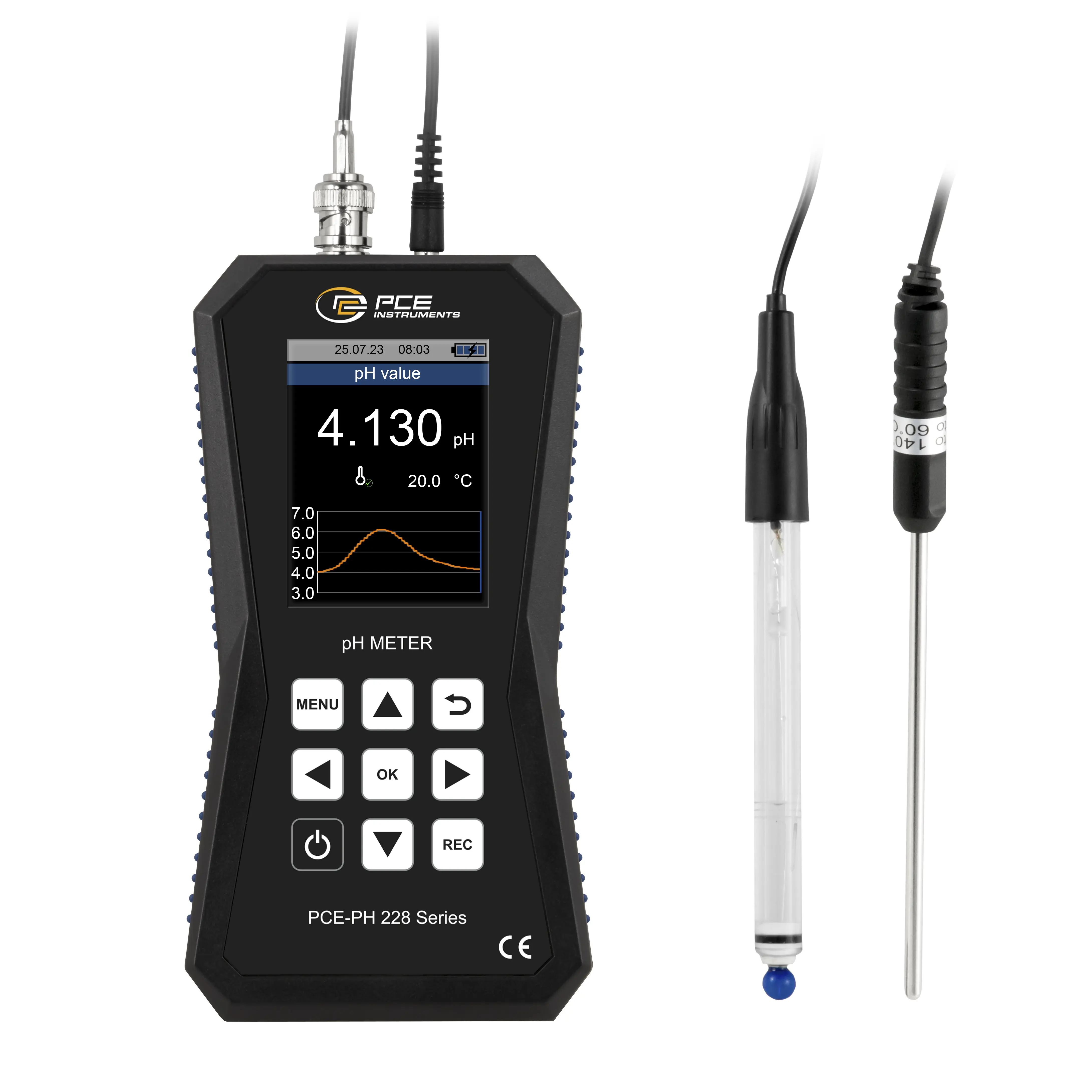

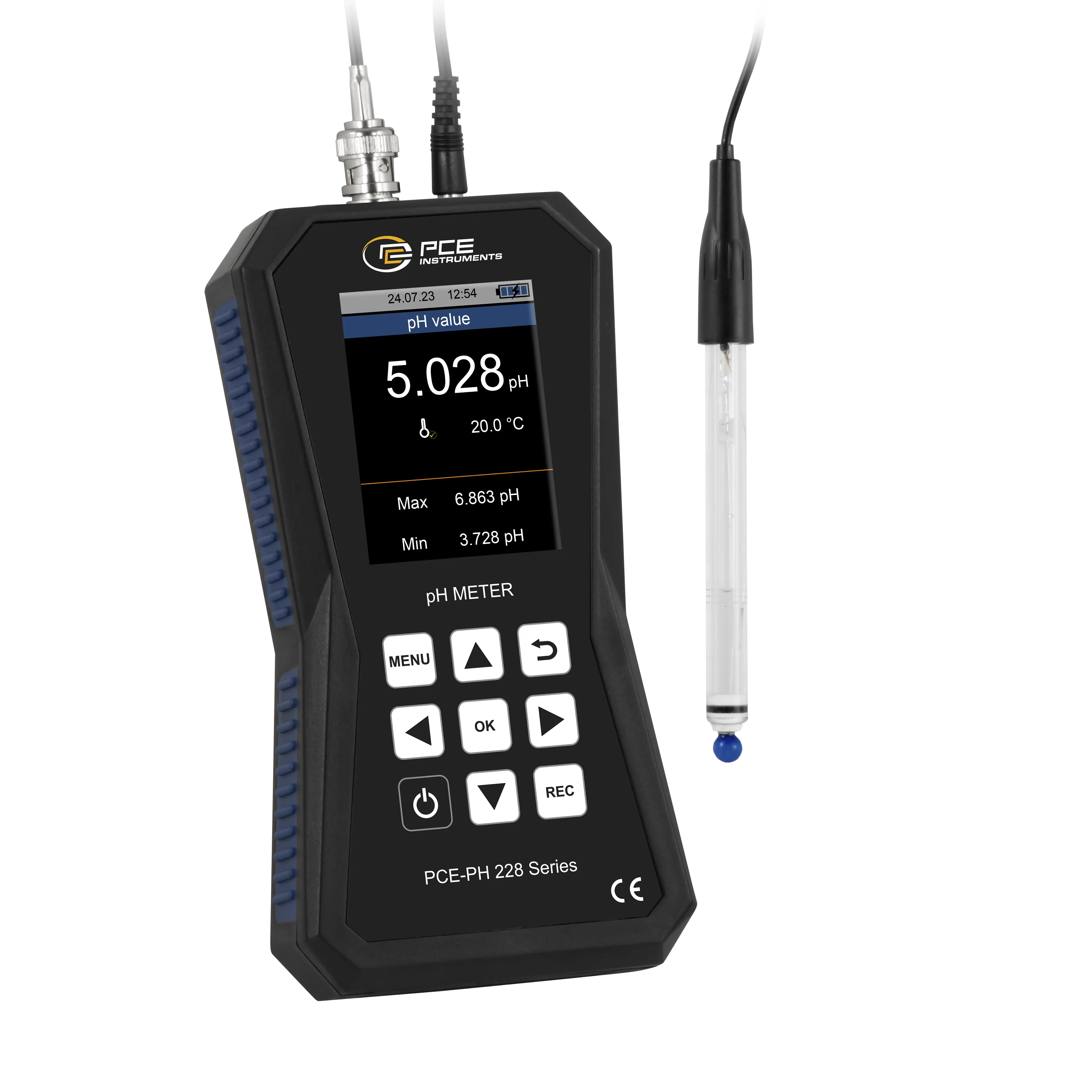

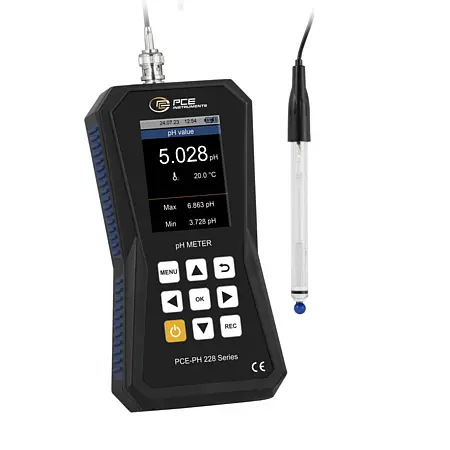

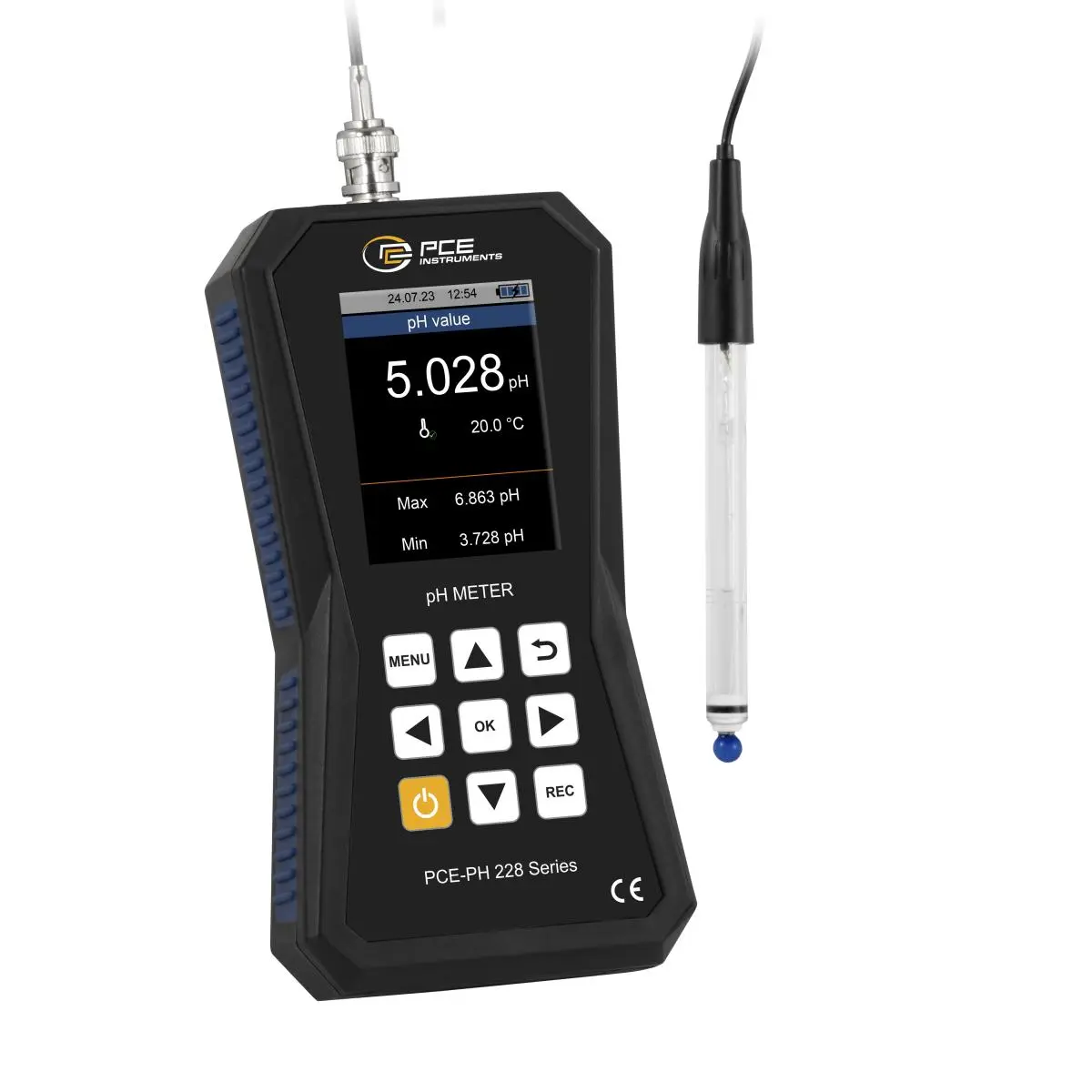

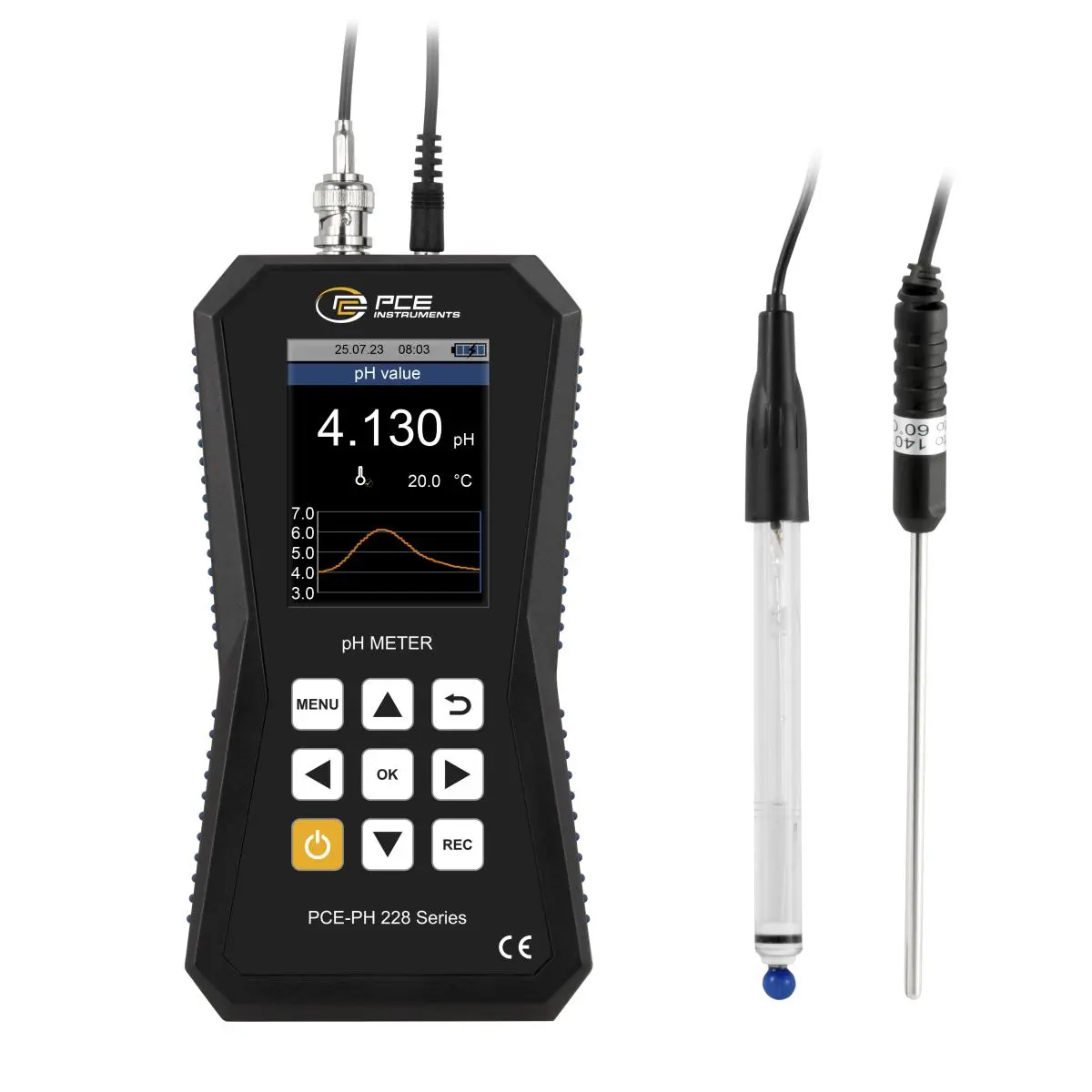

Our Water Analysis Meter stands for precision, user-friendliness and GLP conformity (Good Laboratory Practice). With a high-resolution LCD screen, our Water Analysis Meter provides a clear and concise display of the measured values. GLP compliance is guaranteed by automatic data recording and traceable documentation. It is possible to measure pH or redox values and temperature with external sensors.
A permanent measurement verification (PMV) shows the user where the measured value is within the calibration range by means of a coloured bar in order to classify whether the measurement is within the correct range.
GLP (Good Laboratory Practice) ensures that measurements are reliable and reproducible by prescribing precise protocols and standardised procedures. A GLP-compliant approach ensures the quality of the data and the integrity of the experiment. GLP-compliant pH measurements are particularly important in scientific research laboratories and industrial applications to ensure accurate and trustworthy results.

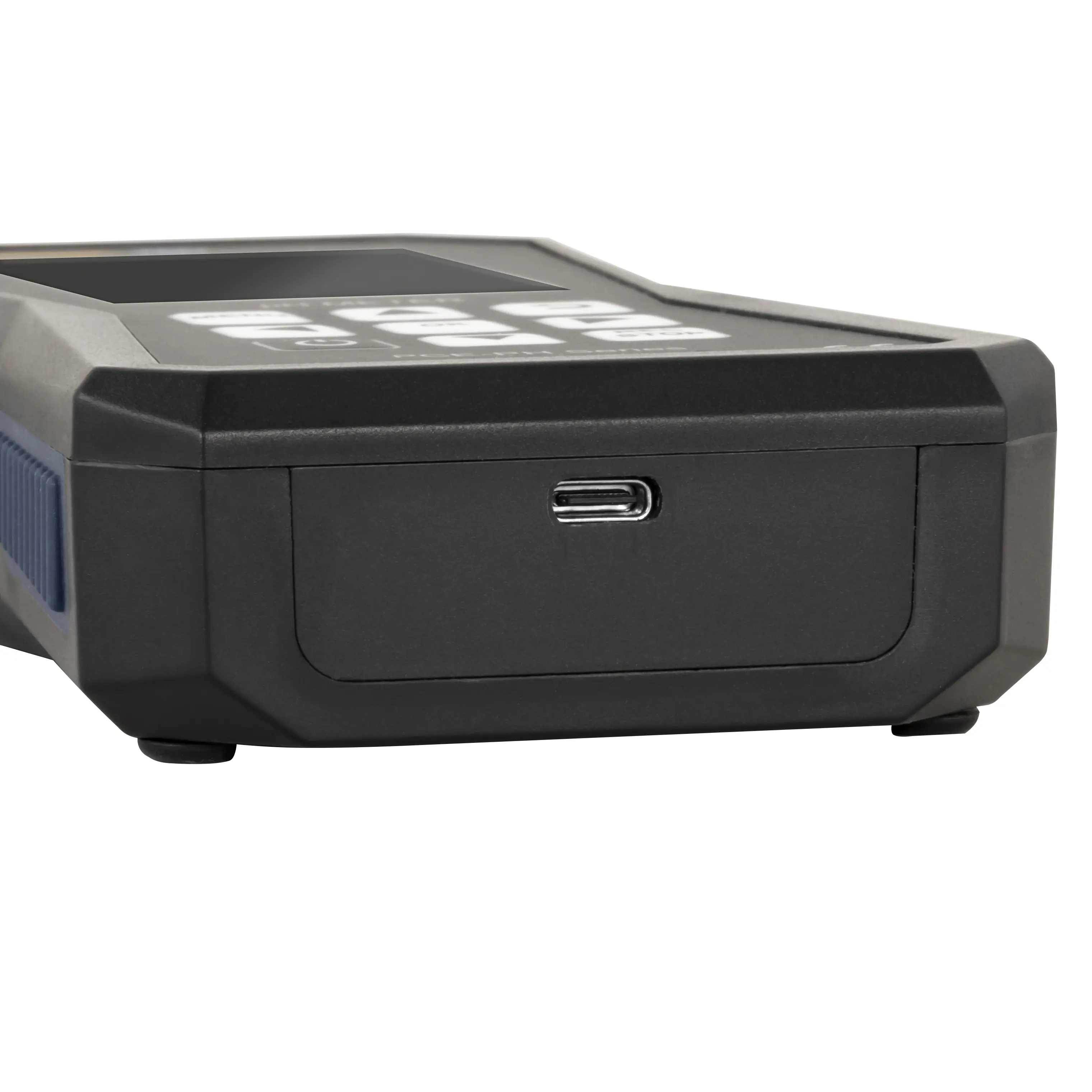

The graphically guided calibration makes the process simple and user-friendly. User and sample management allow easy navigation and setting of measurement parameters on the pH meter. Sample information can be saved to facilitate the management and identification of measurements. A large internal data memory saves extensive records without the need for external storage. Our Water Analysis Meter is equipped with a USB-C port for fast data transfer and charging. A powerful rechargeable LiPo battery enables hours of measurements before it needs to be recharged.
Overall, this Water Analysis Meter represents a significant step in the development of handheld and laboratory instruments. The high accuracy of ±0.002 pH + 2 digits, graphically guided calibration, GLP compliance, user and sample management and data storage make it an indispensable tool for scientists, researchers and laboratory technicians who rely on precise pH measurements. It does not only improve the accuracy and efficiency of experiments but also facilitates everyday work in industry, quality assurance and the laboratory.
pH | |
Measurement range up to | -2 ... +20 pH |
Resolution | 0,001 pH |
Accuracy | ±0.002 pH +2 digits |

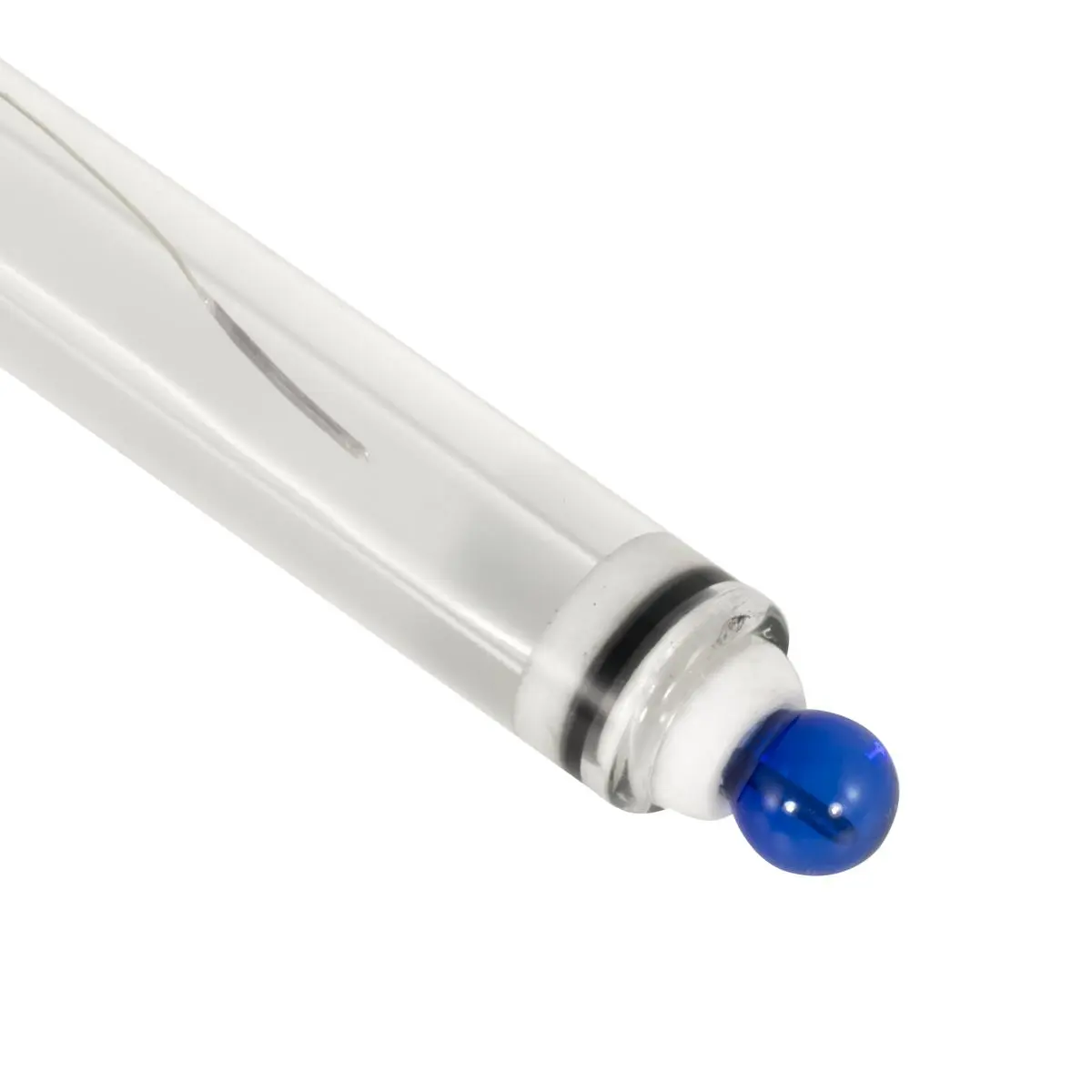

Electrode | |
Designation | PCE-PH-HTE |
Measurement range up to | 1 ... 13 pH |
Temperature range | 0 ... 100 °C |
Application | Aqueous non-corrosive media |
Reference electrolyte | Ag/AgCl |
Shank material | Epoxy resin |
Shank length | 120 mm |
Shank diameter | 12 mm |
Cable length | 1 m |
Redox | |
Measurement range up to | -2000 ... +2000 mV |
Resolution | 1 mV |
Accuracy | ±2 mV |
Temperature sensor | |
Measurement range up to | -20 ... +100 °C |
Resolution | 0,1 °C |
Accuracy | ±0.5 °C (@ 20 °C) |
General technical data | |
Measuring functions | MIN, MAX |
Display type | LCD with backlight |
Display size | 2,8 Inch |
Storage medium | Internal memory |
Storage capacity | 32 GB |
Memory capacity (additional information) | 100 recordings with max. 100,000 data points per recording |
Storage interval from | 1 s |
Storage interval to | 12 h |
Interface | USB-C |
Number of calibration points | 5 |
Menu language | Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese |
Protection class (device) | IP52 |
Power supply | 5 V DC, 500 mA |
(Rechargeable) battery | 1 x 3,7 V LP785060 , Lithium polymer battery |
Capacity | 2500 mAh |
Operating conditions | -20 ... 65 °C , 10 ... 95 % RH |
Storage conditions | -20 ... 65 °C , 10 ... 95 % RH |
Dimensions ( L x W x H ) | 178 x 85 x 32 mm |
Weight | 252 g |
