Water Analysis Meter PCE-TUM 20

Order no.: PCE-TUM 20

GTIN (EAN): 4250348708250

Accessory

Replacement calibration standard TU-100NTU

£ 17.00

Replacement calibration standard TU-0NTU

£ 17.00

Spare Cuvette SB-TUM

£ 22.00

Description

PCE-TUM 20 Water Analysis Meter
0 ... 1000 NTU turbidity measuring range / Infrared LED light source / Calibration standards included

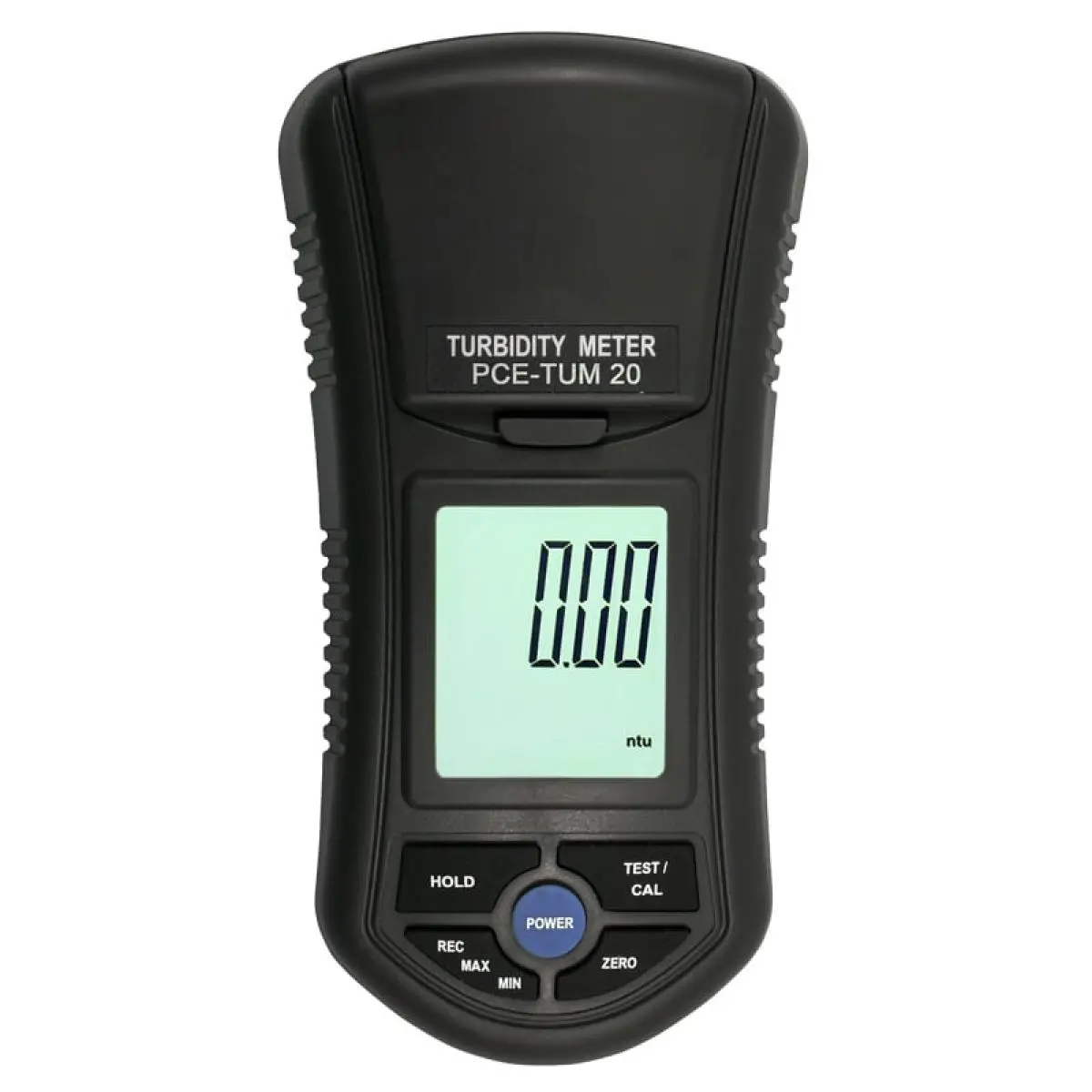

The PCE-TUM 20 water analysis meter is a handy turbidity measuring device equipped with a large LCD screen and user-friendly keyboard. This portable turbidity meter features two automatically switching measuring ranges between 0 ... 50 NTU and 50 ... 1000 NTU for increased accuracy. Using the included calibration standards of 0 NTU and 100 NTU, the meter can be adjusted at any time. (Note: NTU stands for Nephelometric Turbidity Unit.)

Inside the meter, there is an infrared LED light source with a wavelength of 850 nm. A photodiode positioned in a 90° angle to the measuring ray absorbs the light reflected by the particles in the dissolution. Diffused light or Nephelometric measuring methods are used for the lower measuring range. For the higher measuring range, an additional photodiode is positioned at the opposite side; therefore, measurement is performed via the transmitted light method.

Highlights

- Portable
- High accuracy
- Large LCD screen
- User-friendly keyboard
- Displays turbidity measurements in NTU

Specification


Measuring range	0.00 to 50.0 NTU and 50 to 1000 NTU
Resolution	0.01 and 1 NTU
Accuracy	± 5 % of measured value or ± 0.5 NTU
Light source	LED, infrared at 850 nm
Lifetime	Almost unlimited
Light detector	Photodiode
Measurement time	< 10 sec.
Power supply	6 x 1.5 V AAA batteries
Operating conditions	< 50 °C / 122 °F, < 85 % RH
Dimensions	Approx. 155 x 76 x 62 mm / 6.1 x 3.0 x 2.4" (H x W x D)
Weight	Approx. 320 g / 0.71 lb

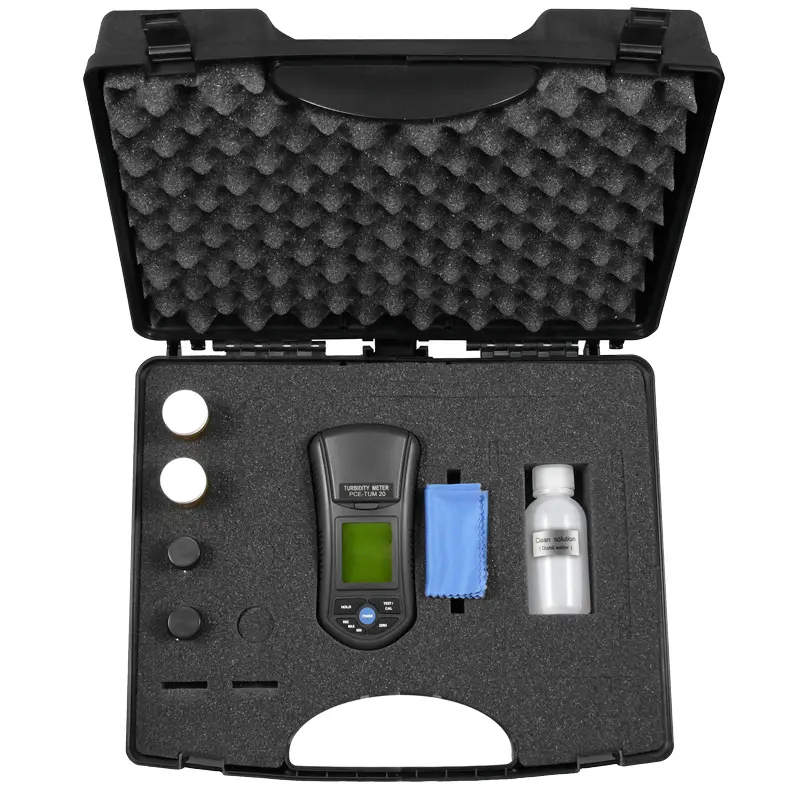

Delivery Scope

1 x PCE-TUM 20 water analysis meter

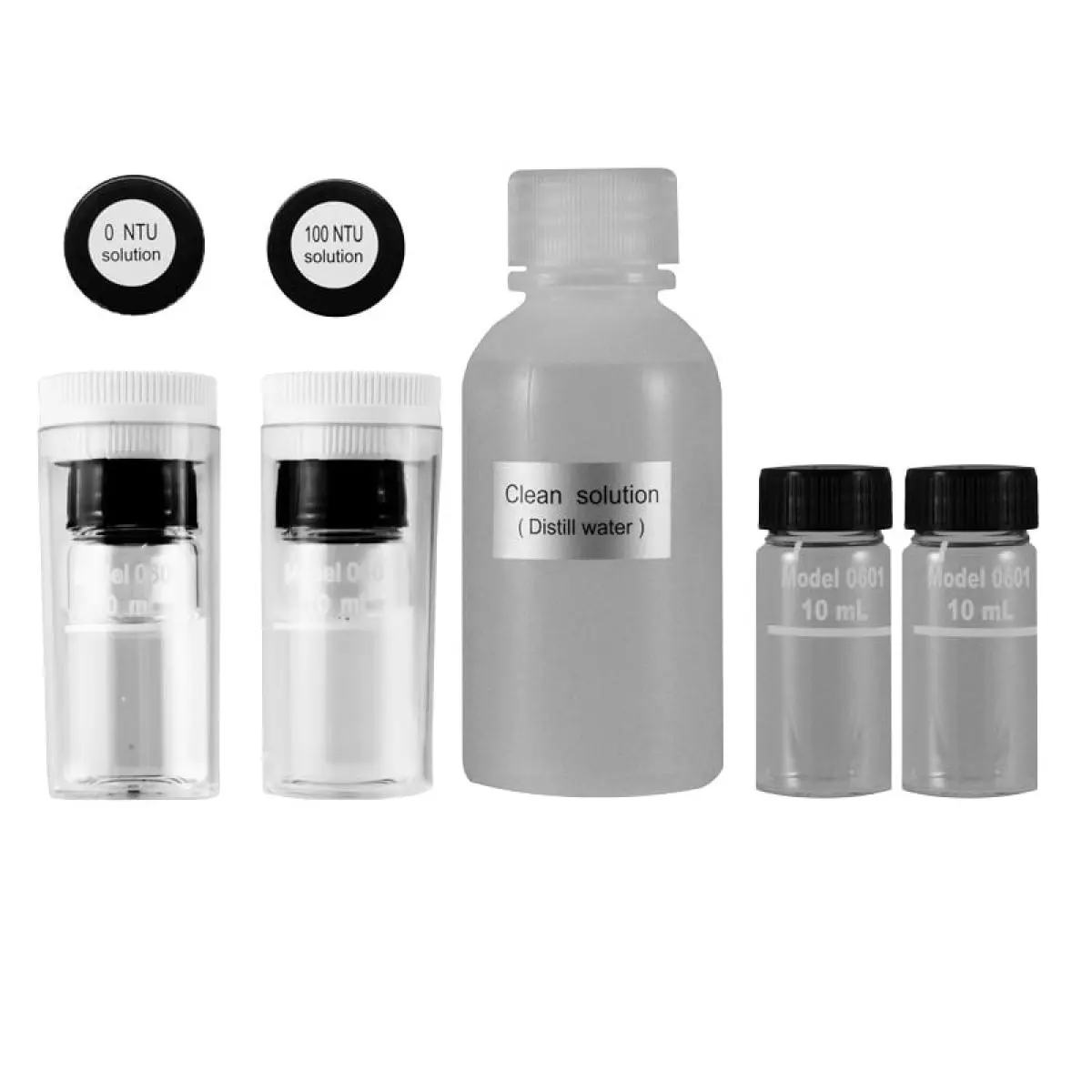

1 x calibration standard (0 NTU)
1 x calibration standard (100 NTU)
2 x measuring cuvettes
1 x cleaning solution
1 x cleaning cloth
6 x batteries (1.5 V AAA)
1 x user manual
1 x carrying case
