Air Quality Station PCE-RCM 16

Order no.: PCE-RCM 16
GTIN (EAN): 4250348719645
£ 255.00
£ 306.00
price ex. (VAT / delivery)
:
4250348719645
PCE-RCM 16
Delivery time: 1-2 working days
Home area

Description

Air Quality Station
Air Quality Station for measuring the air quality / 4.3 inch TFT display / Metal housing / Alarm function / TVOC, CO2, PM1, PM 2.5, PM10, temperature, humidity measurement /  Rechargeable battery / For enclosed spaces / Limit alarm

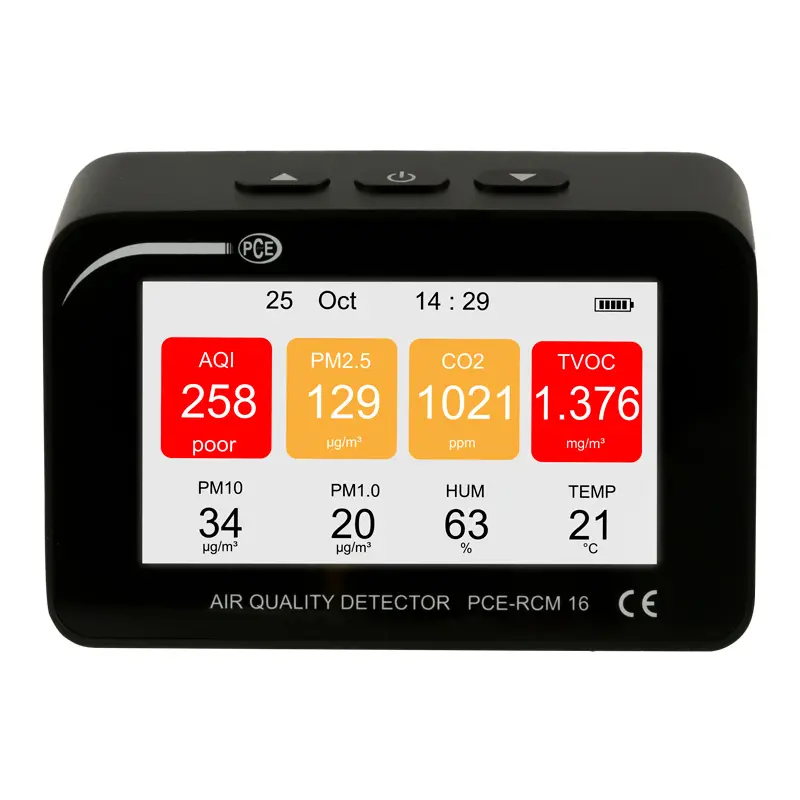

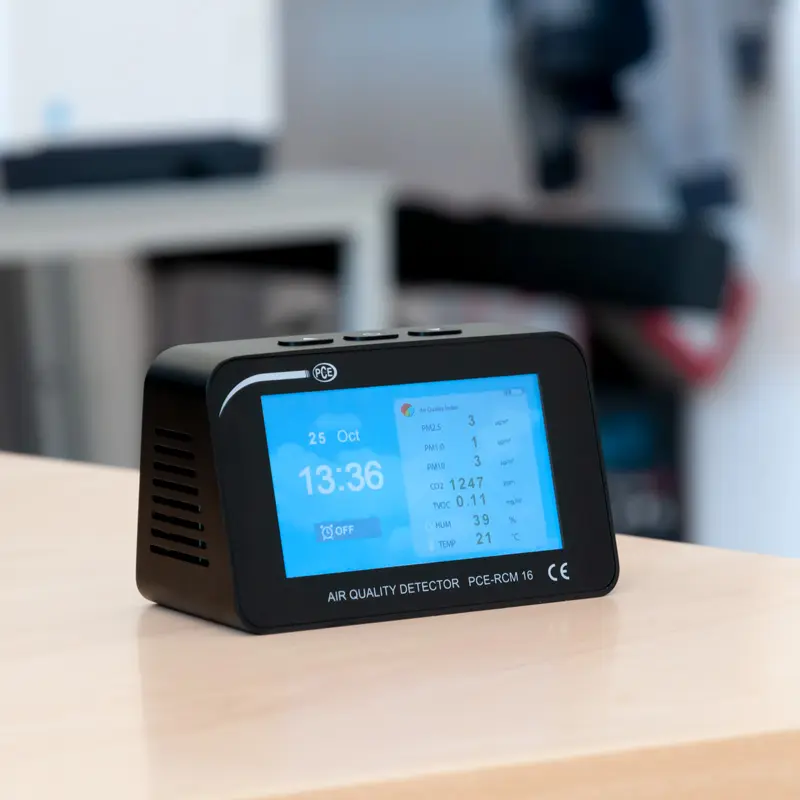

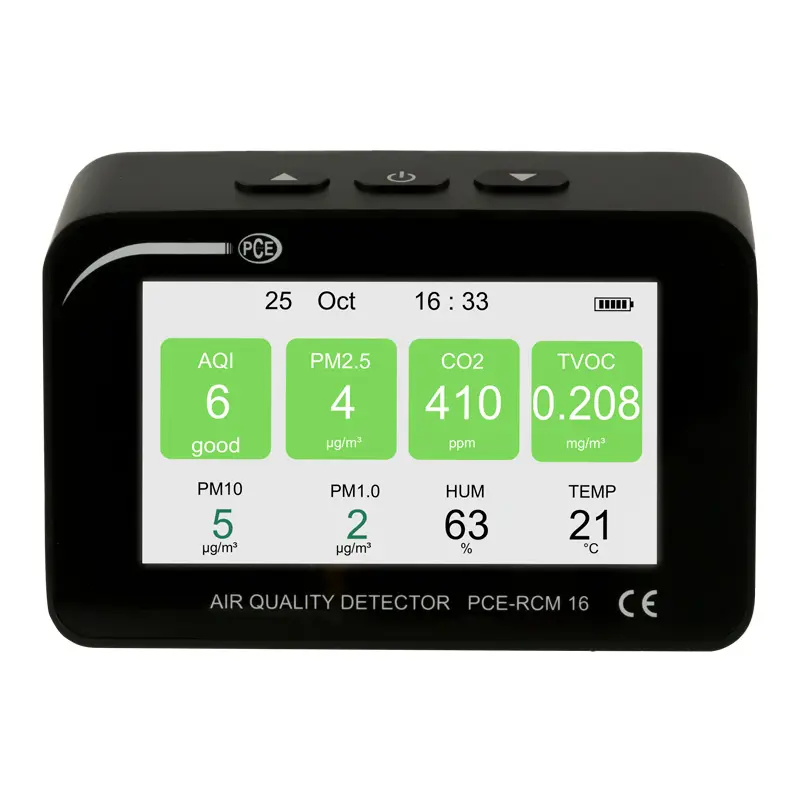

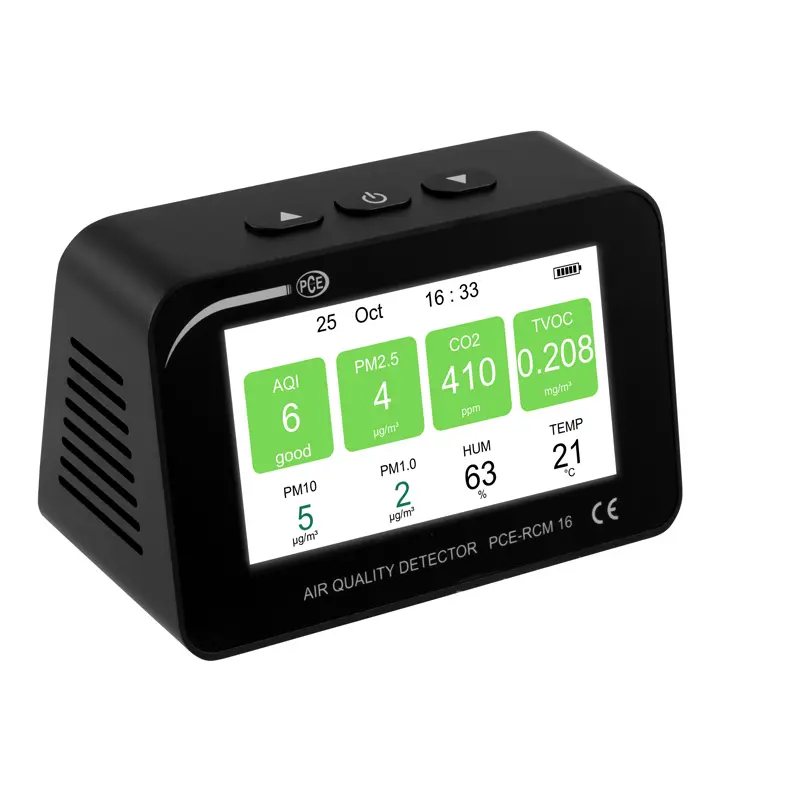

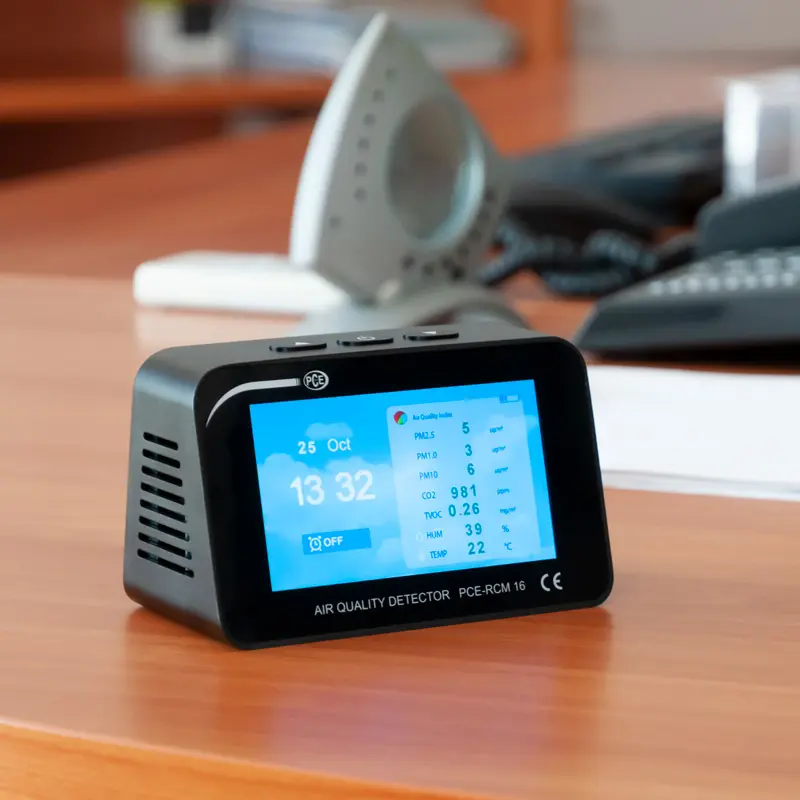

The Air Quality Station PCE-RCM 16 is ideal for monitoring the air quality in homes, businesses or public buildings where people are staying. The 4.3-inch TFT display on the Air Quality Station is dimensioned so that all measured values ​​can be read directly. Supported measurements on the Air Quality Station are CO2, TVOC, PM1, PM2.5, PM10, temperature and ambient humidity. On the display of the Air Quality Station, the measured values ​​are updated every second. As soon as a measured value exceeds the fixed limit, this is visually indicated to the user.

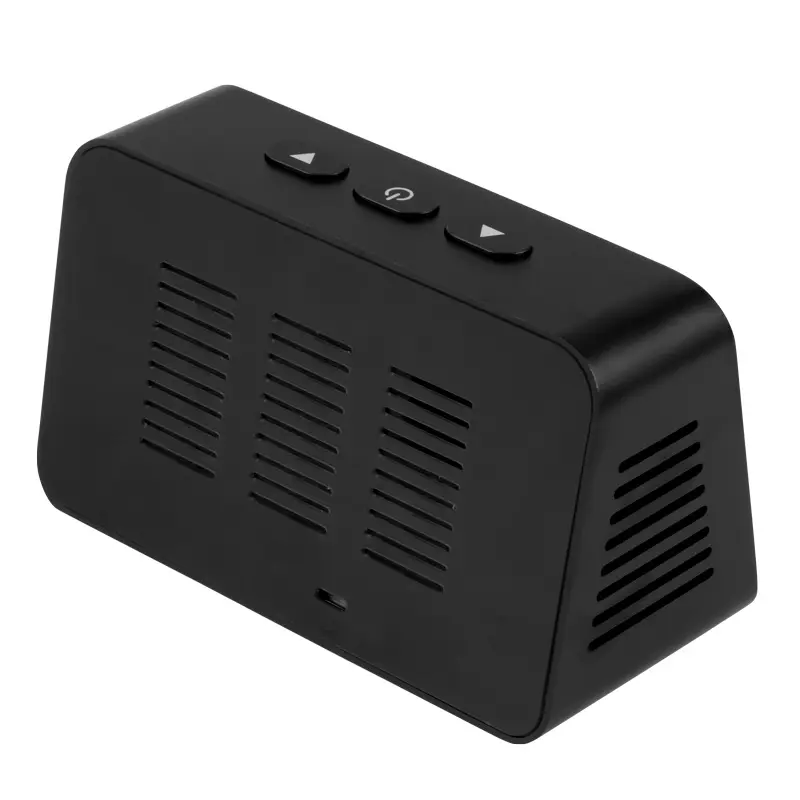

To power the Air Quality Station can be operated directly via the micro USB port on the back. The built-in battery with the Air Quality Station is charged via this interface. Thus, the Air Quality Station is versatile. It should be noted that the measured values ​​settle within 24 hours after switching on the Air Quality Station.



N.B. the meter is designed to be operated by mains power, and will run only a few hours by the battery.


Highlights

- 4.3-inch TFT screen
- Many different measuring functions
- Robust metal housing
- Calculation of the air quality index (AQI)
- Rechargeable battery via micro USB
- Adjustable alarm clock

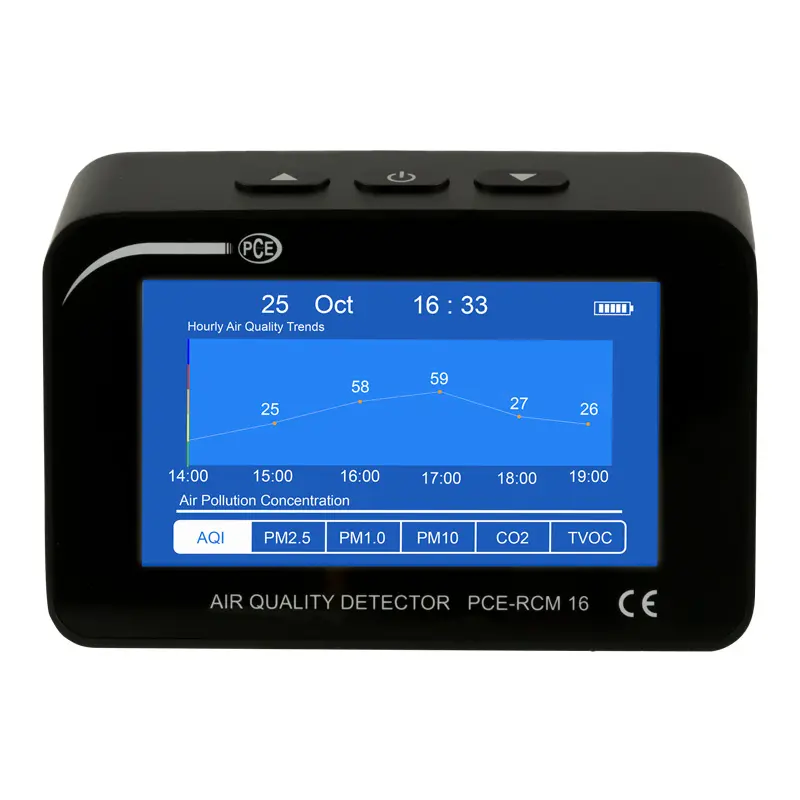

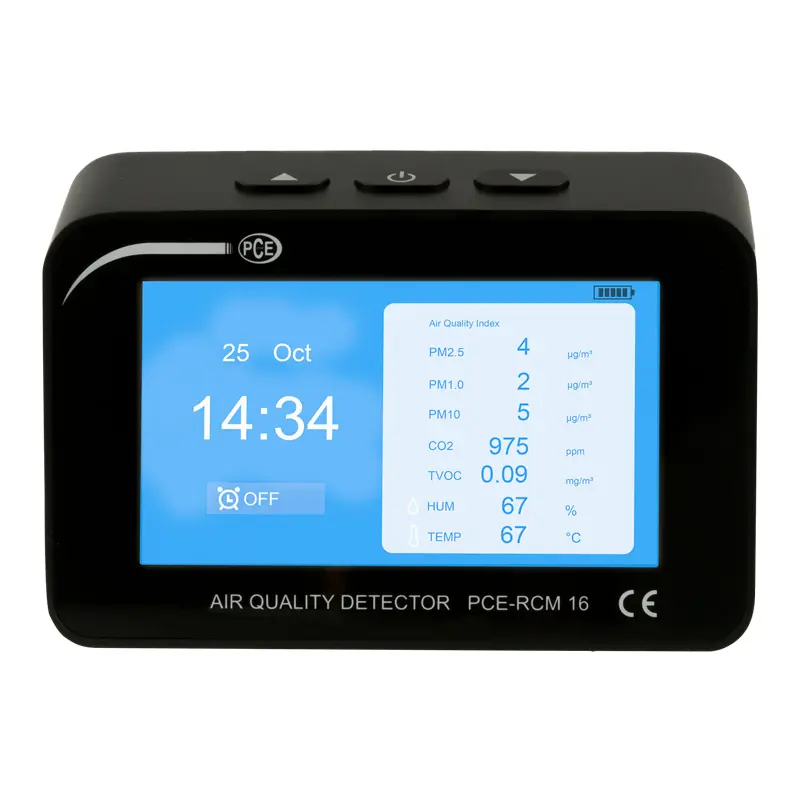

- Different display modes
- Fixed limit function

Specification

Measurement function TVOC
Measuring range 0.000 ... 9.999 mg / m³
Resolution 0.001 mg / m³
Accuracy ± 10% of the measured value

Measurement function PM1, PM 2.5, PM10
Measuring range 0 ... 999 μg / m³
Resolution 1 μg / m³
Accuracy ± 10% of the measured value

Measuring function temperature
Measuring range 0 ... 50°C / 32 ... 122°F
Resolution 1°C / 1.8°F
Accuracy ± 1°C / 1.8°F

Moisture measurement function
Measuring range 20 ... 90% rh
Resolution 1%
Accuracy ± 4%

Measurement function CO2
Measuring range 0 ... 5000 ppm
Resolution 1 ppm
Accuracy ± 10% of the measured value

Settling About 24 hours
Display TFT display, 4.3 inches
Environmental conditions 0 ... 50°C / 32 ... 122°F, max. 90% rh
Connection Micro USB for charging the battery
Power supply 5V / 2A
Battery pack 3000-mAh
Casing Metal
Dimension 191 x 78 x 67.5 mm / 7.5 x 3 x 2.7 in
Weight 336 g / < 1 lb

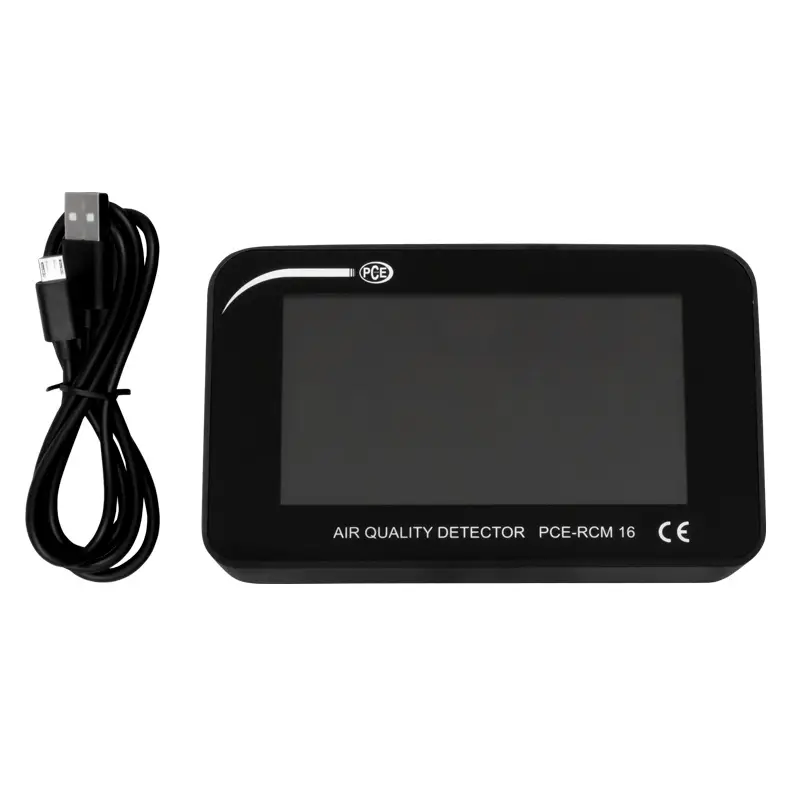

Delivery Scope

1 x Air Quality Station PCE-RCM 16
1 x Micro USB cable
1 x User manual
