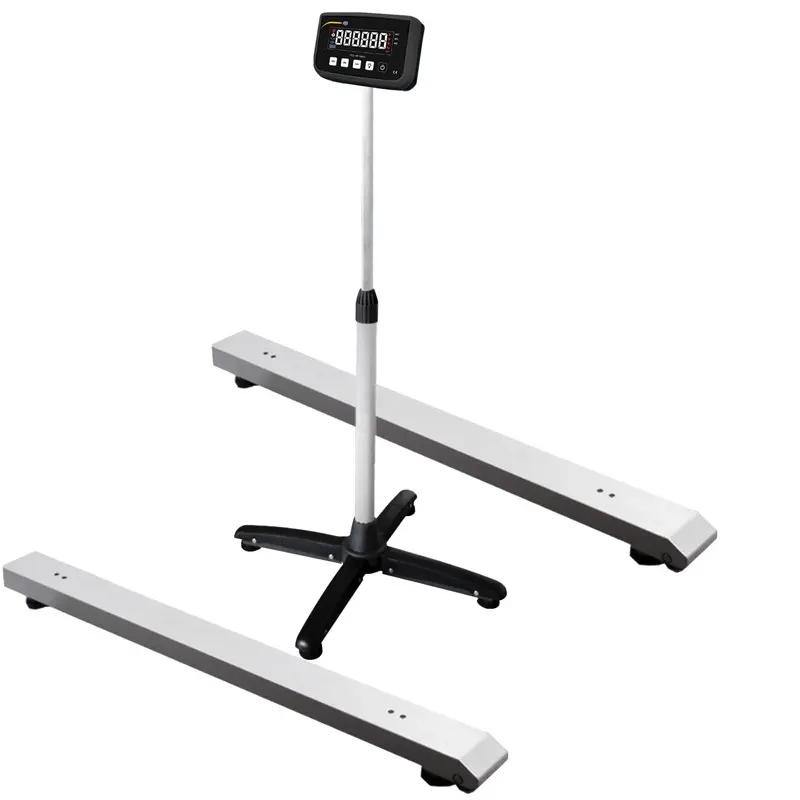

Floor Scale PCE-MS B1,5T-1-M

Order no.: PCE-MS B1,5T-1-M

GTIN (EAN): 4250348729453

Description

Floor Scale PCE-MS B1,5T-1-M / Max. capacity 1500 kg / Verification value: 0.5 kg / Incl. verification (conformity assessment)

As a beam scale, this verified floor scale has the great advantage that it can be easily adapted to different weighing items by changing the beam spacing. This makes the floor scale particularly suitable for weighing long goods.

Each of the two weighing beams can be transported individually. A handle and rollers make it possible to simply pull the floor scale behind you and place it at the desired location. The cable connections are made using plugs and can be quickly removed for transport. The connection cable between the two weighing beams is 2 m long, the cable to the display unit is 5 m long.

If there is no socket near the place of use, the floor scale can be operated for up to 25 hours using the battery built into the display. The scope of delivery includes a power pack with which the battery can be charged and the floor scale can be used in mains operation. The charging of the battery works both in mains operation and when the display is disconnected from the floor scale and connected to the mains.

Specification

Scale type	single-range scale
Weighing range [Max]	1500 kg / 3306 lb
Resolution [d]	0.5 kg / 1.1 lb
Weighing unit	kg
Verification value [e]	0.5 kg / 1.1 lb
Verification class [e]	M III
Minimum load [Min]	10 kg / 22 lb
Taring range	Multiple tare over the entire weighing range, automatic and manual tare deletion possible
Dimensions per beam [WxDxH]	120 x 1200 x 100 mm / 4.7 x 47.2 x 3.9"
Cable length between bars	2 m / 6.56 ft
Interface	USB-B bidirectional
Display	LCD, white on black
Digit size [WxH]	15 x 28 mm / 0.59 x 1.1"
Power supply	internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 820 g / 28.9 oz external power supply 7.8 V / 1.2 A Wechselstrom / 110 V - 230 V
Battery life	up to 25 hours (continuous operation)
Battery saving mode	yes after 30 seconds without use (can be deactivated)
Load cell	4x 750 kg / 1653 lb / IP68
Operating temperature	-10 ... +40 °C / 14 ... 104 °F
Weight	50 kg / 110 lb

Delivery Scope

1 x Floor Scale PCE-MS B1.5T-1-M
1 x Mains power adapter
1 x Instruction Manual
incl. verification (declaration of conformity)

The place of installation of the scales with Postcode (ZIP), Town, Country must be specified
