Floor Scale PCE-SW 5000N

Order no.: PCE-SW 5000N

GTIN (EAN): 4250348712479

Accessory

ISO Calibration Certificate for PCE-SW Series

£ 232.00

Adaptor RS-232 to USB

£ 29.00

Description

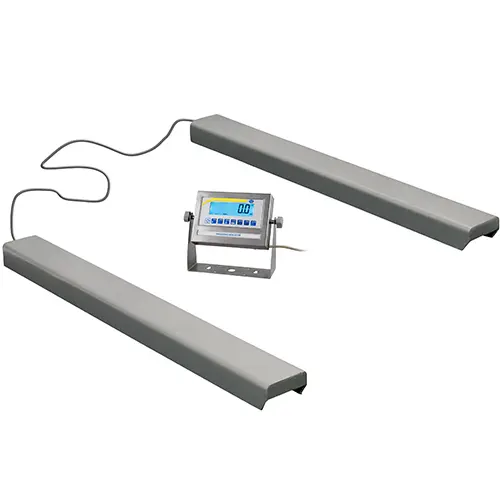

PCE-SW 5000N Floor Scale
5.5 ton capacity industrial weigh bar beam pallet scale

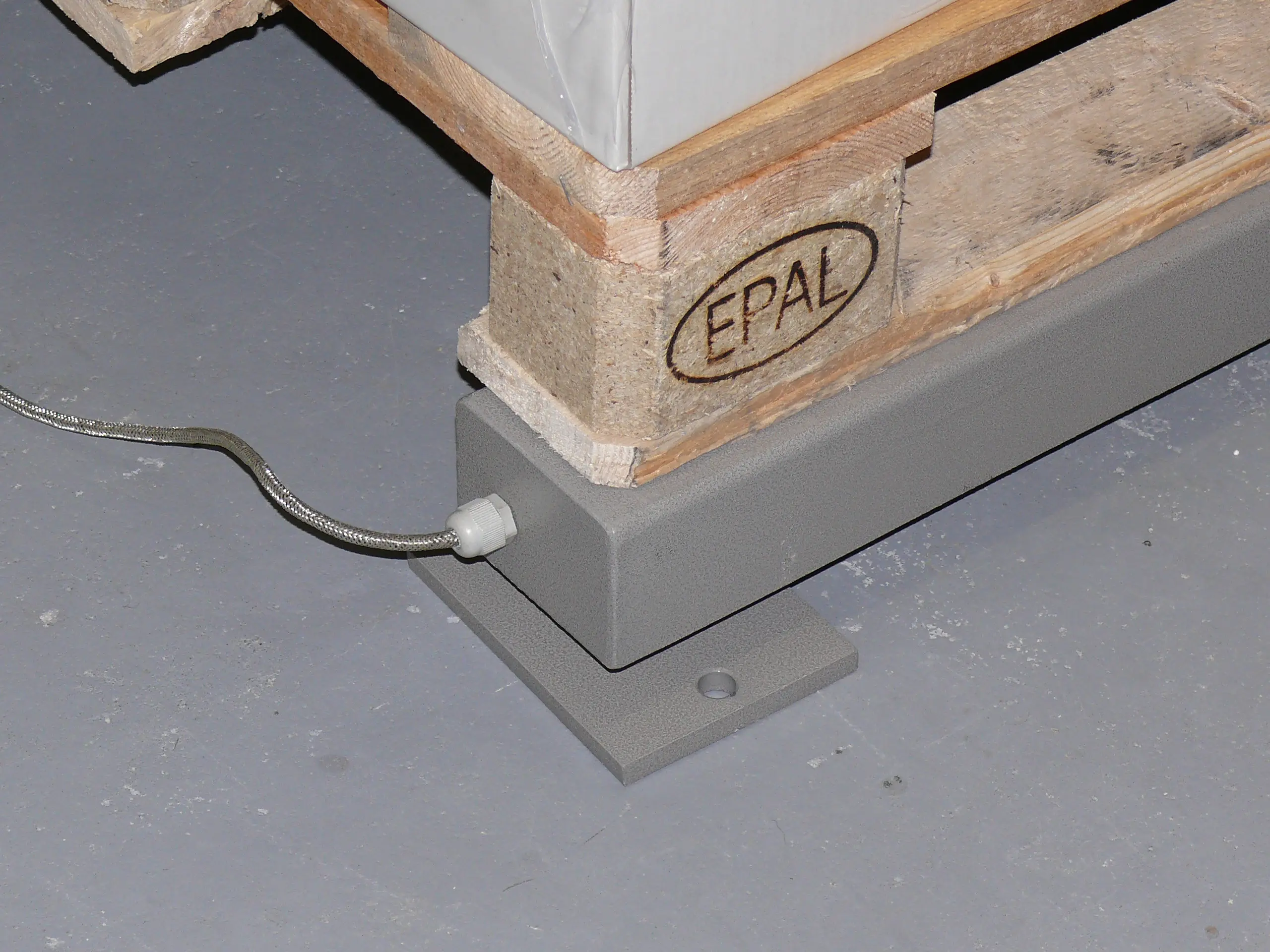

PCE-SW 5000N is a portable battery-powered industrial floor scale or pallet scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 4 m / 13 ft away from the weighing beams, allowing for wall mounting.

Highlights

- Bi-directional RS-232 interface for PC or printer connection
- Multiple TARE for whole weighing range
- Threshold, sum-up and counting functions
- 6V rechargeable battery inside display
- Ingress protection rating: IP 54

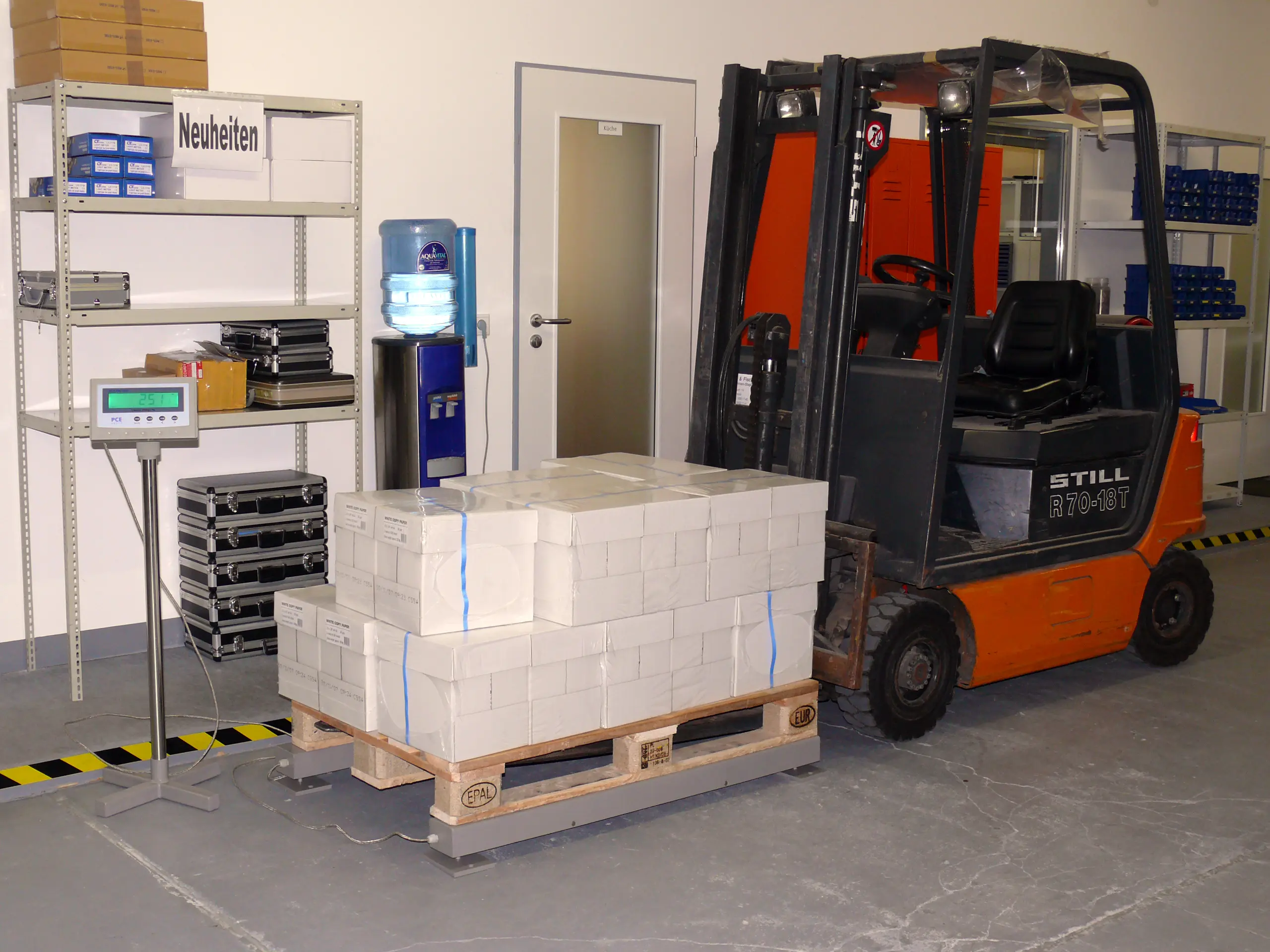

- Ideal for use in warehouse, storage facility, shipping, receiving, loading dock, logistical, supply chain, retail, inventory and stock room applications
- Software, USB to RS-232 adapter and ISO calibration certificate sold separately - see accessories for details

Specification

Weighing range	5000 kg / 11023 lb (=5.5 T)
Resolution	2 kg
Accuracy	±8 kg
Tare range	Multiple tare across entire weighing range
Display	LCD with 25 mm / 1" digit height

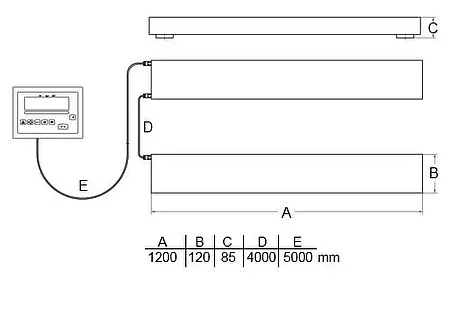

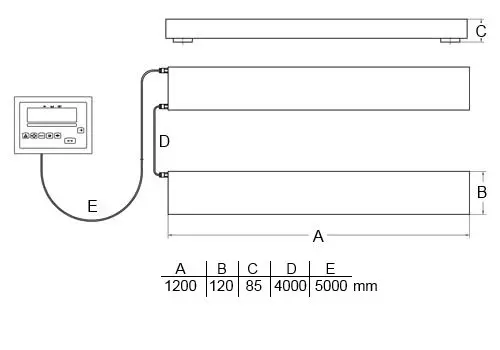

Cable length to display	ca. 4 m / 13 ft
Interface	Bi-directional RS-232
Calibration	Multi-point calibration possible
Power supply	6V battery installed in the display (BAT-6V-4.5Ah)
Housing	Scale: painted steel / Display: stainless steel
Protection	IP 54
Environment	0 ... +40 °C / +32 ... +104 °F / 10 ... 80% r.H.
Weight	ca. 80 kg / 176 lb

Delivery Scope

1 x PCE-SW 5000N floor scale (includes 2 x weighing beams and 1 x display)
1 x battery charger
1 x user manual

Downloads

Manual

Datasheet
