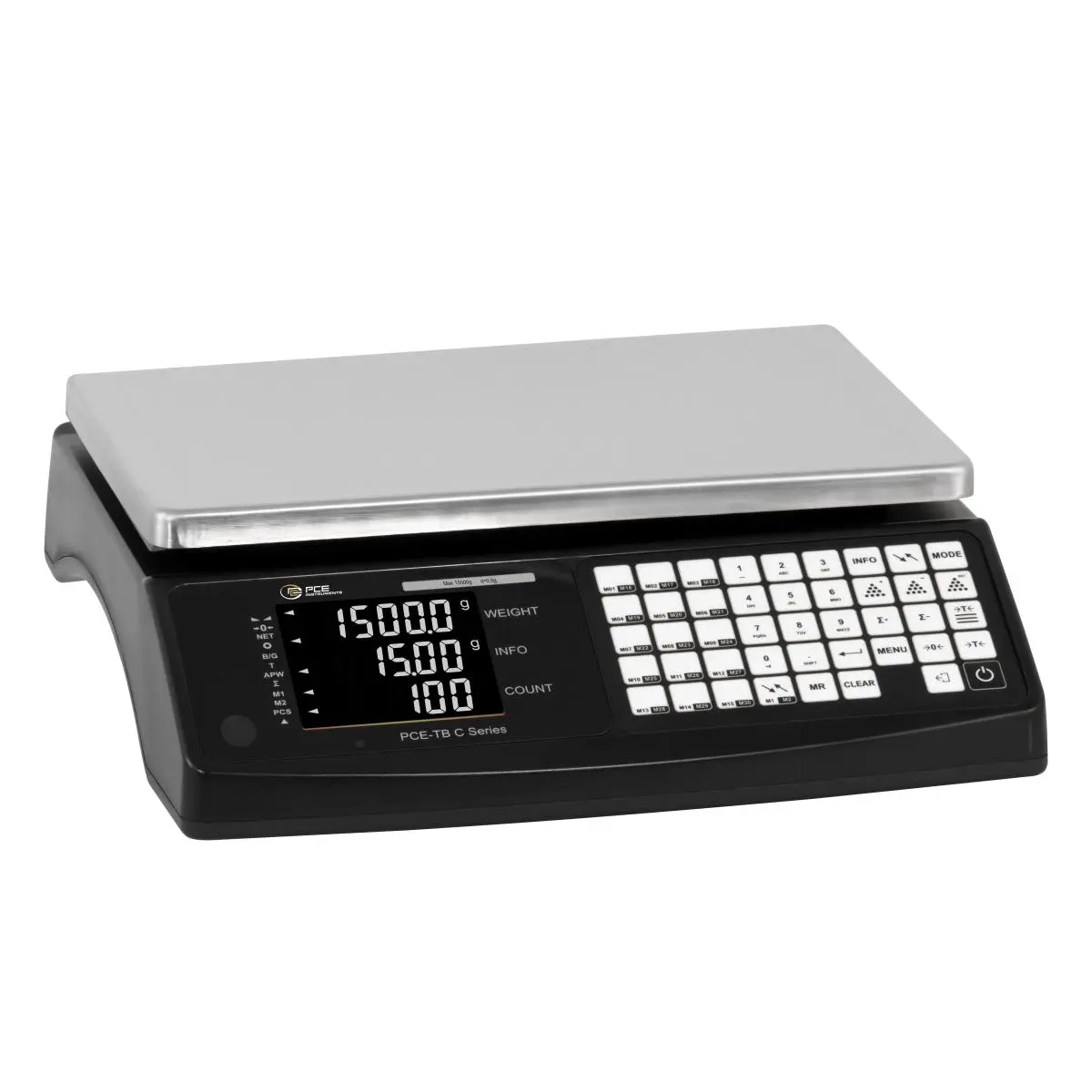

Inventory Scale PCE-TB 15C

Order no.: PCE-TB 15C
GTIN (EAN): 4250348713605
£ 440.00
£ 528.00
price ex. (VAT / delivery)
:
4250348713605
PCE-TB 15C
Delivery time: 1-2 working days

Description

Professional Inventory Scale up to 15 kg / resolution from 0.5 g / triple display /
Memory for up to 1,000 articles / monitoring of the number and weight of pieces /
Scanner, USB, PC, printer connection / optional OC switching contacts, 4-20 mA, 0-10 V

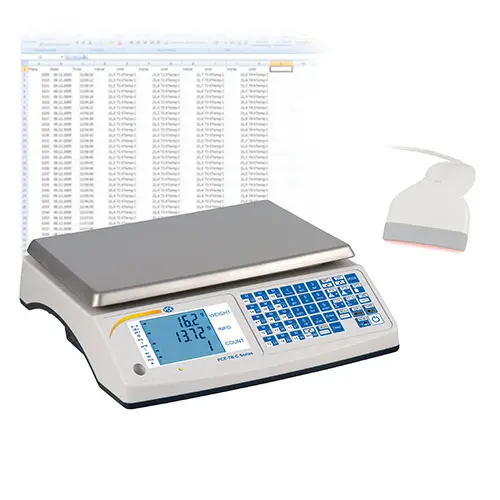

The inventory scale is a real professional aid for all counting tasks. The inventory scale have an internal data memory for up to 1,000 items that can easily be stored e.g. they can be retrieved with a scanner. The article data that can be saved in the inventory scale are: article description, scanner code, piece weight, permissible weight deviations MIN / MAX and the weight of the packaging (TARE). Using the inventory scale with the possible information is very easy.

For this purpose, the data is created in spreadsheet-like software and transferred to the internal memory of the inventory scale. Furthermore, the inventory scale can transfer the counts carried out to a PC or optionally available USB memory stick. But even without the internal memory, the inventory scale is a professional helper. If, for example, a barcode is not available in the data memory, the user is informed about this and still has the option to carry out further weighings / counts under the barcode and, if necessary, to save or transfer them to the PC. The inventory / counting carried out in this way saves a lot of reworking time and excludes transmission errors.

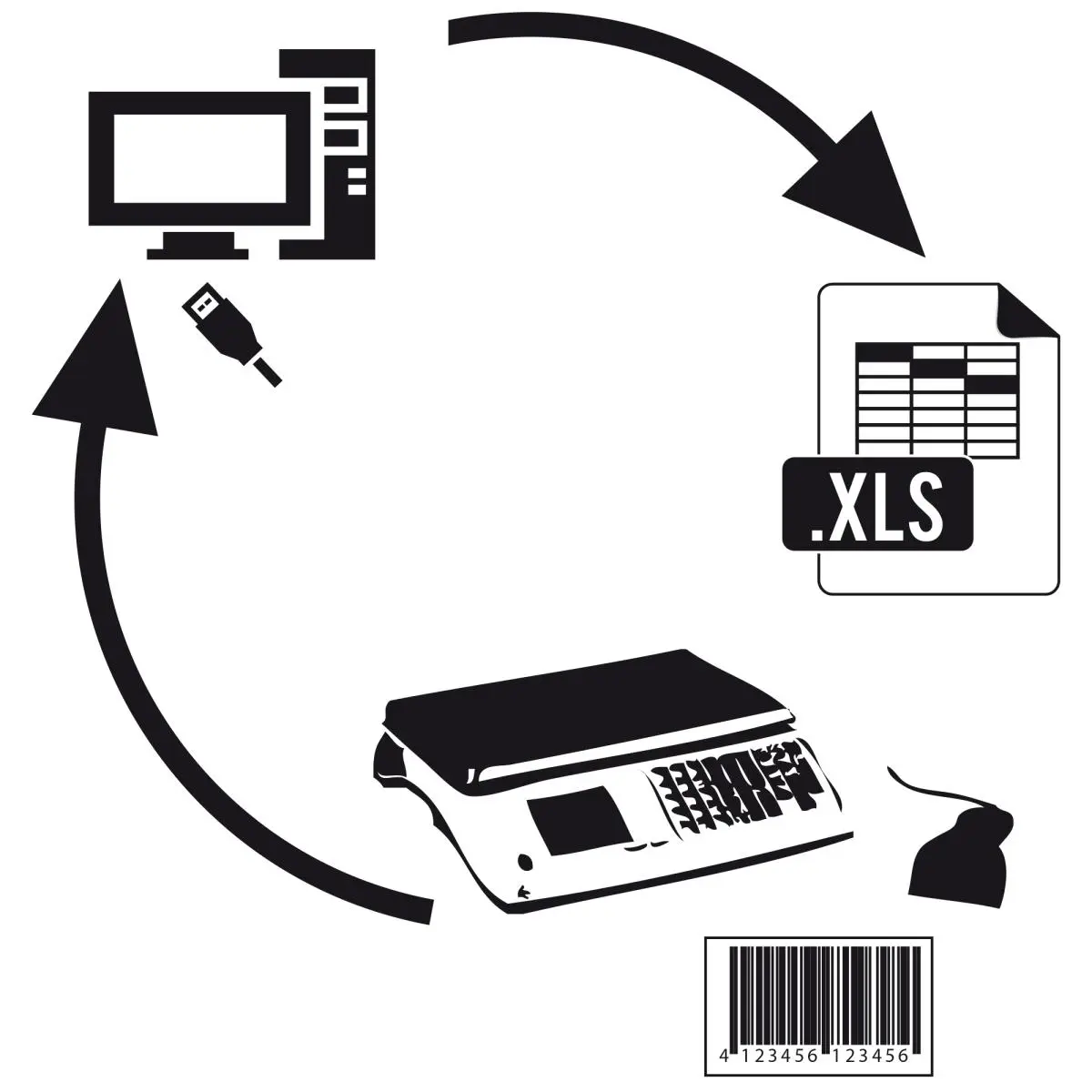

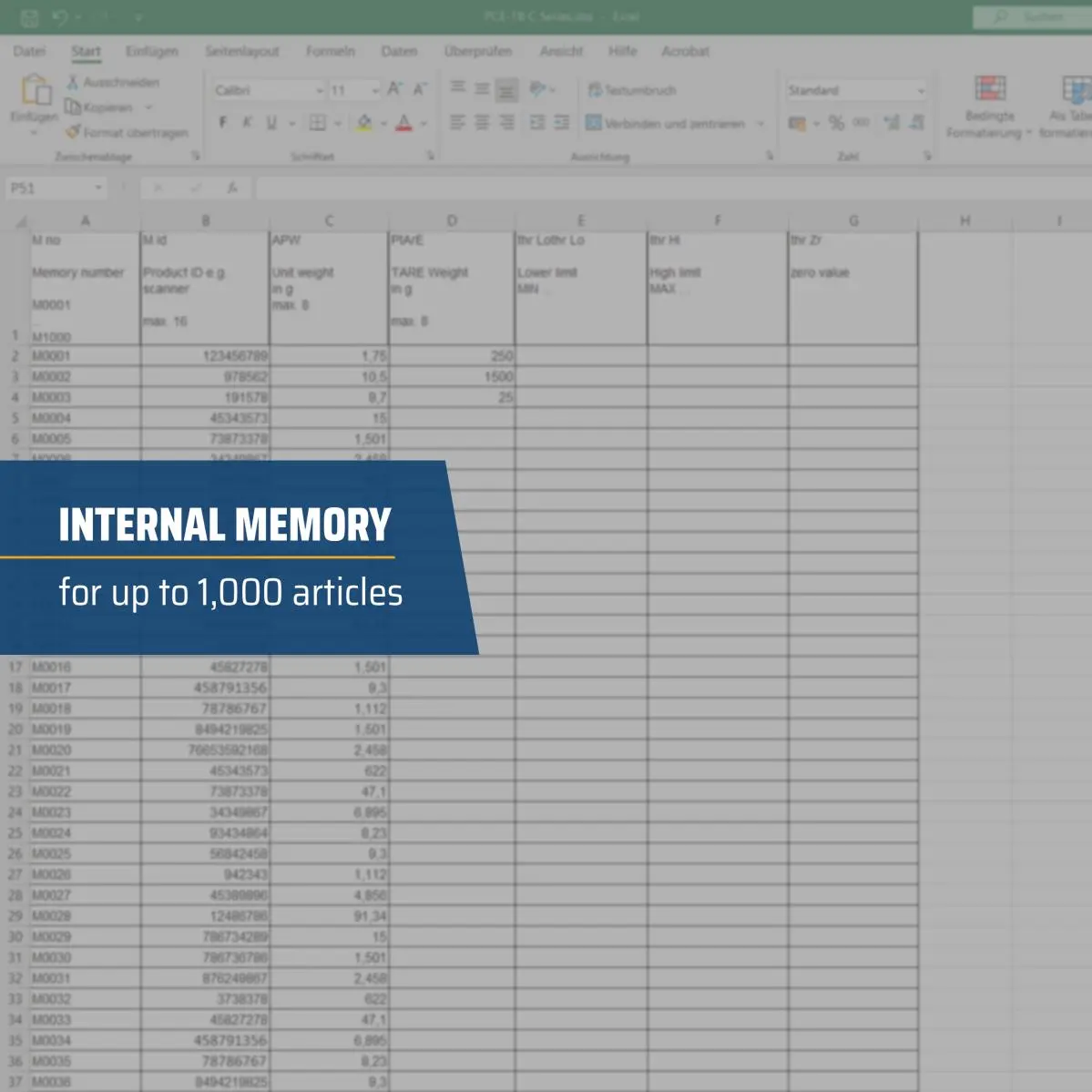

Despite the many keys, data maintenance on the professional inventoryscale is very easy. This can be done on the PC in the form of a table. Create a table e.g. in EXCEL, where the data: storage space, item description, barcode, piece weight, target weight, deviation tolerances (min. - max.) and tare weight are stored, these are saved as a CSV file. Perhaps this can also be done from your company's inventory management system. Then simply hand it over to the professional inventory scale using the free software included in the scope of delivery. After the data has been successfully transferred, the articles can be accessed quickly and easily. This can be done using the direct selection buttons on the professional inventory scale or with the help of an optionally available scanner.


Depending on the configuration of the professional counting scale, the data can be saved automatically as a TXT file directly in the PC or on a USB stick. The data can be composed of the user, article number, time, date and quantity. The data import of a TXT file into Excel is then very easy and enables a simple calculation of the count carried out. In the professional counting scales, unsaved products can also be counted and saved with the desired information, an article database maintenance is not necessary. This means that the professional counting scales can be used in most areas of application.




Highlights

- internal memory for up to 1,000 articles
- article master processing with the help of PC

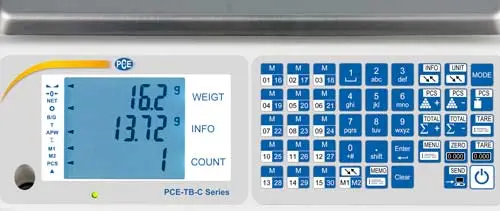

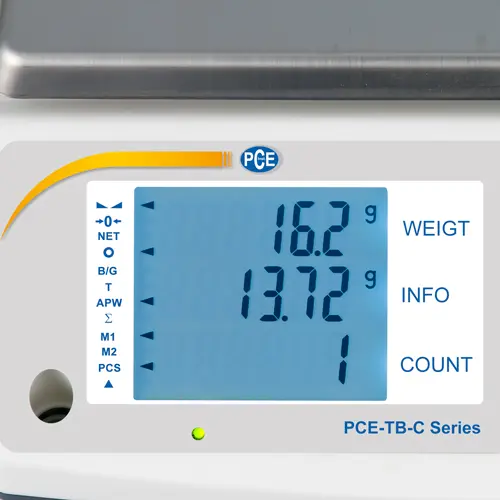

- triple display

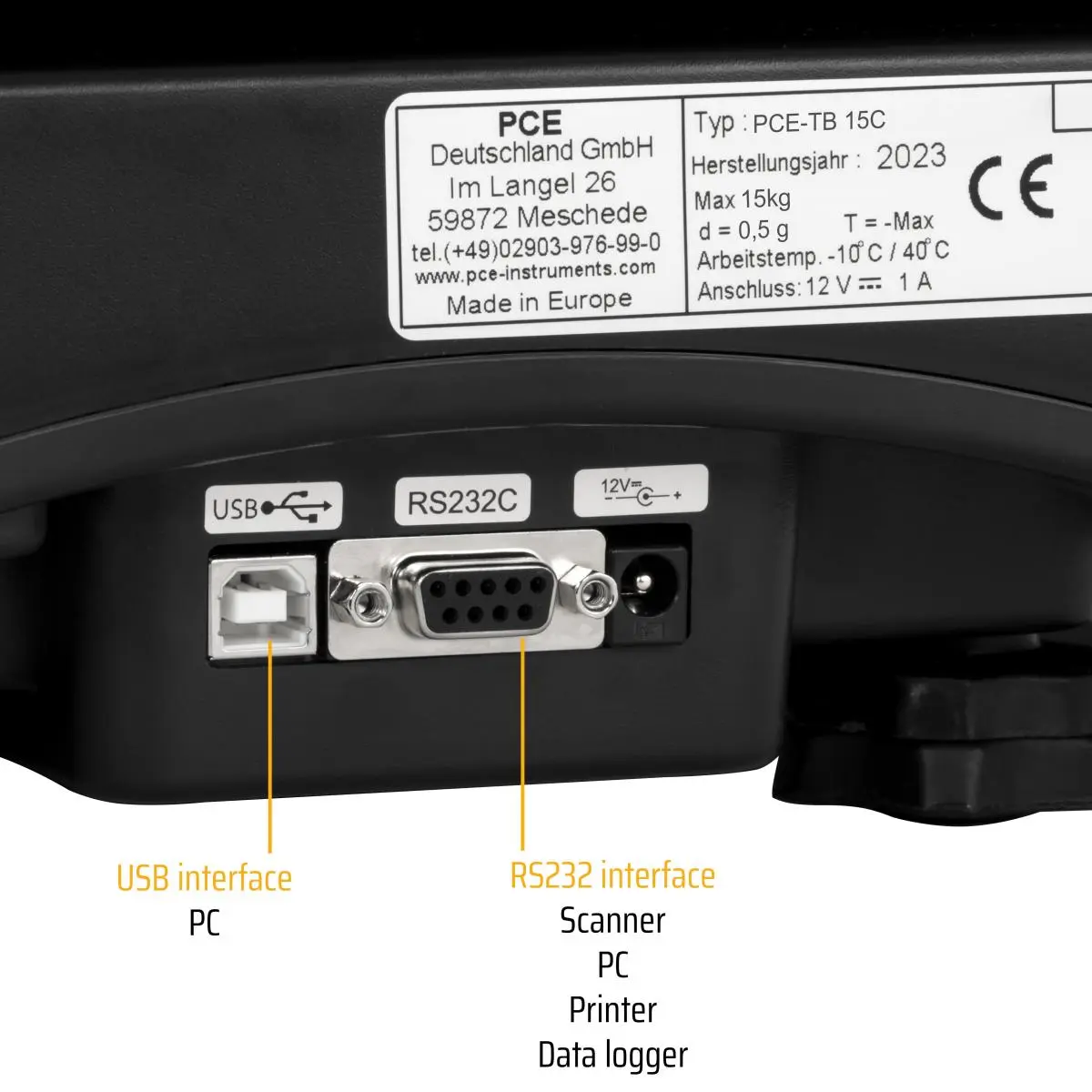

- scanner connection (RS-232 Sub-D 9)
- RS-232 and USB interface
- summing function
- limit weight control
- memory for 10 tare weights
- optional: battery and scanner
- optional: LAN / Ethernet / network
- optional: USB data storage stick
- optional: 4-20 mA / 0-10 V analog output

Specification

Model

Weighing range

Resolution

Measurement uncertainty

PCE-TB 15C

15 kg

0.5 g

± 1.5 g
Reference piece weightby weighing or entering
Taring rangeMultiple tare over the full weighing range

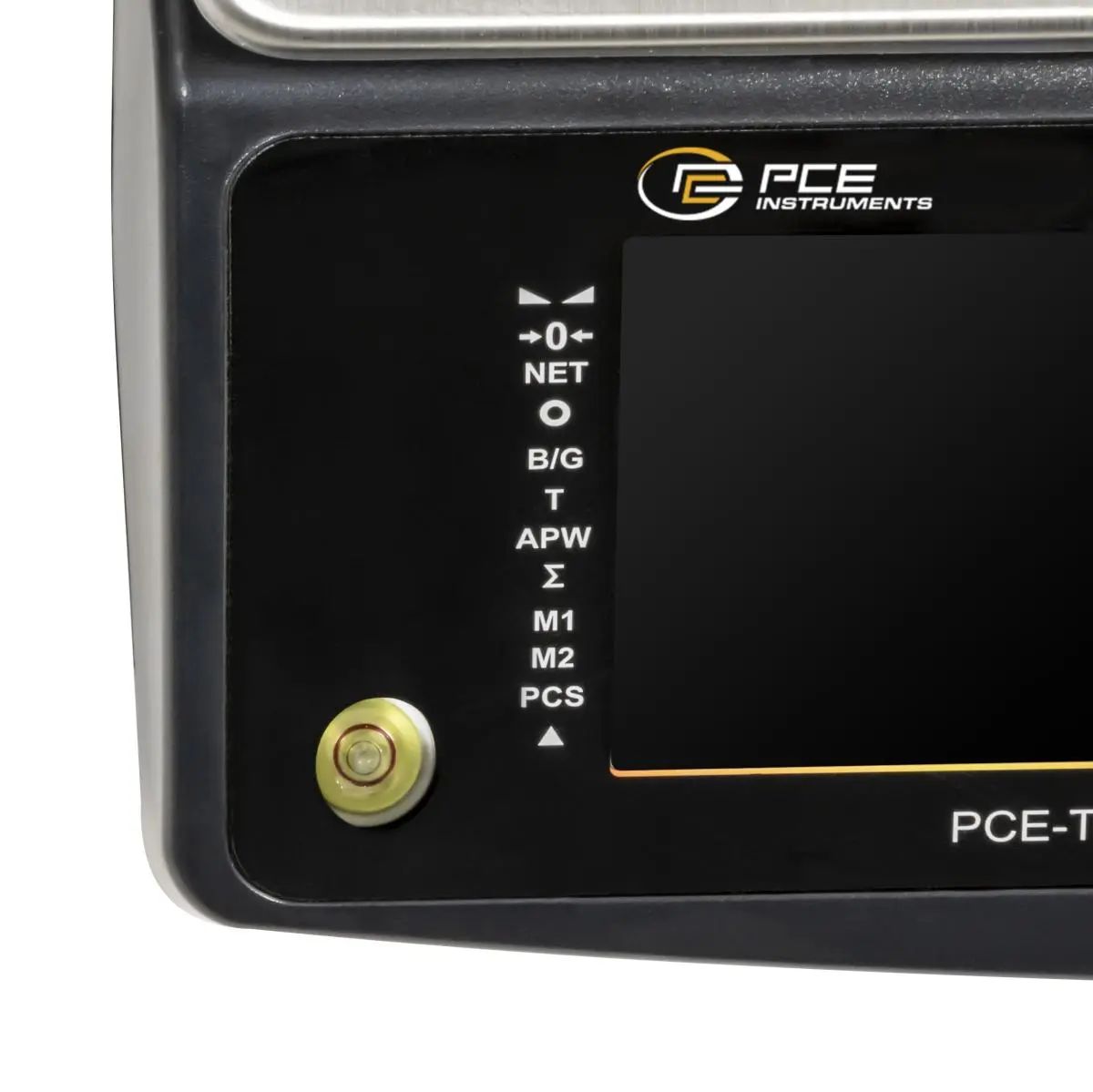

Display multi-display 16 mm digit height
Memory- for up to 5 users
- for 30 products via the quick selection buttons
- for a total of 1,000 product data records
- for 10 tare weights
Product record- location number
- article name
- barcode
- unit weight / target weight
- deviation tolerances / min. - max.
- tare weight
Data maintenancemanually on the balance or
with the help of PC software and Excel
InterfacesRS-232 and USB
Scanner possible via RS-232 / Sub-D 9
Optional: 4-20 mA / 0-10 V / switching contacts
Settling time <3 s

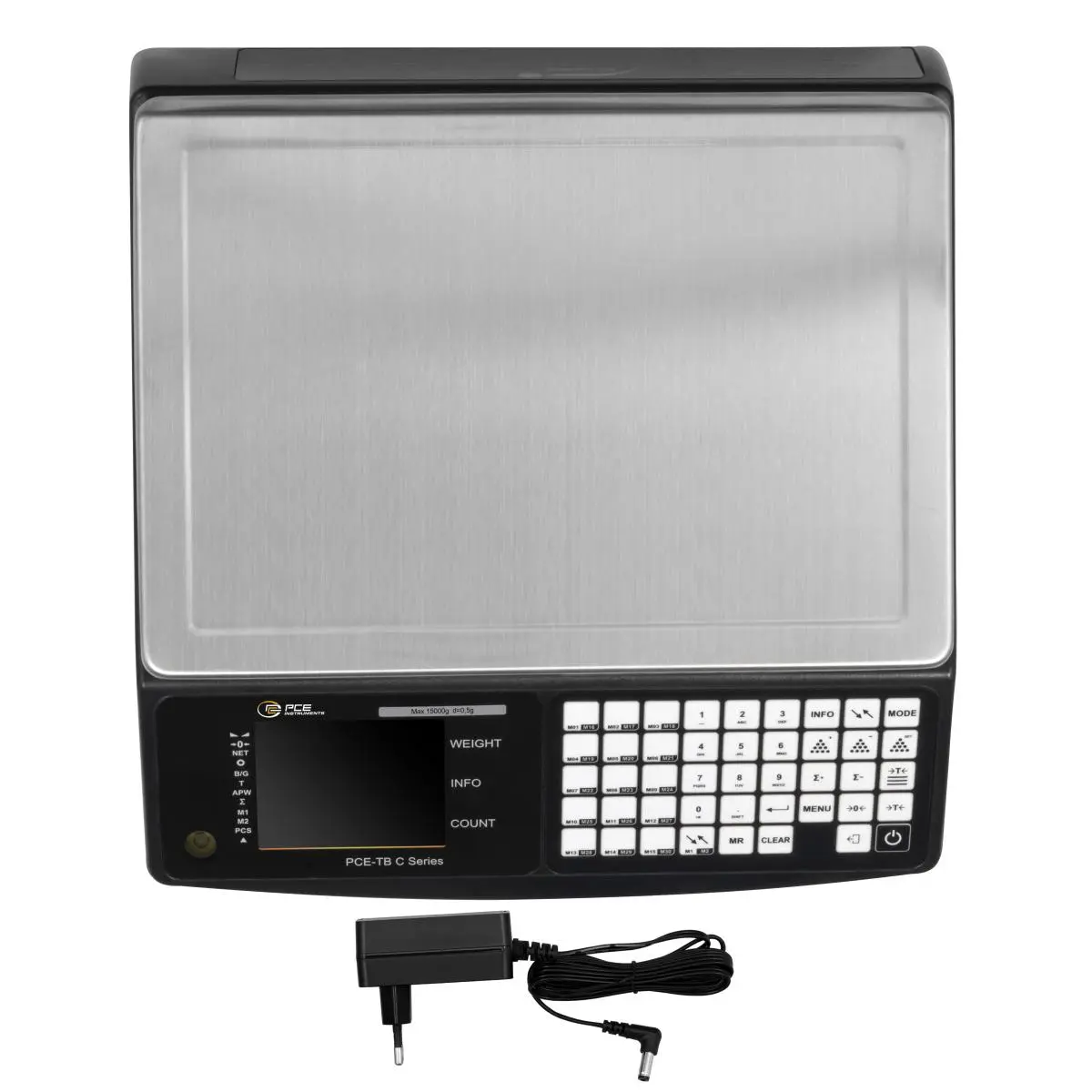

Platform size 300 x 210 mm (stainless steel)
Calibration
external possible / freely selectable with M1 weights
Power supply230V / 50 Hz - 12V / 1.2A power supply
or 6V / 4.5Ah battery optional
Battery life ca. 90 hours / charging time approx. 12 hours
Operating temperature -10…+35°C / 15% rH – 85% rH
Dimensions
335 x 320 x 110 mm
Weight
ca. 3.5 kg

Delivery Scope

1 x Inventory Scale PCE-TB 15C
1 x Power supply
1 x Software Scale Database (freeware in the download area)
1 x Instruction manual
