LAB Scale for Paper Basis Weight PCE-DMS 200

Order no.: PCE-DMS 200

GTIN (EAN): 4250348700728

Accessory

ISO Calibration Certificate for PCE-DMS Series

£ 103.00

GSM Balance Sample Cutter MPC-3

£ 174.00

Description

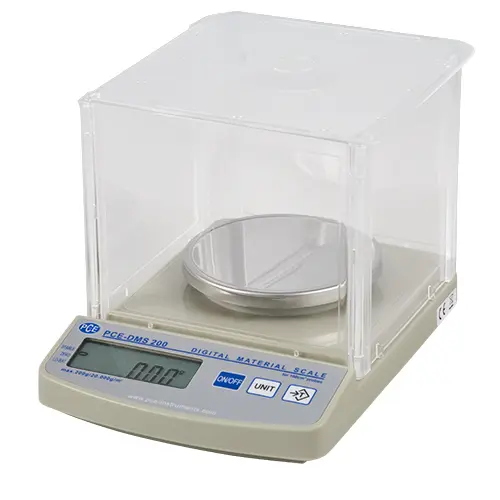

PCE-DMS 200 LAB Scale for Paper Basis Weight

10 cm round pan for weighing 11 cm circle cut samples

The PCE-DMS 200 is a LAB scale for paper basis weight used to accurately determine the GSM basis weight (in relation to a square meter of material) of paper, cardboard, fabric, textiles and more directly in g, g/m², oz or oz/yd². Weighing units can be changed with just the push of a button.

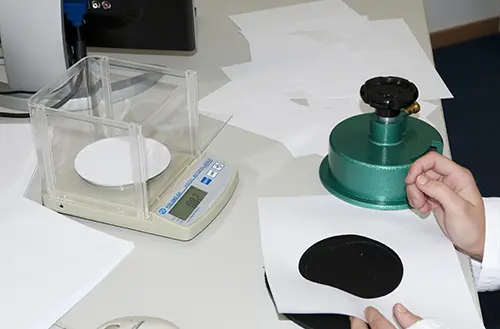

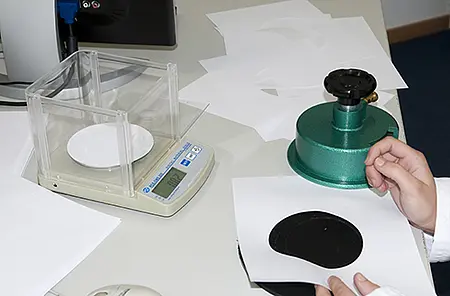

The LAB scale is used primarily by paper and textile production companies. The paper and textile industries perform similar quality control testing by weighing a 11 cm round circular sample of paper or fabric. The LAB scale makes this test process quick and easy, especially when using the optional 11 cm circle sample cutter accessory (see accessories tab for details).

Highlights

- 10 cm round pan for weighing 11 cm circle cut samples
- Weighing units can be changed with just the push of a button
- Easy-to-read 15 mm (0.6") backlit LCD display
- Automatically powers off (saves battery life / function can be disabled)
- Automatic calibration function (using external weight - not included)
- Optional ISO calibration certificate (see accessories tab for details)

Specification

Weighing ranges	0 ... 200 g, 0 ... 20,000 g/m², 0 ... 7.05 oz or 0 ... 589.87 oz/yd²
Readability	1 g/m² or 0.01 g
Repeatability	0.02 g
Linearity	± 0.02 g
Stabilization time	3 seconds
Calibration	Automatic function (using external weight - not included)
Display	15 mm (0.6") LCD / backlit
Power supply	230 V / 50 Hz (via 12 V net adaptor) or 6 x AA batteries
Housing	ABS plastic
Wind shield	Plastic / Approx. 145 x 145 x 120 mm (5.7 x 5.7 x 4.7")
Pan size	Round, 10 cm (Approx. 4") diameter
Overall dimensions	Approx. 145 x 210 x 40 mm (5.7 x 8.3 x 1.6")
Net weight	Approx. 1 kg (2.3 lb)
