Legal for Trade Balance PCE-SD 3000F SST

Order no.: PCE-SD 3000F SST

GTIN (EAN): 4250348712400

£ 5,187.00

Price (exclude VAT)

£ 6,224.40

Price (include VAT)

Verification for Trade / conformity assessment

price ex. (VAT / delivery)

GTIN (EAN):

4250348712400

Order no.

PCE-SD 3000F SST

Delivery time: up to 10 working days

Interface Slot 1

Output / Interface Slot 2

Switching Output Slot 3

Additonal functions

+AF-CCP: Plug connection between display and weighing surface with approx. 1.5 m cable (£ +23.00)

+AF-DW-PCE: Additional function dual range weighing (£ +49.00)

+AF-TD-PCE: Additional function time and date (£ +27.00)

Resolution

1 kg

Verification

–

Question / Callback

Accessory

Scale Software PCE-SOFT-SC-Pro

£ 183.00

RS232 Cable

£ 25.00

Signal lights for Balances

£ 445.00

Stand for PCE-SD Series

£ 160.00

USB cable PCE-USB

£ 13.00

USB Memory Adapter

£ 85.00

USB interface AF-USB-S

£ 80.00

Limit weighing including control interface

£ 53.00

Additional date and time function

£ 29.00

Scale Software PCE-SOFT-SC-Basic

£ 160.00

Scale Software PCE-SOFT-SC-3XPro

£ 344.00

Adaptor RS232 to USB

£ 29.00

Analog output / analog interface 4-20mA

£ 120.00

Two additional function ranges for PCE-SD Series

£ 53.00

LAN interface

£ 133.00

Additional RS-232 interface

£ 31.00

RS485 interface AF-RS485-PCE

£ 62.00

Analog output / analog interface 0-10V

£ 120.00

Description

Legal for Trade Balance up to 3t / Resolution 1 kg / IP68 - IP65 / Piece counting function / Summing function / RS-232 interface / Removable weighing plate

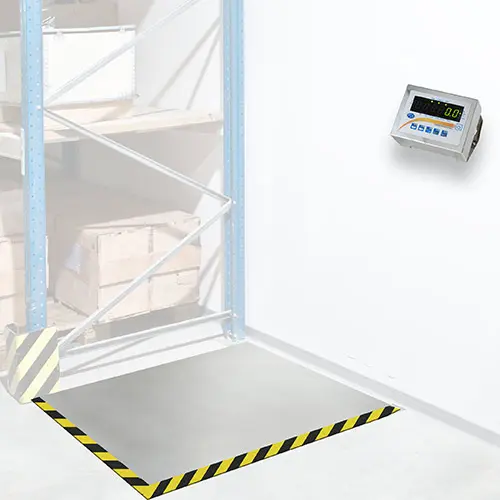

The legal for trade balance is installed in the floor to obtain a flat surface. As a result, the legal for trade balance can be easily loaded with all kinds of conveyors. The legal for trade balance has a weighing platform bolted to the frame, which can be used as required. Optionally, it is possible to provide the legal for trade balance with a damper which makes it easier to lift the weighing surface. The cells of the legal for trade balance are IP68 protected and the display IP65. Due to the high protection class, the legal for trade balance has no interfaces. These interfaces, such as RS-232, RS-485, USB, LAN, 4-20mA, 0-10V or floating contacts can be installed at our factory. Subsequent installation is not possible. This allows the legal for trade balance to monitor or control production processes.

Highlights

- Piece counting function
- Percent% comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value storable
- Tolerance determination Weight min / ok / max
- Sum up several weighings
- Statistics function
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA

Specification

Model	Weighing range	Resolution	Min.*	Dimensions	Weight
PCE-SD 3000F SST	3,000 kg	1 kg	20 kg	1500 x 1500 mm	210 kg

* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable stainless steel floor installation scale also indicates smaller weights, but these may not be used in legal traffic.

Calibration

calibratable according to class M III (delivered calibrated)

Tare range

multiple tare over the full weighing area

Settling time

<4 s

Display

LED with 20 mm digit height

Cable length

plugged in 5 m

Weighing units

kg / piece / lb

Interface

optional bi-directional RS-232, USB, LAN
Interface description
e.g. 4-20 mA, 0-10V, OC switching contacts

Weighing plate

Smooth stainless steel (unscrewable)

Operating temperature

-10 °C ... +40 °C / 14 ... 104 °F

Power supply

~230V 50Hz 8VA (safety plug)

Protection

cell IP 68 / display IP65

For the installation of the stainless steel installation scale you need the dimensions of the foundations as well as the frame, which are located behind the buttons sketch

Delivery Scope

1 x Legal for Trade Balance PCE-SD 3000F SST
1 x Display
4 x Floor fixing plates
1 x User manual

Downloads

Datasheet
