£ 160.00

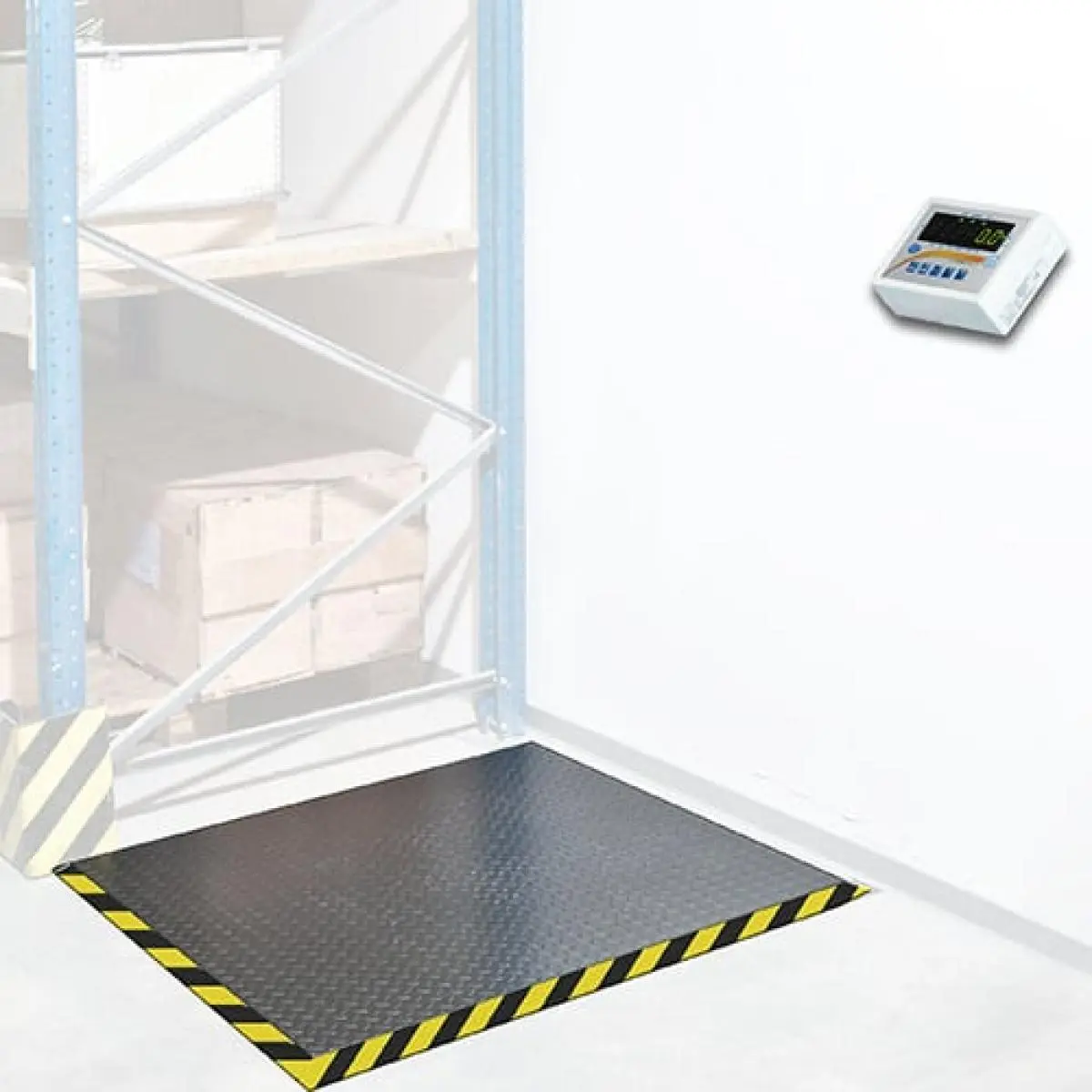

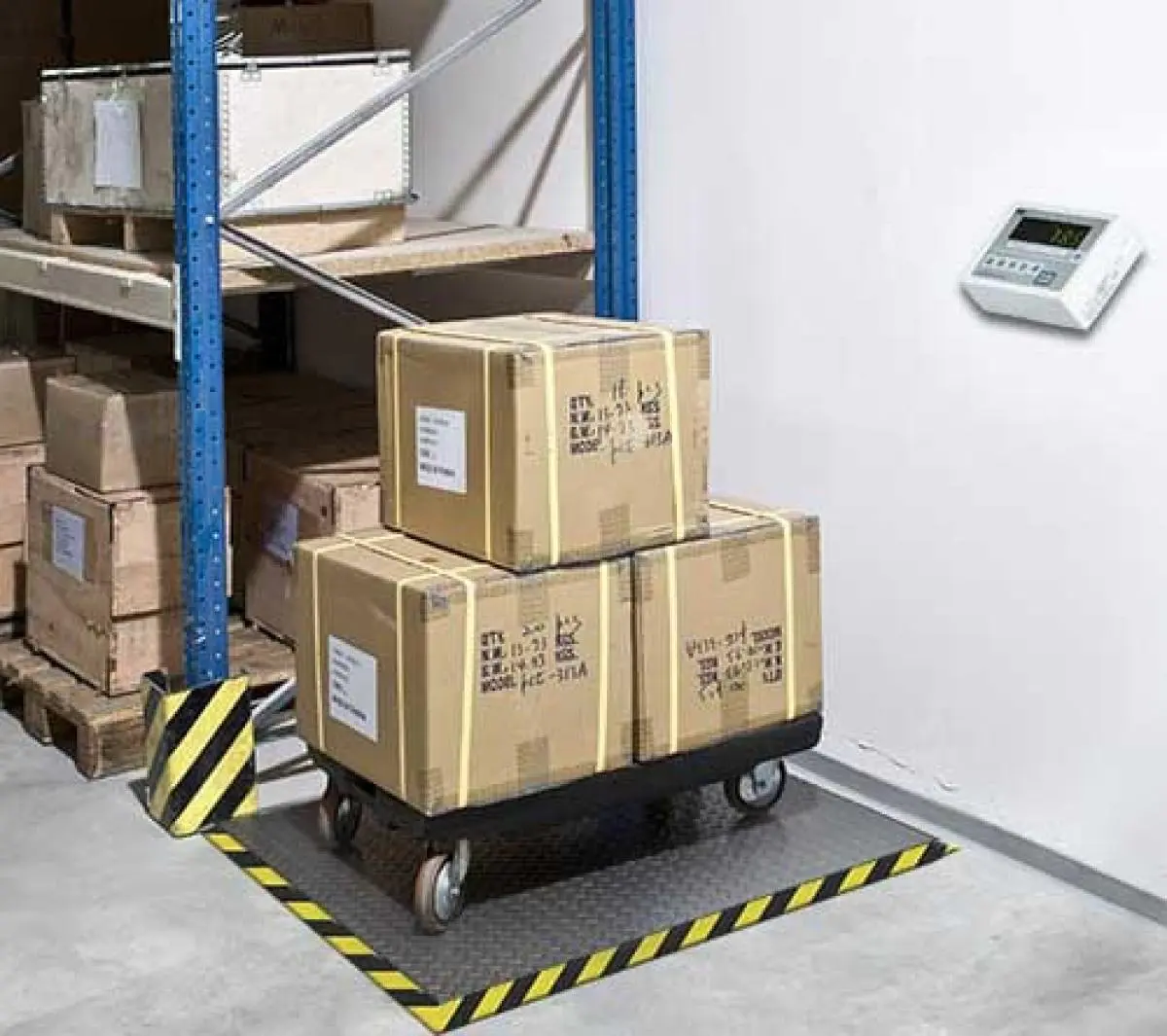

NTEP Certified Scale up to 3,000 kg /
Resolution 1 kg / Weighing cells IP67 /
Piece counting function / Summing function / RS-232 interface / Scales made of painted steel
/ Removable weighing plate / Mounting frame optional
|
||||||||||||||
* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor installation scale also indicates smaller weights, but these may not be used in legal traffic. | ||||||||||||||
Calibration | calibratable according to class M III (delivered calibrated) | |||||||||||||
Tare | multiple tare over the full weighing area | |||||||||||||
Settling time | <4 s | |||||||||||||
Display | LED with 20 mm digit height | |||||||||||||

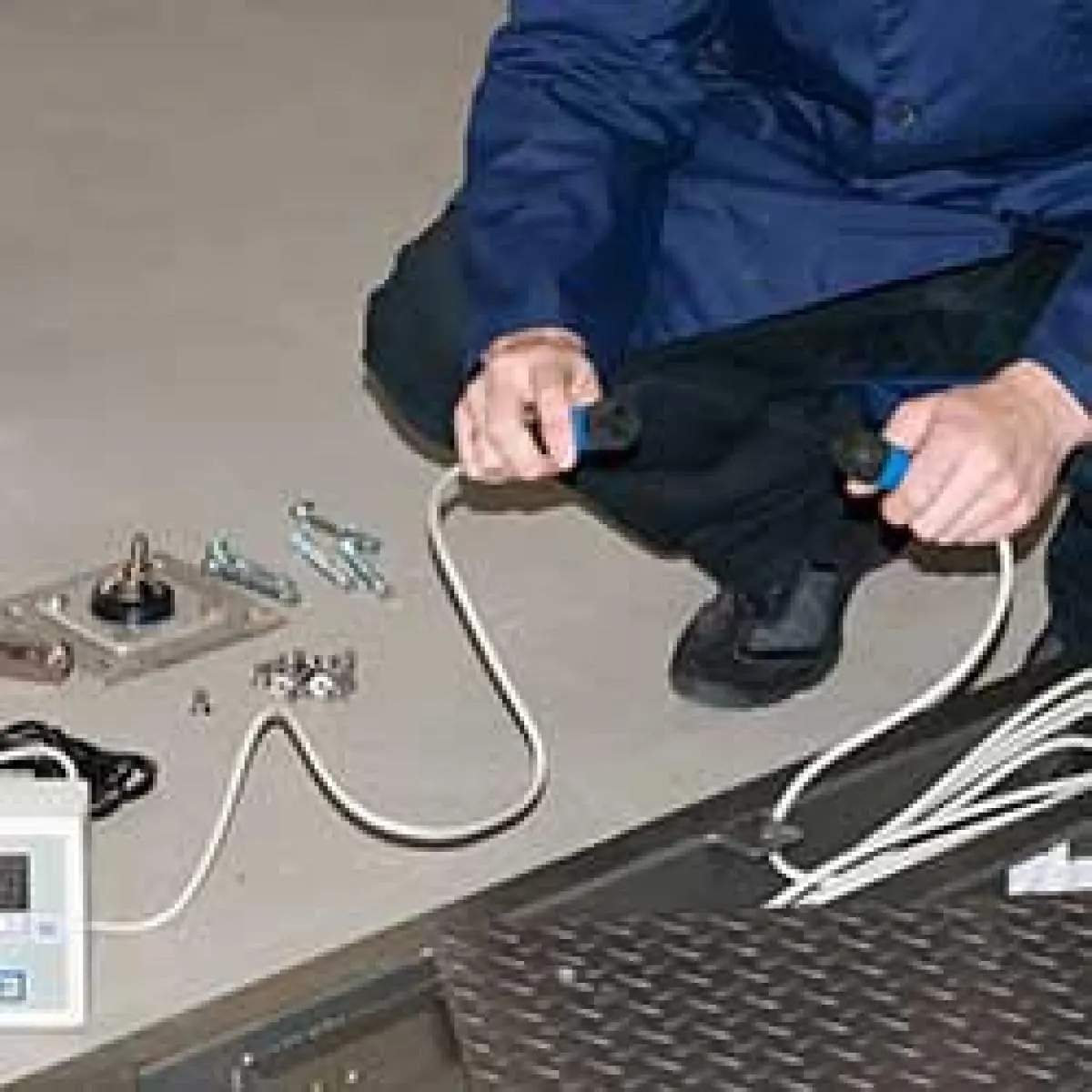

Cable length | plugged in 5 m | |||||||||||||
Weighing units | kg / piece / lb | |||||||||||||
Interface | bi-directional RS-232 optional USB, LAN, 4-20 mA, 0-10V, OC |
|||||||||||||

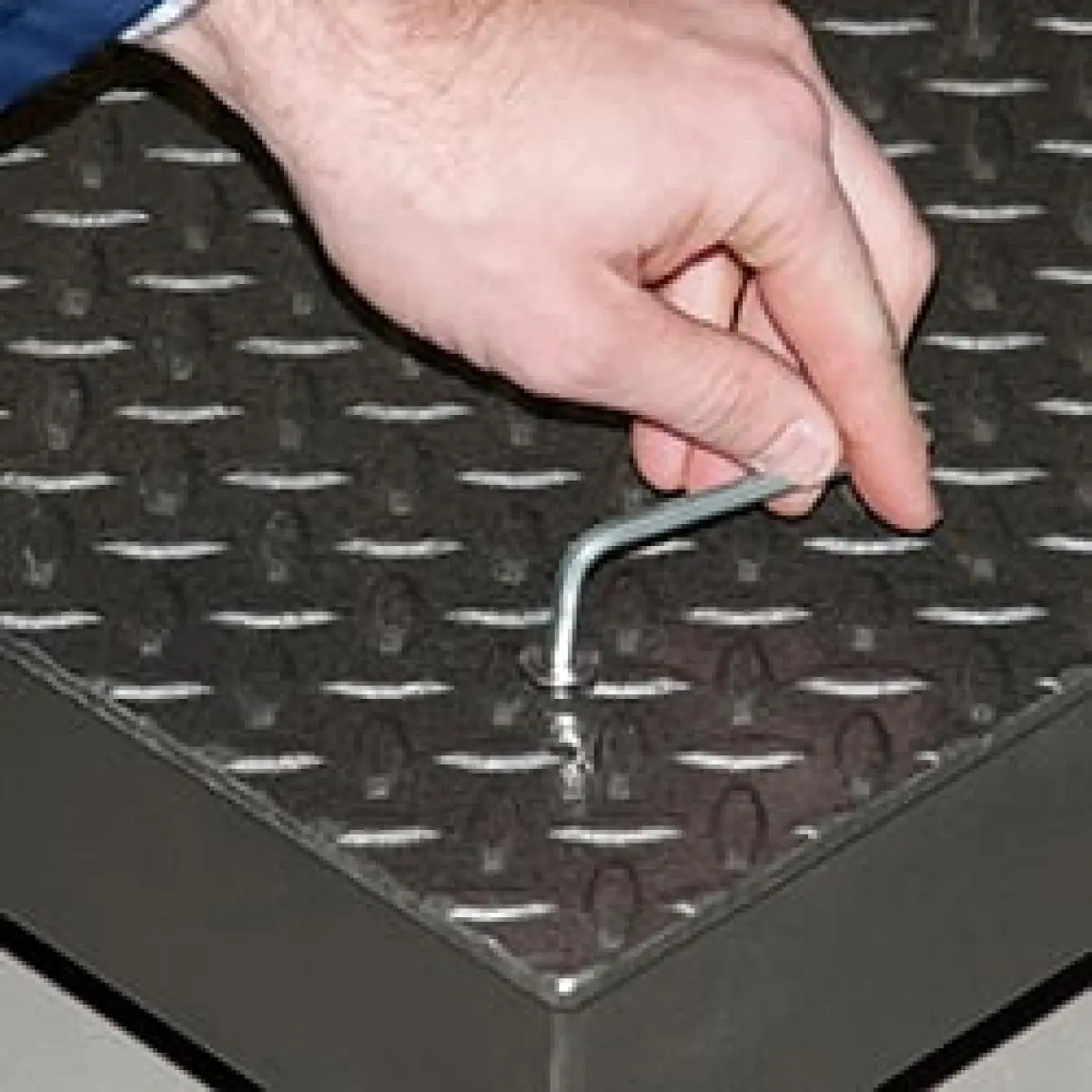

Weighing plate | fluted painted steel (unscrewable) | |||||||||||||
Operating temperature | -10 °C ... +40 °C / 14 ... 104 °F | |||||||||||||
Power supply | ~230V 50Hz 8VA (safety plug) | |||||||||||||
Protection | cell IP 67 / display IP54 |
