Parcel Scale PCE-RS 2000

Order no.: PCE-RS 2000
GTIN (EAN): 4250348714688
£ 890.00
£ 1,068.00
price ex. (VAT / delivery)
:
4250348714688
PCE-RS 2000
Delivery time: 1-2 working days

Description

Parcel scales painted steel / platform size 1200 x 1200 mm / up to 2,000 kg /
4 switching outputs / 4 ... 20 mA analog output / table or panel mounting

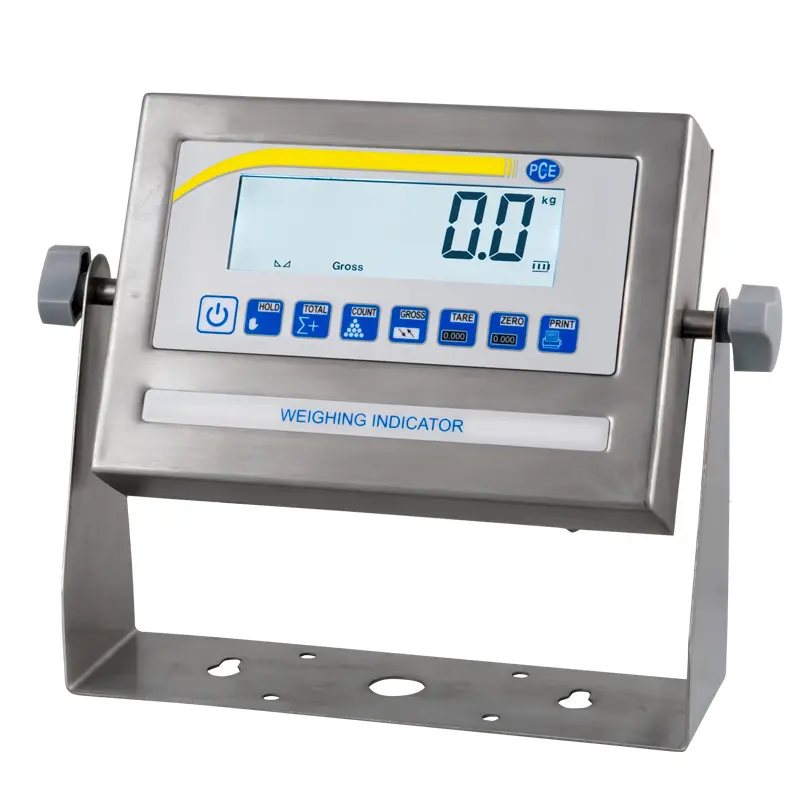

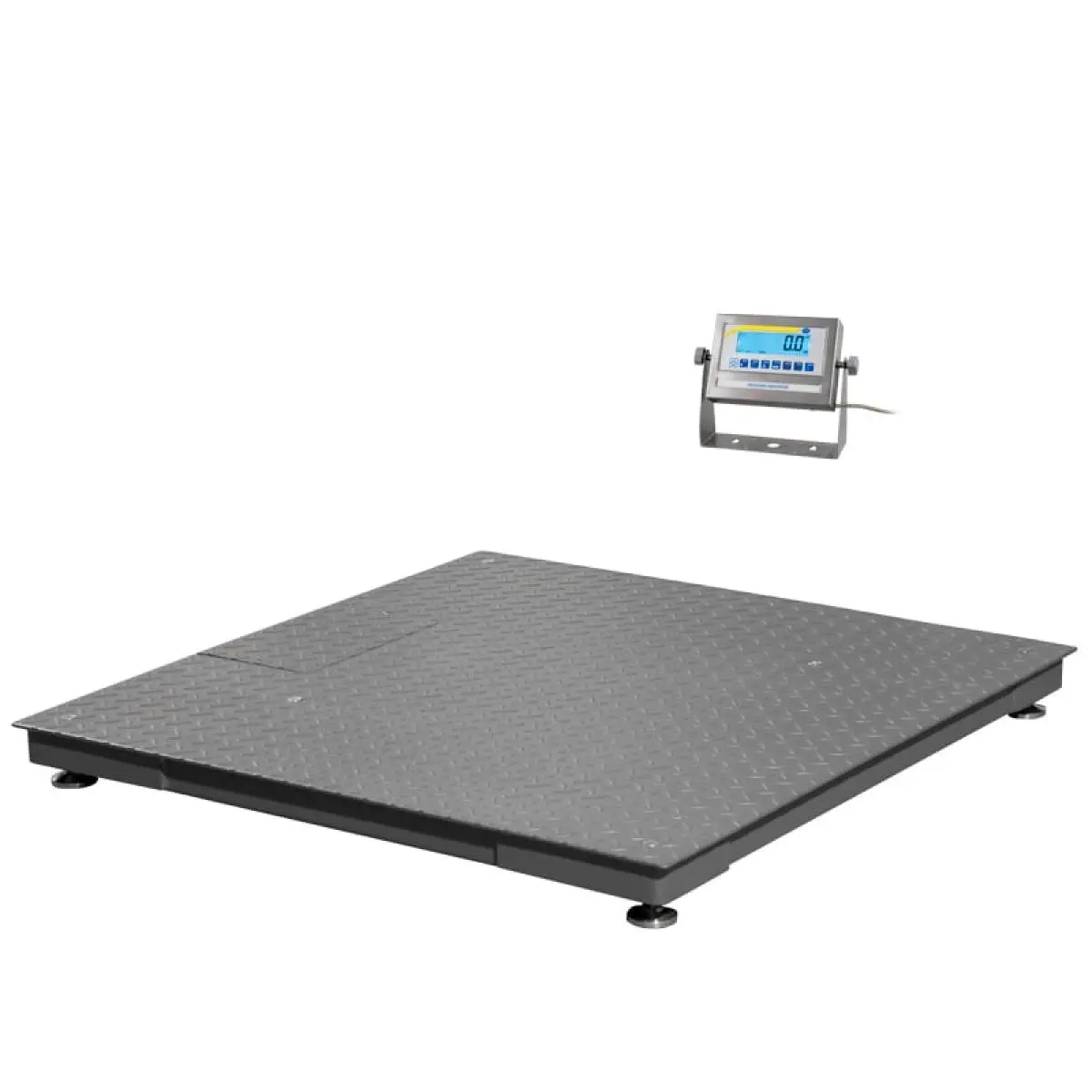

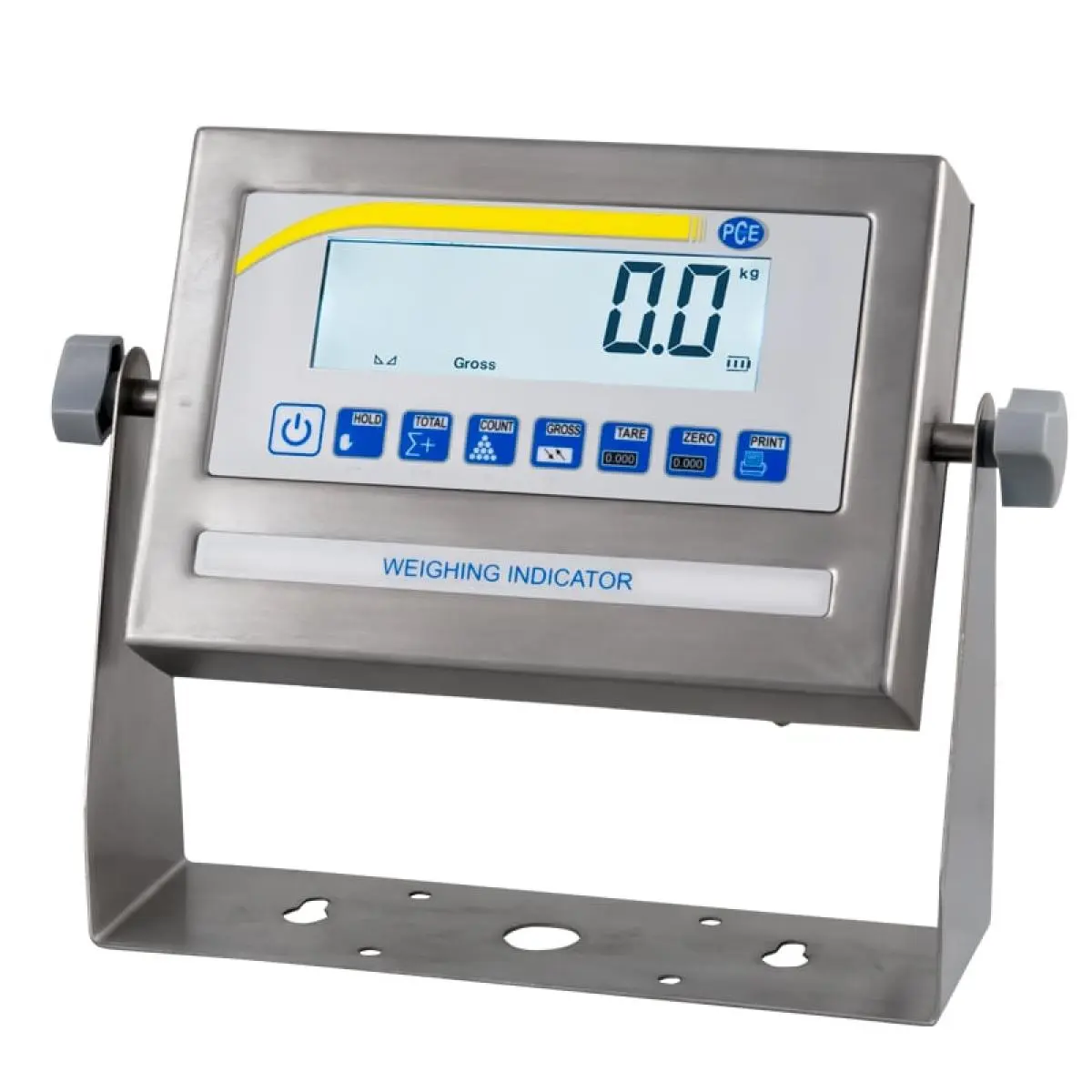

The floor scale PCE-RS 2000 is designed for stationary use. The robust construction makes this floor scale particularly well suited for weighing large objects. The floor scale is made of painted steel. Weighing data can be easily read thanks to its external display (with 4 m length cable). Functions of the floor scales are a summing function, a piece counting and check weighing. The floor scale is delivered with a bi-directional RS-232 interface and with optional PC software can show the measured valuesin Excel. The indicator of the floor scales can be placed on a table or an optional tripod.

Highlights

- Weighing range: 2,000 kg
- Resolution: 0.5 kg
- Bidirectional RS-232 interface
- Indicator in stainless steel IP 54
- LC Display with 25 mm digit height
- Cable tothe display about 5 m (connector)
- Summing function
- Parts counting function
- Checkweighing functionMIN / OK / MAX
- Analog Output 4...20 mA optional

Specification

Weighing range2,000 kg
Resolution0.5 kg
Measurement uncertainty± 2 kg
Tare ranover the entire weighing range
DisplayLCD, height 25 mm,backlit

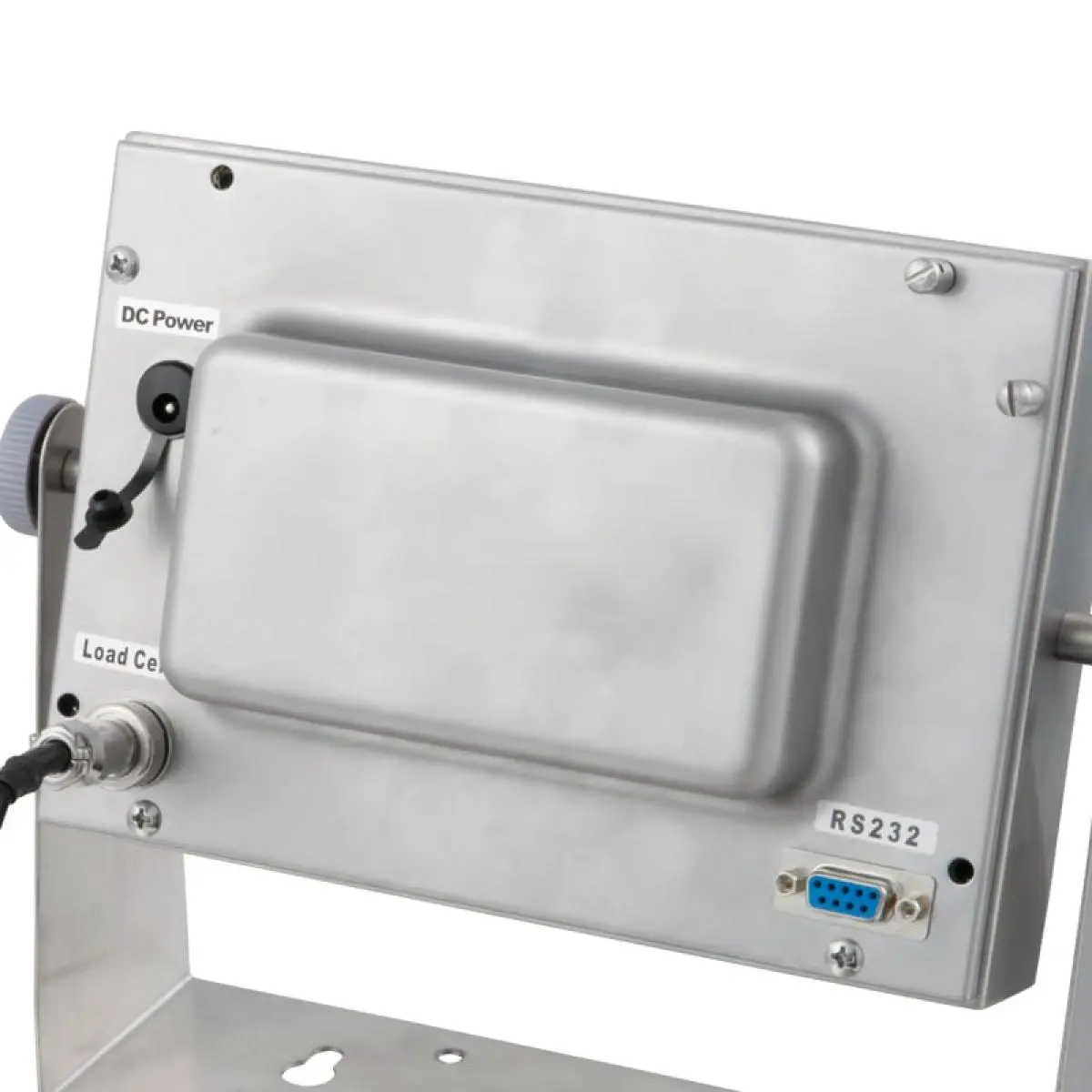

Interfaces1x bidirectional RS-232 interface
1x analog output 4...20 mA optional
CalibrationInput / multi-point adjustment possible
Operating temperature-10 ... +40 °C / max. 85 % RH
Power supply12 V / 1000 mA AC adapter (battery not possible)
Dimensions weighing platform1200 x 1200 x 100 mm
Weightca. 85 kg

Delivery Scope

1x Parcel Scale PCE-RS 2000
1x Display
1x 230 V AC (110 V AC for USA) adapter
1x User manual

Downloads
