Scale with Software (Optional) PCE-PB 60N-ICA Incl. ISO Calibration Certificate

Order no.: PCE-PB 60N-ICA
GTIN (EAN): 4250348726469
£ 220.00
£ 264.00
ISO Calibration
price ex. (VAT / delivery)
:
4250348726469
PCE-PB 60N-ICA
Delivery time: 10 - 14 days

Accessory

ISO Calibration Certificate for Platform Scales
ISO Calibration Certificate for Platform Scales
£ 94.00
PCE-SOFT-SC-Basic
Scale Software PCE-SOFT-SC-Basic
£ 160.00
Scale software PCE-SOFT-SC-Pro
Scale Software PCE-SOFT-SC-Pro
£ 183.00
Scale software PCE-SOFT-SC-3XPro
Scale Software PCE-SOFT-SC-3XPro
£ 344.00

Description

Scale with Software PCE-PB 60N up to 60 kg, Bidirectional USB interface, PEAK hold function,
Counting function, Mains and battery operation including USB interface cable, Incl. ISO calibration certificate

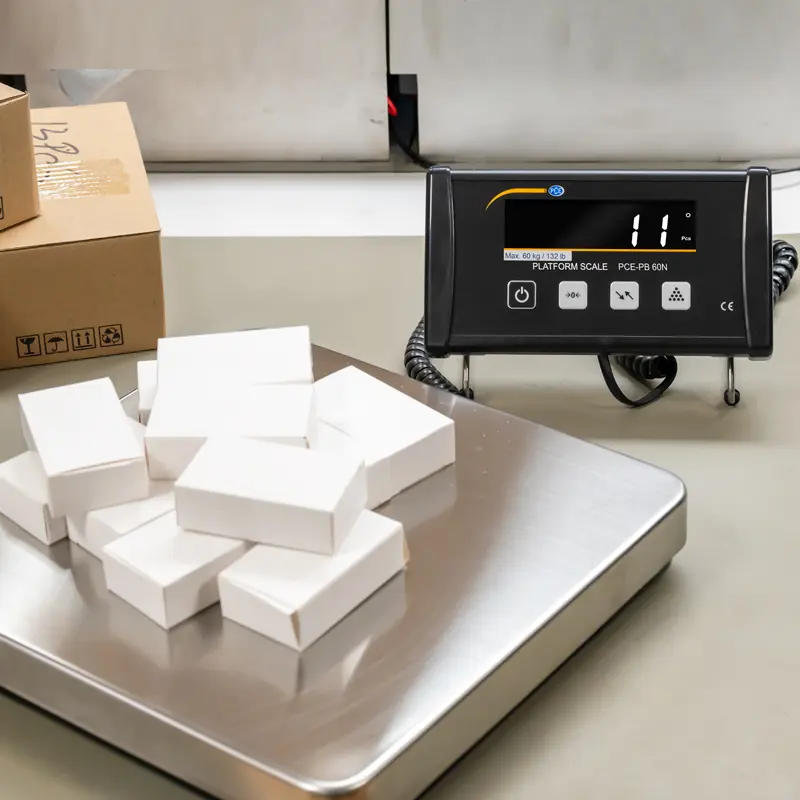

The USB scale with software of the PCE-PB N series is a versatile platform scale. The functions of the USB scale with software are very extensive, but one function is particularly interesting for shipping. It is the bidirectional USB interface of the scale with software that enables control by the PC. However, the USB platform scales of the PCE-PB N series can be used with the optional, inexpensive "ProCell" software. This software simulates keyboard input, similar to a scanner. With the help of this software, the scale with software can then transfer the weight value into active fields.

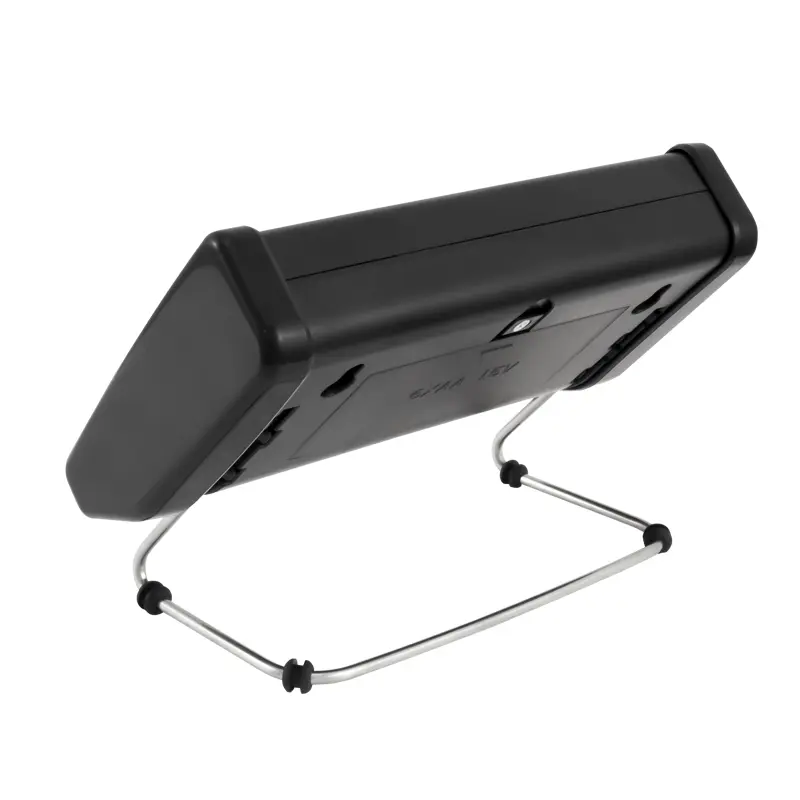

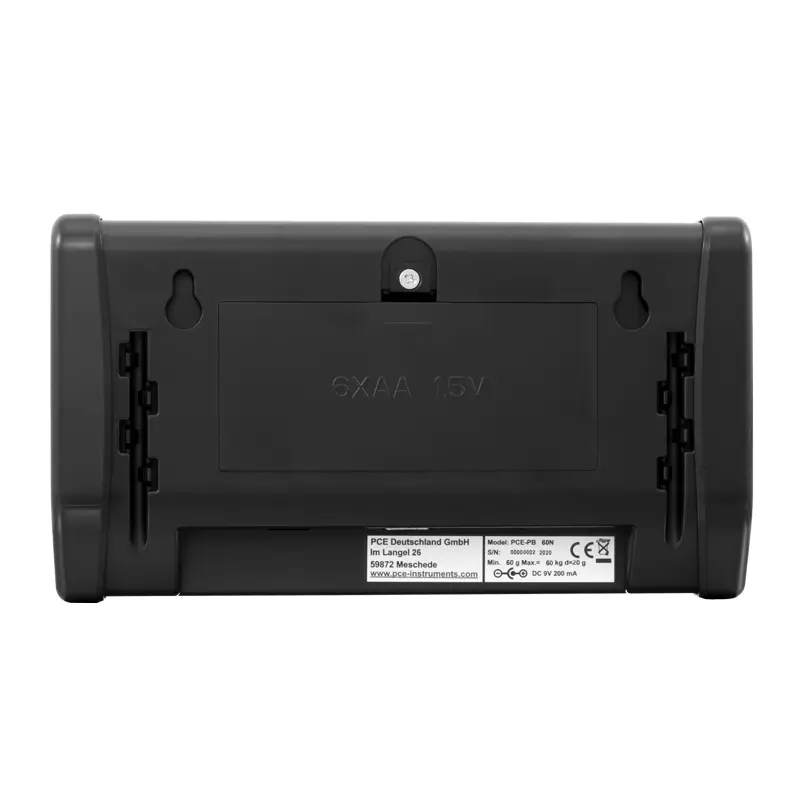

Another advantage of this scale with software is the wired display. The display is supplied with a stand, but it is also suitable for wall mounting. Other interesting functions of the scale with software are the piece counting function, PEAK hold function, function for level control, measuring units such as kg / lb / N (Newton) / g, adjustable background lighting, adjustable automatic switch-off and the option to operate the scales with power pack or batteries.


Highlights

- Bidirectional USB interface
- Spiral cable can be extended to approx. 1.5 m / 59"
- Digit height 20 mm / 0.78"
- Stainless steel platform
- PEAK function (maximum value display)

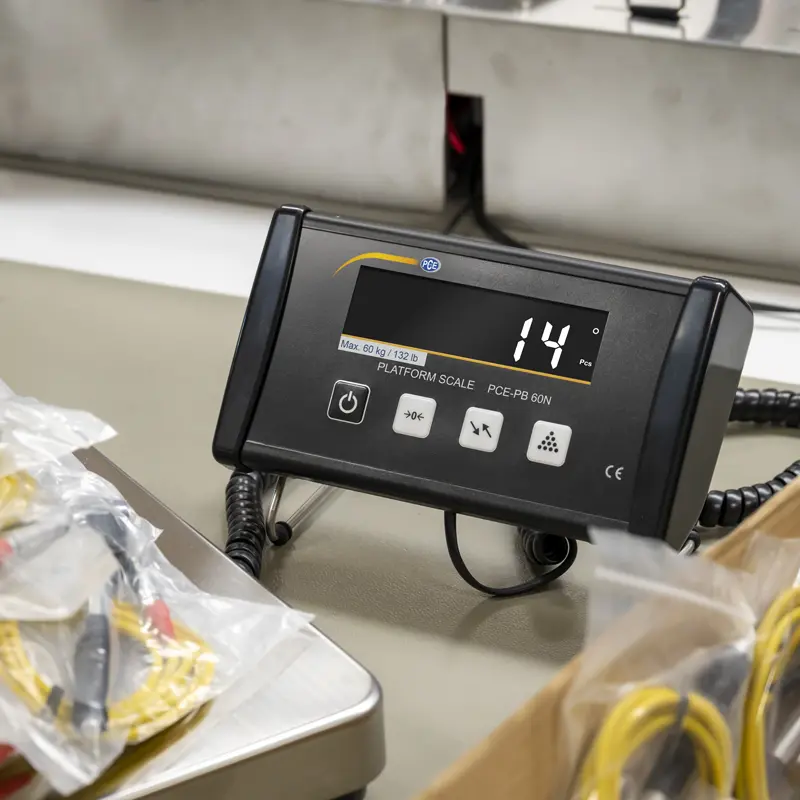

- Piece counting function with reference number of pieces
- Multiple tare
- Function for level control (drum weighing)
- Mains or battery operation
- USB interface cable incl.
- Incl. ISO calibration certificate

Specification

Weighing range (Max) 60 kg / 132 lbs
Minimum load (Min) 60 g / 2.1 oz
Readability (d) 20 g / 1.7 oz
Possible measuring tolerance± 80 g / 2.8 oz
Weighing plate (L x W x H) 300 x 300 x 45 mm / 11 x 11 x 1.7"

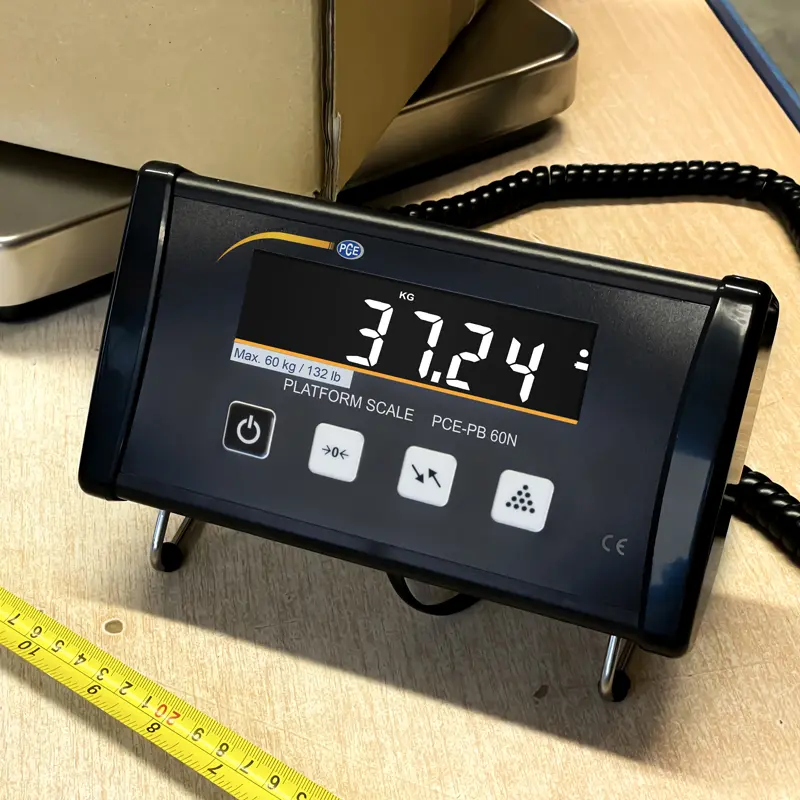

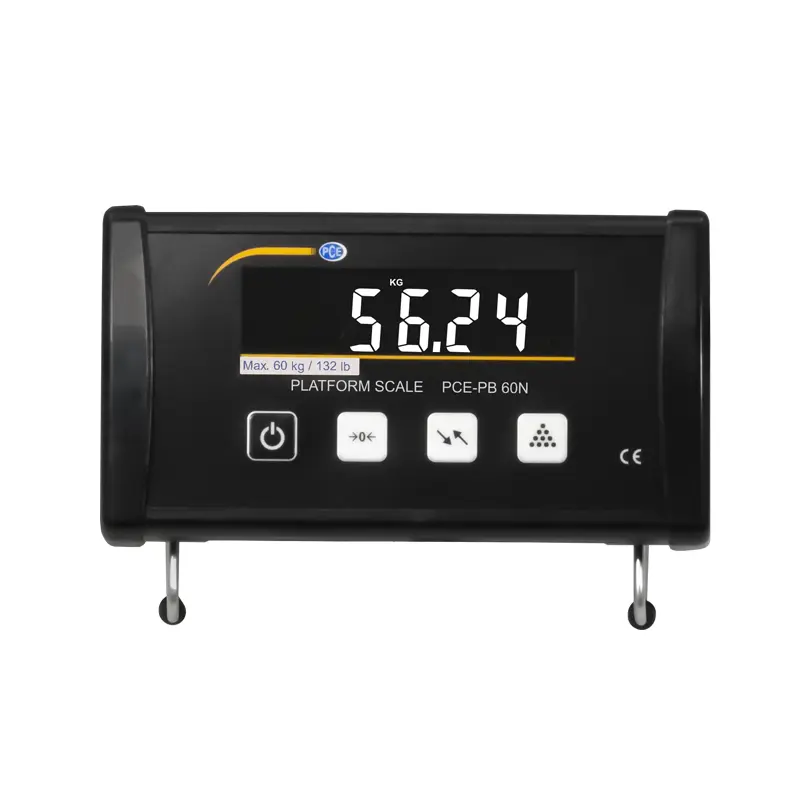

Display LCD 20 mm /  0.78" digit height (illuminated)
Display cable90 cm/ 35" spiral cable extendable to approx. 1.5 m / 60"
(Plug connection on the display)
Measurement unitskg / g / lb / N (Newton)
Functions- PEAK Hold Function (maximum value display)
- multiple tare over the full measuring range
- level control (auto tare OFF function)
- piece counting function (min.1 pc)
- animal weighing function
- adjustable filters for fast response time
- adjustable shutdown and lighting

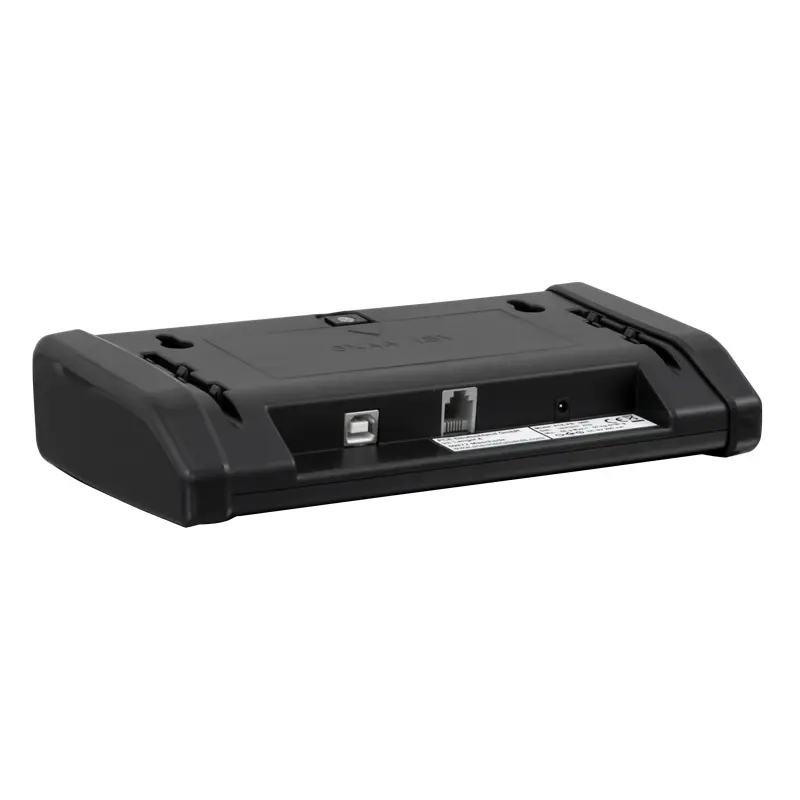

InterfaceUSB bidirectional (query with Sx + CR + LF)
Working temperature+5 ... +35 °C  / 41 ... 95 °F / max. 85% r.H.
Power supplyDC9V / 200 mA power supply unit or
6 x AA 1.5V batteries
Dead weightca. 4 kg / 8.8 lbs
Recommended calibration weight
M1 class (freely selectable)

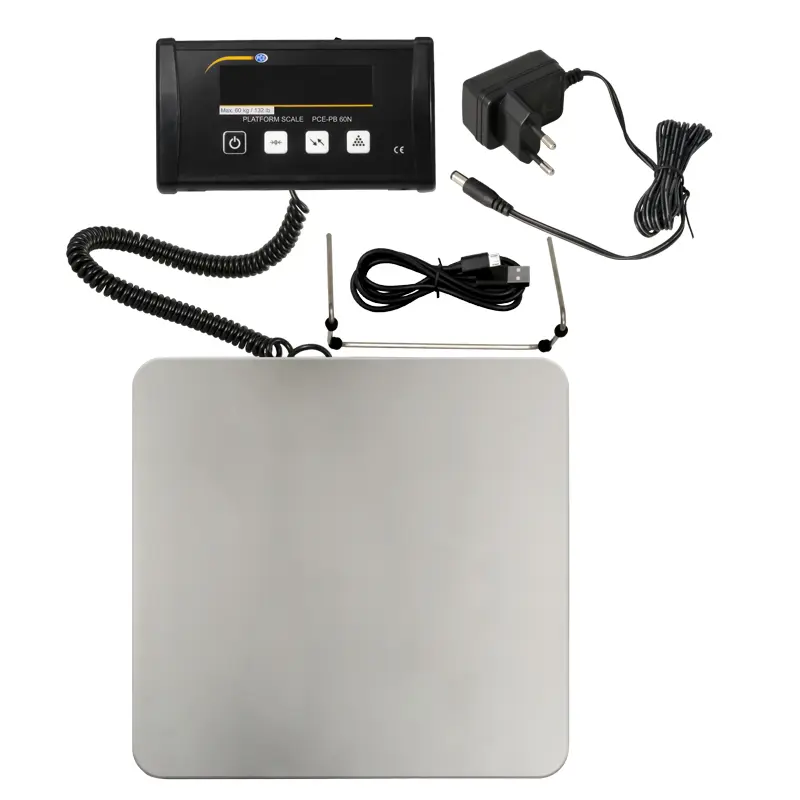

Delivery Scope

1 x Scale with Software PCE-PB 60N-ICA
1 x Display stand
1 x USB interface cable (approx. 1.5 m / 60")
1 x Power supply unit
1 x User manual

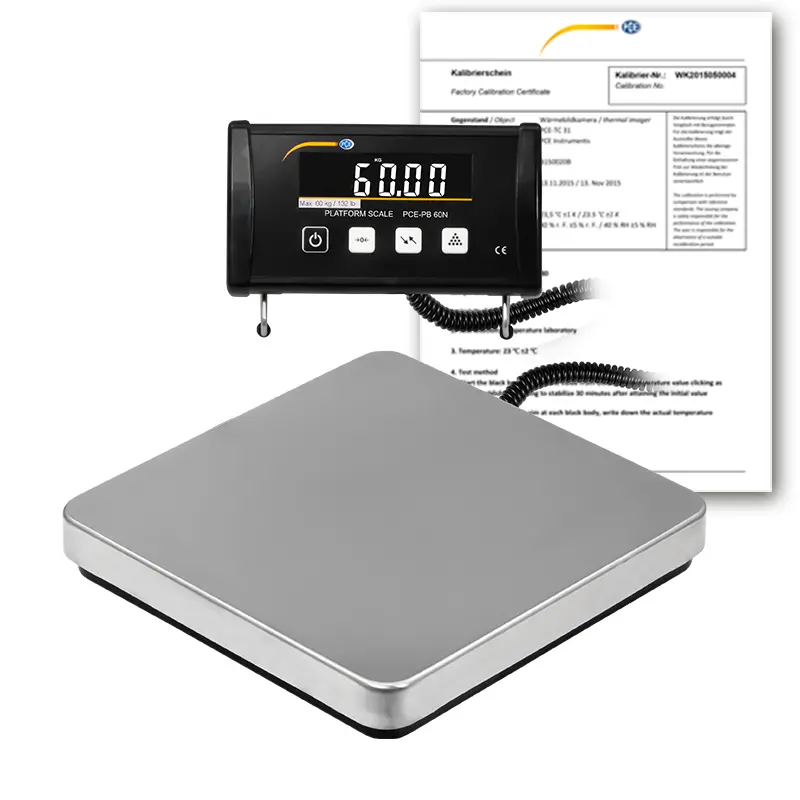

1 x ISO calibration certificate
