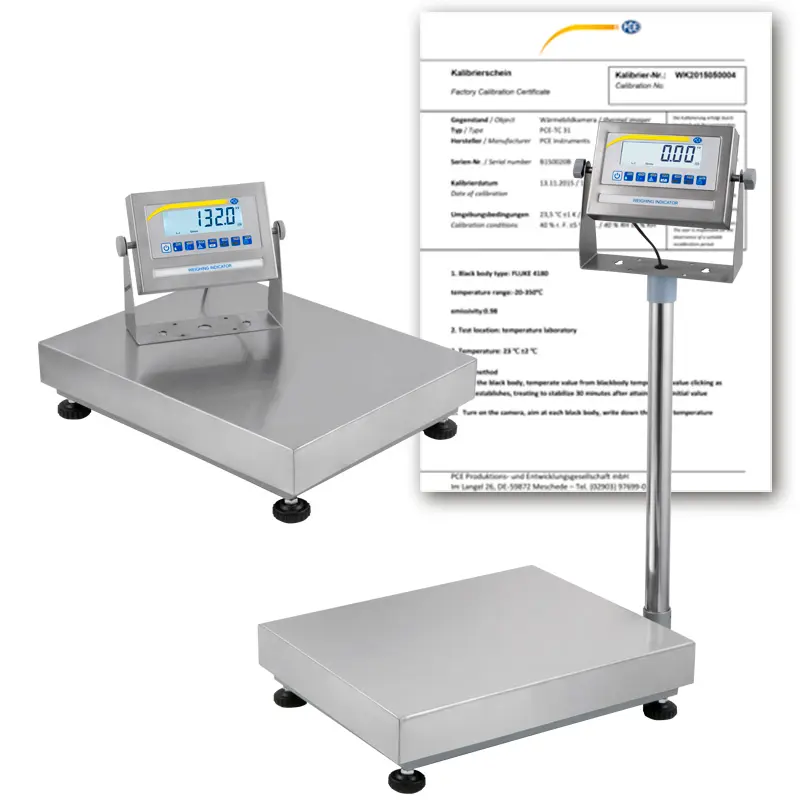

Shipping Scale PCE-EP 30P2-ICA Incl. ISO Calibration Certificate

Order no.: PCE-EP 30P2-ICA

GTIN (EAN):

Description

Two range - Shipping Scale / higher resolution / counting function /

sum function/ detachable tripod / battery /
container weighing function/ bidirectional RS232 interface

The robust shipping scale is a real all-rounder. The stand of the shipping scale can be easily separated along with the tripod mount from the platform and possibly sunk into the workbench. The cable between the platform and the display has a plug attached and is about 1.6 m long. The display of the shipping scale is in a stainless steel housing with protection class IP54. The display can be placed on the workbench, on the wall, or on the stand of the shipping scale. P2 - weighing surface: 500 x 600 mm

In addition to the standard functions such as counting, summing, gross / net weighing, limit weighing function and the PEAK Hold function, the shipping scale has two special functions, i.e. the filter function for dynamic weighings and the container weighing function. The bidirectional RS232 interface allows convenient communication with a PC or printer. With the Per Query Command, the weight of the shipping scale can be queried from the PC. A similar shipping scale, but in calibrated form, we can provide with the PCE-SD series.

Highlights

- Single Point platform scale (1 load cell)
- Two-range scale 15/30 kg
- Freely adjustable measuring unit kg/...
- Bidirectional RS232 interface
- Battery or mains operation
- Display IP54 protection
- Tripod incl. removable tripod mount
- Off timer (deactivated)

- Hold function (freezing the weight display)
- PEAK / MAX weighing function
- Sum function
- Piece counting function
- Animal weighing function
- Weighing function limit MIN / OK / MAX
- Container weighing function
- Filter function
- Incl. ISO Calibration Certificate

Specification


Measuring range	Max. 1 = 15 kg / Max. 2 = 30 kg
Resolution	up to 15 kg = 2 g from 15 kg ... 30 kg = 5 g
Measurement uncertainty	± 3 d (three times the resolution)
Platform size [P2]	500 x 600 mm
Tare function	Over the entire weighing range
Interface	RS-232 Bidirectional / D-SUB 9 Female Optional: - Analog output 4-20 mA 1/1000 + - 4 Potential-free outputs LO / OK / HI / Stable set as a pulse signal or continuous signal.
Display	LCD with 25 mm digit height
Units	kg / lb and freely adjustable weighing unit such as kg/m
Cable length to display	ca. 160 cm / plug attached
Power supply	6V / 4.5Ah battery or 9 V / 1.2 A power adapter (incl.) Power consumption 70 mA
Protection class	IP54
Working temperature	0 ... + 40 °C / 10 ... 80 % r.H.
Dimensions	see Download file "Diagram"
Weight	ca. 25.5 kg
