Shipping Scale PCE-SD 6000F SST

Order no.: PCE-SD 6000F SST

GTIN (EAN): 4250348712417

£ 5,923.00

Price (exclude VAT)

£ 7,107.60

Price (include VAT)

Verification for Trade / conformity assessment

price ex. (VAT / delivery)

GTIN (EAN):

4250348712417

Order no.

PCE-SD 6000F SST

Delivery time: up to 10 working days

Interface Slot 1

Output / Interface Slot 2

Switching Output Slot 3

Additonal functions

+AF-CCP: Plug connection between display and weighing surface with approx. 1.5 m cable (£ +23.00)

+AF-DW-PCE: Additional function dual range weighing (£ +49.00)

+AF-TD-PCE: Additional function time and date (£ +27.00)

Question / Callback

Accessory

Scale Software PCE-SOFT-SC-Pro

£ 183.00

Scale Software PCE-SOFT-SC-Basic

£ 160.00

Scale Software PCE-SOFT-SC-3XPro

£ 344.00

Adaptor RS232 to USB

£ 29.00

Additional date and time function

£ 29.00

LAN interface

£ 133.00

Signal lights for Balances

£ 445.00

Analog output / analog interface 0-10V

£ 120.00

Limit weighing including control interface

£ 53.00

Analog output / analog interface 4-20mA

£ 120.00

USB cable PCE-USB

£ 13.00

RS232 Cable

£ 25.00

USB interface AF-USB-S

£ 80.00

RS485 interface AF-RS485-PCE

£ 62.00

Additional RS-232 interface

£ 31.00

Two additional function ranges for PCE-SD Series

£ 53.00

Stand for PCE-SD Series

£ 160.00

USB Memory Adapter

£ 85.00

Description

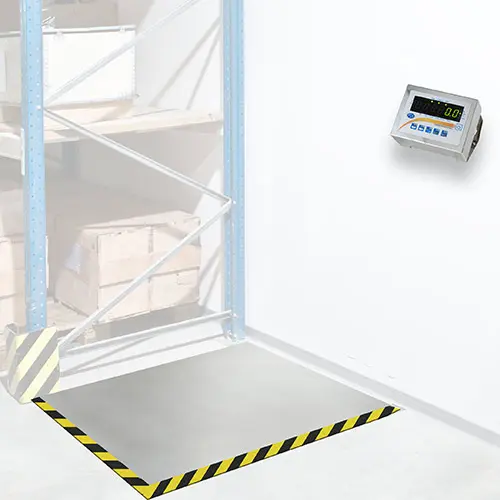

Calibrated stainless steel built-in shipping scales up to 6t / Resolution 2 kg / IP68 - IP65 / Piece counting function / Summing function / RS-232 interface / Removable weighing plate

The stainless steel shipping scale is installed in the counting to obtain a flat surface. As a result, the stainless steel shipping scale can be easily loaded with all kinds of conveyors. The stainless steel shipping scale has a weighing platform bolted to the frame, which can be used as required. Optionally, it is possible to provide the stainless steel shipping scale with a damper which makes it easier to lift the weighing surface. The cells of the stainless steel shipping scale are IP68 protected and the display IP65. Due to the high protection class, the stainless steel shipping scale has no interfaces. These interfaces, such as RS-232, RS-485, USB, LAN, 4-20mA, 0-10V or floating contacts can be installed at our factory. Subsequent installation is not possible. This allows the stainless steel shipping scale to monitor or control production processes.

Highlights

- Piece counting function
- Percent% comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value storable
- Tolerance determination Weight min / ok / max
- Sum up several weighings
- Statistics function
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA

Specification

Model	Weighing range	Resolution	Min.*	Dimensions	Weight
PCE-SD 6000F SST	6,000 kg	2 kg	40 kg	1500 x 1500 mm	210 kg

* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable stainless steel floor installation scale also indicates smaller weights, but these may not be used in legal traffic.

Calibration

calibratable according to class M III (delivered calibrated)

Tare range

multiple tare over the full weighing area

Settling time

<4 s

Display

LED with 20 mm digit height

Cable length

plugged in 5 m

Weighing units

kg / piece / lb

Interface

optional bi-directional RS-232, USB, LAN
Interface description
e.g. 4-20 mA, 0-10V, OC switching contacts

Weighing plate

Smooth stainless steel (unscrewable)

Operating temperature

-10 °C ... +40 °C / 14 ... 104 °F

Power supply

~230V 50Hz 8VA (safety plug)

Protection

cell IP 68 / display IP65

For the installation of the stainless steel installation scale you need the dimensions of the foundations as well as the frame, which are located behind the buttons sketch

Delivery Scope

1 x Stainless Steel Shipping Scale for installation
1 x Display
4 x Floor fixing plates
1 x User manual

Downloads

Datasheet
