Stainless Steel Scale PCE-SD 300SST C

Order no.: PCE-SD 300SST C
GTIN (EAN): 4250348712516
£ 1,334.00
£ 1,600.80
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348712516
PCE-SD 300SST C
Delivery time: up to 10 working days

Description

Calibrated Water Resistant Stainless Steel scale made entirely of stainless steel / weighing range up to 300 kg / IP67 - IP65 protection class / summation function / threshold-function / statistics function /
interface RS-232, RS-485, USB, LAN, Analogue 4-20 mA, 0-10 V, OC optional

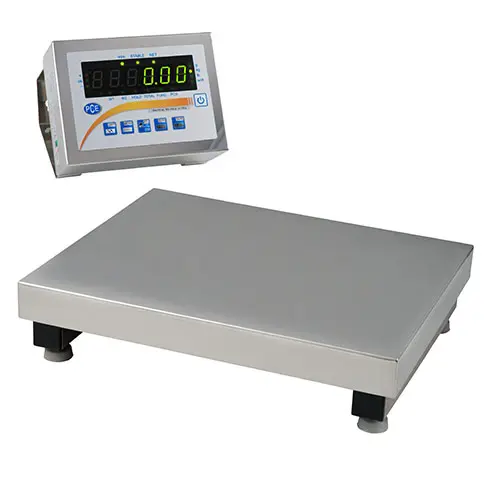

The water resistant stainless steel scale PCE-SD SST featuring a separate display can be MIII calibrated and will be delivered calibrated. The load cells of the water resistant stainless steel scale are IP67 protected, while the display device is made of an IP65 protected enclosure. Thus the water resistant stainless steel scale proves to be ideal for high-moisture locations or such locations that require a high hygienic standard. With the appropriate equipment that is optionally purchasable, you can also use the water resistant stainless steel scale on ships at sea. Standard functions of the water resistant stainless steel scale are: summation function, counting function, statistics function, mixing on formula, percentage weighing function, animal weighing function, alarm on trespassing thresholds etc. Due to its high IP protection the water resistant stainless steel scale does not feature any interface. But optionally interfaces can be purchased for the water resistant stainless steel scale, e.g. RS-232, RS-485, USB, LAN, OC contactors, analogue interfaces 4-20 mA or 0-10 V.

Highlights

- Calibrated according to calibration class MIII
- Completely made of stainless steel IP67-IP65
- Unit Counter
- Summation function
- MAX. / MIN. indication
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / Net display
- Tare storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contactors
- Analogue output optional 4-20 mA / 0-10 V

Specification

Model

weighing range

resolution

calibration value

Min.*

platform size

PCE-SD 30SST C

30 kg

10 g

10 g

200 g

400 x 500 mm

PCE-SD 60SST C

60 kg

20 g

20 g

400 g

400 x 500 mm

PCE-SD 150SST C

150 kg

50 g

50 g

1 kg

600 x 500 mm

PCE-SD 300SST C

300 kg

100 g

100 g

2 kg

600 x 500 mm

* The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.
Calibration ClassM III (is delivered calibrated)
Unit Counter Functioncounting by reference values
Tare functionmultiple taring covering the whole measurement range
Interfaceoptional bi-directional RS-232, USB, LAN
datasheet on interface
as well as analogue output 4-20 mA, 0-10, OC
DisplayLED with 20 mm digit height
Cable Lengthfrom platform to display
Power Source~230V, 50Hz, 8VA (schuko plug)
Protection ClassIP 67 cell / IP65 display
Operational Temperature-10 °C ... +40 °C
Weightplatform 400 x 500 x 120 mm / 17 kg
platform 600 x 500 x 135 mm / 25 kg

Delivery Scope

1 x Water Resistant Stainless Steel Scale PCE-SD 300SST C
1 x display device
1 x instruction manual
