Suspended Scale PCE-DDM 5WI

Order no.: PCE-DDM 5WI

GTIN (EAN): 4250348716682

Accessory

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

£ 1,268.00

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

£ 1,212.00

ISO Calibration Certificate CAL-P-5T

£ 224.00

Description

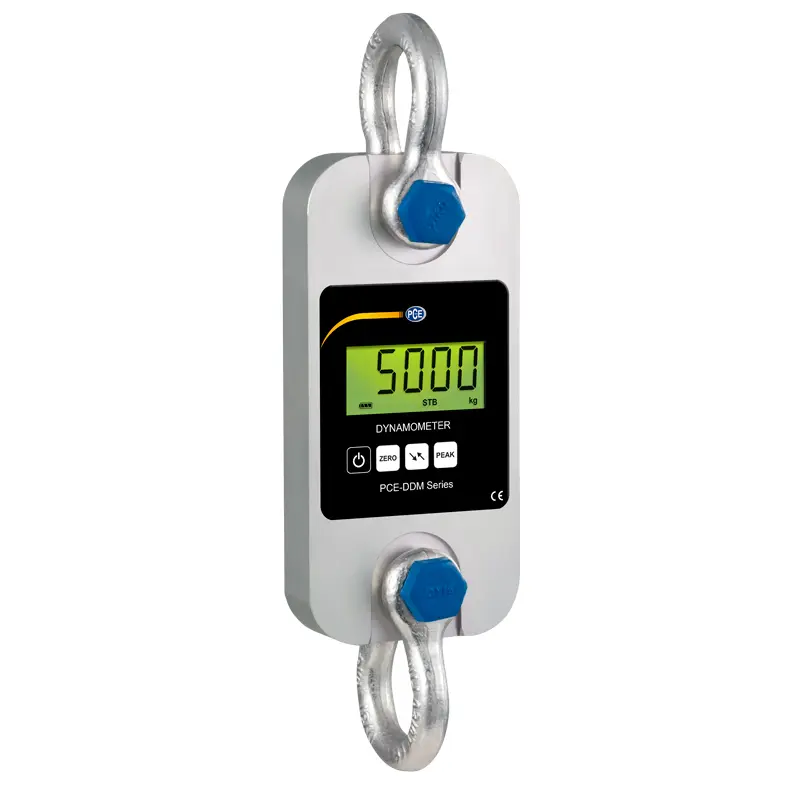

Suspended Scale PCE-DDM 5WI
Max. capacity up to 5 tons / Peak hold, sum and tare functions / Includes shackles, protective carrying case and two-year warranty against manufacturer defects

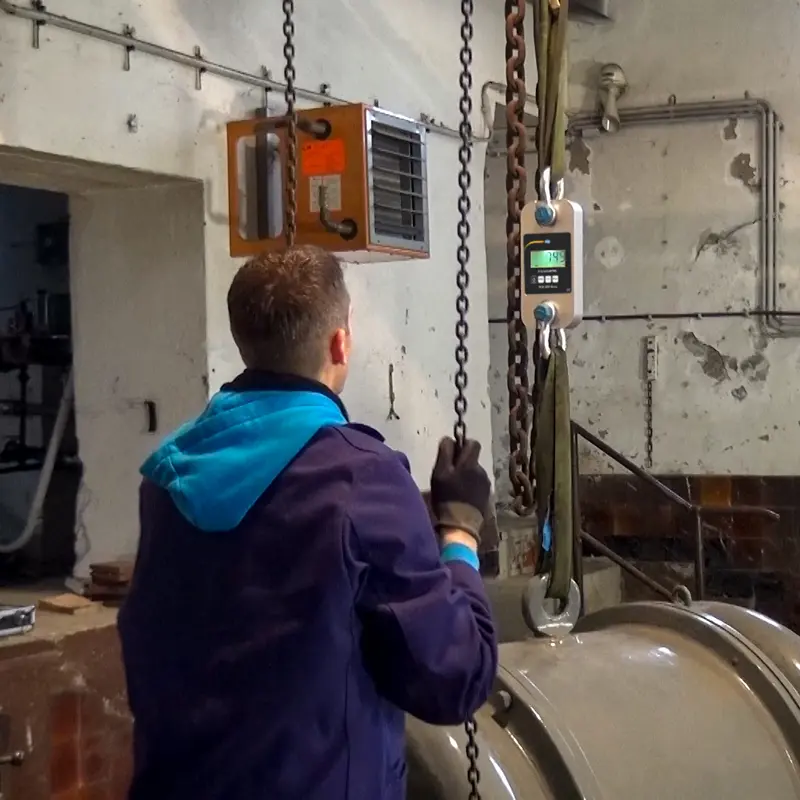

The PCE-DDM 5WI is a rugged suspended scale designed to weigh large hanging loads. The PCE-DDM 5WI is also a durable digital dynamometer specially crafted to measure strong tensile forces. This high-capacity device is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. Each suspended scale is manufacturer calibrated, but can be certified to ISO standards for an additional fee (see accessories for details).

Despite its high capacity and rugged durability, the suspended scale is a compact and portable device with a low net weight. The suspended scale has many useful practical features including peak hold, tare, sum and the ability to select different units of measurement such as kg / t / lbs / N / kN.

Please note that this device is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FM series force gauges (visit similar items tab for details).

Highlights

- High capacity up to 5 t / 11023 lbs / 5000 kg / 50 kN
- Heavy duty, rugged and durable yet compact and portable
- Selectable units of measurement: kg / t / lb / N / kN
- Peak hold, sum and tare functions
- Long battery life - approx. 50 hours of continuous use at full charge
- Includes shackles, protective carrying case and two-year warranty against manufacturer defects
- Manufacturer calibrated, but can be certified to ISO standards for an additional fee
(see accessories for details)

Specification


Maximum capacity	5 t / 11023 lbs / 5000 kg / 50 kN
Resolution	4 lbs / 2 kg / 20 N
Minimum capacity	88 lbs / 40 kg
Device weight (with shackles)	6.6 lbs / 3 kg / (13 lbs / 6 kg)
Accuracy	± 0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 0.9" / 22 mm digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature range	-10° C ... +40° C / +14° F ... +104° F
Power supply	3 x 1.5 V AA batteries
Battery life	Approx. 50 hours of continuous use at full charge

Technical drawing

Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM

A	B	C	D	Ø E	H	Material
285 mm 11.2"	123 mm 4.8"	57 mm 2.2"	210 mm 8.3"	58 mm 2.3"	405 mm 15.9"	Aluminum

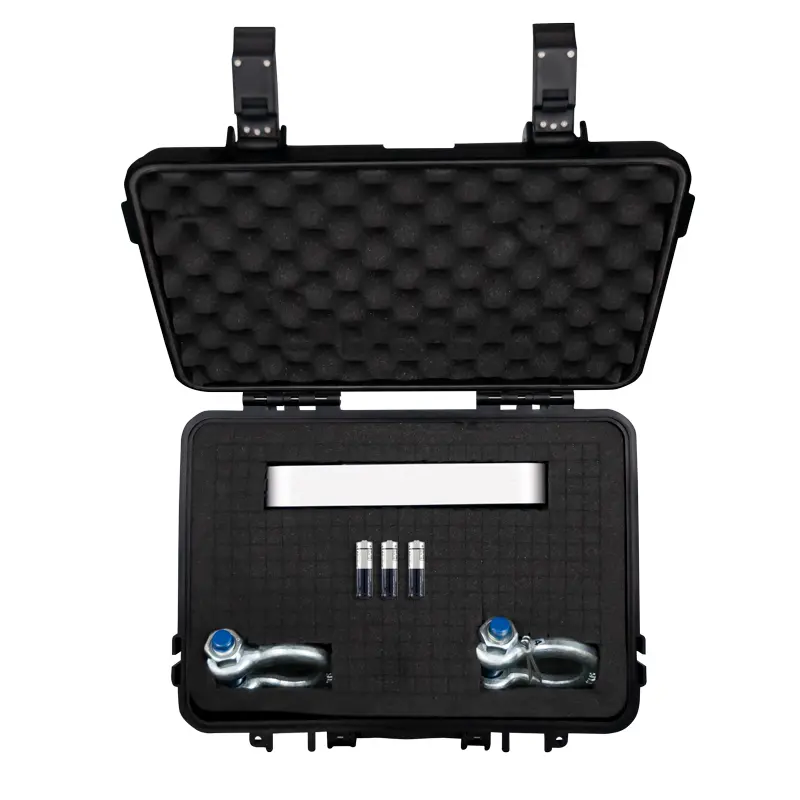

Delivery Scope

1 x Suspended Scale PCE-DDM 5WI
2 x shackles
3 x 1.5 V AA batteries
1 x user manual
1 x protective carrying case

Note: This model does not come with a remote control. If a remote control is desired, please see the PCE-DDM 5 (visit similar items for details).
