Vehicle Weighing Pads PCE-WWSC15T-S4

Order no.: PCE-WWSC15T-S4
GTIN (EAN): 4250348715500
£ 5,480.00
£ 6,576.00
price ex. (VAT / delivery)
:
4250348715500
PCE-WWSC15T-S4
Delivery time: 10 - 14 days

Description

Mobile SOLAS Scale / Vehicle Weighing Pads , Maximum load up to 50 t, 4 platforms, Single load determination, Total weight calculation, Center of gravity calculation, Display with printer, Including calibration

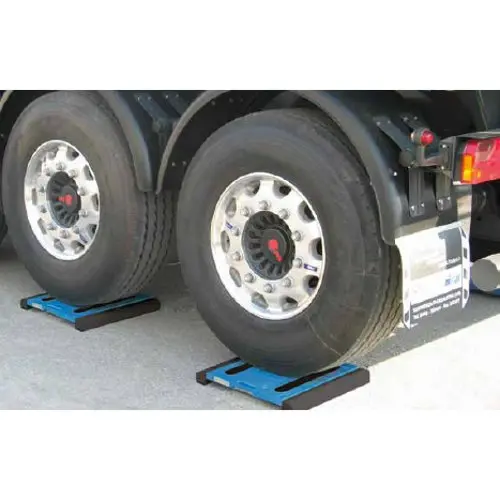

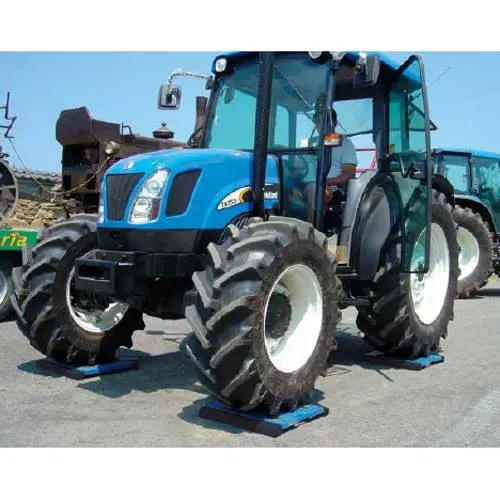

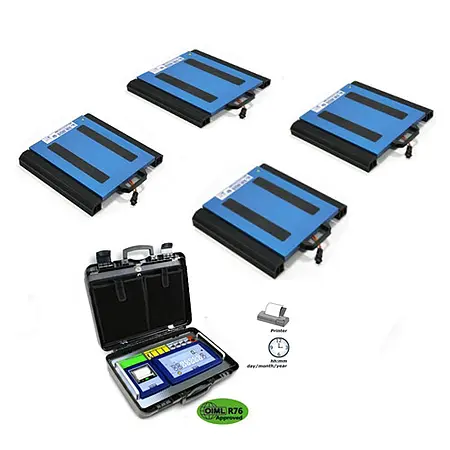

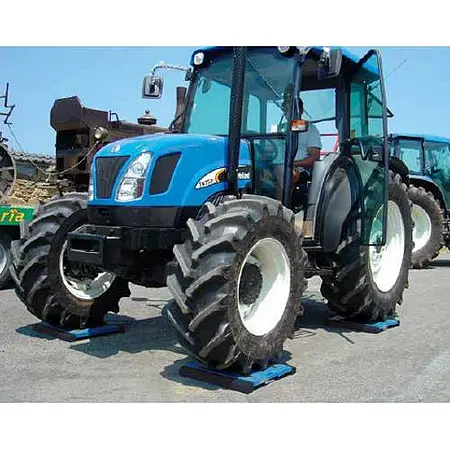

This SOLAS scale / vehicle weighing pads is preferably used in vehicle weighing, but it is designed for every type of static weighing. The SOLAS scale consists of 4 platforms and a display. The display is built into a mobile carrying case including a printer and enables very flexible use. The platforms of the SOLAS scales are made of robust aluminum and weigh approx. 18 kg per plate.

These platforms are to be placed under four support points and connected to the display. The platforms and the display are connected via 10 m long cables. Then the SOLAS balance can start weighing. The SOLAS scale is able to calculate the weight of the individual platforms, the total weight and, after entering relevant data, the center of gravity calculation.

This information can then be printed out or transferred to a PC via the RS232 interface. There is also the option of saving the weighing data on a USB stick. Other interesting functions of the SOLAS scale are: gross / net weighing, manual TARE entries and a totalizing function e.g. vehicle with trailer.

Highlights

- SOLAS scales for mobile use
- 4 platforms for 4 support points
- Platform size 500 x 400 x 58 mm / 19.7 x 15.7 x 2.3"
- Display in the carrying case
- Battery operation
- Digit height 25 mm / 1"
- Display including printer
- Date / time adjustable
- Summing function for trailers
- Calculation of the center of gravity possible
- TARE input possible
- Gross / net weighing

Specification

Technical Data of the Vehicle Weighing Pads
Platform of the SOLAS scale
Weighing range per platform12,000 kg / 12.5 t / 26,455 lb per plate
Weighing range weighing system50,000 kg / 50 t / 110,231 lb (calibrated)
Readability20 kg / 44 lb
Calibration value20 kg / 44 lb

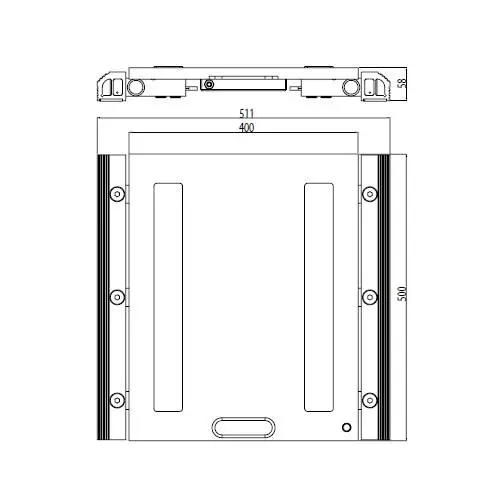

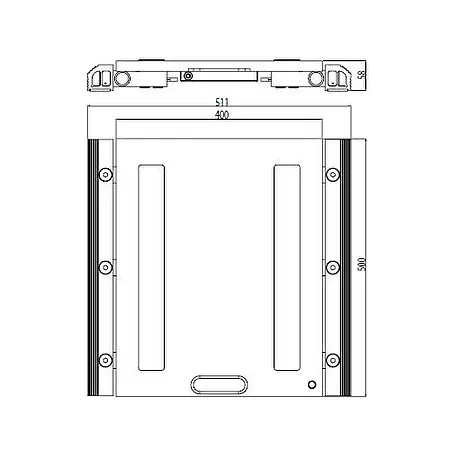

Dimensions per platform500 x 400 x 58 mm / 19.7 x 15.7 x 2.3"
Protection class of the load cells  IP68
Housingrobust aluminum housing
Connection cable lengthca. 10 m / 32.8 ft
Weight per platformca. 18 kg / 39.7 lb
Overall dimensions500 x 511 x 58 mm / 19.7 x 20.1 x 2.3"

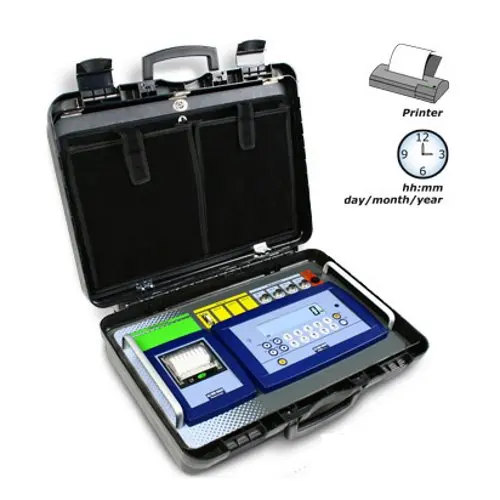

Display of the SOLAS scale
Display LCD display with backlight
Digit height25 mm / 1"
Power supplyrechargeable battery
Working timeca. 10 hrs.
Charging timeca. 8 hrs.
Connection optionup to 4 weighing platforms
Internal printerall weight values including time and date
Weightca. 5 kg / 11 lb
Dimensions325 x 460 x 170 mm / 12.8 x 18.1 x 6.7"

Delivery Scope

Delivery of the SOLAS scale
4 x Weighing platforms
1 x Display in case including printer
1 x Calibration
1 x Instruction manual
