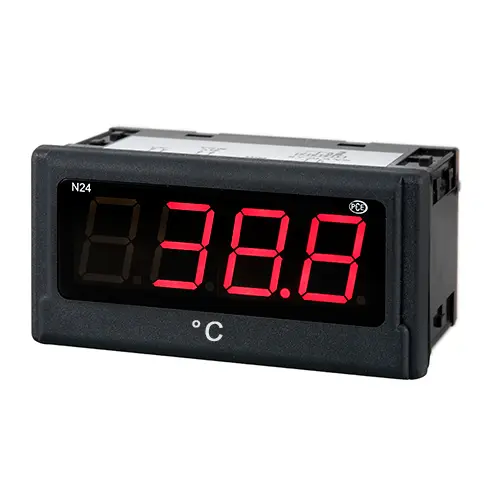

The digital indicator PCE-N25T is used for processing signals
coming from temperature sensors. Depending on your specific needs, the digital indicator can be
ordered with different inputs for thermocouples (type J, K) or resistance thermometers (Pt100).
The input signal of the digital indicator is freely scalable, which increases its application
possibilities.
The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the digital indicator itself can also be selected, depending on your needs. To set up the digital indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.
| Input
(arbitrary) Pt100 Thermal element J Thermal element K |
-50 °C ... +150 °C / -50 °C ... +400 °C -50 °C ... +1200 °C -50 °C ... +1370 °C |
| Accuracy | ± (0.2 % FS + 1 dgt.) |
| Internal resistance | 10 Ω ± 1 % |
| Scaling | 2-point-scaling |
| Display | 4-digit, 7-segments, LED, digit height: 20 mm |
| Display range | -1999 ... 9999 |
| Power Source for Sensor (arbitrary) | 24 V DC, max. 30 mA |
| Surrounding temperature | During
Operation: -10 °C ... +55 °C Storage: : -25 °C ... +85 °C |
| Diameters | 96 mm x 48 mm x 64 mm |
| Size of switch board | 92 mm x 45 mm (according to DIN) |
| Power Source (arbitrary) | 24
V AC 110 V AC 230 V AC 85 ... 253 V AC/DC 20 ... 40 V AC/DC |
| Protection Class | Front: IP 65 |
| Weight | < 200 g |
| Assembly | Mounting
clips with clamp screws, Connection via plug board |
| Enclosure | Solid synthetic enclosure |
