Panel Meter PCE-DPD-U

Order no.: PCE-DPD-U

GTIN (EAN):

Accessory

Relay Output Module for PCE-DPD-U

41,90 €

Relay Output Module for PCE-DPD-U

41,90 €

Modbus RTU Module for PCE-DPD-U

68,90 €

Analog Output Module for PDE-DPD-U

75,90 €

Table Housing PCE-TGH450

131,90 €

Description

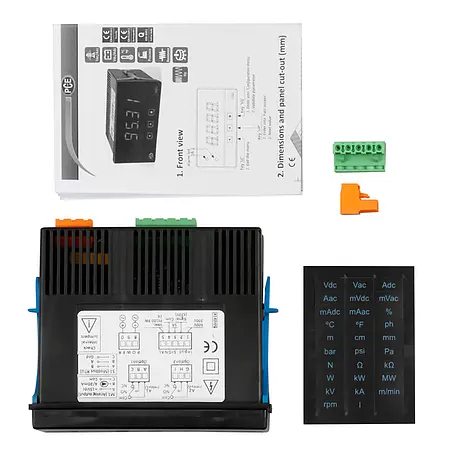

Panel Meter PCE-DPD-U
Multi-signal digital panel indicator to work as voltmeter, ammeter, process signals, temperature, resistors, potentiometers and frequencies / Modular design architecture / 4-digit LED display / Universal power supply 110 or 230V AC or 24V DC

The multi-signal digital panel meter is configurable to work as voltmeter, ammeter, process signals (mA) with and without excitation voltage, temperature, resistors, potentiometers and frequencies. The digital panel meter has a size of 96 x 48 mm and displays the values on a 4-digit LED display. The measurement range is 9999 to -1999 with selectable decimal point. The meter has quick access to alarms setpoint, external contact for special functions, Eco mode of reduced consumption, 5 brightness levels.

The supply voltage of the multi-signal digital panel meter from 18 to 265V AC / DC. Optionally the meter can have relay output, analog output and Modbus RTU communications.

Highlights

- IP 65 on the front
- Different units possible
- Digital display for industrial processes
- Optional outputs
- 4-digit digital display
- Many sensors can be connected

Specification

Input	2-, 3- wire PT100, PT500, PT1000, Ni100, Ni200, Ni1000
	Thermoelement Type K, J, E, N, L, R, S, B, T, C
	Potentiometer: 500 ... 20 kOhm
	Resistance: 5k ... 50 kOhm
	Process signal: 4 ... 20 mA, 0 ... 10 V
	Frequency: 0 ... 100 Hz
	DC-Voltage: 60 mV, 200 mV 2 V, 20 V, 200 V, 600V
	DC-Current: 20 mA, 5 A
	AC-Voltage: 2 V, 20 V, 200 V, 600 V
	AC-Current: 20 mA, 5 A
Measuring rate	3 / second
Resolution	16 Bit
Accuracy	0.1 %
Internal resistance	Voltage measurement: 1 MΩ
	Current measurement: 12 Ω
Scaling	21 points

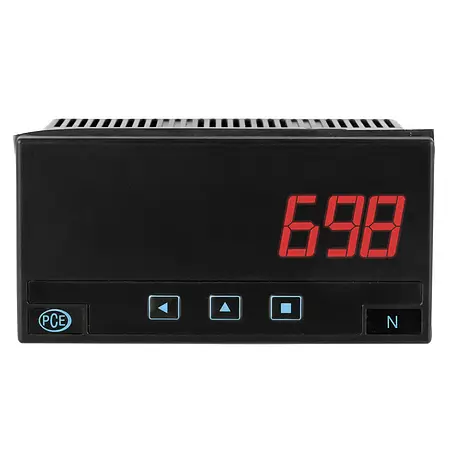

Display	4-digit, 7-segment LED display, tri-color
Display range	-1999 ... 9999
Outputs	cards
Ambient temperature	Operational: 0 ... 55 °C / 32 ... 131 °F
	Storage: -20 ... +70 °C / -4 ... 158 °F
Dimensions digital display	96 x 48 x 91 mm / 3.7 x 1.8 x 3.5"
Panel cutout	92 x 45 mm / 3.6 x 1.7" (according to DIN)
Supply voltage	18 ... 265 V AC/DC
Protection	Front: IP 65
Weight	< 200 g / 7 oz
Mounting	Mounting clips with clamping screws,

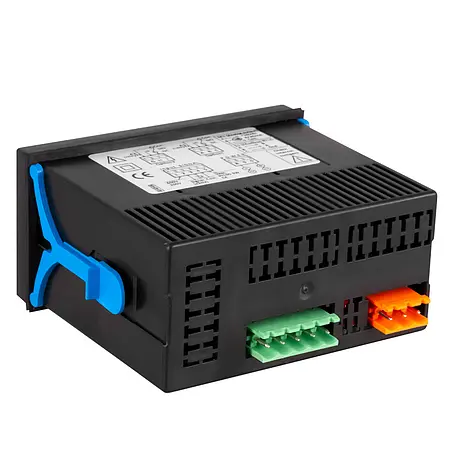

	Electrical connection via terminal strip
Housing digital display	Robust plastic housing
