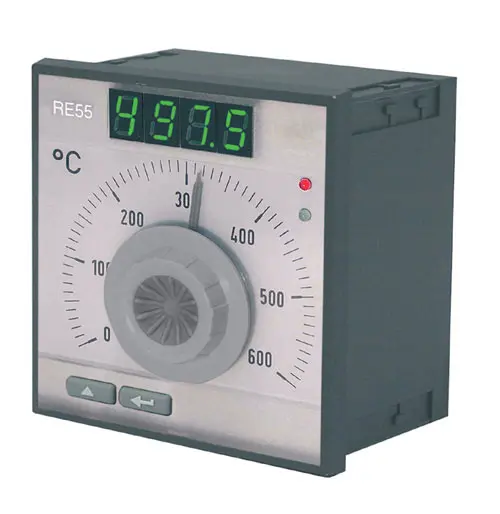

Temperature Controller PCE-RE55-J

Order no.: PCE-RE55-J
GTIN (EAN):
159,90 €
190,28 €
price ex. (VAT / delivery)
PCE-RE55-J
Delivery time: 10 - 14 days
Temperature
Thermocouple
Relays / SSR
no

Description

Simple process controller for thermocouples type J /
Output as a changeover relay or SSR

On / Off temperature control or PID control / optional alarm function



The process controller is a simple temperature controller for use in simple task areas. The input signal is processed by this thermostat with thermocouples type J.The temperature controller features a simple on-off temperature controlin the basic version. Optionally, the temperature controller can be equipped with a PID control. The display of the current measured value is displayed directly on the temperature controller via a 4-digit LED display. The setpoint is set using the dial on the thermostat.

Highlights

- On / Off control

- Cabinet is protected according to IP 40
- for thermocouples type J
- 4-digit LED display


Specification



PCE-RE55-J
Sensor inputThermoelement Type J
Measurement and control areas (selectable)  0 ... 250 °C
0 ... 400 °C
0 ... 600 °C
0 ... 900 °C
Control behaviourOn / off control PID (optional)
Measured value display4-digit LED display
Height: 10 mm
Control outputs (type selectable)Relay, change-over contact: 230V / 2A
SSR output: 0/5 V
Alarm output (optional)Relay, normally open relay: 230V / 1A
Ambient temperatureOperation: 0 ... 50 ° C (optimum 23 ° C)
Storage: -20 ... 70 ° C
Humidity< 85 % r.H. (non-condensing)
Dimensions96 x 96 x 65 mm
Panel cut-out92 x 92 mm
Supply voltage85 .... 253 V AC / DC
Input< 4 VA
ProtectionFront: IP 40
Back: IP 20
Weight< 300 g
Assemblymech. mounting clips with clamping screws
electr.connection via terminal block

Delivery Scope

1 x Temperature Controller PCE-RE55-J
1 x mounting kit
1 x manual
