Sound Sensor PCE-SLM 10

Order no.: PCE-SLM 10
GTIN (EAN): 4250348717498
275,90 €
328,32 €
price ex. (VAT / delivery)
:
4250348717498
PCE-SLM 10
Delivery time: 1-2 working days

Description

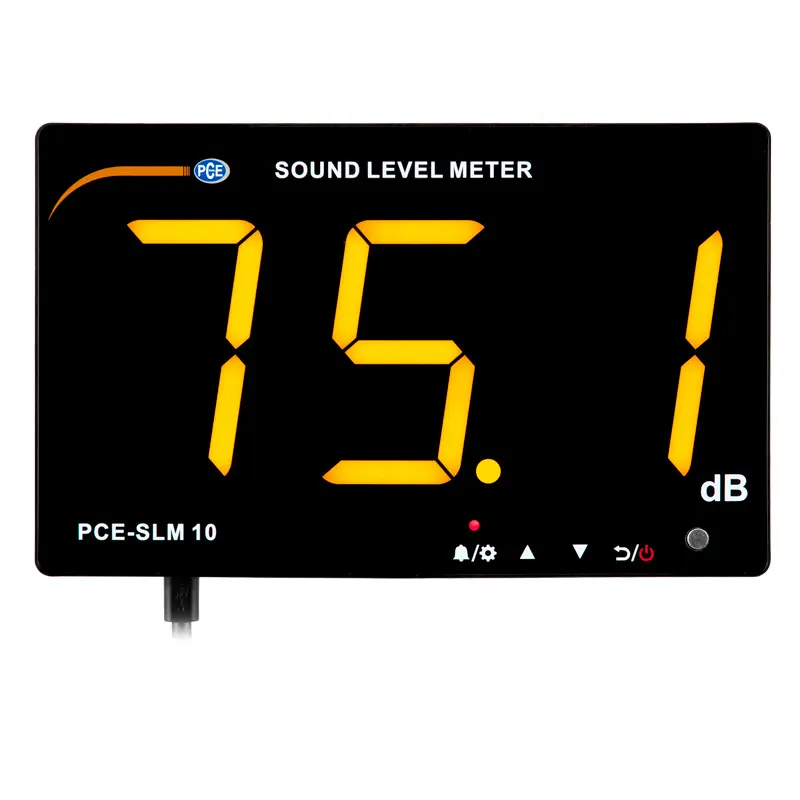

Sound sensor PCE-SLM 10
dB display with 75 mm digit height / 30 ... 130 dBA measuring range / LED display / Wall mounting / Integrated condenser microphone

The dB display PCE-SLM 10 is suitable for the continuous measurement and visualization of the sound pressure level. The PCE-SLM 10 dB display is used in schools, open-plan offices, bars, clubs and other event venues. Due to the large digits of the dB display, the measured value is always easy to read. Due to the LED display, this is also possible in dark environments without any problems. The dB display is powered by USB with the optional AC adapter or external battery pack.

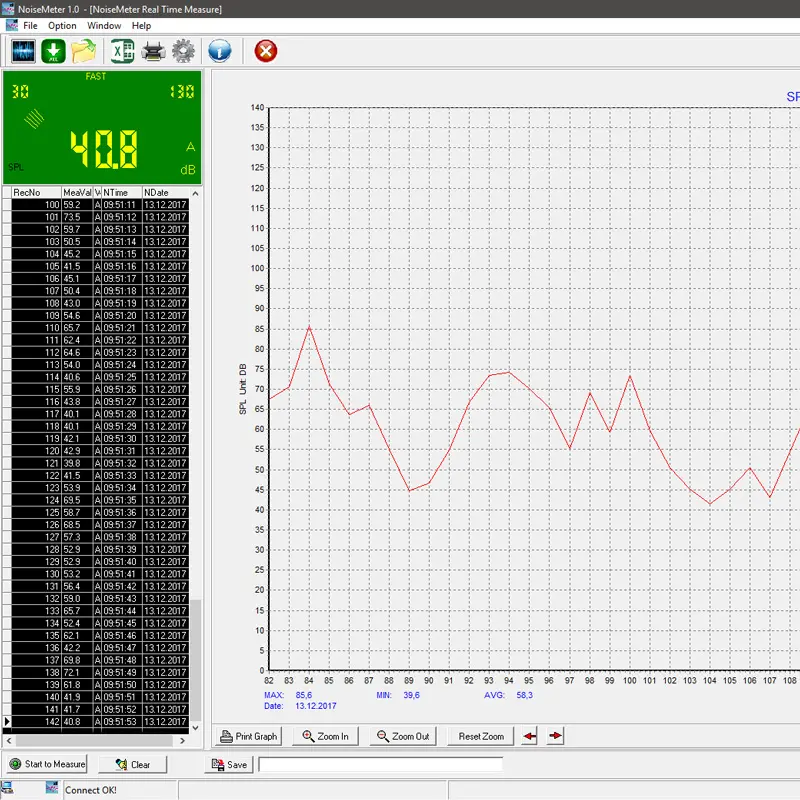

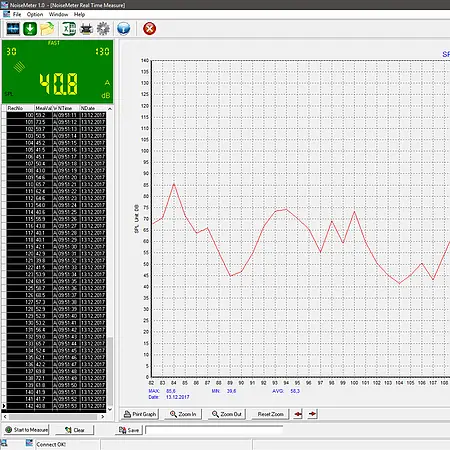

The measuring range of the dB display ranges from 30 ... 130 dB. The sound level meter displays the measured value A weighted. The time weighting of the dB display is always Fast. The frequency range of the 6 mm condenser microphone ranges from 31.5 Hz to 8.5 kHz. The dB interface can be connected to the PC via the USB interface. The software can be used to transmit live measurements to a computer. The dB display also has an internal memory, which can be read out with the software.

Highlights

- 75 mm / 3 in digit height
- 30 ... 130 dBA measuring range
- 0.1 dB or 1 dB resolution
- Wall mounting
- Operation via micro USB socket
- Alarm function
- For offices, schools, event rooms
- Memory for 657,000 readings

Specification

Measuring range 30 ... 130 dBA
Measurement accuracy
± 1.5 dBA (at 94 dB / 1 KHz)
Resolution 0.1 dB (<100 dB)
  1 dB (> 100 dB)
Frequency range 31.5 Hz ... 8.5 kHz
Frequency A
Time weighting Fast
Microphone type 6 mm condenser microphone
Display 3 digit LED display
Character height 75 mm / 3 in
Interface USB
Storage 657,000 readings
Power supply      5V / 1 A via USB socket
Mounting option Wall mounting via housing tabs
  Tripod mounting with integrated tripod thread
Operating conditions 0 ... 40°C / 32 ... 104°F, 10 ... 80% rh
Storage conditions -10 ... 60°C / 14 ... 140°F, 10 ... 70% rh
Dimensions 210 x 130 x 28 mm / 8.3 x 5.1 x 1.1 in
Weight About 453 g / 1 lb

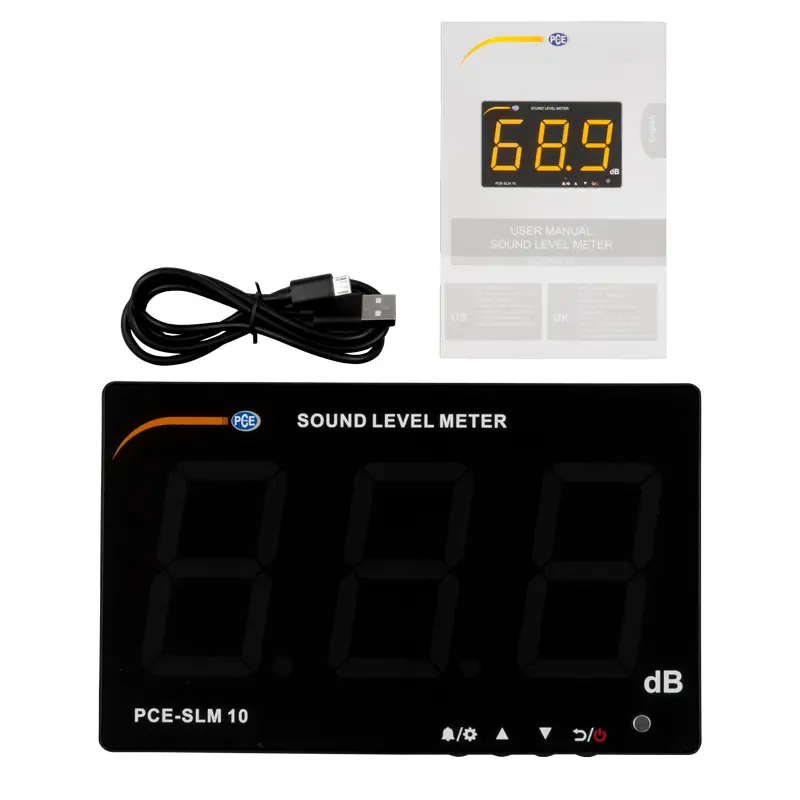

Delivery Scope

1 x Sound sensor PCE-SLM 10
1 x Micro USB cable
1 x User manual
