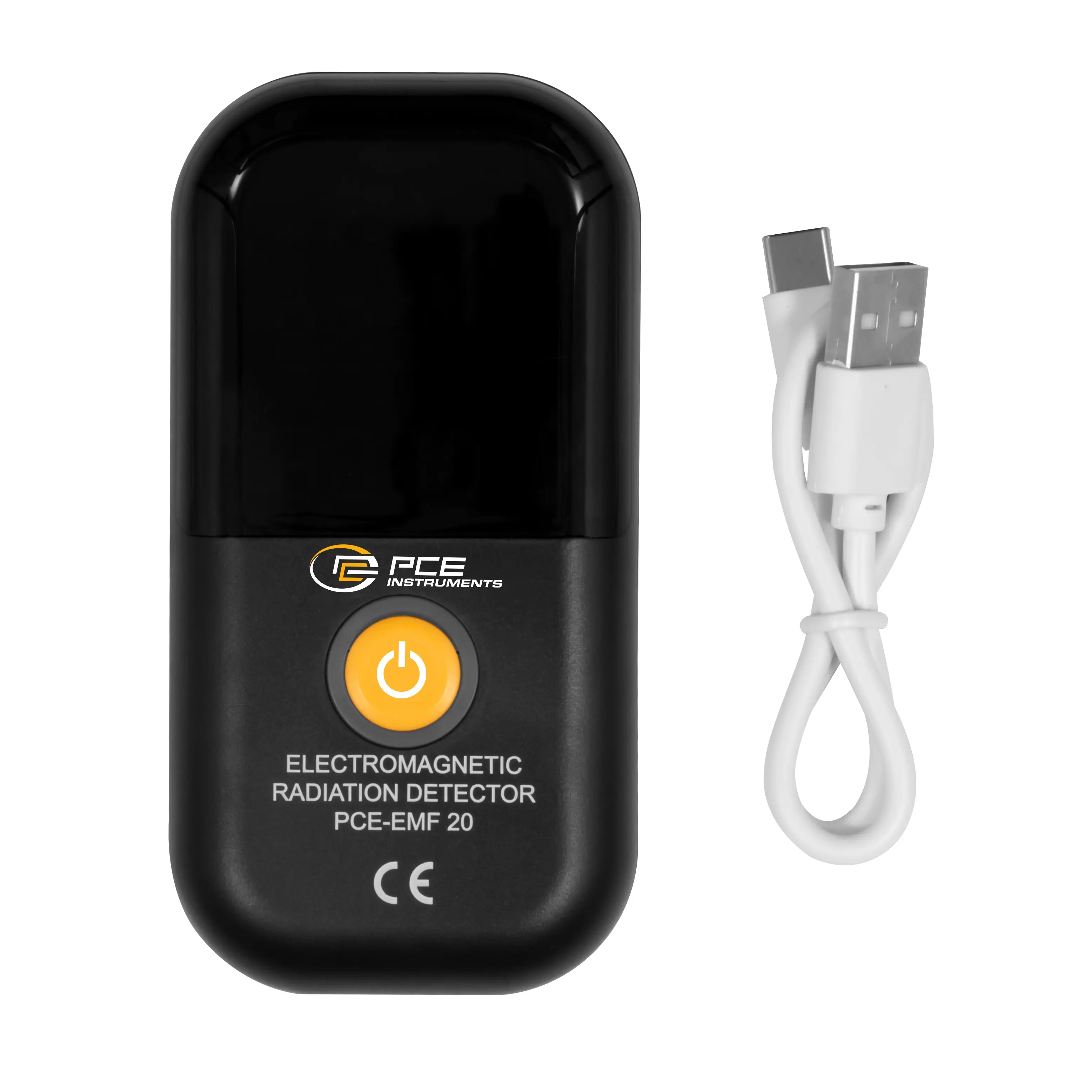

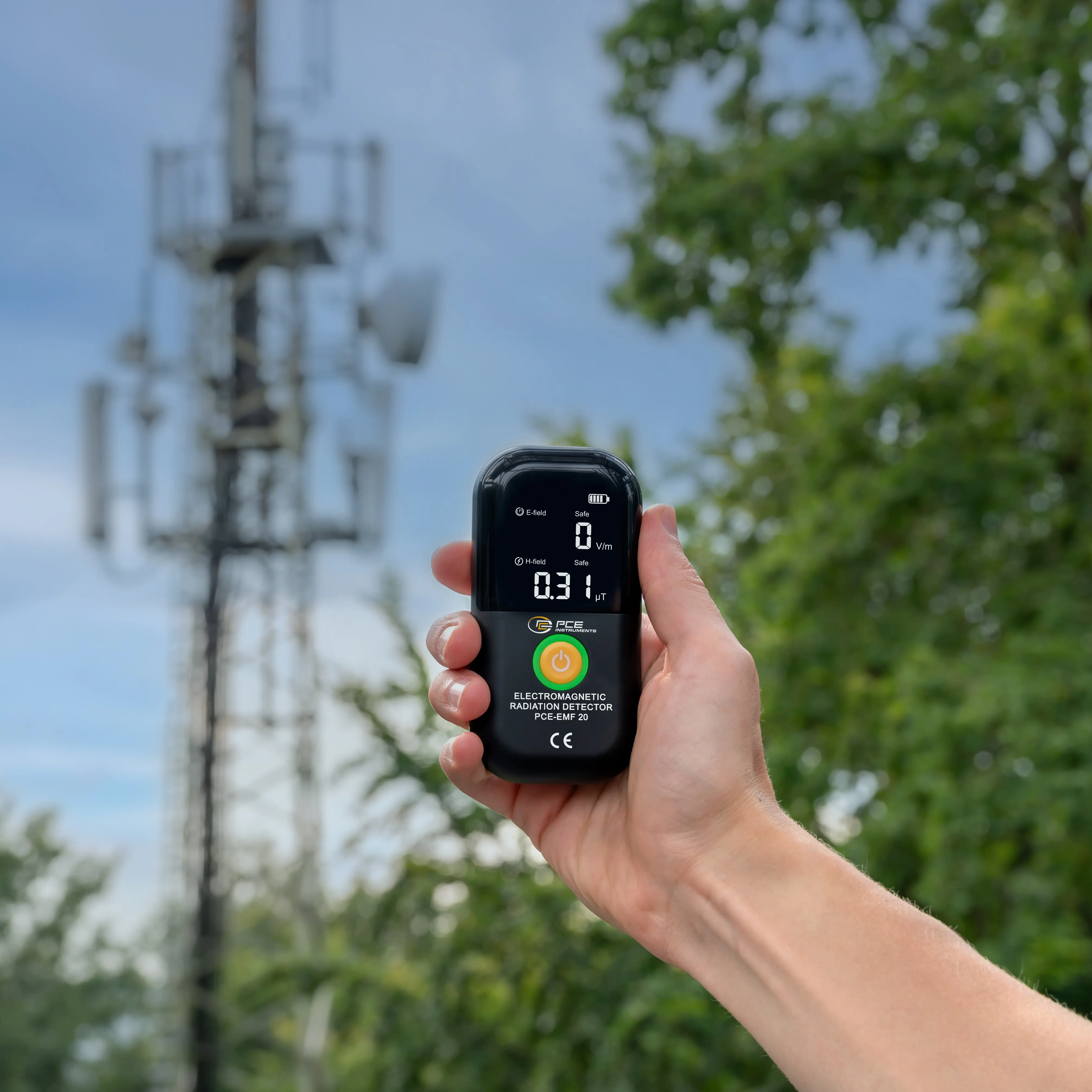

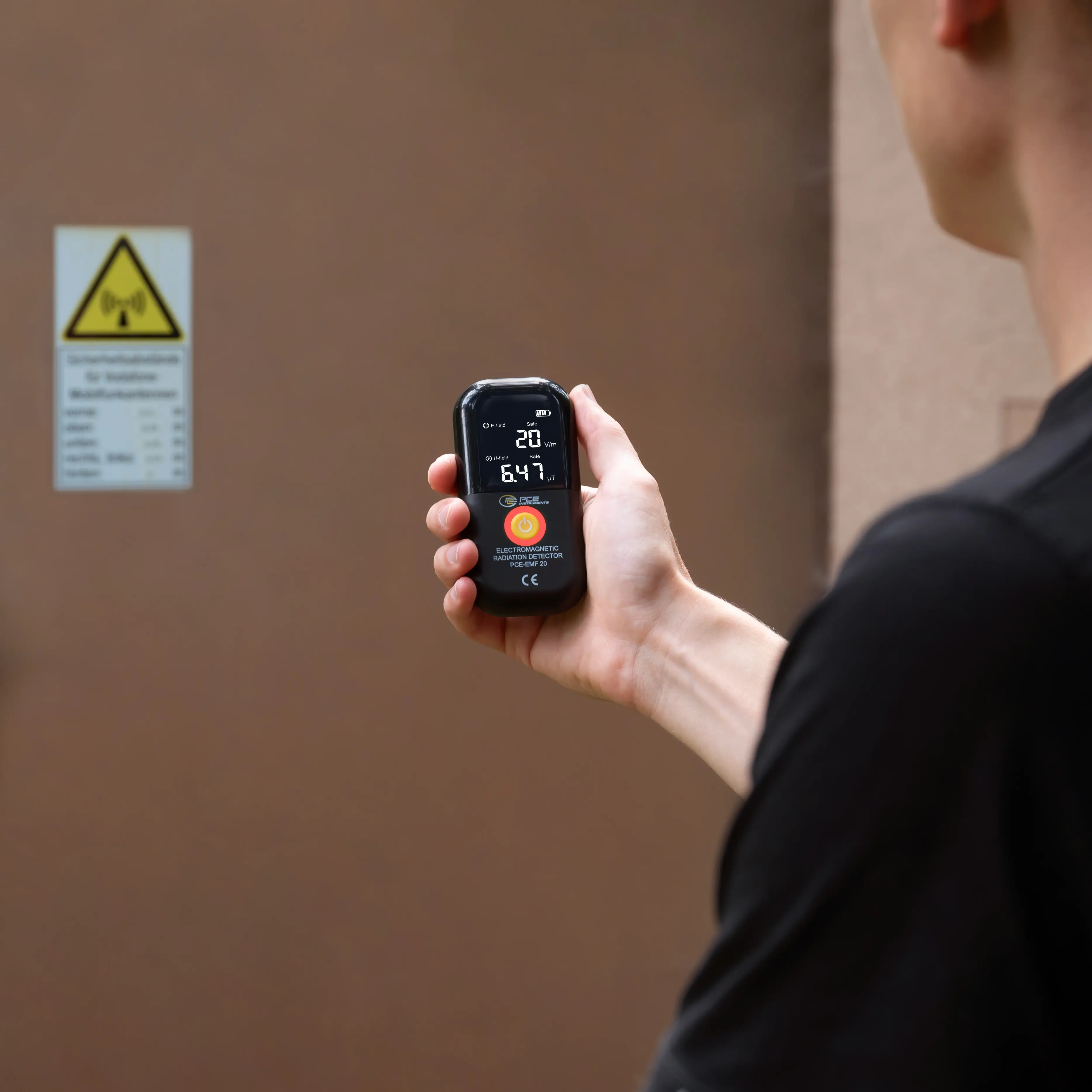

The Magnetometer / Magnetic Field Detector is a device for the simultaneous measurement of electric and magnetic fields. It is ideal for domestic use for testing routers, Bluetooth devices, radios, televisions, computers, printers, microwave ovens, refrigerators and mobile phone masts. It offers a measurement range from 1 to 1999 V/m for electric fields and from 0.01 to 99.99 µT for magnetic fields. The Magnetometer / Magnetic Field Detector has an alarm threshold of 40 V/m or 4 µT, above which an audible alarm is automatically triggered.

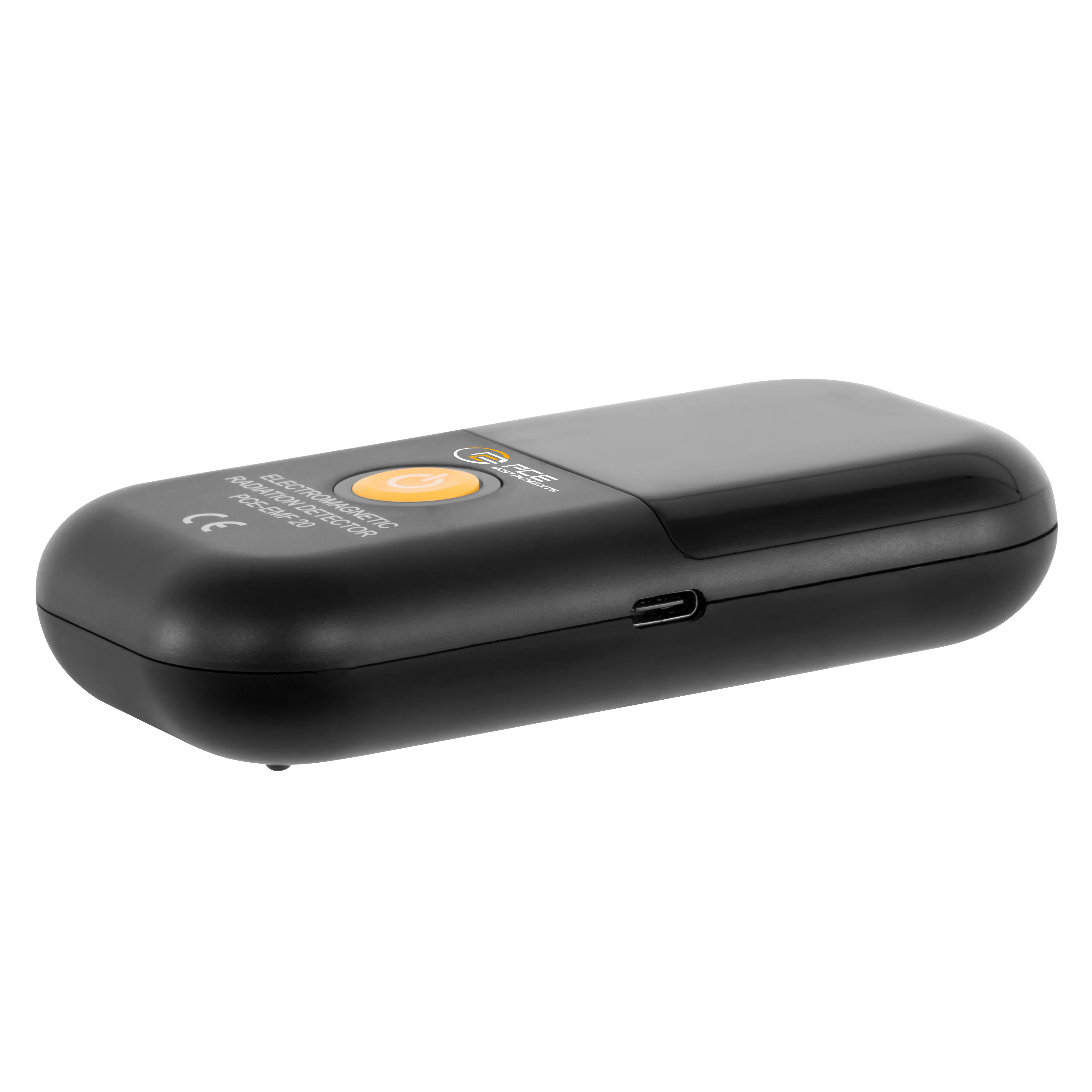

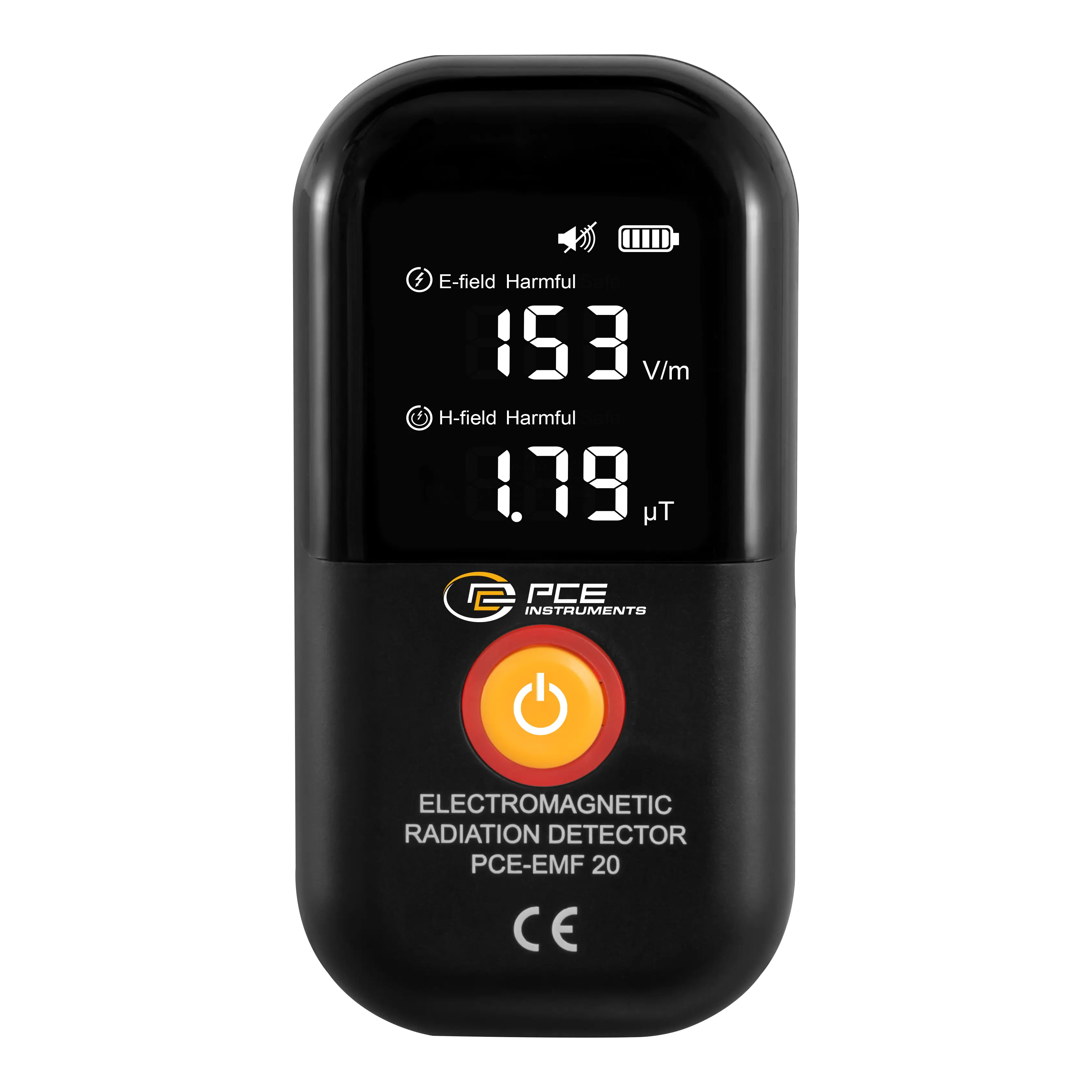

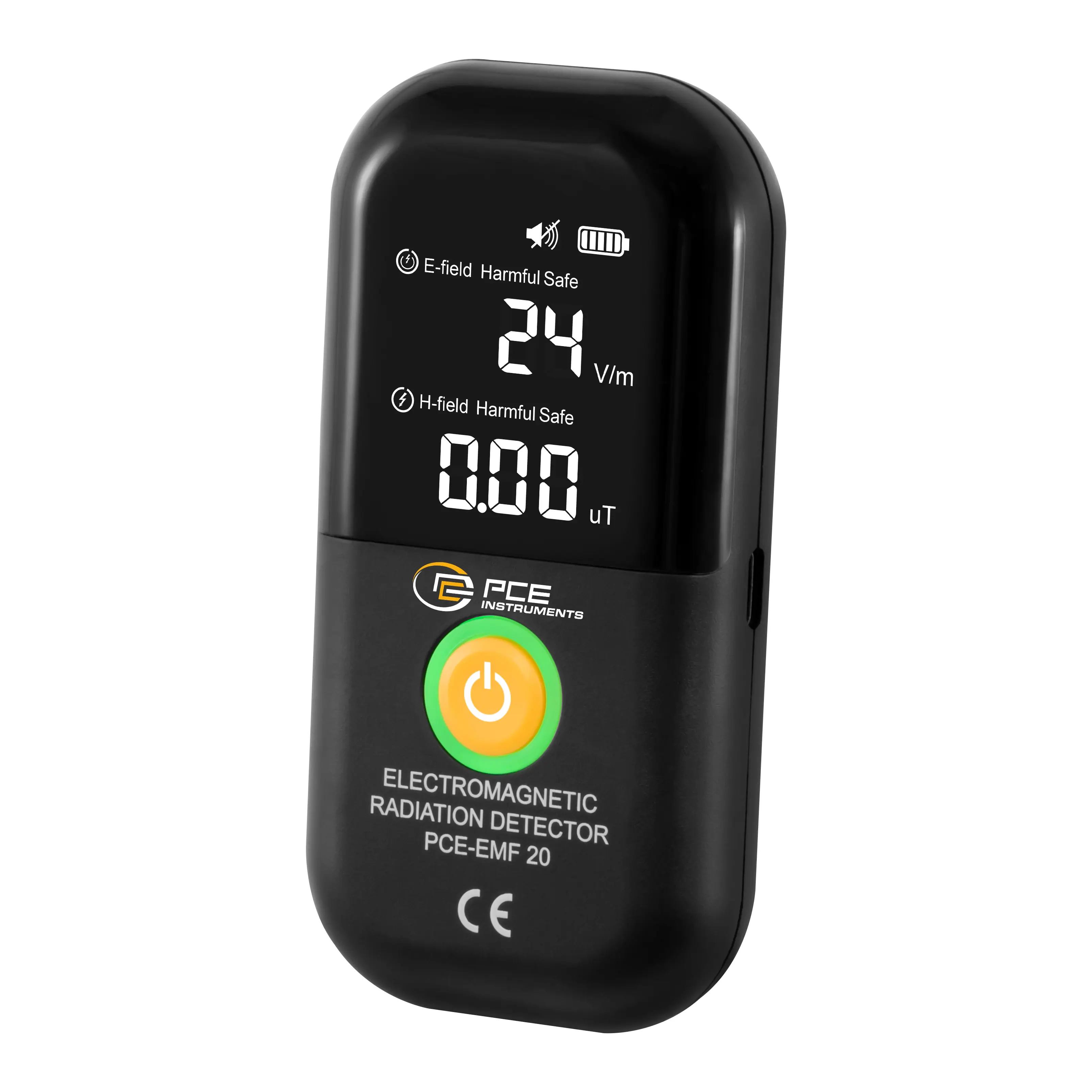

The Magnetometer / Magnetic Field Detector operates within a bandwidth of 5 Hz to 3500 MHz and takes less than a second to deliver a measurement result. A built-in rechargeble 700 mAh lithium battery with USB-C interface makes the device convenient and durable. An LED display provides a clear indication of the measured values and the compact design with only one key ensures easy use. In addition, the Magnetometer / Magnetic Field Detector switches off automatically when inactive to save energy.
| Radiation | |
| Measurement range up to | 1 ... 1999 V/m |
| Resolution | 1 V/m |
| Accuracy | 1 V/m |
| Radiation | |
| Measurement range up to | 0,01 ... 99,99 µT |
| Resolution | 0,01 µT |
| Accuracy | 0.01 µT |
| General technical data | |
| Display type | LED |
| Display size | 2,2 Inch |
| Interface | USB-C |
| Response time | 0,5 s |
| Automatic power-off | 5 min |
| Bandwidth MF from | 5 Hz |
| Bandwidth MF to | 3500 MHz |
| Bandwidth EF from | 5 Hz |
| Bandwidth EF to | 3500 MHz |
| Alarm | Acoustic, optical |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 5 V |
| Weight | 75 g |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| (Rechargeable) battery | 1 x 3,7 V SL 603040 , Lithium-ion battery |
| Capacity | 700 mAh |
| Dimensions ( L x W x H ) | 110 x 55 x 23 mm |
