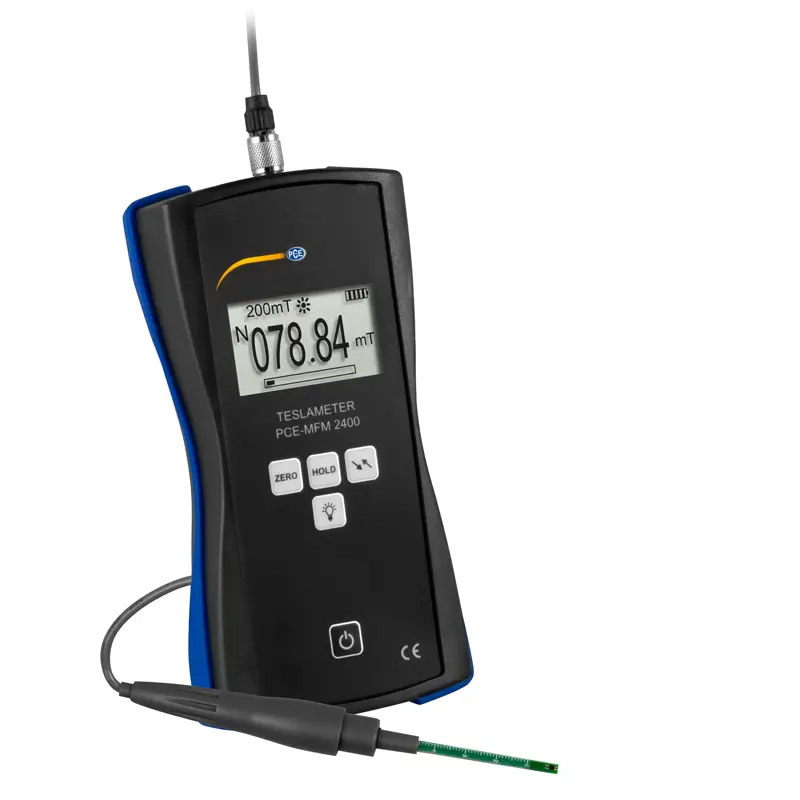

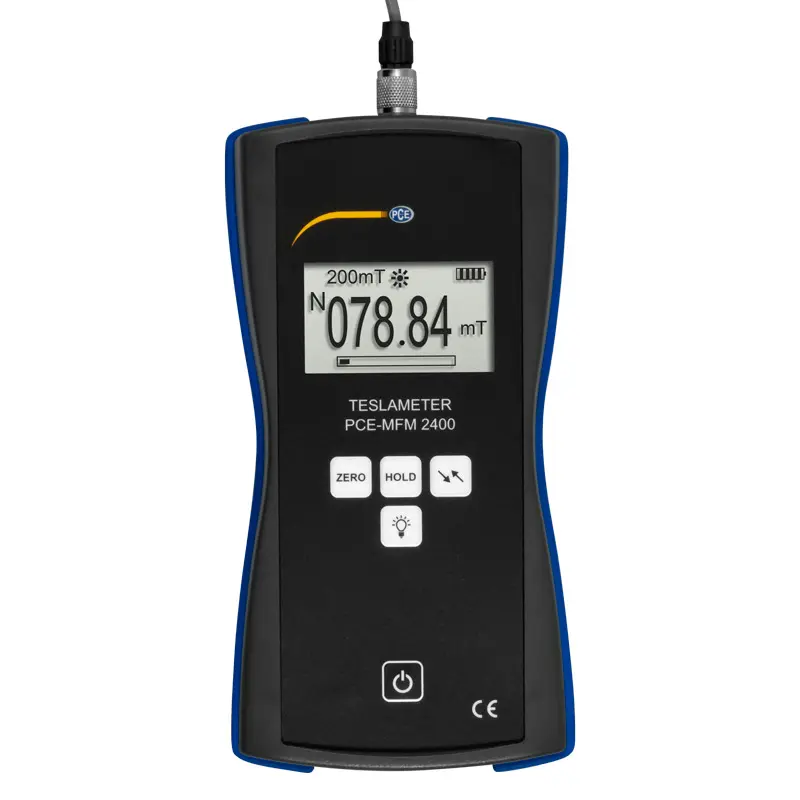

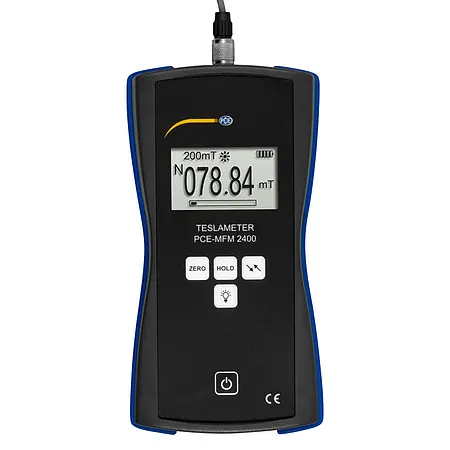

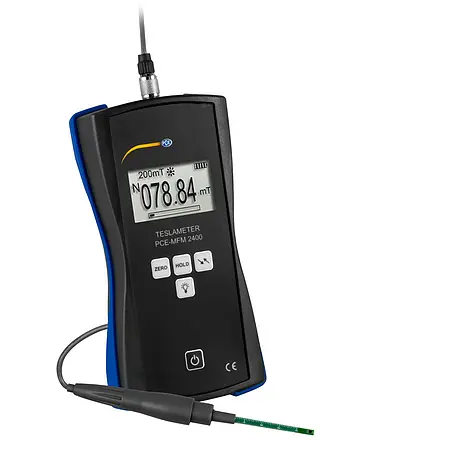

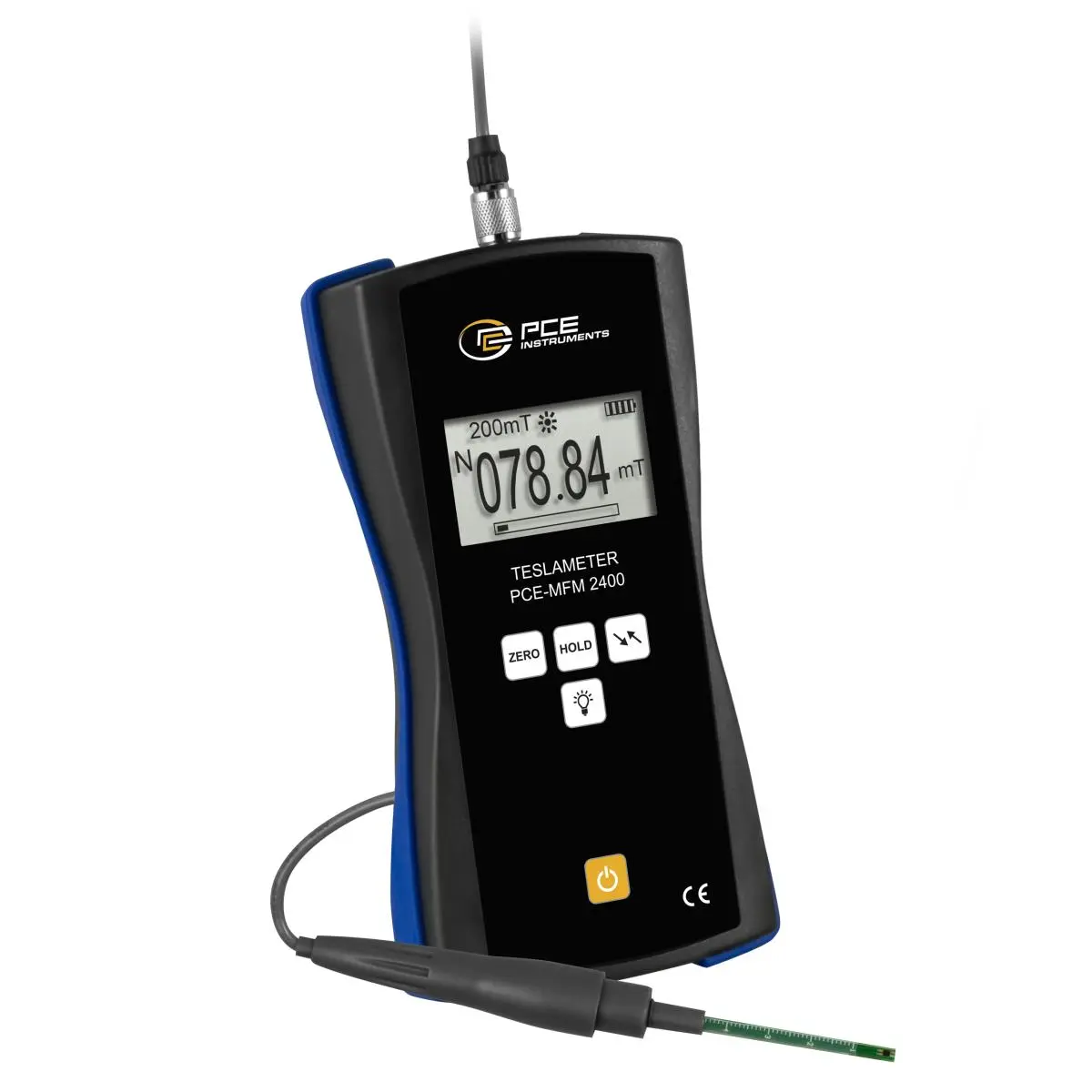

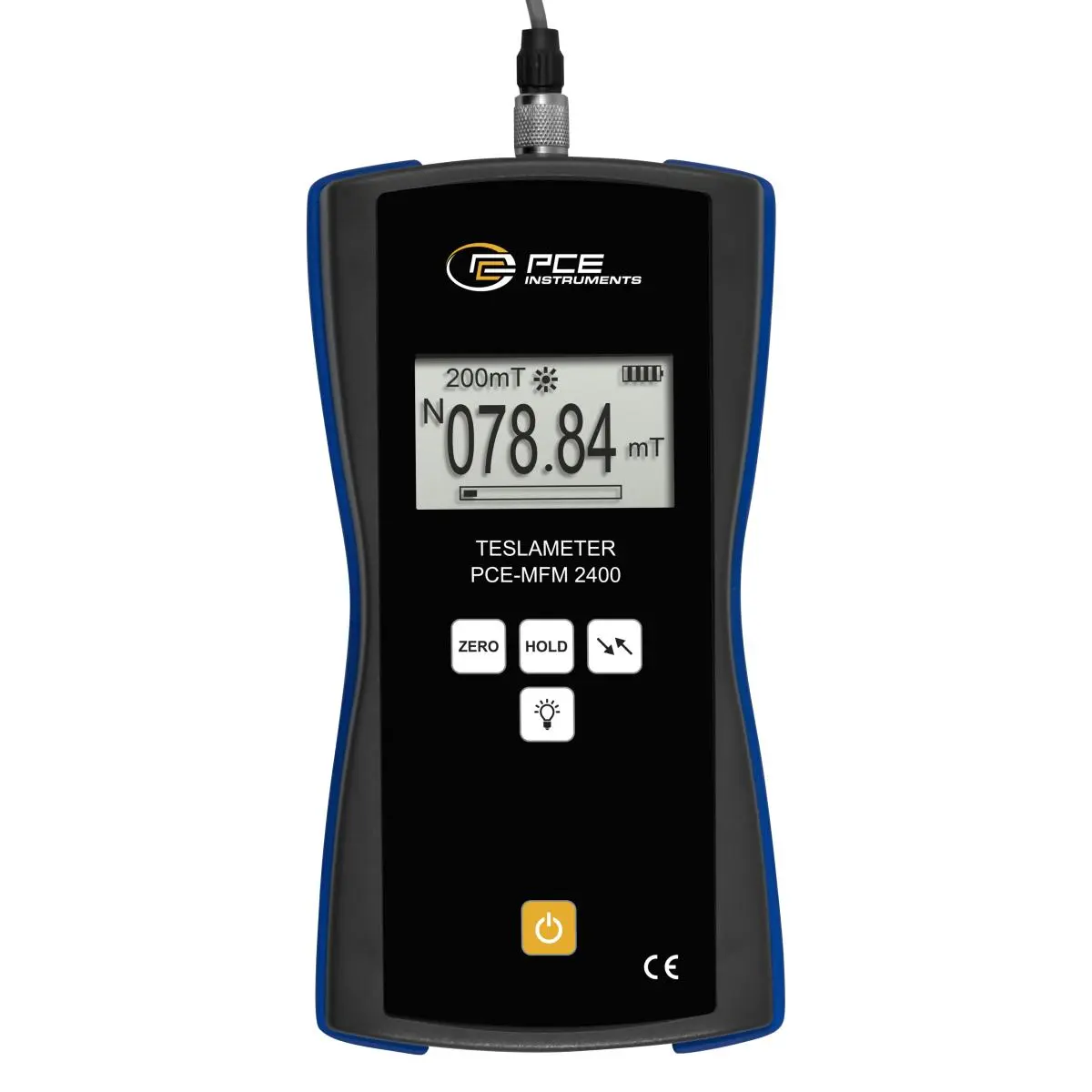

Magnetometer PCE-MFM 2400

Order no.: PCE-MFM 2400
GTIN (EAN): 4250348722096
786,90 €
936,41 €
price ex. (VAT / delivery)
:
4250348722096
PCE-MFM 2400
Delivery time: 1-2 working days

Description

Precise Magnetometer with an accuracy of 1% /
automatic switch-off / transverse measurement / backlight /
Tesla and Gauss measurement / for static magnetic fields

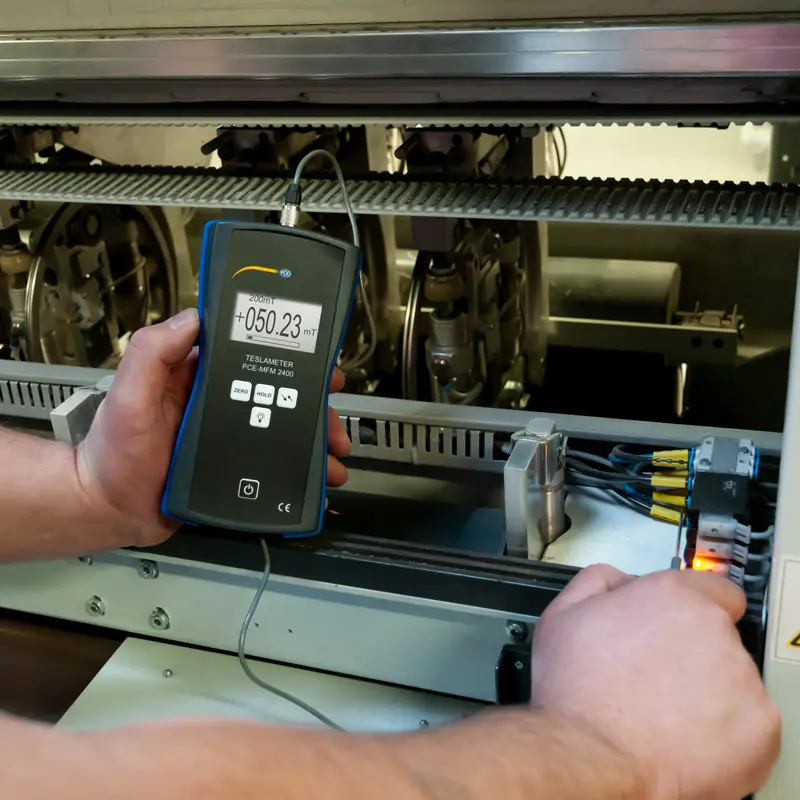

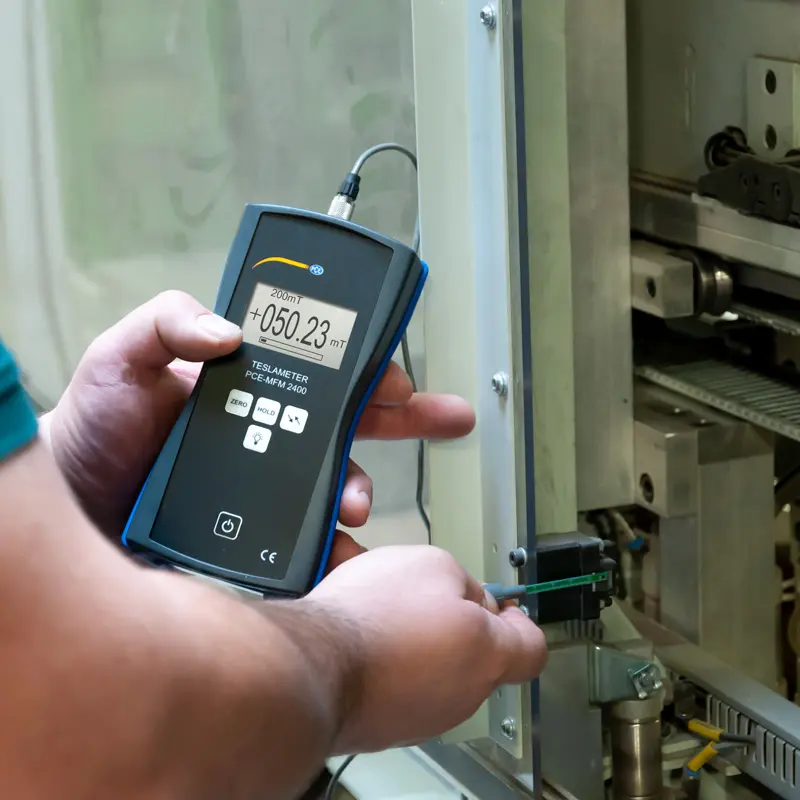

With a measuring range of 2,400 mT, the magnetometer covers a wide range of measuring tasks. The magnetometer has an accuracy of 1%. This makes the magnetometer a very precise measuring device. For example, the magnetometer can be used to test relays and permanent magnets for the existing magnetic field. The magnetometer is therefore used in production processes or in quality control.

With the backlight on the magnetometer, the measured values ​​are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the magnetometer automatically switches itself off after 5 minutes. This ensures that the battery of the magnetometer does not discharge completely.

Highlights

- very precise measurement technology
- Measuring range up to 24,000 G and 2,400 mT

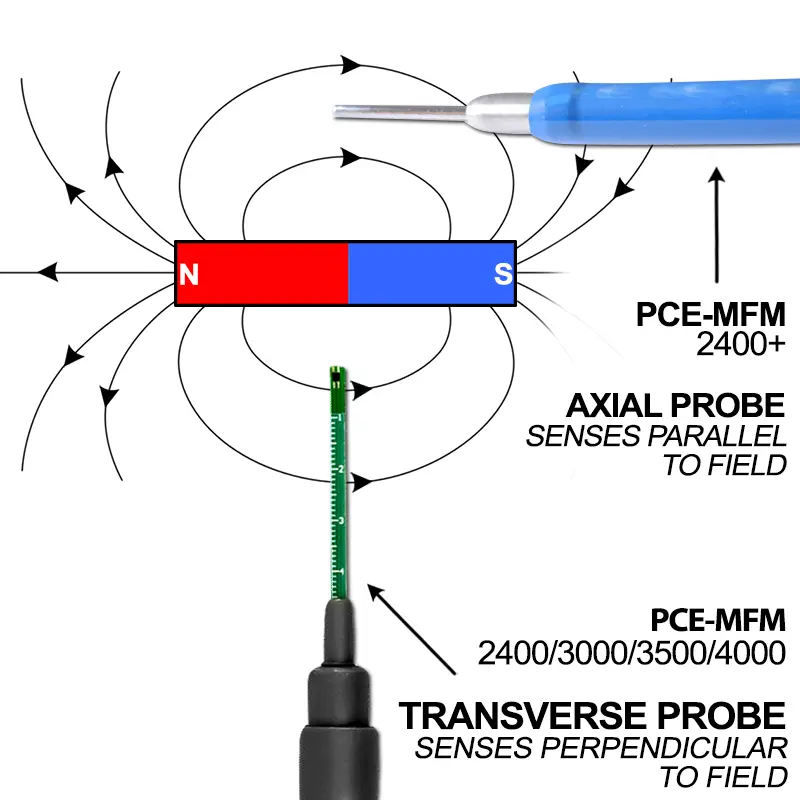

- transverse sensor
- for measuring static magnetic fields
- automatic shutdown

Specification


Measuring range 0… 200 mT
  200… 2,400 mT
  0 ... 2,000 G
  2,000 ... 24,000 G

Accuracy ± 1% of reading

Resolution 0.01 mT
  0.1 g

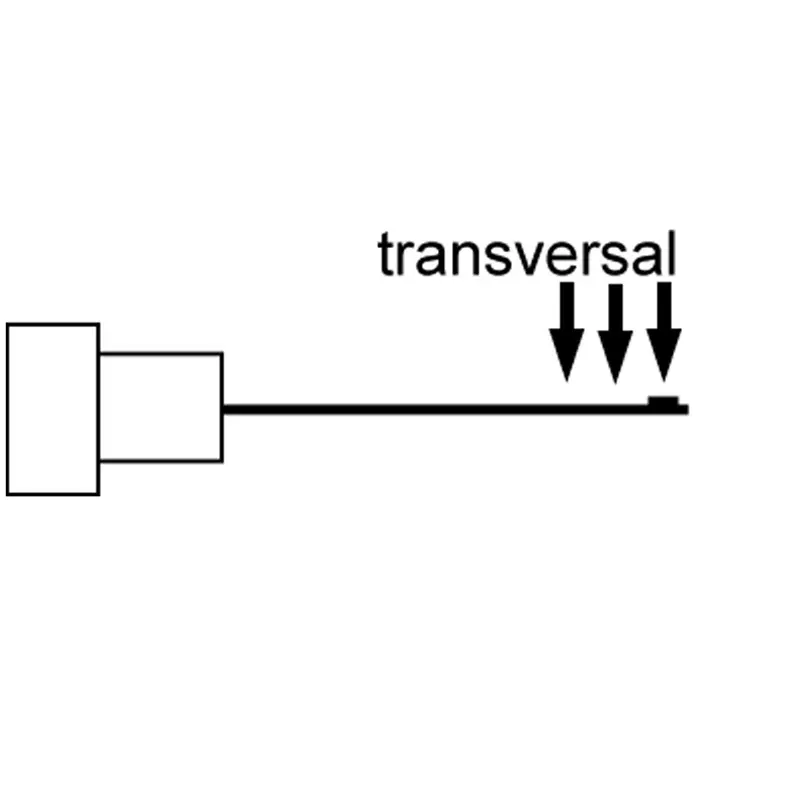

Measuring direction transversal
Magnetic field static (DC)
Unit mT, G
Power supply 1 x 9 V block battery
Automatic shutdown    Automatic shutdown after 5 minutes in idle status
Modes
Hold mode, measurement mode

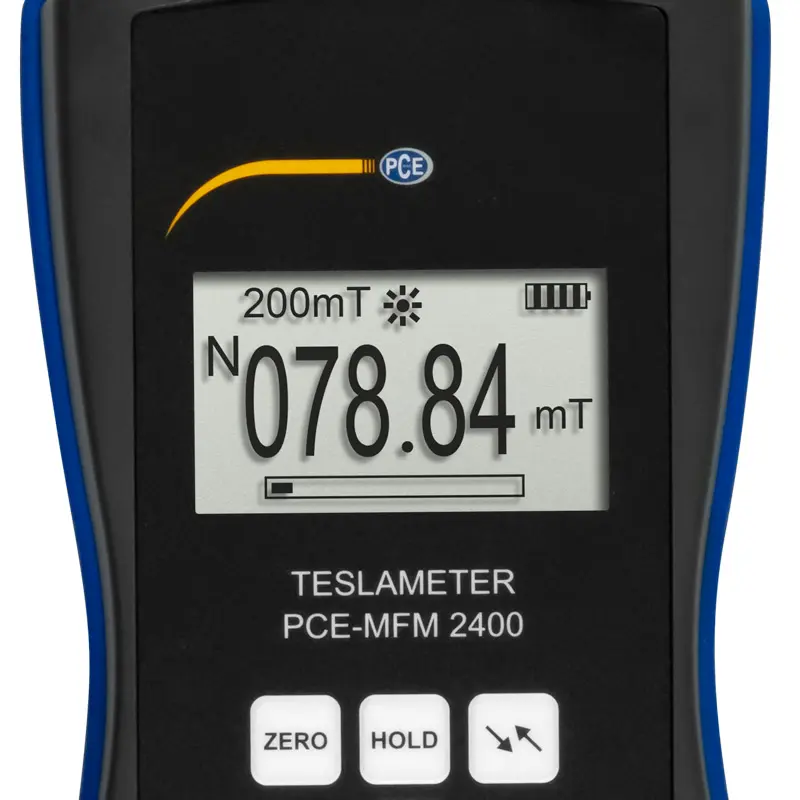

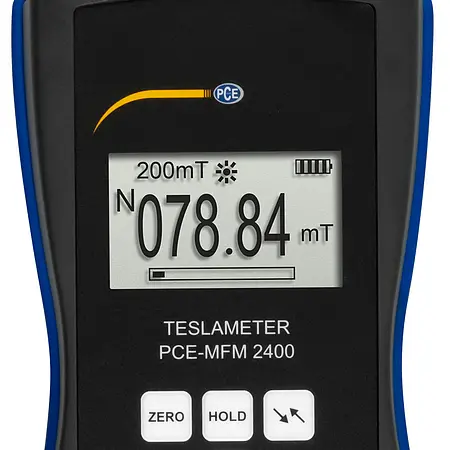

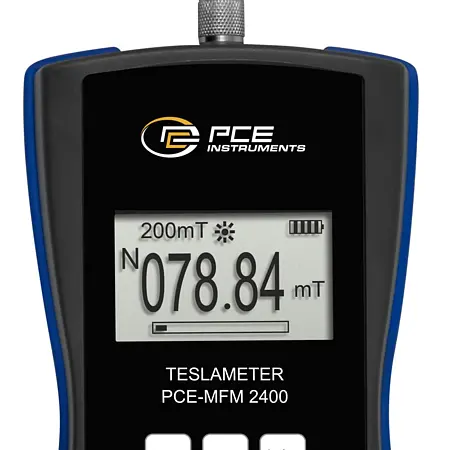

Display
Backlight digital 4-digit value display
Operating temperature 32 ... 122 ° F, 0… +50 ° C
storage temperature -4 ... 122 ° F, -20… +50 ° C
Dimensions 7.28 x 3.82 x 1.57 inch; 185 x 97 x 40 mm
Weight 0.68 lb, 310 g

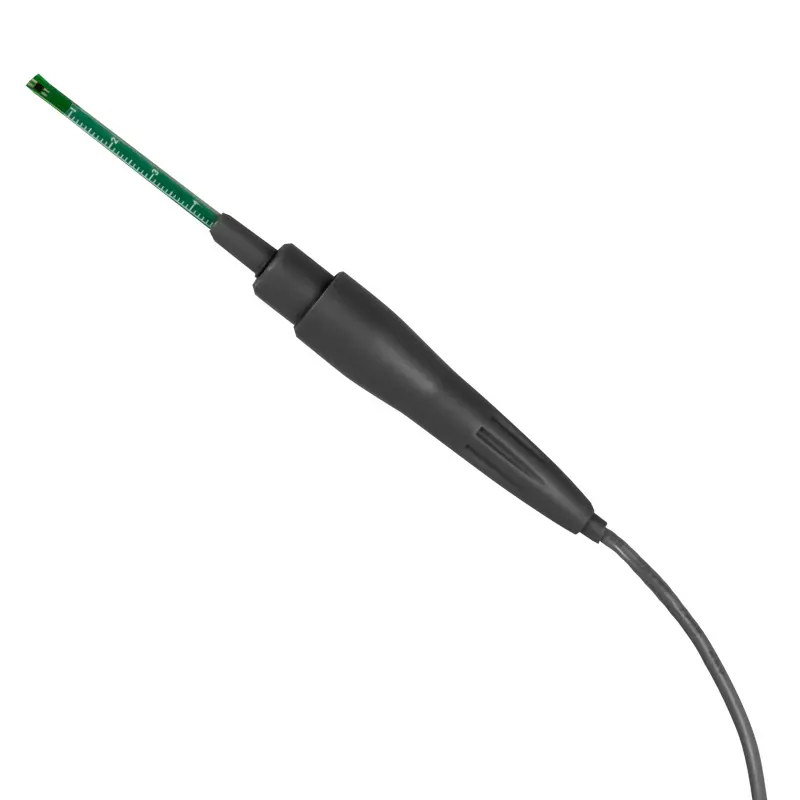

sensor Hall sensor transversal, cable length approx. 3.28 ft., 1 m

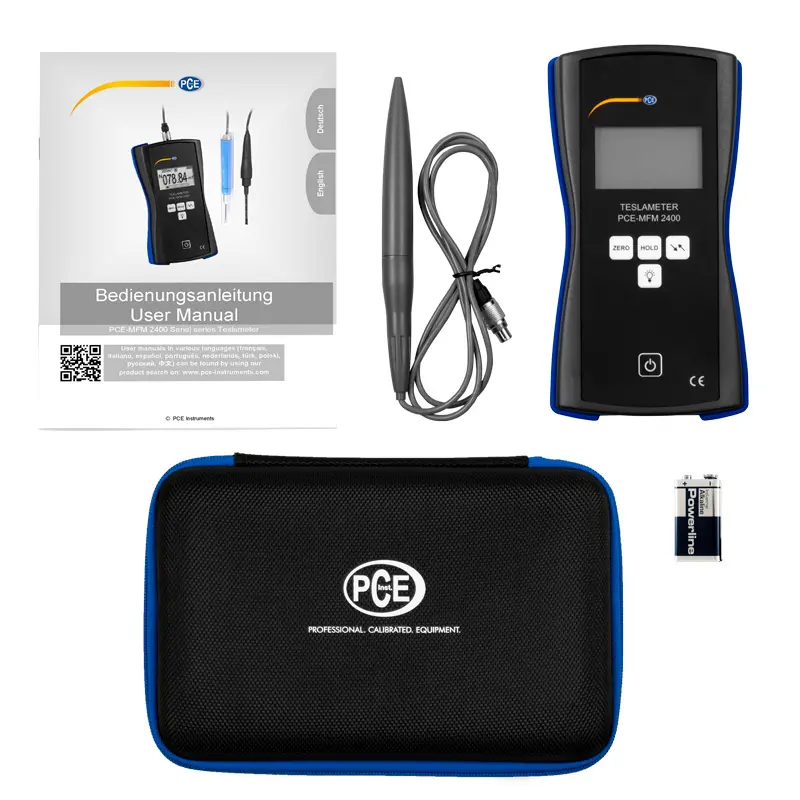

Delivery Scope

1 x Magnetometer PCE-MFM 2400
1 x Hall sensor (transverse)
1 x service bag
1 x 9 V block battery
1 x instruction manual
